a milk tea cup

technical field

The utility model belongs to the technical field of milk tea cups, in particular to a milk tea cup.

Background technique

As the name suggests, a milk tea cup is a cup for containing milk tea. When the cups in existing milk tea shops are in use, most of the cups are brewed and poured into the milk tea cup, then covered with a milk tea cover and put into a plastic bag, and finally put the outer Put the straw into the plastic bag to complete the overall packaging, which is convenient for customers to carry. Customers also drink directly. Because the temperature of milk tea is different, so there is a paper cup ring with a handle, which is socketed. On the outer periphery of the milk tea cup, customers can carry and use it by pressing the handle, reducing the amount of plastic bag packaging, but the handle and cup ring of this kind of cup ring are integrated, which leads to the use in milk tea shops. Because the handle The prominence of it leads to inconvenient placement, increases the occupied space, and affects the overall packaging speed, so it is inconvenient to use and needs to be improved.

Therefore for this present situation, it is urgent to design and produce a kind of milk tea cup, to meet the needs of actual use.

Utility model content

The purpose of this utility model is to provide a milk tea cup to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions: a milk tea cup, comprising a milk tea cup body and a milk tea cup cover, the top of the milk tea cup body is clamped with a milk tea cup cover, and the outer peripheral middle part of the milk tea cup body is integrated A concave ring groove is formed, and an outer ring is nested in the inner cavity of the concave ring groove, and a connecting handle is connected to the outer peripheral side of the outer ring, and a suction pipe is arranged in the inner cavity of the connecting handle, and the connecting handle A connecting hook is integrally formed on the outer wall of the side close to the outer ring, and the connecting handle is snapped into the outer wall through the connecting hook. sheet, and the side of the folded sheet away from the outer ring is bonded with an adhesive part, and the straw is bonded on the adhesive part.

Preferably, the connecting handle has a triangular cross-section, and two symmetrically distributed connecting hooks are adhered to the side of the connecting handle close to the outer ring.

Preferably, the outer ring includes two annular interlayers, and one of the annular interlayers is located in the inner circumference of the other annular interlayer, and a plurality of connection blocks distributed in an annular array are bonded between the two annular interlayers, the The connecting hook is plugged between the two annular interlayers.

Preferably, a docking and fixing cavity is provided between the two connecting hooks, and the connecting block of the outer ring is inserted into the docking and fixing cavity.

Preferably, the outer ring and the connecting handle are respectively an outer ring made of hard paper and a connecting handle made of hard paper.

Preferably, the connection hook is a connection hook made of PC plastic.

The technical effects and advantages of the present utility model: the milk tea cup is provided with an outer sleeve ring outside the milk tea cup body, the overall thickness is relatively low, and does not affect the stacking and storage of the milk tea cup body; , through the connection hook to connect from the lower side, it is easy to assemble and takes up less space; with the adhesive part, it is convenient to store the connection handle and the straw together, reducing the impact on the existing milk tea packaging steps, To ensure the overall packaging efficiency, the milk tea cup can be carried by the outer ring and the connecting handle instead of the plastic bag, reducing plastic pollution, and the overall combination is convenient, and there are fewer steps that affect the existing milk tea packaging, and it is convenient to use.

Description of drawings

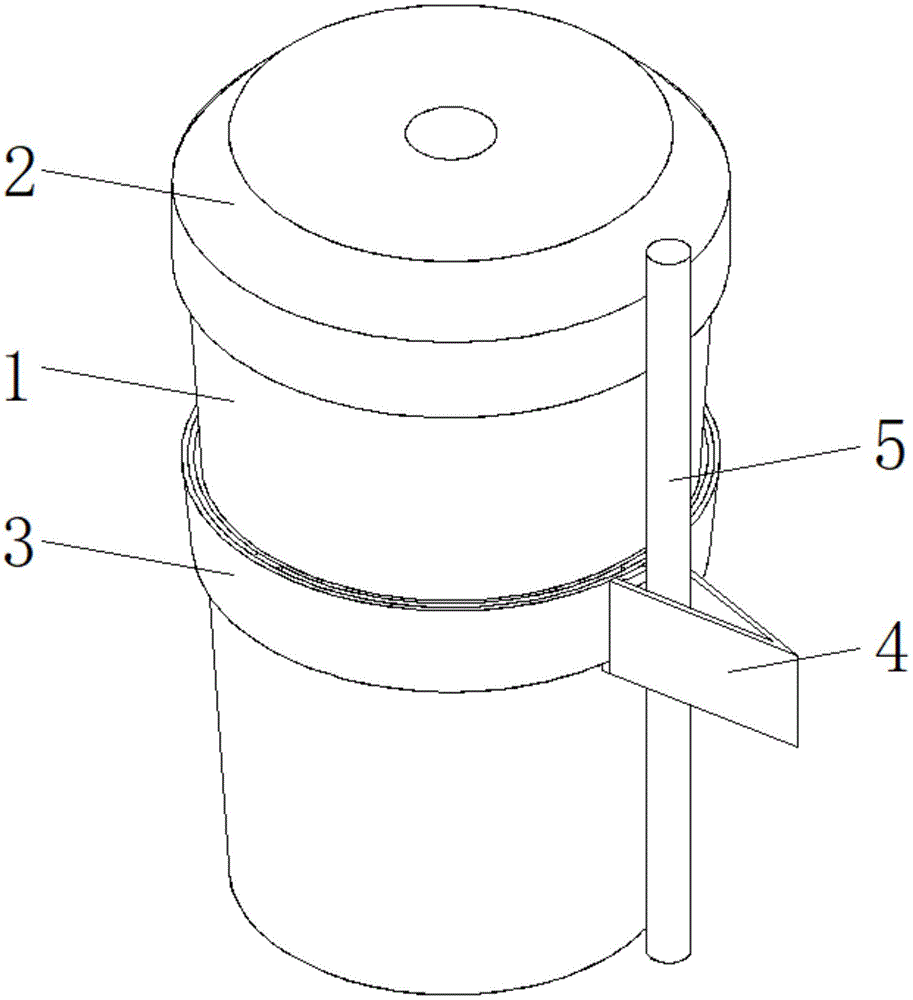

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the connection handle of the present utility model;

Fig. 3 is a cross-sectional view of the milk tea body of the present invention.

In the figure: 1 milk tea cup body, 2 milk tea cup lid, 3 outer ring, 4 connection handle, 5 straw, 6 connection hook, 7 folding sheet, 8 adhesive part.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Unless defined separately, the directions of up, down, left, right, front, back, inside and outside referred to herein are up, down, left, right, front, Rear, inner and outer directions shall prevail, which shall be explained here together.

The utility model provides a milk tea cup as shown in Figure 1-3, comprising a milk tea cup body 1 and a milk tea cup cover 2, the top of the milk tea cup body 1 is clamped with a milk tea cup cover 2, and the milk tea cup body 1 is integrally formed with a concave ring groove in the middle of the periphery, and an outer ring 3 is nested in the inner cavity of the concave ring groove. The main body 1 is stacked and placed, and the outer ring 3 with limited thickness can be fixed on the outer periphery of the milk tea cup body 1 by bonding without affecting the stacking, so that it is convenient to directly replace the existing milk tea cup body 1. Utilization, and the paper outer ring 3 is conducive to recycling and degradation, and improves the environmental protection effect.

The peripheral side of the outer jacket ring 3 is connected with a connection handle 4, and the connection handle 4 is connected with the outer jacket ring 3 through a connection hook 6. As mentioned above, when packing milk tea in a milk tea shop, more staff members will put the milk tea body 1 and the outer ring 3 are assembled to reduce the packaging efficiency of milk tea. It is the best choice to directly fix the outer ring 3 on the milk tea cup body 1 without affecting the stacking and storage of the milk tea body 1. On this basis , the connection handle 4 and the outer ring 3 are separately set, which is convenient for storage and use.

The inner cavity of the connection handle 4 is provided with a suction pipe 5, and the suction pipe 5 is fixed in the connection handle 4, so that the last step of packing the milk tea is put into the suction pipe 5, and the connection handle 4 with the suction pipe 5 is changed from bottom to bottom. The upper clip is connected to the outer ring 3, and the steps are similar, which will not cause extra steps, affect the packaging efficiency, and are easy to use.

A connecting hook 6 is integrally formed on the outer wall of the connecting handle 4 close to the outer ring 3, and the connecting handle 4 is engaged with the outer ring 3 through the connecting hook 6, and the outer wall of the connecting handle 4 is close to the outer ring 3. A folded sheet 7 with creases is bonded on the top, and a bonding portion 8 is bonded to the side of the folded sheet 7 away from the outer ring 3, the straw 5 is bonded to the bonding portion 8, and the straw 5 is fixed on the connecting portion. In the handle 4, when carrying, pass through the connecting handle 4 with your fingers or directly press the connecting handle 4 to carry it by hand, which is convenient to use, and the top of the connecting hook 6 close to the side of the straw 5 can also be integrally injection molded Elastic projections are used to fix the connection handle 4 and improve the connection strength between the connection handle 4 and the outer ring 3 .

Specifically, the connecting handle 4 has a triangular cross-section, and two symmetrically distributed connecting hooks 6 are adhered to the side of the connecting handle 4 close to the outer ring 3, which is convenient for hand-held or finger-hooked use.

Specifically, the outer ring 3 includes two annular interlayers, and one of the annular interlayers is located in the inner circumference of the other annular interlayer, and a plurality of connecting blocks distributed in an annular array are bonded between the two annular interlayers, so The connection hook 6 is plugged between the two annular interlayers, and the connection handle 4 is connected and fixed.

Specifically, a docking and fixing cavity is provided between the two connecting hooks 6, and the connection block of the outer outer ring 3 is inserted into the docking and fixing cavity to increase the friction strength and improve the friction between the outer ring 3 and the connecting handle 4. connection strength between them.

Specifically, the outer ring 3 and the connection handle 4 are respectively a hard paper outer ring and a hard paper connection handle, which are convenient for later degradation and reduce pollution.

Specifically, the connecting hook 6 is a connecting hook made of PC plastic. The temperature of the milk tea is different from that of the outside, and it is easy to condense liquid on the milk tea cup body 1 to wet the connecting hook 6 in winter and other environments. The plastic structure is easy to cause the joint to soften, and the strength decreases rapidly, which makes the connection strength drop. The plastic structure is used at the connection hook 6 to improve the overall strength.

The working principle of this milk tea cup is to take out the stacked milk tea body 1 together with the outer jacket ring 3, and then after brewing the milk tea, close the milk tea cup lid 2, and then take out the habit 5 with the connecting handle 4, Then from the lower side upwards, connect the connecting hook 6 between the two annular interlayers of the outer ring 3 to realize the connection and fixation, and the customer can hold and use it through the connecting handle 4, and reduce the direct contact with the wall of the milk tea cup The probability of contact, and does not affect the existing packing sequence, easy to carry and use.

Finally, it should be noted that: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model, although the utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements on some of the technical features. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model, All should be included within the protection scope of the present utility model.

Claims (6)

1. A milk tea cup, comprising a milk tea cup body (1) and a milk tea cup cover (2), characterized in that: a milk tea cup cover (2) is clamped on the top of the milk tea cup body (1), and the milk tea cup The middle part of the outer circumference of the body (1) is integrally formed with a concave ring groove, and an outer ring (3) is nested in the inner cavity of the concave ring groove, and a connection handle (4) is connected to the outer peripheral side of the outer ring (3). ), the inner cavity of the connection handle (4) is provided with a suction pipe (5), and a connection hook (6) is integrally formed on the outer wall of the connection handle (4) close to the outer ring (3), the connection The handle (4) is clamped with the outer ring (3) through the connecting hook (6), and the outer wall of the connecting handle (4) close to the outer ring (3) is bonded with a folded piece (7) with a crease ), and the side of the folded sheet (7) away from the outer ring (3) is bonded with a bonding portion (8), and the straw (5) is bonded to the bonding portion (8). 2. A milk tea cup according to claim 1, characterized in that: the cross-section of the connection handle (4) is triangular, and the side of the connection handle (4) close to the outer ring (3) is bonded with Two connection hooks (6) that are symmetrically distributed. 3. A kind of milk tea cup according to claim 1, characterized in that: said outer ring (3) comprises two annular interlayers, and wherein one annular interlayer is located in the inner circumference of the other annular interlayer, and the two annular interlayers A plurality of connection blocks distributed in an annular array are bonded between the interlayers, and the connection hooks (6) are inserted between the two annular interlayers. 4. A milk tea cup according to claim 2, characterized in that: a docking and fixing cavity is provided between the two connecting hooks (6), and the connecting block of the outer ring (3) is plugged in Butt fixed cavity. 5. A milk tea cup according to claim 1, characterized in that: the outer ring (3) and the connection handle (4) are respectively a hard paper outer ring and a hard paper connection handle. 6. A milk tea cup according to claim 1, characterized in that: the connection hook (6) is a connection hook made of PC plastic.
