Abstract

The utility model discloses a full-automatic tree whitening machine, which comprises a mobile platform, and an opening and closing mechanism, a liquid supply mechanism, a lifting mechanism, and a double-executing end spraying mechanism arranged on the upper part of the mobile platform. The opening and closing mechanism includes an opening and closing motor , the left connecting wall, the right connecting wall, the upper part of the rear side wall of the left connecting wall is provided with a left balance slider, the left balancing guide rail, and the lower rack, and the right connecting wall is provided with a right balancing guide rail, a right The structural design of the balanced slider, the upper rack, and the embedded double execution end can effectively increase the spraying range, reduce the dead angle of spraying, and achieve the purpose of complete spraying. Through the selection and optimization of the closed wall structure of the opening and closing module, the reduction The hazards of liquid splash and contact between the operator and the liquid are eliminated. Through the addition of sensors and control systems, the degree of automation of the product is improved, the distance between the spraying device and the tree is positioned more accurately, the spraying efficiency is greatly improved, and the loss of liquid is reduced.

Description

A fully automatic tree whitening machine

technical field

The utility model relates to the technical field of tree whitening machines, in particular to a fully automatic tree whitening machine.

Background technique

Tree trunk whitening refers to a green and environmentally friendly control method that uses different formulas to make whitening agents and smears them on the base of tree trunks according to the purpose of prevention and control. , South painted white 2 times. According to the latest data from Hebei Province, the province's forest coverage rate has increased from 31% at the beginning of the "13th Five-Year Plan" to 35%, and the forest stock volume has increased from 144 million cubic meters to 175 million cubic meters. The number of whitened trees will increase from 46,000 in 2018 to nearly 100,000 in 2021. It can be seen that the traditional whitening method needs to be improved urgently, and the current market whitening machine cannot meet the needs of tree whitening. The development of new whitening machines is imminent. Traditional whitening The method is to dip the whitening agent with a hand-held brush or spray it with a sprayer. There are problems such as high work intensity, low work efficiency, and uneven quality, and it is easy to come into contact with harmful chemicals and endanger the health of workers. At present, there are many types of whitening machines on the market, all of which are extended-type whitening machines, and the whitening work is still mainly done manually.

1. Bottleneck factors of whitening trees in my country

According to the analysis of big data, the distribution of trees in my country is extremely wide, and the species are diverse. The diameters of trees vary due to different species and planting years. Even the same tree in the same place presents different shapes from top to bottom. Generally speaking, the trees on both sides of the urban roads are relatively straight and thick, while the trees in the green belt are thin and inclined. Theoretically speaking, the spraying device needs to actively adapt to the irregular changes in the diameter of the tree. The current technology can realize it, but the cost is high, the operation is complicated, and the workers need long-term training before using it, which greatly restricts the tree whitening machine. The scope of application and economical practicability; the size of the whitening machine also restricts the development of automatic tree whitening in my country. The large machine is heavy and heavy, although it has more liquid, but the battery life is poor, and the small machine has less liquid. , strong battery life, but it takes a long time to fill the liquid multiple times. At present, the above-mentioned problems basically exist in the tree whitening machines in my country. At present, the tree whitening is still mainly manual, and the mechanization is greatly restricted.

2. Analysis of the status quo of tree whitening technology in my country

1) The scope of application is small.

At present, non-adjustable whitening machines have a wide range of applications, and are mainly used to spray trees that grow more regularly on both sides of the road. However, in practical applications, it is often encountered that the trunk has a large bend, many branches, and a large difference in diameter, etc., which are beyond the size adjustment range of the non-adjustable whitening machine. In addition, the diameters of the mechanical arms and open cylindrical sleeves of most spraying devices cannot be adjusted. In actual spraying, only the pressure of liquid spraying can be controlled to adapt to trees of different diameters, resulting in more consumption of spraying liquid and affecting spraying efficiency and effect. . And shrub trees hardly have applicable whitening machines.

2) There are defects in the whitening machine.

Some urban greening trees will be fixed and protected by fences, but the width and height of the fences are not uniform. Currently, the whitening equipment in the market cannot make corresponding adjustments according to the size of the fences. You can only choose to spray trees outside the fences. There are also some trees planted on the sidewalk or the isolation belt in the middle of the road, which is inconvenient to work due to walking obstacles. However, in the design, these factors are often not considered sufficiently, resulting in that the machine cannot be adjusted in time according to different environmental conditions, and it is difficult to implement spraying and affect the spraying effect.

3) The machine manufacturing process is complicated and the economic benefit is low.

Although the non-adjustable whitening machine and the adjustable whitening machine have high spraying efficiency and good spraying effect, the manufacturing process is complicated, and general enterprises cannot manufacture on a large scale, the spraying cost is high, and it is easy to be restricted by terrain. At present, hand-held electric sprayers are widely used in the market, and their cost is far lower than that of non-adjustable whitening machines and adjustable whitening machines. They can adapt to complex terrain and have high flexibility. There is less liquid in reserve, so it is not suitable for long-term spraying; the spraying pipe is easy to block, and it takes multiple sprays to completely spray a tree, resulting in a lot of liquid waste.

Aiming at the problems in the related technologies, no effective solution has been proposed yet.

Utility model content

Aiming at the problems in the related technologies, the utility model proposes a fully automatic tree whitening machine to overcome the above-mentioned technical problems in the existing related technologies.

For this reason, the concrete technical scheme that the utility model adopts is as follows:

A fully automatic tree whitening machine, including a mobile platform, and an opening and closing mechanism, a liquid supply mechanism, a lifting mechanism, and a double-executing end spraying mechanism arranged on the upper part of the mobile platform. The opening and closing mechanism includes an opening and closing motor, a left connecting wall , The right connecting wall, the upper part of the rear side wall of the left connecting wall is provided with a left balance slider, a left balancing guide rail, and a lower rack, and the right connecting wall is provided with a right balancing guide rail, a right balancing slider, an upper Racks, and the left and right connecting walls are provided with L-shaped guards on the outer walls to form a surrounding wall. The inner walls of the two L-shaped guards are provided with symmetrical lifting mechanisms and double-executive end spraying mechanism, the output end of the opening and closing motor is provided with a gear, and the left connecting wall and the right connecting wall are fixed at the tail end of the mobile platform through the connecting guide rails of the front and rear support plates.

As a further solution of the present utility model, the liquid supply mechanism includes a lime slurry storage tank, a stirring motor is arranged on the top of the lime slurry storage tank, and a stirring blade is provided at the output end of the stirring motor through a rotating rod. The bottom side wall of the lime slurry storage tank is connected to the water inlet of the pump through a hose, and the water outlet of the pump is respectively connected to the two double-executing end spraying mechanisms through two spring tubes.

As a further solution of the utility model, the lifting mechanism includes a supporting end, a lifting motor, and a fixed end, a screw rod is arranged between the supporting end and the fixed end, and a lifting motor is arranged on the top of the fixed end, and the lifting motor The output end is connected with the screw rod through a coupling, on which a nut workbench is screwed, and the nut workbench moves up and down on the screw rod, and a double-executing-end spraying mechanism is set on the nut workbench.

As a further solution of the present utility model, the lifting motor drives the screw to rotate, since the nut workbench is screwed on the screw rod, and the nut workbench is limited by the frames on both sides, that is, the nut workbench is carried out on the screw rod. Move up and down.

As a further solution of the present utility model, the double-executing end spraying mechanism includes a U-shaped frame, and a plurality of spray heads are arranged inside the U-shaped frame through a connecting pipe, and the connecting pipe is connected with the spring pipe.

As a further solution of the utility model, the supporting parts of the overall mechanism are composed of several aluminum profiles, square tubes, and angle steel support frames.

The beneficial effects of the utility model are: the design of the double-spraying execution end structure greatly improves the spraying efficiency, the spraying range is large, and the problem of incomplete spraying is effectively solved; the design of the sealed wall reduces liquid splashing and solves the problem of whitening The whitening machine is controlled by a travel switch to realize the automation of the whitening process. It can reduce the harm caused by the close contact between the human body and chemical substances. The equipment is equipped with hub motors, which makes walking more convenient and improves the battery life of the machine equipment. The operation and installation of the equipment are simple, and the operation is simple, reducing the cost of training personnel; the cost is low , good economic benefits, the structural design of the embedded double execution end can effectively increase the spraying range, reduce the dead angle of spraying, and achieve the purpose of complete spraying. Through the selection and optimization of the closed wall structure of the opening and closing module, the splash of liquid is reduced. The addition of sensors and control systems improves the degree of automation of the product, makes the positioning of the distance between the spraying device and the tree more accurate, greatly improves the spraying efficiency, and reduces the loss of liquid.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only the present invention. For some embodiments of the present invention, those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative efforts.

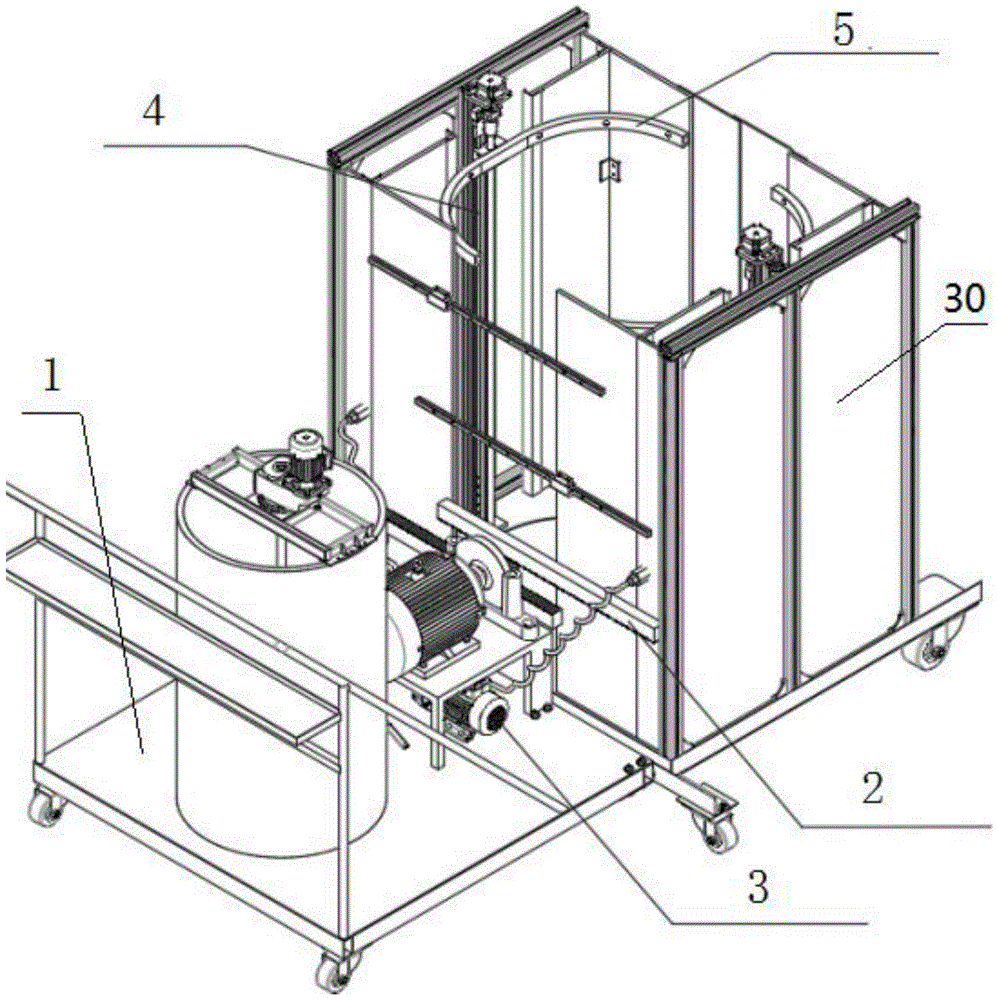

Fig. 1 is a schematic diagram of the overall structure of a fully automatic tree whitening machine according to an embodiment of the present invention;

Fig. 2 is a structural schematic diagram of an opening and closing mechanism of a fully automatic tree whitening machine according to an embodiment of the present invention;

Fig. 3 is a schematic diagram of the connection structure between the gear and the rack of the opening and closing mechanism of a fully automatic tree whitening machine according to an embodiment of the present invention;

Fig. 4 is a top structural schematic diagram of the opening and closing mechanism of a fully automatic tree whitening machine according to an embodiment of the present invention;

Fig. 5 is a side view structural diagram of a liquid supply mechanism of a fully automatic tree whitening machine according to an embodiment of the present invention;

Fig. 6 is a structural schematic diagram of a lifting mechanism of a fully automatic tree whitening machine according to an embodiment of the present invention;

Fig. 7 is a schematic diagram of a three-dimensional structure of a lifting mechanism of a fully automatic tree whitening machine according to an embodiment of the present invention;

Fig. 8 is a schematic structural diagram of a double-executing end spraying mechanism of a fully automatic tree whitening machine according to an embodiment of the present invention.

In the picture:

1. Mobile platform; 2. Opening and closing mechanism; 3. Liquid supply mechanism; 4. Lifting mechanism; 5. Opening and closing motor; 6. Left connecting wall; 7. Right connecting wall; 8. Left balance slider; 9 1. Left balance guide rail; 10. Lower rack; 11. Right balance guide rail; 12. Right balance slider; 13. Upper rack; 14. Gear; 15. Front and rear support plate connecting guide rail; 16. Lime slurry storage tank; 17. Stirring motor; 18. Stirring paddle; 19. Pump; 20. Spring tube; 21. Spraying mechanism with double executive ends; 22. Supporting end; 23. Lifting motor; 24. Fixed end; 25. Screw rod; 26. Nut workbench; 27. U-shaped frame; 28. Nozzle; 29. Coupling; 30. L-shaped guard plate.

Implementation

In order to further illustrate the various embodiments, the utility model provides accompanying drawings, which are a part of the disclosure content of the utility model, which are mainly used to illustrate the embodiments, and can cooperate with the relevant descriptions in the manual to explain the operating principles of the embodiments. With reference to these contents, those skilled in the art should be able to understand other possible implementations and advantages of the present invention. The components in the figures are not drawn to scale, and similar component symbols are generally used to represent similar components.

According to an embodiment of the utility model, a fully automatic tree whitening machine is provided.

Please refer to accompanying drawings 1, 2, 3, and 4 of the description, a fully automatic tree whitening machine according to an embodiment of the present invention, including a mobile platform 1, and an opening and closing mechanism 2 and a liquid supply mechanism 3 arranged on the upper part of the mobile platform 1 , a lifting mechanism 4, a double-execution end spraying mechanism 21, the opening and closing mechanism 2 includes an opening and closing motor 5, a left connecting wall 6, and a right connecting wall 7, and the upper part of the left connecting wall 6 rear side wall is provided with a left Balance slider 8, left balance guide rail 9, lower rack 10, right balance guide rail 11, right balance slider 12, upper rack 13 are arranged on the right connection wall 7, and left connection wall 6, right connection The outer walls of the wall 7 are provided with L-shaped guard plates 30, and form a surrounding wall. The inner walls of the two L-shaped guard plates 30 are provided with symmetrical lifting mechanisms 4 and double-executing end spraying mechanisms 21. The opening and closing The output end of the motor 5 is provided with a gear 14, and the left connecting wall body 6 and the right connecting wall body 7 are fixed on the tail end of the mobile platform 1 through the front and rear support plate connecting guide rails 15, the opening and closing mechanism is manually controlled, and the opening and closing motor rotates forward. The gear transmits the power to the rack, and then drives the one-sided fixed guide rail and the fixed slider to translate left and right, and the bottom plate of the spraying module moves to both sides synchronously with the slider on the sliding guide rail. When the distance between the two universal wheels in the middle When the width of the tree pool is the width of the tree pool, the dual-execution end spraying is manually pushed to a suitable position away from the tree according to the induction of the sensor. According to the actual tree size, the distance between the tree and the edge of the tree pool, etc., the distance between the spraying device and the tree is changed to ensure that the tree is completely clean. For azimuth spraying requirements, after the spraying conditions are met, the motor is manually controlled to reverse, and the front spraying module is closed.

In one embodiment, please refer to the accompanying drawings 1 and 5 of the specification. The liquid supply mechanism 3 includes a lime slurry storage tank 16. A stirring motor 17 is arranged on the top of the lime slurry storage tank 16. The output end of the stirring motor 17 is Stirring paddles 18 are provided through the rotating rod, and the bottom side wall of the lime slurry liquid storage tank 16 is connected to the water inlet of the pump 19 through a hose, and the water outlet of the pump 19 is respectively connected to the two double spring tubes 20 through two spring tubes. The execution end spraying mechanism 21 is connected. Before spraying, press the power switch of the stirring motor to make the stirring blade fully stir the lime slurry liquid for 1 to 2 minutes, and then the lime slurry liquid in the liquid storage tank passes through the self-priming diaphragm pump Extraction, through the three-way liquid separation, transported to the spring tubes on both sides, and transported to the nozzle of the U-shaped frame through the spring tubes.

In another embodiment, please refer to accompanying drawings 1, 6, and 7 of the specification. The lifting mechanism 4 includes a supporting end 22, a lifting motor 23, and a fixed end 24, and a screw rod is arranged between the supporting end 22 and the fixed end 24. 25, the top of the fixed end 24 is provided with a lifting motor 23, the output end of the lifting motor 23 is connected to the screw rod 25 through a coupling 29, and the screw rod 25 is screwed with a nut workbench 26, and the nut works The table 26 moves up and down on the screw mandrel 25, and the double execution end spraying mechanism 21 is arranged on the nut workbench 26, and the lifting motor 23 drives the screw mandrel 25 to rotate. , and the nut table 26 is limited by the frames on both sides, that is, the nut table 26 moves up and down on the screw rod 25. After the opening and closing module is closed, the staff presses the switch of the lifting device controller and fixes it on the sliding table. The lifting motor at the end is driven by the stepper motor driver to rotate, and the power is transmitted to the screw by the coupling, and the screw drives the nut table to reciprocate up and down. The nut table is welded and fixed with the U-shaped frame to ensure its up and down. Reciprocating motion stability, the support end is connected with the bottom plate, which reduces the vibration of the lifting device and ensures the stability of the lifting device.

In another embodiment, please refer to the accompanying drawings 1, 7, and 8 of the specification. The double-executing end spraying mechanism 21 includes a U-shaped frame 27, and a plurality of spray heads 28 are arranged inside the U-shaped frame 27 through a connecting pipe, and the connecting pipe and the connecting pipe are connected to each other. The spring tubes are connected with 20, and the double execution ends are respectively welded and fixed to the two nut workbenches. There are six nozzles at the execution ends of the U-shaped frame on both sides. The angle of -85° is designed according to the principle of cross-spraying and no dead angle in all directions, which improves the spraying efficiency and solves the problem of manual repainting to remove the dead angle if the spraying is not in place.

When in use, the device is moved to the position where the trees need to be sprayed through the mobile platform, the opening and closing motor rotates forward, and the power is transmitted to the rack by the gear, which then drives the unilateral fixed guide rail and the fixed slider to move left and right, and the bottom plate of the spraying module follows The slider on the sliding guide rail moves to both sides synchronously. When the distance between the two universal wheels in the middle is the width of the tree pool, the double-executing end spraying is manually pushed to the appropriate position from the tree according to the induction of the sensor. According to the actual tree Size, the distance between the tree and the edge of the tree pool, etc., change the distance between the spraying device and the tree to ensure the all-round spraying of the tree. After the spraying conditions are met, manually control the motor to reverse, close the front spraying module, and press the stirring motor. The power switch of the power switch makes the stirring blade fully stir the lime slurry liquid for 1 to 2 minutes, and then the lime slurry liquid in the liquid storage tank is extracted by the self-priming diaphragm pump, separated by the three-way, and transported to the spring tubes on both sides. The nozzle that is transported into the U-shaped frame is rotated by the drive of the stepping motor driver, and the power is transmitted to the screw by the coupling, and the screw drives the nut table to reciprocate up and down, and then drives the nozzle to spray the trees up and down. , There are six nozzles at the executive end of the U-shaped frame on both sides. The nozzles adopt a new cross U-shaped high-pressure six nozzle design. Each of the six nozzles controls an angle of 25°-85°. It is designed according to the principle of cross-spraying and no dead angle in all directions. Improve the spraying efficiency and solve the problem that the spraying is not in place and needs to be painted again manually to remove the dead angle.

The above are only preferred embodiments of the utility model, and are not intended to limit the utility model. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the utility model shall be included in the utility model. within the scope of the new protection.

Claims (6)

1. The utility model provides a full-automatic tree whitewashing machine, includes moving platform (1) to and the mechanism (2) that opens and shuts that moving platform (1) upper portion set up, supply liquid mechanism (3), elevating system (4), two execution end spraying mechanism (21), its characterized in that: mechanism (2) opens and shuts is including opening and shutting motor (5), left side connection wall body (6), right side connection wall body (7), left side connection wall body (6) back lateral wall upper portion is provided with left balanced slider (8), left balanced guide rail (9), lower rack (10), be provided with right balanced guide rail (11), right balanced slider (12), go up rack (13) on the right side connection wall body (7), and left side connection wall body (6), right side connection wall body (7) lateral wall all are provided with L type backplate (30), and form one and encircle the wall body, two L type backplate (30) inside wall is provided with elevating system (4) and two execution end spraying mechanism (21) of symmetry, motor (5) output opens and shuts is provided with gear (14), left side connection wall body (6), right side connection wall body (7) are connected guide rail (15) around the backup pad and are fixed at moving platform (1) tail end.

2. The full-automatic tree whitewashing machine of claim 1, characterized in that: the liquid supply mechanism (3) comprises a lime slurry storage barrel (16), a stirring motor (17) is arranged at the top end of the lime slurry storage barrel (16), the output end of the stirring motor (17) is provided with stirring blades (18) through a rotating rod, the side wall of the bottom end of the lime slurry storage barrel (16) is connected with a water inlet of a pump (19) through a hose, and a water outlet of the pump (19) is respectively connected with two double-execution-end spraying mechanisms (21) through two spring pipes (20).

3. The full-automatic tree whitewashing machine of claim 1, characterized in that: elevating system (4) are including supporting end (22), elevator motor (23), stiff end (24), be provided with lead screw (25) between support end (22) and stiff end (24), stiff end (24) top is provided with elevator motor (23), elevator motor (23) output is connected with lead screw (25) through shaft coupling (29), it has nut workstation (26) to twist on lead screw (25) and connect, and nut workstation (26) up-and-down motion on lead screw (25), set up two execution end spraying mechanism (21) on nut workstation (26).

4. The full-automatic tree whitewashing machine of claim 3, characterized in that: the lifting motor (23) drives the screw rod (25) to rotate, and the nut workbench (26) is screwed on the screw rod (25) and limited by the frames on the two sides, namely the nut workbench (26) moves up and down on the screw rod (25).

5. The full-automatic tree whitewashing machine of claim 1, characterized in that: the double-execution-end spraying mechanism (21) comprises a U-shaped frame (27), wherein a plurality of spray heads (28) are arranged inside the U-shaped frame (27) through communicating pipes, and the communicating pipes are communicated with the spring pipes (20).

6. The full-automatic tree whitewashing machine of claim 1, characterized in that: the supporting part of the whole mechanism is composed of a plurality of aluminum profiles, square tubes and angle steel supporting frames.
