A multifunctional electrical automation console

technical field

The utility model relates to the field of numerical control, in particular to a multifunctional electric automation console.

Background technique

The application of automation control system is more and more extensive, especially in industrial production, the automation control system has even become an indispensable part, because the automation control system can complete complex control tasks, realize the control of different production parameters, working parameters It can be adjusted with the change of the produced product or process, so it can greatly improve the production efficiency and reduce the production cost. The automation control system is inseparable from the console. The existing electrical automation console includes the following main parts: capable of storing Information and a controller capable of logical operations, capable of output control, etc.

For example, the multi-functional electrical automation console with the authorized patent number CN213938502U in China, this embodiment uses the positioning plate provided, and the positioning plate drives the wheels to quickly contact or move away from the ground through the extrusion of the hydraulic cylinder, thereby improving the retractability of the wheels. Speed, through the set positioning piece, the positioning plate squeezes the positioning piece so that the positioning piece can fix the positioning plate when the wheels touch the ground, thereby improving the stability of the electric automation console when moving, but the above scheme is in use. The console cannot be raised and lowered and hidden in the box. After a long time, it will cause a lot of dust, damage the mechanical components, and shorten the service life of the equipment. There is no heat dissipation device in the box, and the heat generated by the motor circuit cannot be dissipated in time, which is likely to cause safety hazards.

Therefore, it is necessary to provide a new multifunctional electrical automation console to solve the above technical problems.

Utility model content

In order to solve the above technical problems, the utility model provides an electric automation console that can prolong the service life of the equipment.

The utility model provides a multifunctional electrical automation console, comprising a bottom box, a lifting mechanism and a heat dissipation mechanism, the top of the bottom box is fixedly connected with an equipment box; the lifting mechanism is arranged in the inner cavity of the bottom box, and the lifting mechanism It includes a first motor, a threaded sleeve and a threaded rod, the output end of the first motor is fixedly connected with a threaded sleeve, and the inner wall of the threaded sleeve is threaded with a threaded rod; the heat dissipation mechanism is arranged on one side of the bottom box, and the The heat dissipation mechanism includes a second motor and a fan, and the output end of the second motor is fixedly connected with a fan.

In order to achieve the effect of improving the lifting stability of the lifting plate, a multifunctional electric automation console is provided as the utility model. Preferably, the top of the threaded rod is fixedly connected with a lifting plate, and the bottom of the lifting plate is fixedly connected with a slide bar. A casing is slidably connected to the outer side of the slide bar, and the bottom of the casing is fixedly connected to the bottom of the inner cavity of the bottom box.

In order to achieve the effect that the lifting plate drives the control display platform to lift, a multifunctional electric automation console is provided as the utility model. Preferably, the top of the lifting plate is provided with a control display platform, and the top of the control display platform is fixedly connected with a sleeve plate.

In order to achieve the effect of conveniently pushing and pulling the telescopic board, the utility model provides a multifunctional electrical automation console. Preferably, the inner wall of the cover board is slidably connected with a telescopic board, and the top of the telescopic board is provided with a push-pull rod.

In order to achieve the effect of improving the sliding stability of the telescopic board, the utility model provides a multi-functional electrical automation console, preferably, the outer side of the telescopic board is provided with a track, and the inner wall of the sleeve board is provided with a chute.

In order to achieve the effect of fixing the second motor and blocking dust, as the utility model provides a multifunctional electrical automation console, preferably, the outside of the second motor is fixedly connected with a fixing frame, and the outside of the fixing frame is fixedly connected with a ventilation pipe, and one end of the ventilation pipe is provided with a dust-proof net.

In order to achieve the effect of effectively discharging the heat in the bottom box and fixing the cooling mechanism, the utility model provides a multifunctional electrical automation console. Preferably, one side of the bottom box is provided with a ventilation hole, and one side of the bottom box The side is fixedly connected with a fixed plate.

In order to achieve the effect of effective control operation, as the utility model provides a kind of multifunctional electrical automation console, preferably, the top of the bottom box is provided with a control box, the outside of the control box is fixedly connected with the inner wall of the equipment box, and the The top of the control box is provided with a controller.

In order to achieve the effect of convenient maintenance of the equipment in the bottom box, as the utility model provides a multifunctional electrical automation console, preferably, one side of the bottom box is provided with a flap, and one side of the flap is fixedly connected with a first handle.

In order to achieve the effect of conveniently covering the equipment box to prevent dust at the end of use, as the utility model provides a multifunctional electrical automation console, preferably, the top of the equipment box is provided with a cover plate, and the top of the cover plate is fixedly connected There is a second handle, and bases are provided at the four corners of the bottom of the bottom box.

Compared with the prior art, the beneficial effects of the utility model are:

The multi-functional electrical automation console, by setting the lifting mechanism, can make the height of the control display stand rise and fall freely, rise up during use, and drop into the box after the end, and set the heat dissipation mechanism, and the second motor can drive the fan to move the box. The heat in the body is extracted and discharged to the outside of the box, which effectively solves the problem that the console cannot be lifted and hidden in the box during the use of some devices. After a long time, it will cause a lot of dust, damage the mechanical components, and shorten the service life of the equipment. There is no heat dissipation device in the body, and the heat generated by the motor circuit cannot be dissipated in time, which is likely to cause potential safety hazards.

Description of drawings

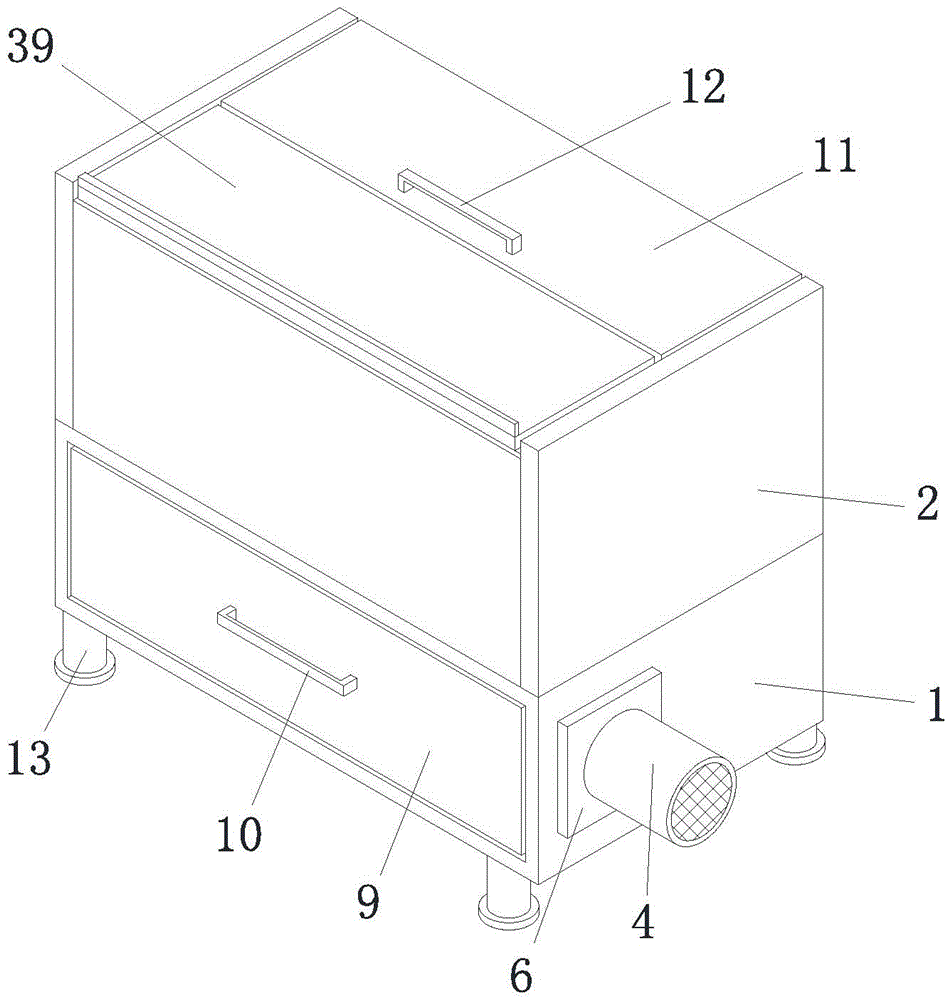

Fig. 1 is the structural representation of a kind of preferred embodiment of the multifunctional electrical automation console that the utility model provides;

Fig. 2 is a schematic structural view of the inner cavity of the equipment box shown in Fig. 1;

Fig. 3 is the structural representation of Fig. 2 lifting mechanism;

Fig. 4 is a structural schematic diagram of the inner cavity of the casing shown in Fig. 3;

FIG. 5 is a schematic structural diagram of the heat dissipation mechanism shown in FIG. 1 .

Symbols in the figure: 1, bottom box; 2, equipment box; 3, lifting mechanism; 31, first motor; 32, threaded sleeve; 33, threaded rod; 34, lifting plate; 35, sliding rod; 36, bushing; 37. Control display console; 38. Cover plate; 39. Telescopic plate; 310. Push-pull rod; 311. Track; 312. Chute; 4. Heat dissipation mechanism; 41. Ventilation pipe; 42. Fixed frame; ;44, fan; 45, dust-proof net; 5, ventilation hole; 6, fixed plate; 7, control box; 8, controller; 9, flap; 10, first handle; 11, cover plate; Two handles; 13, the base.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present utility model. It can be understood that the drawings are only for reference and description, and are not intended to limit the present utility model. The connection relationship shown in the drawings is only for the convenience of clear description, and does not limit the connection mode.

It should be noted that when a component is considered to be "connected" to another component, it may be directly connected to the other component, or there may be intervening components at the same time. Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the technical field of this invention. It should also be noted that unless otherwise specified and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection, a detachable connection, or an integral connection ; It can be a mechanical connection or an electrical connection, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations. The terminology used in the description of the utility model herein is only for the purpose of describing specific embodiments, and is not intended to limit the utility model.

Please refer to Fig. 1, Fig. 2, Fig. 3, Fig. 4 and Fig. 5 in conjunction, wherein Fig. 1 is a structural schematic diagram of a preferred embodiment of the multifunctional electrical automation console provided by the utility model; Fig. 2 is a schematic diagram of Fig. 1 Fig. 3 is a schematic structural diagram of the lifting mechanism shown in Fig. 2; Fig. 4 is a schematic structural diagram of the inner cavity of the cover plate shown in Fig. 3; Fig. 5 is a schematic structural diagram of the cooling mechanism shown in Fig. 1. A multi-functional electric automation console comprises a bottom box 1, and an equipment box 2 is fixedly connected to the top of the bottom box 1.

In the specific implementation process, as shown in Figure 1, Figure 2, Figure 3 and Figure 4, the lifting mechanism 3 is arranged in the inner cavity of the bottom box 1, and the lifting mechanism 3 includes a first motor 31, a threaded sleeve 32 and a threaded rod 33, The output end of the first motor 31 is fixedly connected with a threaded sleeve 32 , and the inner wall of the threaded sleeve 32 is threaded with a threaded rod 33 .

The top of the threaded rod 33 is fixedly connected with a lifting plate 34, the bottom of the lifting plate 34 is fixedly connected with a slide bar 35, the outer side of the slide bar 35 is slidingly connected with a sleeve 36, and the bottom of the sleeve 36 is fixedly connected with the bottom of the inner cavity of the bottom box 1 .

The top of the lifting plate 34 is provided with a control display stand 37, and the top of the control display stand 37 is fixedly connected with a cover plate 38.

A telescopic board 39 is slidably connected to the inner wall of the sleeve board 38 , and a push-pull rod 310 is arranged on the top of the telescopic board 39 .

A track 311 is provided on the outer side of the telescopic board 39 , and a sliding groove 312 is provided on the inner wall of the sleeve board 38 .

It should be noted that: in the lifting mechanism 3, the first motor 31 is set to drive the threaded sleeve 32 to rotate, and the rotation of the threaded sleeve 32 causes the threaded rod 33 to rise and fall, and the lifting plate 34 will rise and fall accordingly. By setting the slide bar 35 and Sleeve 36 can improve the stability of lifting plate 34 lifting, control operation display can be checked by setting control display stand 37, expansion plate 39 can be hidden by setting cover plate 38, and expansion plate 39 can be extracted after control display stand 37 falls by setting Covering the control box 7, it is convenient for the user to push and pull the telescopic plate 39 by setting the push-pull rod 310, and the sliding stability of the telescopic plate 39 can be improved by setting the track 311 and the chute 312, which solves the problem that the console cannot be used in some devices at present. The lifting is hidden in the box, which will cause a lot of dust after a long time, damage the mechanical components and shorten the service life of the equipment.

1 and 5, the cooling mechanism 4 is arranged on one side of the bottom case 1, the cooling mechanism 4 includes a second motor 43 and a fan 44, and the output end of the second motor 43 is fixedly connected to the fan 44.

The outer side of the second motor 43 is fixedly connected with a fixed frame 42 , the outer side of the fixed frame 42 is fixedly connected with a ventilation pipe 41 , and one end of the ventilation pipe 41 is provided with a dustproof net 45 .

It should be noted that: in the heat dissipation mechanism 4, heat can be discharged in its inner cavity by setting the ventilation pipe 41, the second motor 43 can be fixed by setting the fixing frame 42 and connected with the ventilation pipe 41, and the box can be moved by setting the fan 44. The heat in the body is extracted, and the dust outside the box can be prevented from entering the box by setting the dust-proof net 45, which solves the problem that the current part of the device does not have a cooling device in the box during use, and the heat generated by the motor circuit cannot be dissipated in time, which is likely to cause safety hazards question.

Referring to Fig. 1 , Fig. 2 and Fig. 3 , one side of the bottom case 1 is provided with a ventilation hole 5 , and one side of the bottom case 1 is fixedly connected with a fixing plate 6 .

The top of the bottom box 1 is provided with a control box 7, the outside of the control box 7 is fixedly connected with the inner wall of the equipment box 2, and the top of the control box 7 is provided with a controller 8.

One side of the bottom box 1 is provided with a flap 9, and one side of the flap 9 is fixedly connected with a first handle 10.

The top of the equipment box 2 is provided with a cover plate 11 , the top of the cover plate 11 is fixedly connected with a second handle 12 , and the four corners of the bottom of the bottom box 1 are all provided with bases 13 .

It should be noted that by setting the ventilation holes 5, the heat dissipation mechanism 4 can discharge heat, by setting the fixing plate 6, the heat dissipation mechanism 4 can be stably connected with the bottom box 1, and by setting the control box 7 and the controller 8, it is convenient for the user to control the equipment. By arranging the flap 9 and the first handle 10, it is convenient for the user to maintain the equipment. By arranging the cover plate 11 and the second handle 12, the equipment box 2 can be covered after the control display stand 37 falls to prevent dust from falling into the box. The base 13 can stably support the bottom case 1 .

The working principle of a kind of multifunctional electrical automation console provided by the utility model is as follows:

When in use, after the user places the bottom box 1 through the base 13, the user holds the second handle 12 to open the cover plate 11, pushes the telescopic plate 39 into the cover plate 38 with the push-pull rod 310, and the outside of the push-pull rod 310 and the cover plate The inner wall of 38 is provided with track 311 and chute 312 respectively, now opens first motor 31 to drive threaded sleeve 32 to rotate, and threaded rod 33 drives lifting plate 34 to lift when threaded sleeve 32 rotates, and when lifting plate 34 lifts, slide bar 35 slides up and down through the casing 36, and after the control display table 37 on the top of the lifting plate 34 reaches the designated height, the first motor 31 is turned off, and the equipment is controlled by the controller 8 on the top of the control box 7 in the equipment box 2. After working for a period of time, Open the flap 9 through the first handle 10 to check the temperature in the bottom box 1, if the heat is too high, turn on the second motor 43, the second motor 43 is arranged in the inner cavity of the ventilation pipe 41 and fixed by the fixing frame 42, and the second motor 43 drives The fan 44 rotates to discharge the heat in the bottom box 1 through the ventilation hole 5 through the ventilation pipe 41, and the outer end of the ventilation pipe 41 is provided with a dust-proof net 45 to prevent the dust outside the box from entering, which solves the problem of the current control of some devices during use. The table cannot be raised and lowered and hidden in the box. After a long time, it will cause a lot of dust, damage the mechanical components, and shorten the service life of the equipment. There is no heat dissipation device in the box, and the heat generated by the motor circuit cannot be dissipated in time, which is likely to cause safety hazards.

The above descriptions are only examples of the utility model, and are not intended to limit the patent scope of the utility model. Any equivalent structure or equivalent process transformation made by using the utility model specification and accompanying drawings may be directly or indirectly used in other applications. Related technical fields are all included in the patent protection scope of the present utility model in the same way.

Claims (10)

1. A multi-functional electric automation console, characterized in that includes:

the top of the bottom box (1) is fixedly connected with an equipment box (2);

the lifting mechanism (3) is arranged in an inner cavity of the bottom box (1), the lifting mechanism (3) comprises a first motor (31), a threaded sleeve (32) and a threaded rod (33), the output end of the first motor (31) is fixedly connected with the threaded sleeve (32), and the inner wall of the threaded sleeve (32) is in threaded connection with the threaded rod (33);

heat dissipation mechanism (4), heat dissipation mechanism (4) set up in one side of under casing (1), heat dissipation mechanism (4) include second motor (43) and fan (44), the output fixedly connected with fan (44) of second motor (43).

2. The multifunctional electric automation console as claimed in claim 1, wherein a lifting plate (34) is fixedly connected to the top of the threaded rod (33), a sliding rod (35) is fixedly connected to the bottom of the lifting plate (34), a sleeve (36) is slidably connected to the outer side of the sliding rod (35), and the bottom of the sleeve (36) is fixedly connected to the bottom of the inner cavity of the bottom box (1).

3. The multifunctional electric automation console of claim 2, characterized in that a control display console (37) is arranged on top of the lifting plate (34), and a sleeve plate (38) is fixedly connected on top of the control display console (37).

4. The multifunctional electric automation console of claim 3, characterized in that a telescopic plate (39) is slidably connected to the inner wall of the sleeve plate (38), and a push-pull rod (310) is arranged on the top of the telescopic plate (39).

5. A multifunctional electric automation console according to claim 4 characterized in that the outer side of the telescopic plate (39) is provided with a track (311) and the inner wall of the nest plate (38) is provided with a runner (312).

6. The multifunctional electric automation console of claim 1, characterized in that a fixing frame (42) is fixedly connected to the outside of the second motor (43), a ventilation pipe (41) is fixedly connected to the outside of the fixing frame (42), and a dust screen (45) is arranged at one end of the ventilation pipe (41).

7. The multifunctional electric automation console according to claim 2, characterized in that a vent hole (5) is opened at one side of the bottom box (1), and a fixing plate (6) is fixedly connected to one side of the bottom box (1).

8. The multifunctional electric automation console according to claim 7 is characterized in that a control box (7) is arranged on the top of the bottom box (1), the outer side of the control box (7) is fixedly connected with the inner wall of the equipment box (2), and a controller (8) is arranged on the top of the control box (7).

9. A multifunctional electric automation console according to claim 8 characterized in that one side of the bottom box (1) is provided with a flap (9), one side of the flap (9) is fixedly connected with a first handle (10).

10. The multifunctional electric automation console of claim 8, characterized in that a cover plate (11) is arranged on the top of the equipment box (2), a second handle (12) is fixedly connected to the top of the cover plate (11), and bases (13) are arranged at four corners of the bottom box (1).
