Abstract

The utility model provides a cable support device, which relates to the technical field of support devices, and comprises a support seat on which a vertical rod is fixedly installed on the top surface of the support seat, and a supporting ring is fixedly installed on the top of the vertical rod, and the vertical rod The surface of the sliding plate is slidably connected with a sliding plate, the bottom surface of the sliding plate is fixedly equipped with an insertion rod, and the top surface of the support seat is provided with a through hole. The utility model can be inserted into the ground through the provided insertion rod, which can produce a stable effect on the utility model, and when fixing, it is only necessary to twist the handle, which is simple and quick, and the cable is inserted into the supporting ring When performing support, due to the tension of the extension spring, the extension spring can pull the stopper to move, the stopper can then drive the short rod to move, the short rod then drives the pressure block to move, and the pressure block can then drive the cushion to squeeze the cable. The cable can be further fixed through the extrusion of the cushion, which can avoid the displacement of the cable, improve the supporting effect of the cable, and have high practicability.

Description

A cable support device

technical field

The utility model relates to the technical field of support devices, in particular to a cable support device.

Background technique

In building construction, cables are often used to connect electrical equipment, and since the cables are placed directly on the ground and other base surfaces, it is easy to cause electric shock safety hazards for construction personnel, so the cables need to be erected through the cable support device. At present, the existing cable supporting device has the problem of unstable placement during actual use, and is prone to tipping when impacted by an external force, and needs to be improved.

Utility model content

The purpose of the utility model is to solve the shortcomings in the prior art, and propose a cable support device.

In order to achieve the above purpose, the utility model adopts the following technical solution: a cable support device, including a support base, a vertical pole is fixedly installed on the top surface of the support base, and a supporting ring is fixedly installed on the top of the vertical pole , the surface of the vertical rod is slidably connected with a sliding plate, the bottom surface of the sliding plate is fixedly equipped with an insertion rod, the top surface of the support seat is provided with a through hole, and the top surface of the support seat is rotatably connected with a screw rod.

In order to enable the screw rod to drive the sliding plate to move, the utility model is improved as follows: the inside of the sliding plate is provided with threads, and the threads are engaged with the screw rod.

In order to rotate the screw mandrel conveniently, the utility model is improved that a turning handle is fixedly installed on the top of the screw mandrel, and the material of the turning screw mandrel is PP plastic.

In order to allow the insertion rod to pass through the through hole, the utility model is improved in that the radius of the through hole is greater than the radius of the insertion rod, and the bottom end of the insertion rod is a pointed cone structure.

In order to improve the fastness of fixing, the utility model is improved as follows: the number of the insertion rods is three groups, and the three groups of the insertion rods are arranged in a circular shape on the bottom surface of the sliding plate.

In order to compress the cable, the utility model is improved as follows: the surface of the supporting ring is provided with a pressing mechanism, the pressing mechanism includes a short rod, and the short rod is arranged on the surface of the supporting ring, and the short There is a sliding connection between the rod and the supporting ring, one end of the short rod is fixedly equipped with a stopper, the other end of the short rod is fixedly mounted with a pressure block, the bottom surface of the pressure block is fixedly equipped with a cushion, and the soft The pad is made of natural rubber, and the surface of the short rod is covered with a tension spring.

In order to stably install the extension spring, the utility model is improved as follows: one end of the extension spring is fixedly connected to the block, and the other end of the extension spring is fixedly connected to the supporting ring.

Compared with the prior art, the utility model has the advantages and positive effects that:

1. In the utility model, the set support ring is used to support the cables, and when the support seat is firmly fixed, if the ground is hard ground, the staff can make a reserved space on the ground with the same size as the insertion rod. hole, then turn the handle, and the handle then drives the screw to rotate. At this time, because the inside of the sliding plate is provided with threads, the screw can drive the sliding plate to move. The sliding plate slides on the surface of the vertical rod at this time, and the sliding plate then Drive the insertion rod to move until the insertion rod passes through the hole and is inserted into the reserved hole on the ground, so that the support seat can be stabilized and the utility model can be avoided from toppling over. The utility model can be stabilized by drilling the plunger into the ground. The utility model can be inserted into the ground through the provided plunger, which can produce a stable effect on the utility model. When fixing, it is only necessary to turn the handle , simple and fast, high practicality.

2. In the utility model, when the cable is inserted into the supporting ring for support, due to the tension of the tension spring, the tension spring can pull the block to move, and the block can then drive the short rod to move, and the short rod can then drive the pressing block to move , the pressing block can then drive the cushion to squeeze the cable. At this time, the extrusion of the cushion can further fix the cable, which can avoid the displacement of the cable, improve the supporting effect of the cable, and have high practicability .

Description of drawings

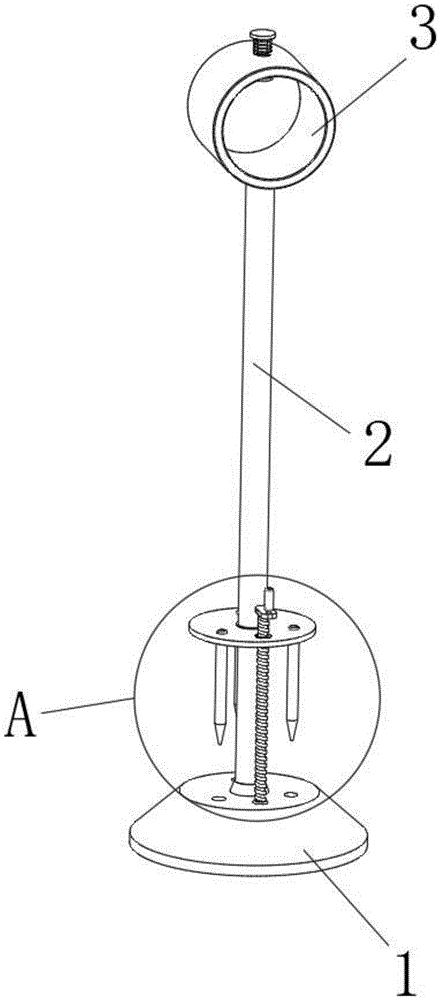

Fig. 1 is a schematic diagram of a cable support device proposed by the present invention;

Fig. 2 is an enlarged view of A in Fig. 1 of a cable support device proposed by the present invention;

Fig. 3 is a bottom view of a cable support device proposed by the present invention;

Fig. 4 is a side view of a cable support device proposed by the present invention;

Fig. 5 is an enlarged view of B in Fig. 4 of a cable support device proposed by the present invention.

illustration:

1. Support seat; 2. Vertical rod; 3. Supporting ring; 4. Sliding plate; 5. Inserting rod; 6. Passing hole; 7. Screw rod; 8. Turning handle; ; 11, pressing block; 12, cushion; 13, extension spring.

Detailed ways

In order to understand more clearly the above purpose, features and advantages of the utility model, the utility model will be further described below in conjunction with the accompanying drawings and embodiments. It should be noted that, in the case of no conflict, the embodiments of the present application and the features in the embodiments can be combined with each other.

In the following description, a lot of specific details have been set forth in order to fully understand the utility model, but the utility model can also be implemented in other ways that are different from those described here. Therefore, the utility model is not limited to the specific details of the following disclosure EXAMPLE LIMITATIONS.

Embodiment one

Please refer to Figures 1-5, the utility model provides a technical solution: a cable support device, including a support base 1, a vertical pole 2 is fixedly installed on the top surface of the support base 1, and a bearing is fixedly installed on the top of the vertical pole 2. Supporting ring 3, the set supporting ring 3 is used to support the cable, the surface of the vertical rod 2 is slidably connected with the sliding plate 4, and the bottom surface of the sliding plate 4 is fixed with the insertion rod 5, and the number of the insertion rod 5 is three groups , the three sets of inserting rods 5 are arranged in a circular shape on the bottom surface of the sliding plate 4, and the top surface of the support seat 1 is provided with a passing hole 6, the radius of the passing hole 6 is greater than the radius of the inserting rod 5, and the bottom end of the inserting rod 5 is a pointed cone structure, the tapered structure can be more convenient to insert the insertion rod 5, and the top surface of the support seat 1 is connected with the screw rod 7 in rotation.

Please refer to Figure 1-5, the top of the screw rod 7 is fixedly equipped with a turning handle 8. When the support base 1 is firmly fixed, if the ground is hard ground, the staff can make a reserved hole on the ground that is the same size as the insertion rod 5. hole, then turn the handle 8, and the handle 8 then drives the screw 7 to rotate. At this time, since the inside of the sliding disc 4 is provided with threads, the screw 7 can drive the sliding disc 4 to move at this time, and the sliding disc 4 is now on the vertical rod. The surface of 2 slides, and the sliding disc 4 then drives the insertion rod 5 to move until the insertion rod 5 passes through the hole 6 and is inserted into the reserved hole on the ground, so that the support seat 1 can be stabilized, and the utility model can be avoided from toppling over. When the ground is soft, there is no need to set up a reserved hole, and the utility model can be stabilized by directly drilling into the ground through the insertion rod 5. The material of the handle 8 is PP plastic, and the handle 8 made of PP plastic is light and durable. The sliding plate 4 The inside of the screw thread is provided with threads, and the threads are engaged with the screw mandrel 7 .

Embodiment two

Please refer to Figure 4-5, the surface of the supporting ring 3 is provided with a pressing mechanism, the pressing mechanism includes a short rod 9, the short rod 9 is arranged on the surface of the supporting ring 3, between the short rod 9 and the supporting ring 3 Sliding connection, one end of the short rod 9 is fixedly equipped with a stopper 10, the other end of the short rod 9 is fixedly equipped with a pressure block 11, and the bottom surface of the pressure block 11 is fixedly equipped with a cushion 12, and the material of the cushion 12 is natural rubber. The surface of the rod 9 is covered with a tension spring 13. When the cable is inserted into the supporting ring 3 for support, due to the tension of the tension spring 13, the tension spring 13 can pull the stopper 10 to move, and the stopper 10 can then drive the short rod 9, the short rod 9 then drives the pressure block 11 to move, and the pressure block 11 can then drive the cushion 12 to squeeze the cable. At this time, the extrusion of the cushion 12 can further fix the cable. One end of the tension spring 13 and the stopper 10 is fixedly connected, and the other end of extension spring 13 is fixedly connected with support ring 3.

Working principle: The set support ring 3 is used to support the cables, and when the support base 1 is firmly fixed, if the ground is hard ground, the staff can make a reserved hole on the ground with the same size as the insertion rod 5 , then turn the handle 8, and the handle 8 then drives the screw mandrel 7 to rotate. At this time, since the inside of the sliding disc 4 is provided with threads, the screw mandrel 7 can drive the sliding disc 4 to move at this time, and the sliding disc 4 is at this moment on the vertical rod 2 The sliding plate 4 then drives the insertion rod 5 to move until the insertion rod 5 passes through the hole 6 and is inserted into the reserved hole on the ground, so that the support seat 1 can be stabilized to avoid the utility model from toppling over, and at the same time, the ground is soft When the ground is rough, there is no need to set up a reserved hole, and the utility model can be stabilized by directly drilling into the ground through the insertion rod 5. The utility model can be inserted into the ground through the provided insertion rod 5, which can produce a stable effect on the utility model. When fixing, it is only necessary to turn the handle 8, which is simple and fast. When the cable is inserted into the support ring 3 for support, due to the tension of the extension spring 13, the extension spring 13 can pull the stopper 10 to move. The stopper 10 can then drive the short rod 9 to move, and the short rod 9 can then drive the pressing block 11 to move, and the pressing block 11 can then drive the cushion 12 to squeeze the cable. At this time, the extrusion of the cushion 12 can further fix the cable. In this way, the displacement of the cable can be avoided, and the supporting effect of the cable can be improved.

The above is only a preferred embodiment of the utility model, and is not intended to limit the utility model in other forms. Any skilled person who is familiar with this profession may use the technical content disclosed above to change or remodel it into an equivalent change. The equivalent embodiments are applied to other fields, but any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention without departing from the content of the technical solution of the present utility model still belong to the technical solution of the present utility model scope of protection.

Claims (7)

1. The utility model provides a cable strutting arrangement, includes supporting seat (1), its characterized in that: the top surface fixed mounting of supporting seat (1) has pole setting (2), bearing ring (3) are equipped with admittedly on the top of pole setting (2), the surperficial sliding connection of pole setting (2) has sliding plate (4), inserted bar (5) are equipped with admittedly to the bottom surface of sliding plate (4), clearing hole (6) have been seted up to the top surface of supporting seat (1), the top surface of supporting seat (1) is rotated and is connected with lead screw (7).

2. The cable support device of claim 1, wherein: the inside of the sliding disc (4) is provided with threads, and the threads are meshed with the screw rod (7).

3. The cable support device of claim 1, wherein: the top end fixed mounting of lead screw (7) has commentaries on classics handle (8), the material of changeing handle (8) is PP plastics.

4. The cable support device of claim 1, wherein: the radius of the through hole (6) is larger than that of the inserted bar (5), and the bottom end of the inserted bar (5) is of a pointed cone structure.

5. The cable support device of claim 1, wherein: the number of the inserted rods (5) is three, and the three groups of the inserted rods (5) are arranged on the bottom surface of the sliding disc (4) in a circumferential manner.

6. The cable support device of claim 1, wherein: the surface of bearing ring (3) is provided with hold-down mechanism, hold-down mechanism includes quarter butt (9), quarter butt (9) run through the surface that sets up in bearing ring (3), sliding connection between quarter butt (9) and bearing ring (3), the one end fixed mounting of quarter butt (9) has dog (10), briquetting (11) are equipped with admittedly to the other end of quarter butt (9), cushion (12) are equipped with admittedly to the bottom surface of briquetting (11), the material of cushion (12) is natural rubber, the surface cover of quarter butt (9) is equipped with extension spring (13).

7. The cable support device of claim 6, wherein: one end of the tension spring (13) is fixedly connected with the stop block (10), and the other end of the tension spring (13) is fixedly connected with the bearing ring (3).
