CN218753919U - Cloth inspecting and rolling integrated equipment for spinning - Google Patents

Abstract

The utility model discloses an integrated equipment for inspecting cloth and rolling cloth for textiles, relates to the technical field of textiles, in particular to an integrated equipment for inspecting cloth and rolling cloth for textiles, comprising a machine body, an unwinding mechanism installed inside the machine body, an The cloth inspection mechanism on the top of the body, the front end of the body is equipped with a symmetrically distributed support frame 1, and a labeling mechanism is arranged on the inner side of the support frame 1, and the labeling mechanism includes a support frame installed between two support frames 1. An electric translation platform, a servo electric cylinder is installed on the front of the electric translation platform, and a U-shaped frame is installed on the bottom of the servo electric cylinder. The integrated cloth inspection and rolling equipment for textile is equipped with a labeling mechanism, and uses an electric translation table to drive the servo electric cylinder to move left and right, so that the U-shaped frame is aligned with the defective part, and then the servo electric cylinder pushes the U-shaped frame to move downward, so that The rewinding wheel sticks the label paper to the defective part, which is convenient for marking the defect, and it is convenient for the subsequent search and repair of the fabric defect.

Description

An integrated equipment for textile inspection and rolling

technical field

The utility model relates to the technical field of textiles, in particular to an integrated equipment for inspecting and rolling cloth for textiles.

Background technique

With more and more quality problems and disputes of clothing fabrics, the provision of accurate and reliable clothing fabric inspection data is closely related to the fate of the textile industry and enhances the competitiveness of the international market. Therefore, in the process of fabric production, when knitting After the machine weaves the fabric, it is necessary to wind up the woven fabric. In order to ensure the quality of the produced fabric, the staff needs to inspect the fabric. When inspecting the fabric, the rolled fabric is first placed in the fabric inspection On the machine, and then manually pull the cloth on the cloth inspection machine for inspection and inspection.

Published patent CN213923353U discloses a cloth inspection and rolling machine for textiles, comprising a lower body, a base and an upper body, the upper end of the lower body is provided with an upper body, and the bottom front side of the lower body is provided with a base, and the lower body The left side of the body is provided with a control panel, the upper rear end of the upper body is provided with a rear dust cover, and the upper front end of the upper body is provided with a front dust cover, and the front side of the lower body is left and right. The first diagonal brace, the second diagonal brace and the third diagonal brace are installed, and the upper ends of the first diagonal brace, the second diagonal brace and the third diagonal brace are all fixed on the bottom surface of the top plate, and the top plate A slant plate is arranged on the upper end surface of the slant plate, and the first mounting frame and the second mounting frame are installed on the left and right sides of the upper end surface of the sloping plate. The all-in-one cloth inspection and rolling machine for textiles has a reasonable structure, which is convenient for simultaneous cloth inspection when rolling up the cloth, which is convenient to reduce the burden on the workers, and the inspection is faster and more convenient, which helps to improve the overall work efficiency. The patent There are the following disadvantages: 1. This patent uses an X-ray detector to inspect the cloth, which only has the function of inspecting the cloth, and cannot mark the defects of the cloth, so it is not easy to repair. 2. This patent uses the first splint and the second splint to pair The cloth rolling roller is clamped and fixed. When installing and dismounting the cloth rolling roller, it is necessary to open and close the first splint and the second splint, which is not easy to disassemble and assemble the cloth rolling roller. For this reason, we provide a textile inspection roll Cloth integrated equipment.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides an integrated equipment for textile inspection and rolling, which solves the problems raised in the above-mentioned background technology.

In order to achieve the above objectives, the utility model is realized through the following technical solutions: an integrated equipment for textile inspection and rolling, including a body, an unwinding mechanism installed inside the body, and a cloth inspection mechanism installed on the top of the body. The front end of the body is equipped with a symmetrically distributed support frame 1, and a labeling mechanism is arranged on the inner side of the support frame 1. The labeling mechanism includes an electric translation platform installed between the two support frames 1, and the electric translation platform A servo electric cylinder is installed on the front of the servo electric cylinder, and a U-shaped frame is installed on the bottom of the servo electric cylinder. The internal activities of the U-shaped frame are equipped with an unwinding wheel and a winding wheel, and a support frame is placed on the front end of the support frame one. Second, the inner side of the support frame 2 is provided with a winding mechanism.

Optionally, the electric translation platform is horizontally placed, both ends of the electric translation platform are installed in the support frame 1, and the electric translation platform is used to drive the servo electric cylinder to move left and right.

Optionally, the U-shaped frame is an inverted U-shaped structure, the unwinding wheel is located directly above the winding wheel, a micro servo motor is installed on the side of the U-shaped frame, and the output shaft of the micro servo motor is connected to the One side of the winding wheel is fixedly connected.

Optionally, a label tape is wound around the outside of the unwinding wheel, the bottom end of the label tape is wound onto the take-up wheel, and label paper is pasted on the outside of the label tape.

Optionally, the winding mechanism includes a driving roller 1 and a driving roller 2 movably fitted between two support frames 2, the driving roller 1 and the driving roller 2 are connected by a belt transmission, and the driving roller 1 One end of the drive motor is installed, and the drive motor is installed inside the support frame two.

Optionally, symmetrically placed guide rods are installed between the two support frames, symmetrically distributed carriages are movably socketed between the guide rods, and installation grooves are connected to the tops of the carriages, and the installation grooves There is a cloth rolling roller clamped inside.

Optionally, the installation grooves are U-shaped vertical grooves, and the installation grooves are symmetrically distributed at both ends of the cloth winding roller.

The utility model provides an integrated equipment for textile inspection and rolling, which has the following beneficial effects:

1. The textile cloth inspection and rolling integrated equipment is equipped with a labeling mechanism. After the cloth inspection mechanism detects the defects on the fabric, the electric translation table is used to drive the servo electric cylinder to move left and right, so that the U-shaped frame is aligned with the defect. , and then the servo electric cylinder pushes the U-shaped frame to move down, so that the rewinding wheel sticks the label paper to the defective part, which is convenient for marking the defect and convenient for subsequent search and repair of the fabric defect.

2. The integrated textile cloth inspection and rolling equipment is equipped with a winding mechanism, and the two ends of the cloth rolling roller are placed in the installation groove, and then the driving roller 1 and the driving roller 2 are used to drive the cloth rolling roller to rotate, so as to realize the The cloth winding does not need to connect the cloth rolling roller with the driving motor, so there is no need to clamp and fix the cloth rolling roller, and it is more convenient to disassemble and assemble.

Description of drawings

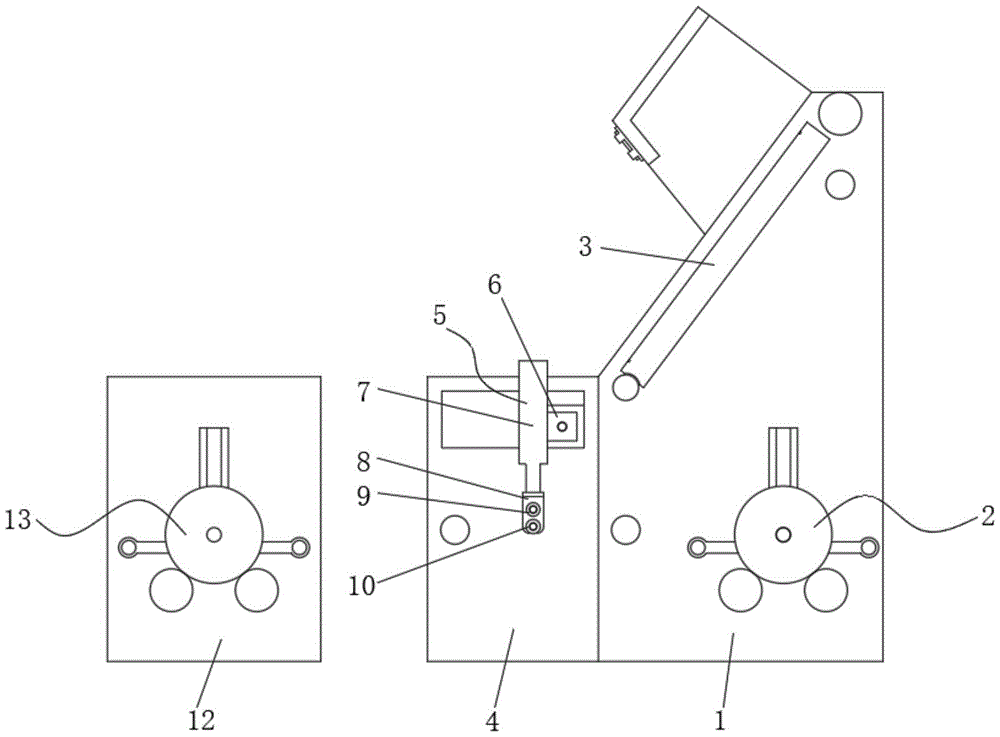

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of another angle of the utility model;

Fig. 3 is the structure schematic diagram of half section of the utility model;

Fig. 4 is the structural representation of labeling mechanism of the present utility model;

Fig. 5 is the structural representation of the utility model winding wheel;

Fig. 6 is a structural schematic diagram of the winding mechanism of the present invention.

In the figure: 1. Body; 2. Unwinding mechanism; 3. Cloth inspection mechanism; 4. Support frame 1; 5. Labeling mechanism; 6. Electric translation platform; 7. Servo electric cylinder; 8. U-shaped frame; 9 1. Unwinding wheel; 10. Rewinding wheel; 11. Micro servo motor; 12. Support frame 2; 13. Rewinding mechanism; 14. Driving roller 1; 15. Driving motor; 16. Driving roller 2; 17. Guide rod ; 18, sliding frame; 19, installation slot; 20, cloth roll; 21, label tape; 22, label paper.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example.

Please refer to Figures 1 to 4, the utility model provides a technical solution: an integrated equipment for textile inspection and rolling, including a machine body 1, an unwinding mechanism 2 installed inside the machine body 1, an The cloth inspection mechanism 3, the cloth inspection mechanism 3 and the winding mechanism 13 have the same structure, the front end of the body 1 is equipped with a symmetrically distributed support frame-4, and the inner side of the support frame-4 is provided with a labeling mechanism 5, and the labeling mechanism 5 includes The electric translation platform 6 installed between the two supporting frames 14, by setting the electric translation platform 6, the electric translation platform 6 can drive the servo electric cylinder 7 to move left and right, so that the U-shaped frame 8 can be aligned with the defective parts of the cloth, The front of the electric translation platform 6 is equipped with a servo electric cylinder 7, and the electric translation platform 6 is placed horizontally and horizontally. By setting the servo electric cylinder 7, the servo electric cylinder 7 is used to push the U-shaped frame 8 to move up and down, so that the U-shaped frame 8 can attach the label paper 22 to the cloth defect.

Please refer to Fig. 3 to Fig. 5, a U-shaped frame 8 is installed on the bottom of the servo electric cylinder 7, and the U-shaped frame 8 is an inverted U-shaped structure. Through the cooperative use of the unwinding wheel 9 and the winding wheel 10, the unwinding wheel 9 is used to unwind the label tape 21, the winding wheel 10 is used to rewind the label tape 21, and the unwinding wheel 9 is located on the winding wheel Directly above 10, a micro servo motor 11 is installed on the side of the U-shaped frame 8, and the output shaft of the micro servo motor 11 is fixedly connected to one side of the winding wheel 10. By setting the micro servo motor 11, the micro servo motor 11 is used to drive The winding wheel 10 rotates so that the winding wheel 10 rolls up the label tape 21, and the outside of the unwinding wheel 9 is wound with a label tape 21, and the bottom end of the label tape 21 is wound on the winding wheel 10, and the outside of the label tape 21 A label paper 22 is attached, and the label paper 22 is used to be attached to the defect of the cloth and used for marking the defect.

Please refer to Fig. 1 and Fig. 6, the front end of support frame 1 4 is placed with support frame 2 12, the inner side of support frame 2 12 is provided with winding mechanism 13, and winding mechanism 13 includes movable suit between two support frame 2 12 Drive roller one 14, drive roller two 16, through the cooperative use of drive roller one 14 and drive roller two 16, utilize drive roller one 14 and drive roller two 16 to drive cloth roll 20 to rotate, can make cloth roll 20 pairs of cloth Carry out winding, between driving roller one 14 and driving roller two 16, be connected by belt drive, one end of driving roller one 14 is equipped with driving motor 15, and driving motor 15 is installed in the inside of support frame two 12, by arranging driving motor 15 , the driving motor 15 is used to drive the first driving roller 14 to rotate, and the first driving roller 14 is driven by the belt to drive the second driving roller 16 to rotate.

Please refer to Figure 6, there are symmetrically placed guide rods 17 installed between the support frame two 12, the guide rods 17 play a role in supporting and guiding the carriage 18, and the symmetrically distributed carriages 18 are movably socketed between the guide rods 17 , by setting the carriage 18, the carriage 18 can slide along the guide rod 17, and the distance can be adjusted according to the length of the cloth rolling roller 20 to adapt to the cloth rolling roller 20 of different lengths. The top of the carriage 18 is connected with a mounting groove 19, and the installation The cloth rolling roller 20 is clamped inside the groove 19, and the installation groove 19 is a U-shaped vertical groove, and the installation grooves 19 are symmetrically distributed at both ends of the cloth rolling roller 20, and the installation groove 19 plays a role of limiting the cloth rolling roller 20 , it is convenient for the cloth rolling roller 20 to rotate inside the installation groove 19, and the cloth rolling roller 20 can be taken out from the installation groove 19 by lifting the cloth roller 20, which is convenient for disassembly.

To sum up, when the textile cloth inspection and rolling integrated equipment is used, the cloth roller is placed in the unwinding mechanism 2 for unwinding, and then the cloth passes through the upper surface of the cloth inspection mechanism 3 for defect inspection, and then the cloth is labeled Below the mechanism 5, when the fabric inspection mechanism 3 detects a defect, the electric translation table 6 drives the servo electric cylinder 7 to move left and right, so that the U-shaped frame 8 is aligned with the defect, and then the servo electric cylinder 7 pushes the U-shaped frame 8 downward Move to make the rewinding wheel 10 fit the label paper 22 to the defect. After the lamination is completed, the servo electric cylinder 7 drives the U-shaped frame 8 to move up, and at the same time, the micro servo motor 11 drives the rewinding wheel 10 to rotate to move the next label. Carry out the labeling of the next defective part directly below the winding wheel 10, and the cloth is finally wound up on the cloth rolling roller 20, and the driving motor 15 drives the driving roller 14 and the driving roller 2 16 to rotate, so that the driving roller 1 14 And driving roller two 16 drives cloth rolling roller 20 to rotate cloth and rolls up, and after winding is finished, directly lifts rolling cloth roller 20 and it is taken out from mounting groove 19, gets final product.

In the description of the present utility model, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, use a specific Therefore, it cannot be construed as a limitation on the present invention; the terms "first", "second", and "third" are only used for descriptive purposes, and cannot be interpreted as indicating or implying relative importance. In addition, Unless otherwise clearly specified and limited, the terms "installation", "connection" and "connection" should be interpreted in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, or an indirect connection through an intermediary, or an internal communication between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. An integrated equipment for textile inspection and rolling, comprising a body (1), an unwinding mechanism (2) installed inside the body (1), a cloth inspection mechanism (3) installed on the top of the body (1), It is characterized in that: the front end of the body (1) is equipped with a symmetrically distributed support frame one (4), and the inner side of the support frame one (4) is provided with a labeling mechanism (5), and the labeling mechanism (5 ) includes an electric translation platform (6) installed between two support frames one (4), the front of the electric translation platform (6) is equipped with a servo electric cylinder (7), and the servo electric cylinder (7) A U-shaped frame (8) is installed at the bottom, and an unwinding wheel (9) and a rewinding wheel (10) are arranged on the inner movable sleeve of the U-shaped frame (8). The front end of the supporting frame one (4) is placed with a support Frame two (12), the inner side of the support frame two (12) is provided with a winding mechanism (13). 2. The integrated equipment for textile inspection and rolling according to claim 1, characterized in that: the electric translation table (6) is horizontally placed horizontally, and the two ends of the electric translation table (6) are installed on In the support frame one (4), the electric translation platform (6) is used to drive the servo electric cylinder (7) to move left and right. 3. An integrated equipment for textile inspection and rolling according to claim 1, characterized in that: the U-shaped frame (8) is an inverted U-shaped structure, and the unwinding wheel (9) is located at the Directly above the wheel (10), a micro servo motor (11) is installed on the side of the U-shaped frame (8), and the output shaft of the micro servo motor (11) is fixedly connected to one side of the winding wheel (10) . 4. The integrated equipment for textile inspection and rolling according to claim 3, characterized in that: a label tape (21) is wound around the outside of the unwinding wheel (9), and the label tape (21 ) on the winding wheel (10), and the outside of the label tape (21) is pasted with label paper (22). 5. The integrated equipment for textile inspection and rolling according to claim 1, characterized in that: the winding mechanism (13) includes a driving roller that is movably fitted between two supporting frames (12) One (14), two driving rollers (16), connected by a belt drive between said driving roller one (14) and two driving rollers (16), and one end of said driving roller one (14) is equipped with a driving motor (15 ), and the drive motor (15) is installed in the inside of the support frame two (12). 6. The integrated equipment for textile inspection and rolling according to claim 5, characterized in that: symmetrically placed guide rods (17) are installed between the two support frames (12), and the guide rods (17) are movably socketed with symmetrically distributed carriages (18), the top of the carriage (18) is connected with a mounting groove (19), and the inside of the mounting groove (19) is clamped with a cloth roll (20). 7. The integrated equipment for textile inspection and rolling according to claim 6, characterized in that: the installation groove (19) is a U-shaped vertical groove, and the installation grooves (19) are symmetrically distributed on the roll Both ends of cloth roller (20).
