Abstract

The utility model relates to a glass straight line edging technical field discloses a glass straight line edging machine, including the alignment jig, the spout has been seted up to the surface of alignment jig, the inner wall sliding connection of spout has the slider, the fixed surface of slider is connected with the control box, the inside of control box is provided with the motor, the output fixedly connected with pivot of motor, the fixed surface of pivot is connected with the gear, the inside fixedly connected with toothed disc of alignment jig, the surface and the toothed disc meshing of gear are connected. The utility model has the advantages of it is following and effect: thereby staff driving motor drives the gear and rotates to combine the toothed plate to remove, and the slider slides at the inner wall of spout to drive the second alignment jig through the pivot and remove according to required, promote integrated device's work efficiency, promote integrated device's convenient degree, strengthen integrated device's flexibility, use manpower sparingly cost and operating time.

Description

A glass linear edging machine

technical field

The utility model relates to the technical field of glass linear edge grinding, in particular to a glass linear edge grinding machine.

Background technique

Edge grinding machine refers to the equipment used for grinding and polishing the edge of glass. There are many kinds of common glass edging machines, such as glass linear single-line edging machine, glass linear double-line edging machine, etc., which can realize glass linear edging processing, but in recent years, most of the edging machines use electricity. Although the drive improves the work efficiency, the power consumption and the number of motors used by the edging machine are relatively high. Each grinding wheel must be equipped with a motor, which costs too much, and is inconvenient to move and poor in practicability.

According to Chinese Patent Publication No. CN212886721U, a glass linear edging machine is provided, which relates to the technical field of glass linear edging. It includes a base, a support block and a universal wheel. The bottom of the base is fixedly equipped with a support block, and the bottom of the support block is fixedly equipped with a universal wheel. The beneficial effects achieved by the utility model are: the utility model is compact in structure, easy to use, and functional Practical, under the action of the second motor, all the grinding wheels on one side of the edging machine can be rotated at the same time through the conveyor belt, and a motor controller is set on the top of the grinding component box, which can simultaneously control the second motor and the first motor. Switch on and off at any time, which ensures that the grinding wheels on both sides can be started at the same time, and the rollers can also rotate to achieve synchronous progress, avoiding unqualified quality due to inability to synchronize. The setting of the motor controller and conveyor belt greatly improves the efficiency of the device. The use efficiency can make the device work more conveniently. The utility model is equipped with universal wheels, which is convenient to move and has high practicability.

The above-mentioned patents have the effect of convenient movement, but the adjustment method of the overall device is relatively simple, and the cleaning method for dust is not convenient and quick enough.

Utility model content

The purpose of the utility model is to provide a glass linear edging machine, which has the advantages of easy adjustment and enhanced cleaning of dust.

The above-mentioned technical purpose of the utility model is achieved through the following technical solutions: a glass linear edging machine, including an adjustment frame, the outer surface of the adjustment frame is provided with a chute, and the inner wall of the chute is slidably connected with a slide block, the outer surface of the slider is fixedly connected with a control box, the inside of the control box is provided with a motor, the output end of the motor is fixedly connected with a rotating shaft, the outer surface of the rotating shaft is fixedly connected with a gear, and the adjusting The inside of the frame is fixedly connected with a gear plate, the outer surface of the gear is meshed with the gear plate, and the other end of the rotating shaft is connected to the second adjustment frame through the gear, and the outer surface of the second adjustment frame is connected to the adjustment frame. One side slide connection.

By adopting the above-mentioned technical scheme, the staff drives the motor to drive the gear to rotate to move in conjunction with the gear plate, and the slider slides on the inner wall of the chute, thereby driving the second adjustment frame to move according to the requirements through the rotating shaft, improving the working efficiency of the overall device. Improve the convenience of the overall device, strengthen the flexibility of the overall device, save labor costs and working hours, and improve the working efficiency of the overall device.

A further setting of the present invention is that: the outer surface of the second adjusting frame is provided with a second chute, and the inside of the second adjusting frame is provided with a cylinder.

By adopting the above technical solution, the second chute facilitates the adjustment of the device on the cylinder, improving the flexibility of the overall device.

The utility model is further configured as follows: the output end of the cylinder is fixedly connected with a telescopic rod, and the top end of the telescopic rod is fixedly connected with a sliding rod.

By adopting the above technical scheme, the staff drives the cylinder to drive the telescopic rod to control the sliding rod to adjust the height.

The utility model is further configured as follows: the outer surface of the slide bar is slidingly connected with the inner wall of the second chute, and the other end of the slide bar is fixedly connected with a grinding box.

By adopting the above technical proposal, a grinding motor and a grinding block are arranged inside the grinding box, which is convenient for grinding the edge of the glass.

The utility model is further set as follows: the inside of the grinding box is provided with a dust blowing device, the inside of the grinding box is provided with a cavity, and the inner wall of the cavity is provided with a dust wiping block.

By adopting the above technical scheme, the dust blowing device is equipped with a fan and a motor driving the fan. After the glass edge is polished by the grinding device, the dust blowing device blows and cleans the dust on the edge, and the dust wiper wipes the dust along the edge of the glass. Clean, improve the cleaning power of the overall device, improve the working efficiency of the overall device, save labor costs and working hours, and improve the convenience of the overall device.

The utility model is further configured as follows: the outer surface of the grinding box is provided with a threaded hole, and the inner wall of the threaded hole is threaded with a threaded rod.

By adopting the above technical solution, the worker rotates the threaded rod to move in the threaded hole, thereby tightening and fixing the dust-wiping block, making the whole device easy to install, pick up and replace, improving the flexibility of the whole device and facilitating adjustment.

The beneficial effects of the utility model are:

1. In the present utility model, through the cooperative setting among the adjustment frame, chute, slider, motor, rotating shaft, threaded rod, gear, gear plate and the second adjustment frame, the staff can drive the motor when the device is in use. Drive the gear to rotate to move with the gear plate, and the slider slides on the inner wall of the chute, so as to drive the second adjustment frame to move according to the needs through the rotating shaft, improve the working efficiency of the overall device, improve the convenience of the overall device, and strengthen the overall device The flexibility saves labor cost and working time, and improves the working efficiency of the overall device. The staff drives the cylinder to drive the telescopic rod to control the slide bar for height adjustment, which improves the convenience of the overall device, strengthens the flexibility of the overall device, and saves labor costs and Working time, improve the working efficiency of the overall device.

2. In this utility model, through the cooperating arrangement among the grinding box, the dust blowing device, the cavity, the dust wiping block, the threaded hole and the threaded rod, when the device is in use, the dust blowing device is provided with a fan and a drive fan. Motor, after the grinding device grinds the edge of the glass, the dust blowing device blows and cleans the dust on the edge, and the dust block wipes and cleans the dust along the edge of the glass, so as to improve the cleaning power of the whole device and improve the working efficiency of the whole device. Save labor costs and working time, improve the convenience of the overall device, the staff rotate the threaded rod to move in the threaded hole, so as to tighten and fix the dust-wiping block, making the overall device easy to install, pick up and replace, and improve the flexibility of the overall device. Easy to adjust.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the accompanying drawings that need to be used in the description of the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only some implementations of the present invention. For example, those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative efforts.

Fig. 1 is a structural representation of the utility model;

Fig. 2 is a structural schematic diagram of the utility model adjusting frame;

Fig. 3 is the structural schematic diagram of the second adjusting frame of the utility model;

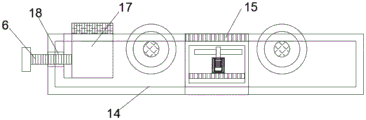

Fig. 4 is a schematic structural diagram of the grinding box of the present invention.

In the figure, 1, adjusting frame; 2, chute; 3, slider; 4, motor; 5, rotating shaft; 6, threaded rod; 7, gear; 8, gear plate; 9, second adjusting frame; 10, the first Two chute; 11, cylinder; 12, telescopic rod; 13, slide rod; 14, grinding box; 15, dust blowing device; 16, cavity;

Detailed ways

The technical solutions of the present utility model will be clearly and completely described below in conjunction with specific embodiments. Apparently, the described embodiments are only some of the embodiments of the present invention, but not all of them. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Referring to Figures 1-4, a glass linear edging machine includes an adjustment frame 1, which is characterized in that: the outer surface of the adjustment frame 1 is provided with a chute 2, the inner wall of the chute 2 is slidably connected with a slider 3, and the slider 3 The outer surface of the control box is fixedly connected with a control box, the inside of the control box is provided with a motor 4, the output end of the motor 4 is fixedly connected with a rotating shaft 5, the outer surface of the rotating shaft 5 is fixedly connected with a gear 7, and the inside of the adjustment frame 1 is fixedly connected with a gear plate 8. The outer surface of the gear 7 is meshed with the gear plate 8. The other end of the rotating shaft 5 runs through the gear 7 and is connected to the second adjustment frame 9. The outer surface of the second adjustment frame 9 is slidingly connected to one side of the adjustment frame 1. The outer surface of the second adjustment frame 9 is provided with a second chute 10, the inside of the second adjustment frame 9 is provided with a cylinder 11, the output end of the cylinder 11 is fixedly connected with a telescopic rod 12, and the top of the telescopic rod 12 is fixedly connected with a slide rod 13 , the outer surface of the slide bar 13 is slidingly connected with the inner wall of the second chute 10, and the other end of the slide bar 13 is fixedly connected with a grinding box 14, and the staff drives the motor 4 to drive the gear 7 to rotate so as to move in conjunction with the gear plate 8, and the slide block 3 slides on the inner wall of the chute 2, thereby driving the second adjustment frame 9 to move according to the needs through the rotating shaft 5, improving the working efficiency of the overall device, improving the convenience of the overall device, enhancing the flexibility of the overall device, and saving labor costs and During working hours, the working efficiency of the overall device is improved. The staff drives the cylinder 11 to drive the telescopic rod 12 to control the sliding rod 13 for height adjustment, which improves the convenience of the overall device, strengthens the flexibility of the overall device, saves labor costs and working hours, and improves the overall The working performance of the device, the inside of the grinding box 14 is provided with a dust blowing device 15, the inside of the grinding box 14 is provided with a cavity 16, the inner wall of the cavity 16 is provided with a dust-wiping block 17, and the outer surface of the grinding box 14 is provided with threaded holes. 18. The inner wall of the threaded hole 18 is threadedly connected with the threaded rod 6, and the dust blowing device 15 is provided with a fan and a motor for driving the fan. After the glass edge is polished by the grinding device, the dust blowing device 15 blows and cleans the dust on the edge, and wipes it. The dust block 17 wipes and cleans the dust along the edge of the glass, improves the cleaning power of the overall device, improves the working efficiency of the overall device, saves labor costs and working hours, and improves the convenience of the overall device. The staff rotates the threaded rod 6 in the threaded hole 18 moves, thereby the dust-wiping block 17 is tightened and fixed, so that the overall device is easy to install and take and replace, the flexibility of the overall device is improved, and it is easy to adjust.

In the utility model, through the cooperative setting between the adjustment frame 1, the chute 2, the slider 3, the motor 4, the rotating shaft 5, the threaded rod 6, the gear 7, the gear plate 8 and the second adjustment frame 9, the device can be When in use, the staff drives the motor 4 to drive the gear 7 to rotate to move in combination with the gear plate 8, and the slider 3 slides on the inner wall of the chute 2, so that the second adjustment frame 9 is driven to move according to the requirements through the rotating shaft 5, and the overall The working efficiency of the device improves the convenience of the overall device, strengthens the flexibility of the overall device, saves labor costs and working hours, and improves the working efficiency of the overall device. The staff drives the cylinder 11 to drive the telescopic rod 12 to control the slide rod 13 for height adjustment. Improve the convenience of the overall device, strengthen the flexibility of the overall device, save labor costs and working hours, and improve the working efficiency of the overall device. Cooperating with the threaded rod 6, the dust blowing device 15 is provided with a fan and a motor for driving the fan when the device is in use. After the glass edge is polished by the grinding device, the dust blowing device 15 blows the dust on the edge. Automatic cleaning, the dust wiper block 17 wipes and cleans the dust along the edge of the glass, improves the cleaning power of the overall device, improves the working efficiency of the overall device, saves labor costs and working hours, and improves the convenience of the overall device. The staff turns the threaded rod 6 moves in the threaded hole 18, so that the dust-wiping block 17 is tightened and fixed, so that the overall device is easy to install, take and replace, improves the flexibility of the overall device, and is easy to adjust.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A glass linear edging machine, comprising an adjusting frame (1), characterized in that: the outer surface of the adjusting frame (1) is provided with a chute (2), and the inner wall of the chute (2) is slidably connected Slide block (3) is arranged, and the outer surface of described slide block (3) is fixedly connected with control box, and the inside of described control box is provided with motor (4), and the output end of described motor (4) is fixedly connected with rotating shaft ( 5), the outer surface of the rotating shaft (5) is fixedly connected with a gear (7), the inside of the adjustment frame (1) is fixedly connected with a gear plate (8), and the outer surface of the gear (7) is connected with the gear plate (8) Mesh connection, the other end of the rotating shaft (5) runs through the gear (7) and is rotatably connected with a second adjustment frame (9), the outer surface of the second adjustment frame (9) is connected to the adjustment frame (1) One side slide connection. 2. A glass linear edging machine according to claim 1, characterized in that: the outer surface of the second adjusting frame (9) is provided with a second chute (10), and the second adjusting frame ( 9) The inside is provided with a cylinder (11). 3. A glass linear edging machine according to claim 2, characterized in that: the output end of the cylinder (11) is fixedly connected to a telescopic rod (12), and the top end of the telescopic rod (12) is fixedly connected to There is a slide bar (13). 4. A glass linear edging machine according to claim 3, characterized in that: the outer surface of the sliding rod (13) is slidingly connected to the inner wall of the second chute (10), and the sliding rod (13) ) is fixedly connected with a grinding box (14). 5. A glass linear edging machine according to claim 4, characterized in that: the inside of the grinding box (14) is provided with a dust blowing device (15), and the inside of the grinding box (14) is provided with A cavity (16), the inner wall of the cavity (16) is provided with a dust-wiping block (17). 6. A glass linear edging machine according to claim 5, characterized in that: the outer surface of the grinding box (14) is provided with a threaded hole (18), and the inner wall of the threaded hole (18) is threaded With threaded rod (6).
