Abstract

The present application relates to an applicator, a container containing the applicator and a mold for manufacturing the applicator. The applicator includes a mounting part and an applying part connected to each other. The applying part has a first surface and a second surface oppositely arranged. bristles are provided on the first surface, a depression is provided on the application part, the depression communicates with the first surface, and the depression protrudes from the second surface. The applicator is provided with a depression. When the depression passes through the inner plug, the inner plug squeezes the material in the depression to flow to the bristles, so that when the bristles are pulled out from the bottle, a large amount of material is carried, which improves the applicator. The capacity of a single dipping of the material body reduces the number of times the user dips the material during the makeup process.

Description

Applicator, container containing the applicator and mold for manufacturing the applicator

technical field

The present application relates to a smearing device, in particular to an applicator, a container containing the applicator and a mold for manufacturing the applicator.

Background technique

Ordinary applicators, such as eyelash brushes or eyebrow brushes, when the applicator is pulled out of the bottle, the inner plug will scrape a large amount of material, and the applicator head can only carry a small amount of material. When more materials are required for makeup, the user has to dip the materials several times to complete the makeup, which is very inconvenient to operate and the makeup efficiency is low.

Utility model content

In order to overcome the above-mentioned defects, the present application provides an applicator, which is provided with a recessed portion. When the recessed portion passes through the inner plug, the inner plug is extruded to make the material in the recessed portion flow to the bristles, so that the bristles are drawn from the bottle body. When pulled out, a large amount of material is carried, which improves the capacity of the applicator for single dipping of the material body, and reduces the number of times the user dips the material during the makeup process.

The technical scheme that the application adopts in order to solve its technical problem is:

An applicator, comprising a mounting part and an applicator part connected to each other, the applicator part has a first surface and a second surface oppositely arranged, the first surface is provided with bristles, and the applicator part is provided with a recessed part , the concave portion communicates with the first surface and the concave portion protrudes from the second surface.

Optionally, the recess has a third surface and a fourth surface, the third surface is located on the same side of the applicator as the first surface, and the fourth surface is located on the same side as the second surface. On the same side of the applicator, the third surface is provided with the bristles.

Optionally, the concave part extends along the length direction of the application part, and the concave part is located at the center of the application part.

Optionally, the length of the depressed portion is defined as L1, the length of the applied portion is defined as L2, 0.5*L2≤L1<L2, the width of the depressed portion is defined as B1, and the applied portion The width of is defined as B2, 0.5*B2≤B1<B2.

Optionally, all four sides of the concave part are fixedly connected with the application part.

Optionally, the cross-section along the width direction of the recessed part is "V"-shaped or "U-shaped", and the fourth surface of the recessed part is provided with the bristles.

Optionally, at least a part of the surrounding area of the concave part is disconnected from the application part.

Optionally, the application part has a curved surface structure, and the first surface is convex, the second surface is concave, the root of the bristle is fixedly connected to the first surface of the application part, and the bristle The head extends toward a direction away from the second surface and the head of the bristle is a free end.

The present application also provides a container, which includes the above-mentioned applicator, bottle body, inner plug and cap assembly, the mounting part of the applicator is fixedly connected to the cap assembly, and the applicator is placed on the Inside the bottle and the cap assembly is closed on the bottle body, and the inner plug is installed on the open end of the bottle body.

The present application also provides a mold, which is used to manufacture the above-mentioned applicator.

The beneficial effects of the application are: the application includes an installation part and an application part, the application part is provided with a depression and bristles, and the depression is connected to the bristles of the application part. When the applicator part is immersed in the bottle body, the concave part can store a certain amount of material. When the applicator part is pulled out by force, and the concave part passes through the inner plug, the inner plug squeezes the concave part to deform it, causing the depression The material in the inner part flows to the bristles, so that when the bristles are pulled out from the bottle, a large amount of material is carried, which improves the capacity of the applicator for single dipping of the material, reduces the number of times the user dips in the material during the makeup process, and improves It improves the efficiency of make-up and meets the needs of make-up that consume a large amount of material; the concave part is set at the center of the applicator, which can meet the needs of carrying material without affecting the make-up effect, and the overall structure of the applicator is also more beautiful ,Generous.

Description of drawings

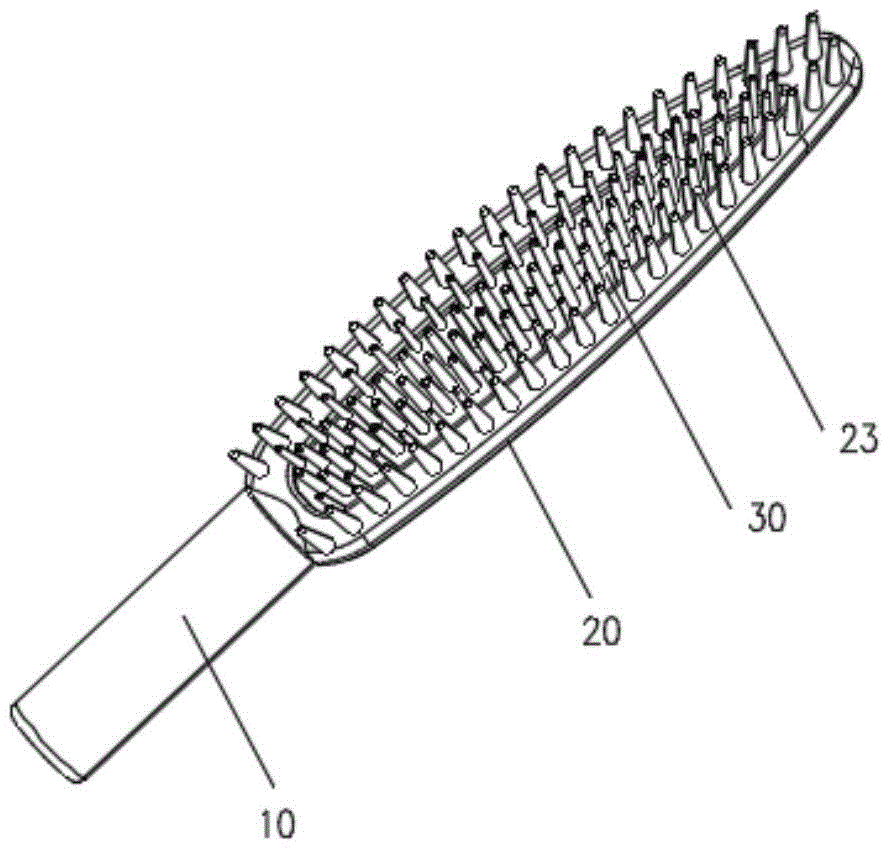

Fig. 1 is one of perspective views of the applicator shown in embodiment 1 among the present application;

Fig. 2 is the second perspective view of the applicator shown in Embodiment 1 of the present application;

Fig. 3 is the front view of the applicator shown in embodiment 1 in the present application;

Fig. 4 is the left side view of the applicator shown in embodiment 1 among the present application;

Fig. 5 is the right side view of the applicator shown in embodiment 1 in the present application;

Fig. 6 is the bottom view of the applicator shown in embodiment 1 among the present application;

Figure 7 is a top view of the applicator shown in Embodiment 1 of the present application;

Figure 8 is a sectional view of the applicator shown in Embodiment 1 of the present application;

Figure 9 is one of the perspective views of the applicator shown in Embodiment 2 of the present application;

Fig. 10 is the second perspective view of the applicator shown in Embodiment 2 of the present application;

Fig. 11 is the front view of the applicator shown in Embodiment 2 of the present application;

Fig. 12 is the left side view of the applicator shown in embodiment 2 in the present application;

Fig. 13 is the right view of the applicator shown in Embodiment 2 of the present application;

Fig. 14 is the bottom view of the applicator shown in Embodiment 2 of the present application;

Figure 15 is a top view of the applicator shown in Embodiment 2 of the present application;

Fig. 16 is a sectional view of the applicator shown in Embodiment 2 of the present application;

Figure 17 is one of the perspective views of the applicator shown in Embodiment 3 of the present application;

Figure 18 is the second perspective view of the applicator shown in Embodiment 3 of the present application;

Figure 19 is a front view of the applicator shown in Embodiment 3 of the present application;

Fig. 20 is the left side view of the applicator shown in embodiment 3 in the present application;

Fig. 21 is the right side view of the applicator shown in embodiment 3 in the present application;

Fig. 22 is the bottom view of the applicator shown in embodiment 3 of the present application;

Figure 23 is a top view of the applicator shown in Embodiment 3 of the present application;

Figure 24 is a sectional view of the applicator shown in Embodiment 3 of the present application;

In the figure: 10 - installation part, 20 - application part, 21 - first surface, 22 - second surface, 23 - bristles, 30 - depression, 31 - third surface, 32 - fourth surface.

Detailed ways

The technical solutions in the embodiments of the present application will be clearly and completely described below in conjunction with the embodiments of the present application. Apparently, the described embodiments are only some of the embodiments of the present application, not all of them. Based on the embodiments in this application, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of this application.

It should be noted that the terms "first" and "second" in the specification and claims of the present application and the following drawings are used to distinguish similar objects, and are not necessarily used to describe a specific order or sequence . It is to be understood that the terms so used are interchangeable under appropriate circumstances such that the embodiments of the application described herein are, for example, capable of operation in sequences other than those illustrated or described herein. Furthermore, the terms "comprising" and "having", as well as any variations thereof, are intended to cover a non-exclusive inclusion, for example, a process, method, system, product or device comprising a sequence of steps or elements is not necessarily limited to the expressly listed instead, may include other steps or elements not explicitly listed or inherent to the process, method, product or apparatus.

For the convenience of description, spatially relative terms may be used here, such as "on ...", "over ...", "on the surface of ...", "above", etc., to describe the The spatial positional relationship between one device or feature shown and other devices or features. It will be understood that the spatially relative terms are intended to encompass different orientations of the device in use or operation in addition to the orientation depicted in the figures. For example, if the device in the figures is turned over, devices described as "above" or "above" other devices or configurations would then be oriented "beneath" or "above" the other devices or configurations. under other devices or configurations". Thus, the exemplary term "above" can encompass both an orientation of "above" and "beneath". The device may be otherwise oriented (rotated 90 degrees or at other orientations) and the spatially relative descriptions used herein interpreted accordingly.

As shown in Figures 1-24, a kind of applicator, comprises the installation part 10 and the applicator part 20 that are connected to each other, and the applicator part 20 has the first surface 21 and the second surface 22 that are arranged oppositely, is provided with bristle on the first surface 21 23 , the application part 20 is provided with a recessed part 30 , the recessed part 30 communicates with the first surface 21 and the recessed part 30 protrudes from the second surface 22 . The installation part 10 and the applicator part 20 in this application are fixedly connected, and the installation part 10 and the applicator part 20 can be integrally formed injection molding parts, or can be assembled together after injection molding separately. In a possible implementation, the applicator can be assembled on the brush rod through the installation part 10 . The applicator 20 has a front and a back. For the convenience of subsequent description, the front of the applicator 20 is called the first surface 21, and the back of the applicator 20 is called the second surface 22. The applicator 20 as a whole can be a planar structure or can be Curved surface structure, when the applicator 20 as a whole is a plane, the first surface 21 and the second surface 22 are both planes, when the applicator 20 as a whole is a curved surface, the first surface 21 is a plane, and the second surface 22 is a convex or concave surface, Or the first surface 21 is convex or concave, and the second surface 22 is a plane, or the first surface 21 is convex, and the second surface 22 is concave, or the first surface 21 is concave, and the second surface 22 is convex, or the first surface 21 is convex, and the second surface 22 is concave. Both the surface 21 and the second surface 22 are concave or both are convex. Regardless of the structure of the application part 20, the bristles 23 are always installed on the first surface 21, while the recessed part 30 needs to protrude from the second surface 22, and a groove is formed inside the recessed part 30 for storing materials. In this way, when the applicator 20 is immersed in the bottle body, a certain amount of material can be stored in the groove of the recessed part 30, and when the applicator 20 is pulled out by force and the recessed part 30 passes through the inner plug, the inner plug squeezes Press the concave part 30 to make it deform, so that the material body in the concave part 30 flows to the bristles 23 on the first surface 21, so that when the bristles are pulled out from the bottle body, a large amount of material is carried, which improves the single dip of the applicator. The capacity of the material-taking body reduces the number of times the user dips the material during the makeup process, and improves the efficiency of makeup.

As shown in Figures 3-5, the recessed portion 30 has a third surface 31 and a fourth surface 32, the third surface 31 and the first surface 21 are located on the same side of the applicator, and the fourth surface 32 and the second surface 22 are located on the same side of the applicator. On the same side as the third surface 31, bristles 23 are provided. That is, the depression 30 also has a front and a back, the front of the depression 30 is called the third surface 31, the back of the depression 30 is called the fourth surface, and the first surface 21 and the third surface 31 are all provided with bristles 23 While forming a working surface together, the second surface 22 is a non-working surface, and the fourth surface 32 can be designed as a working surface or a non-working surface, which will be described in detail below.

As shown in FIGS. 1-5 , the concave portion 30 extends along the length direction of the application portion 20 , and the concave portion 30 is located at the center of the application portion 20 . The first end of the application part 20 is connected to the mounting part 10, and the second end of the application part is a free end, then the direction from the first end to the second end of the application part 20 is defined as the length direction of the application part, and the direction from the first end to the second The distance between the ends is positioned as the length of the smear portion 20, the width direction of the smear portion 20 is a direction perpendicular to the length direction, the width of the smear portion 20 is the maximum distance in the width direction of the smear portion, and the length of the concave portion 30 is defined in the same way and width. The so-called concave portion 30 is located at the center of the application portion 20 means: the central lines of the application portion 20 and the concave portion 30 along the length direction coincide with each other, and the center lines along the width direction also coincide with each other. Of course, the applicator 20 can also be provided with a plurality of depressions 30, and the depressions 30 can be arranged along the length direction of the application part 20, and can also be arranged along the width direction of the application part 20. When the application part 20 is provided with one depression At 30 o'clock, the recessed part can also be located at the non-central position of the applicator part; the length and width of the bristles 23, the distance between adjacent bristles and the arrangement of the bristles 23 can be determined according to actual use requirements. Optionally, the third The bristles 23 on the surface 31 are lower than the bristles 23 on the first surface 21, the density of the bristles 23 on the third surface is greater than the density of the bristles on the first surface 21, and the bristles 23 are evenly arranged on the first surface 21 and the third surface 31 superior.

As shown in Figure 5, Figure 13 and Figure 21, the length of the depressed portion 30 is defined as L1, the length of the application portion 20 is defined as L2, 0.5*L2≤L1<L2, and the width of the depressed portion 30 is defined as B1, The width of the application portion 20 is defined as B2, and 0.5*B2≦B1<B2. According to the test and verification, the recessed part 30 is designed at the center of the applicator part 20, and its length and width are limited within the above range, which can not only meet the demand for the amount of materials to be carried, but also not affect the makeup effect, and the overall structure of the applicator is also relatively Beautiful and generous.

As shown in FIG. 3 and FIG. 11 , the surroundings of the recessed part 30 are fixedly connected with the application part 20 . The central part of the applicator 20 collapses toward the back as a whole, and the collapsed area is the recessed part 30, so the recess 30 and the applicator 20 are closed, and the interior of the recess 30 forms a groove with an open upper end and a seal around it for Storage.

The section of the recessed part 30 along the width direction is "V" or "U" shaped, and the fourth surface 32 of the recessed part 30 is provided with bristles 23 . Embodiment 1: As shown in Figures 1-8, the section of the recessed part 30 along the width direction is "V"-shaped, that is, a very narrow ridge is formed at the highest point of the fourth surface 32 of the recessed part 30. When making up, The ridge can be used as a scraper when making up; the section of the depression 30 along the width direction can also be in a "U" shape, that is, the depression 30 is a curved surface, the third surface 31 is a concave surface, and the fourth surface 32 is a convex surface. It is convenient to store a large amount of materials; of course, the cross section of the recessed part 30 along the width direction can also be other conventional shapes such as inverted "Ω" and "凵"; optionally, embodiment 2: as shown in Figure 9-16, in the recessed The spine of the portion 30 is provided with a row of short bristles 23 for fine makeup.

Embodiment 3: As shown in FIGS. 17-24 , at least part of the surrounding area of the recessed part 30 is disconnected from the application part 20 . That is, the recessed portion 30 protrudes as a whole toward the direction of the second surface 22, and at least a part of the recessed portion 30 is separated from the application portion 20. Optionally, the recessed portion 30 is only connected to the application portion 20 at the front and rear ends along the length direction, while the other The area is all disconnected from the applicator 20, that is, the recessed part 30 forms a connecting bridge. The recessed part 30 is designed into this structure. The recessed part has greater elasticity, and the elasticity of the material of the applicator itself is not high, and the applicator is enlarged. The selection range of the material, optionally, the recessed part 30 has an elongated structure, and the fourth surface 32 of the recessed part is provided with bristles 23 . Therefore, the specific shape of the recessed portion 30 can be determined according to the material of the applicator and actual requirements.

As shown in Fig. 3, Fig. 11 and Fig. 19, the application part 20 is a curved surface structure, and the first surface 21 is a convex surface, the second surface 22 is a concave surface, and the roots of the bristles 23 are fixedly connected to the first surface 21 of the application part 20, The head of the bristle 23 extends away from the second surface 22 and the head of the bristle 23 is a free end. That is to say, the applicator 20 as a whole protrudes toward the first surface 21, and the bristles 23 are arranged on the first surface 21, that is, the bristles 23 are on the convex surface. The problem with this construction is that the bristles carry a relatively small amount of material. In order to solve this problem, the application part 20 is provided with a recessed part 30 protruding toward the direction of the second surface 22, that is, the direction in which the applicator part 20 protrudes is opposite to the direction in which the recessed part 30 protrudes, so that when the applicator is pulled out of the bottle At this time, the recessed part 30 can carry a part of the material, and supply this part of the material to the bristles, which solves the problem that the bristles carry a small amount of material.

A container, the container includes the above-mentioned applicator, bottle body, inner plug and cap assembly, the installation part 10 of the applicator is fixedly connected to the cap assembly, the applicator is placed in the bottle and the cap assembly is closed on the bottle body, and the inner plug is installed at the open end of the bottle. In a possible manner, the cover assembly further includes a brush holder. When the user uses the applicator, the user unscrews the assembly and pulls the applicator out of the bottle. When the applicator 20 is immersed in the bottle, the bristles 23 are covered with material, and a certain amount is stored in the recessed part 30. When the smearing part 20 is pulled out under force, the inner plug squeezes out most of the material on the bristles 23, and the inner plug squeezes the concave part 30 to deform it, so that the material in the concave part 30 flows to The bristles 23 carry a large amount of material when the bristles are pulled out from the bottle body, and the recessed part 30 also carries part of the material body, which improves the capacity of the applicator for single dipping of the material body.

A mold is used for manufacturing the above-mentioned applicator. The applicator can be molded at one time, that is, the applicator is an integrally formed injection molded part, or the installation part 10 and the applicator part 20 in the applicator can be formed into two independent injection molded parts through a mold, and then assembled together to form the applicator.

Optionally, the above-mentioned one mold refers to several groups of molds. Each set of molds is used to injection mold one part of the applicator, and the parts are assembled, glued, ultrasonically bonded, etc.

It should be pointed out that those skilled in the art can make several modifications and improvements without departing from the concept of the present application, and these all belong to the protection scope of the present application. Therefore, the scope of protection of the patent application should be based on the appended claims.

Claims (10)

1. An applicator, characterized in that: comprise a mounting part (10) and a smearing part (20) connected to each other, and the smearing part (20) has a first surface (21) and a second surface (22) arranged oppositely ), the first surface (21) is provided with bristles (23), the smear portion (20) is provided with a depression (30), and the depression (30) is communicated with the first surface (21 ) and the recessed portion (30) protrudes from the second surface (22). 2. The applicator according to claim 1, characterized in that: the recessed part (30) has a third surface (31) and a fourth surface (32), and the third surface (31) and the first surface One surface (21) is located on the same side of the applicator, the fourth surface (32) and the second surface (22) are located on the same side of the applicator, and the third surface (31) is provided with There are said bristles (23). 3. The applicator according to claim 2, characterized in that: the depression (30) extends along the length direction of the application portion (20), and the depression (30) is located in the application portion ( 20) The center position. 4. The applicator according to claim 3, characterized in that: the length of the recess (30) is defined as L1, the length of the applicator (20) is defined as L2, 0.5*L2≤L1< L2, define the width of the depressed part (30) as B1, define the width of the smear part (20) as B2, 0.5*B2≤B1<B2. 5. The applicator according to claim 3, characterized in that: all four sides of the recessed part (30) are fixedly connected with the applicator part (20). 6. The applicator according to claim 5, characterized in that: the section of the depression (30) along the width direction is in the shape of a "V" or "U", and the first section of the depression (30) The bristles (23) are provided on the four surfaces (32). 7. The applicator according to claim 3, characterized in that at least part of the surrounding area of the recessed part (30) is disconnected from the applicator part (20). 8. The applicator according to claim 1, characterized in that: the applicator (20) has a curved surface structure, and the first surface (21) is a convex surface, and the second surface (22) is a concave surface, The roots of the bristles (23) are fixedly connected to the first surface (21) of the applicator (20), and the heads of the bristles (23) extend in a direction away from the second surface (22). The head of the bristle (23) is a free end. 9. A container, characterized in that: the container comprises the applicator, bottle body, inner stopper and cap assembly according to any one of claims 1-8, and the mounting part (10) of the applicator is fixedly connected In the cap assembly, the applicator is placed in the bottle body and the cap assembly covers the bottle body, and the inner plug is installed on the open end of the bottle body. 10. A mold, characterized in that the mold is used to manufacture the applicator according to any one of claims 1-8.
