Abstract

The utility model discloses an anti-collision server cooling case, which comprises a base, a sealed dustproof case, a server main board, a heat dissipation structure and an anti-collision structure. The sealed dust-proof case is arranged on the base, and the server main board is arranged on In the sealed dustproof case, the heat dissipation structure is arranged on the sealed dustproof case, the anti-collision structure is arranged on the sealed dustproof case, and the heat dissipation structure includes a circulating air seat, an air inlet, a motor, a circulating fan, and a fixed bracket . Circulating refrigeration heat exchange network, the motor is set in the circulating air seat, and the circulating fan is set on the motor for rotation. The utility model belongs to the technical field of heat dissipation shell equipment for servers, and specifically refers to an anti-collision heat dissipation shell for servers. The dust in the air easily enters the inside of the heat dissipation hole during long-term heat dissipation, affecting the normal operation of the internal host.

Description

Anti-collision heat dissipation shell for server

technical field

The utility model belongs to the technical field of heat dissipation shell equipment for servers, in particular to an anti-collision heat dissipation shell for servers.

Background technique

At present, the functions of the server are becoming more and more powerful, which leads to higher and higher protection requirements for the server. In order to protect the normal operation of the server, it is usually necessary to install a protective shell outside the server, and the protective shell also needs to have a heat dissipation function.

However, the heat dissipation method of the heat dissipation shell of the current server is usually to open holes on the surface of the shell for heat dissipation, and align the cooling fan inside the shell with the heat dissipation holes. During long-term heat dissipation, the dust in the air will easily enter the inside of the heat dissipation holes and affect the internal host. of normal operation.

Utility model content

In view of the above situation, in order to overcome the defects of the prior art, a kind of anti-collision server heat dissipation shell proposed by the utility model effectively solves the problem of opening holes on the surface of the server heat dissipation shell on the market to dissipate heat, and the heat dissipation fan inside the shell Align the heat dissipation holes, and the dust in the air will easily enter the interior of the heat dissipation holes during long-term heat dissipation, affecting the normal operation of the internal host.

The technical scheme adopted by the utility model is as follows: a kind of anti-collision server cooling case proposed by the utility model includes a base, a sealed dustproof case, a server main board, a heat dissipation structure and an anti-collision structure, and the sealed dustproof case is arranged on On the base, the main board of the server is arranged in a sealed dustproof case, the heat dissipation structure is arranged on the sealed dustproof case, the anti-collision structure is arranged on the sealed dustproof case, the heat dissipation structure includes a circulating air seat, an inlet Tuyere, motor, circulating fan, fixed bracket, circulating refrigeration heat exchange network, installation block, compression refrigerator, condensate inlet pipe and condensate outlet pipe, the circulating air seat is set in the sealed dustproof case, the air inlet It is set through one side of the circulating air seat, the motor is set in the circulating air seat, the circulating fan is rotated on the motor, and the circulating fan plays the role of blowing air circulation, and the fixed bracket is set on the sealed dustproof case , the circulating refrigeration heat exchange network is arranged on the fixed bracket, the circulating refrigeration heat exchange network plays the role of circulating heat exchange and cooling, the installation block is arranged on the sealed dustproof shell, and the compression refrigerator is arranged on the installation block One end of the condensate inlet pipe runs through the sealed dustproof shell and is arranged on the compression refrigerator, and the other end is connected to the circulating refrigeration heat exchange network. Cyclic refrigeration heat exchange network settings.

Preferably, the anti-collision structure includes a fixed column, an anti-collision net, and a fixed bolt. The effect of bumping, the thread of the fixing bolt is arranged on the fixing post.

In order to better achieve the effect of dust prevention and heat dissipation, the condensate inlet pipe is arranged between the circulating refrigeration heat exchange network and the compression refrigerator, and the condensate outlet pipe is arranged between the circulating refrigeration heat exchange network and the compression refrigerator. The installation block is arranged between the compression refrigerator and the sealed dustproof case.

In order to achieve the purpose of heat dissipation faster, the base is arranged in parallel with the sealed dustproof case, the circulating air seat is vertically arranged with the circulating fan, the circulating air seat is vertically arranged with the circulating refrigeration heat exchange network, and the fixed The bracket is vertically arranged with the circulation refrigeration heat exchange network.

Further, the sealed dustproof case is arranged in a rectangular shape, and the circulating air seat is arranged in a cylindrical shape.

In order to achieve the effect of circulating heat dissipation, there are two sets of circulating air seats, two sets of air inlets, two sets of motors, and two sets of circulating fans.

The beneficial effects obtained by adopting the above-mentioned structure of the utility model are as follows: a kind of anti-collision server heat dissipation shell proposed by this scheme effectively solves the problem of opening holes on the surface of the server heat dissipation shell on the market to dissipate heat, and the heat dissipation fan inside the shell Quasi cooling holes, the dust in the air is easy to enter the inside of the cooling holes during long-term cooling, affecting the normal operation of the internal host.

Description of drawings

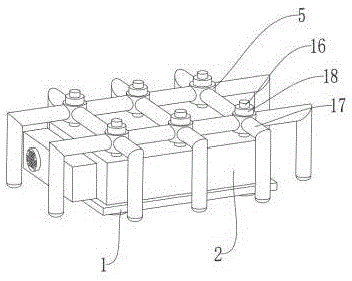

Fig. 1 is the overall structure schematic diagram of a kind of anti-collision server heat dissipation shell proposed by the utility model;

Fig. 2 is a schematic cross-sectional structure diagram of a kind of anti-collision server heat dissipation shell proposed by the utility model;

FIG. 3 is a cross-sectional structure schematic diagram of another viewing angle of a collision-proof heat dissipation housing for servers proposed by the utility model.

Among them, 1. Base, 2. Sealed dustproof case, 3. Server motherboard, 4. Heat dissipation structure, 5. Anti-collision structure, 6. Circulating air seat, 7. Air inlet, 8. Motor, 9. Circulating fan, 10 , fixed bracket, 11, circulating refrigeration heat exchange network, 12, installation block, 13, compression refrigerator, 14, condensate inlet pipe, 15, condensate outlet pipe, 16, fixed column, 17, anti-collision net, 18, Fixing bolts.

The accompanying drawings are used to provide a further understanding of the utility model, and constitute a part of the description, and are used to explain the utility model together with the embodiments of the utility model, and do not constitute a limitation to the utility model.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. Example: Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present utility model.

As shown in Fig. 1, Fig. 2 and Fig. 3, a kind of anti-collision server cooling case proposed by the utility model includes a base 1, a sealed dustproof case 2, a server main board 3, a heat dissipation structure 4 and an anti-collision structure 5, The sealed dustproof case 2 is arranged on the base 1, the server main board 3 is arranged in the sealed dustproof case 2, the heat dissipation structure 4 is arranged on the sealed dustproof case 2, the anti-collision structure 5 is arranged on the sealed dustproof case 2, and the heat dissipation structure 4 includes circulating air seat 6, air inlet 7, motor 8, circulating fan 9, fixed bracket 10, circulating refrigeration heat exchange network 11, installation block 12, compression refrigerator 13, condensate inlet pipe 14 and condensate outlet pipe 15, The circulating air seat 6 is set in the sealed dustproof case 2, the air inlet 7 is set through one side of the circulating air seat 6, the motor 8 is set in the circulating air seat 6, and the circulating fan 9 is rotated on the motor 8, and the circulating fan 9 plays a role The function of blowing air circulation, the fixed bracket 10 is set on the sealed dustproof case 2, the circulating refrigeration heat exchange network 11 is located on the fixed bracket 10, the circulating refrigeration heat exchange network 11 plays the role of circulating heat exchange and cooling, and the installation block 12 Set on the sealed dustproof shell 2, the compression refrigerator 13 is set on the installation block 12, and the condensate inlet pipe 14 runs through the sealed dustproof shell 2. One end is set on the compression refrigerator 13 and the other end is connected to the circulating refrigeration heat exchange network 11. One end of the condensate outlet pipe 15 runs through the sealed dustproof case 2 and is arranged on the compression refrigerator 13 , and the other end is connected to the circulating refrigeration heat exchange network 11 .

As shown in Figure 1, the anti-collision structure 5 includes a fixed column 16, an anti-collision net 17, and a fixed bolt 18. The fixed column 16 is arranged on the sealed dustproof case 2, and the anti-collision net 17 is penetrated on the fixed column 16 to prevent The collision net 17 has played the effect of anti-collision, and the fixed bolt 18 thread is arranged on the fixed column 16.

As shown in Figure 1, Figure 2 and Figure 3, the condensate inlet pipe 14 is arranged between the circulating refrigeration heat exchange network 11 and the compression refrigerator 13, and the condensate outlet pipe 15 is arranged between the circulating refrigeration heat exchange network 11 and the compression refrigerator 13, the installation block 12 is arranged between the compression refrigerator 13 and the sealed dustproof case 2.

As shown in Figure 1, Figure 2 and Figure 3, the base 1 is arranged parallel to the sealed dustproof case 2, the circulating air seat 6 is arranged vertically to the circulating fan 9, and the circulating air seat 6 is arranged vertically to the circulating refrigeration heat exchange network 11 , the fixed bracket 10 and the circulating refrigeration heat exchange network 11 are arranged vertically.

As shown in Figure 1 and Figure 3, the sealed dustproof case 2 is arranged in a rectangular shape, and the circulating air seat 6 is arranged in a cylindrical shape.

As shown in FIG. 3 , there are two groups of circulating air seats 6 , two groups of air inlets 7 , two groups of motors 8 , and two groups of circulating fans 9 .

During specific use, when the user uses the device, since the server main board 3 operates to generate a large amount of heat, the compression refrigerator 13 is controlled to operate at this time, and the internal condensate is refrigerated, and then flows into the circulating refrigeration heat exchange network 11 through the condensate inlet pipe 14, For heat exchange, the heat in the sealed dustproof case 2 is not concentrated near the circulating refrigeration heat exchange network 11. In order to make the heat in the sealed dustproof case 2 fully absorbed and taken away by the circulating refrigeration heat exchange network 11, the circulating air seat 6 is controlled The inner motor 8 rotates. At this time, the motor 8 drives the circulation fan 9 to rotate, blowing the air in the sealed dustproof shell 2. At this time, the air on both sides is controlled to flow to the 11 places of the circulating refrigeration heat exchange network, and the 11 places of the circulating refrigeration heat exchange network react At this time, the gas enters the motor 8 from the air inlet 7 and continues to circulate under the action of the circulating fan 9. During this process, the condensate in the circulating refrigeration heat exchange network 11 will circulate in the gas The heat is exchanged and taken away, and enters the compression refrigerator 13 through the condensate outlet pipe 15 to cool down, and the heat is discharged to the outside world. At the same time, the anti-collision net 17 is installed on the anti-collision net 17 outside the sealed dustproof shell 2, and fixed with fixing bolts 18 , to prevent damage to the server caused by external collisions, the above is the use process of the entire anti-collision server cooling case.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

The utility model and its implementation have been described above. This description is not restrictive. What is shown in the drawings is only one implementation of the utility model, and the actual structure is not limited thereto. All in all, if a person of ordinary skill in the art is inspired by it, without departing from the purpose of the utility model, without creatively designing a structural method and embodiment similar to the technical solution, it shall be protected by the utility model scope.

Claims (6)

1. The utility model provides a server of anticollision is with heat dissipation shell which characterized in that: including base, sealed dustproof shell, server mainboard, heat radiation structure and crashproof structure, sealed dustproof shell is located on the base, the server mainboard is located in the sealed dustproof shell, heat radiation structure locates on the sealed dustproof shell, crashproof structure locates on the sealed dustproof shell, heat radiation structure includes circulation wind seat, air intake, motor, circulating fan, fixed bolster, circulation refrigeration heat transfer net, installation piece, compression refrigerator, condensate advance the pipe and the condensate exit tube, circulation wind seat is located in the sealed dustproof shell, the air intake runs through circulation wind seat one side setting, the motor is located in the circulation wind seat, circulating fan rotates and locates on the motor, the fixed bolster is located on the sealed dustproof shell, circulation refrigeration heat transfer net is located on the fixed bolster, the installation piece is located on the sealed dustproof shell, the compression refrigerator is located on the installation piece, the condensate advances pipe and runs through on the compression refrigerator and the other end connection circulation refrigeration heat transfer net setting, the condensate runs through sealed dustproof shell one end and locates on the compression refrigerator and the other end connects the setting of circulation refrigeration heat transfer net.

2. The crash-proof heat dissipation housing for a server as recited in claim 1, wherein: the anti-collision structure comprises a fixing column, an anti-collision net and a fixing bolt, wherein the fixing column is arranged on the sealed dustproof shell, the anti-collision net penetrates through the fixing column, and the fixing bolt is arranged on the fixing column in a threaded mode.

3. A crash-proof heat dissipation housing for a server as recited in claim 2, wherein: the condensate inlet pipe is arranged between the circulating refrigeration heat exchange net and the compression refrigerator, the condensate outlet pipe is arranged between the circulating refrigeration heat exchange net and the compression refrigerator, and the mounting block is arranged between the compression refrigerator and the sealed dustproof shell.

4. A crash-proof heat dissipation housing for a server as recited in claim 3, wherein: the base is parallel arrangement with sealed dust shell, the circulation wind seat is perpendicular setting with circulating fan, the circulation wind seat is perpendicular setting with circulation refrigeration heat transfer net, the fixed bolster is perpendicular setting with circulation refrigeration heat transfer net.

5. The crash-proof heat dissipation housing for a server as recited in claim 4, wherein: the sealed dustproof shell is arranged in a rectangular shape, and the circulating air seat is arranged in a cylindrical shape.

6. The crash-proof heat dissipation housing for a server as recited in claim 5, wherein: the circulating air seats are provided with two groups, the air inlets are provided with two groups, the motors are provided with two groups, and the circulating fans are provided with two groups.
