Abstract

The utility model relates to the technical field of D-psicose production equipment, and discloses a fermentation equipment for batch production of D-psicose, comprising a fermentation cylinder and a sealing sleeve, and one side of the lower part of the fermentation cylinder is A second fastening bolt is installed, and the inner side of the second fastening bolt is movably sleeved with a limiting plate. In the fermentation equipment for mass production of D-psicose, by turning the second fastening bolt, after the second fastening bolt is rotated and taken out from the inside of the fermentation cylinder, the limiting plate can be taken out from the lower part of the fermentation cylinder, and at the same time Rotate the sampling plate, an opening is formed between the sampling tank inside the sampling plate and the sealing sleeve, and at the same time, the fermentation flow inside the fermentation cylinder flows into the inside of the sealing sleeve, and at the same time, the sampling plate is pulled out downwards, and the sealing sleeve is exposed to the outside, and the The upper part of the sample plate blocks the inside of the fermentation cylinder, so that when it is necessary to observe the fermentation effect of the fermented product inside the fermentation cylinder, the sealing performance of the inside of the fermentation cylinder is increased.

Description

A kind of fermentation equipment for batch production of D-psicose

technical field

The utility model relates to the technical field of D-psicose production equipment, in particular to a fermentation equipment for batch production of D-psicose.

Background technique

D-Allulose, English name D-Allulose, molecular weight 180.16, is a kind of sugar. When producing D-psicose, enzymes need to be fermented first. In order to increase the fermentation effect, a fermentation equipment for mass production of D-psicose has been developed.

In the existing fermentation equipment for mass production of D-psicose, the fermented product needs to be kept at a suitable temperature during the fermentation process. The food will be fermented inside a sealed tank, but the fermentation effect of the fermented product cannot be observed and judged during the fermentation process. Experienced staff are needed to accurately judge and control the fermentation process, which often leads to - During the mass production of allulose, the staff did not fully investigate the fermentation effect of the fermented product, and advancing or prolonging the fermentation time will directly affect the fermentation quality.

Utility model content

Aiming at the shortcomings of the existing fermentation equipment used for the mass production of D-psicose, the utility model provides a fermentation equipment for the mass production of D-psicose, which has the ability to loosen the second fastening bolt, The second fastening bolt drives the sampling plate to be taken out from the inside of the sealing sleeve, and during the downward movement of the sampling plate, when the sampling plate is rotated, the fermented product can be transported to the inside of the sampling tank through the sealing sleeve, and when the sampling plate moves downward, the fermentation The material can be taken out from the inside of the sampling plate downwards, and the advantages of the internal sealing of the fermentation cylinder are increased when the fermented material is detected, which solves the problems raised in the above-mentioned background technology.

The utility model provides the following technical scheme: a fermentation equipment for batch production of D-psicose, comprising a fermentation cylinder and a sealing sleeve, a second fastening bolt is installed on one side of the lower part of the fermentation cylinder, the The inner side of the second fastening bolt is movably socketed with a limiting plate, the middle part of the limiting plate is movably socketed with a sampling plate, the upper part of the sealing sleeve is movably socketed with a rotating rod, and the outer side of the sampling plate is movably socketed with a A sealing sleeve, the inside of the sampling plate is provided with a sampling groove, one side of the lower part of the rotating rod is movably socketed with a connecting rod, the lower part of the connecting rod is fixedly connected with a filter baffle, and the lower part of the filter baffle is installed With a support pin.

Preferably, the outer side of the fermentation cylinder is fixedly connected with a positioning rod, and the outer movable sleeve of the positioning rod is connected with an angle adjustment support plate, and the outer side of the lower part of the positioning rod is fixedly connected with a first fastening bolt, and the angle adjustment The lower part of the support plate is installed on the ground, and an arc-shaped chute is provided on the outside of the angle-adjusting support plate. By pushing out the lower part of the fermentation cylinder, the fermentation cylinder drives the first fastening bolt to open a groove inside the angle-adjustment support plate. Move and adjust the overall inclination of the fermentation cylinder to facilitate the removal of the materials inside the fermentation cylinder.

Preferably, the outer side of the lower part of the fermenting cylinder is fixedly connected with a limiting jacket, and the inner side of the limiting jacket is movably sleeved with a sealing plate, and the outer side of the lower part of the fermenting cylinder is provided with a water outlet hole, and the sealing plate is in the limiting clamp. There is an activity space inside the sleeve, and by rotating the sealing plate, the sealing plate drives the opening of the lower part of the fermentation cylinder to be exposed to the outside, and the opening discharges excess liquid inside the fermentation tank.

Preferably, the outer side of the rotating rod is fixedly connected with a stirring rod, and the outer side of the upper part of the rotating rod is movably socketed with an upper sealing cover, and the outer side of the upper sealing cover is fixedly connected with a fermentation effect controller, and the stirring rod is tightly Paste the inside of the fermentation cylinder, the fermentation effect controller is installed on both sides of the upper sealing cover, the temperature controller and the humidity controller are respectively installed inside the fermentation effect controller, by controlling the fermentation effect controller respectively The temperature and humidity inside the fermentation cylinder are adjusted to increase the fermentation effect of the material, and at the same time, the motor installed on the upper part of the rotating rod is started to drive the stirring rod for mixing and stirring.

Preferably, the lower part of the sealing sleeve is fixedly connected to the inside of the fermenter, the outside of the sampling plate is provided with a groove, the groove communicates with the inside of the sampling tank, and the second fastening bolt passes through the defined At the same time, the thread of the plate is limited to the inside of the lower part of the fermentation cylinder. By rotating the sampling plate, the sampling tank is driven to fill the fermentation product inside the fermentation cylinder. At the same time, the sampling plate is taken out. The fermented product is taken out and inspected to increase the fermentation effect.

Preferably, the lower part of the support limiting pin is movably socketed on the bottom of the fermentation cylinder, the filter baffle is close to the outer wall of the sealing sleeve, and a water outlet hole is opened inside the filter baffle, and when the device is cleaned later, The filter baffle can be taken out with the rotating rod, and the filter baffle can be taken out together with the person who carries it, which increases the convenience of cleaning the internal parts of the fermentation cylinder.

Compared with the existing fermentation equipment used for batch production of D-psicose, the utility model has the following beneficial effects:

1. The fermentation equipment used for mass production of D-psicose is equipped with a support limiting pin through the lower part of the filter baffle. The position is limited, and at the same time, the filter baffle forms an opening with the inside of the fermentation cylinder, and when the rotating rod rotates, the connecting rod can rotate around the lower part of the rotating rod, that is, when the rotating rod rotates, it will not interfere with the connecting rod, and the filtering baffle will The material is supported, and the lower part of the filter baffle forms an opening to facilitate the circulation of excess liquid inside the fermented product, and when the device is cleaned later, the filter baffle can be taken out with the rotating rod, and the filter baffle can be taken out together with the belt, increasing Increase the convenience when cleaning the internal parts of the fermenter.

2. The fermentation equipment used for mass production of D-psicose, by turning the second fastening bolt, after the second fastening bolt is rotated and taken out from the inside of the fermentation cylinder, the limiting plate can be taken out from the lower part of the fermentation cylinder , while rotating the sampling plate, an opening is formed between the sampling tank inside the sampling plate and the sealing sleeve, and at the same time, the fermentation flow inside the fermentation cylinder flows into the inside of the sealing sleeve, and at the same time the sampling plate is pulled out downwards, and the sealing sleeve is exposed to the outside. And the upper part of the sampling plate blocks the interior of the fermentation cylinder, so when it is necessary to observe the fermentation effect of the fermented product inside the fermentation cylinder, the sealing of the interior of the fermentation cylinder is increased.

Description of drawings

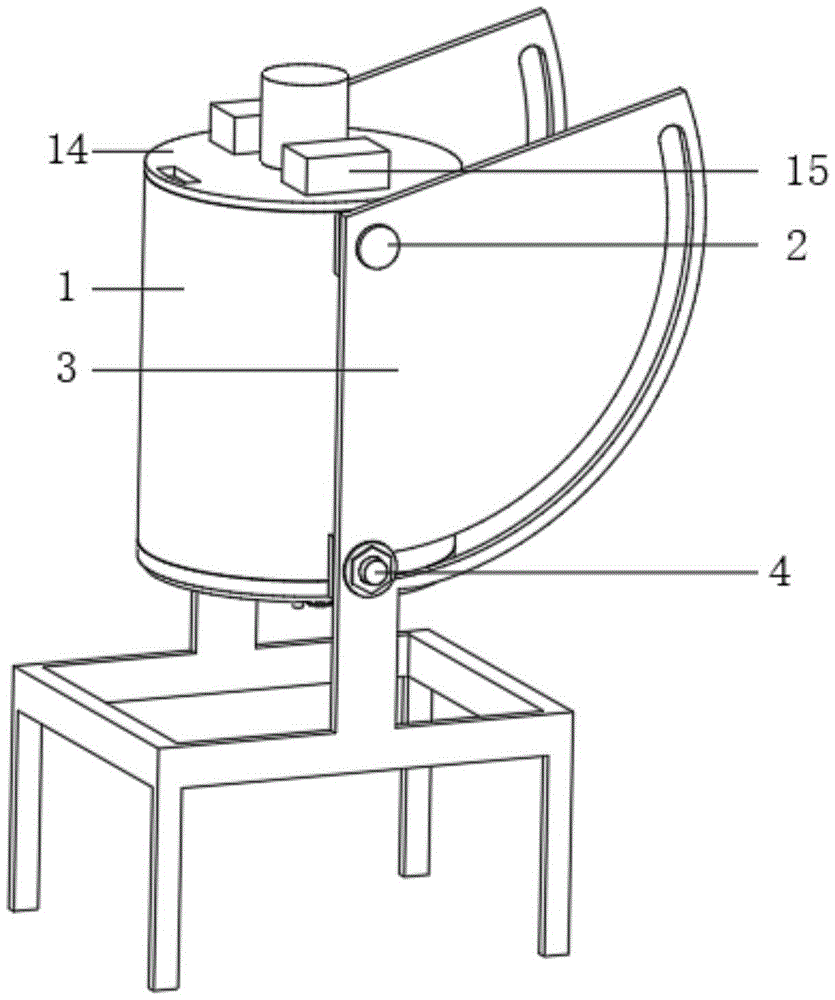

Fig. 1 is a schematic diagram of the main structure of the utility model;

Fig. 2 is a structural schematic diagram looking up from the main body of the utility model lacking an outer frame;

Fig. 3 is a schematic diagram of a partially enlarged structure of the internal mixing device of the present utility model;

Fig. 4 is the schematic diagram of the sectional structure of the main body of the utility model;

Fig. 5 is a schematic diagram of an enlarged structure at A of the utility model.

In the figure: 1, fermentation cylinder; 2, positioning rod; 3, angle adjustment support plate; 4, first fastening bolt; 5, limiting jacket; 6, sealing plate; 7, second fastening bolt; 8, limiting Plate; 9, sampling plate; 10, sealing sleeve; 11, sampling tank; 12, rotating rod; 13, stirring rod; 14, upper sealing cover; 15, fermentation effect controller; 16, connecting rod; 17, filter baffle ; 18, support limit pin.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1, Fig. 2, Fig. 3, Fig. 4 and Fig. 5, a kind of fermentation equipment for batch production of D-psicose, including fermentation cylinder 1 and sealing sleeve 10, one side of the lower part of fermentation cylinder 1 A second fastening bolt 7 is installed, and the second fastening bolt 7 limits the position between the limiting plate 8 and the fermentation cylinder 1, and the inner side of the second fastening bolt 7 is movably sleeved with a limiting plate 8, and the limit plate 8 A sampling plate 9 is connected in the middle part, and the sampling plate 9 seals the inside of the sealing sleeve 10. The upper part of the sealing sleeve 10 is movable in connecting with a rotating rod 12. The rotating rod 12 can mix the materials inside the fermentation cylinder 1 by rotating. The outside of the sampling plate 9 is movably socketed with a sealing sleeve 10, and the inside of the sampling plate 9 is provided with a sampling groove 11, and the sampling groove 11 drives the inspection sample to be taken out. The position of the filter baffle 17 is supported, the bottom of the connecting rod 16 is fixedly connected with the filter baffle 17, the filter baffle 17 drives the excess liquid inside the fermented product to be removed, and the bottom of the filter baffle 17 is equipped with a support limiting pin 18, The support limiting pin 18 supports and limits the position of the filter baffle 17 .

Referring to Fig. 1, the outer side of the fermentation cylinder 1 is fixedly connected with a positioning rod 2, and the outer movable sleeve of the positioning rod 2 is provided with an angle adjustment support plate 3, and the outer side of the lower part of the positioning rod 2 is fixedly connected with a first fastening bolt 4, which is supported by an angle adjustment The lower part of the plate 3 is installed on the ground, and the outside of the angle adjustment support plate 3 is provided with an arc-shaped chute, and the support plate 3 is installed on the ground through the angle adjustment, while the positioning rod 2 is close to the outer side of the upper part of the fermentation cylinder 1, and the positioning rod 2 The position of the fermentation cylinder 1 is limited. When it is necessary to take the fermented product, the lower part of the fermentation cylinder 1 is pushed, and the first fastening bolt 4 moves inside the chute on the outside of the angle adjustment support plate 3. The fermentation cylinder 1 The rear end of the barrel is tilted up, and the material inside the fermentation barrel 1 can be discharged from the inside of the fermentation barrel 1 to the outside, so that the fermented material can be quickly driven out during the batch production of D-psicose.

Referring to Fig. 2, the outer side of the lower part of the fermenting cylinder 1 is fixedly connected with a limiting jacket 5, and the inner side of the limiting jacket 5 is movably sleeved with a sealing plate 6, and the outer side of the lower part of the fermenting cylinder 1 is provided with a water outlet hole, and the sealing plate 6 is fixed on the outer side of the limiting jacket. There is a movable space inside the 5, and by rotating the sealing plate 6, the sealing plate 6 rotates inside the jacket 5, and when the sealing plate 6 rotates, the small hole opened at the bottom of the fermentation cylinder 1 is exposed, and the excess liquid inside the fermentation cylinder 1 is removed. Can be discharged through the small hole.

With reference to Fig. 3 and Fig. 4, the outer side of rotating rod 12 is fixedly connected with stirring rod 13, and the outer side of rotating rod 12 top is movably socketed with upper sealing cover 14, and the outer side of upper sealing cover 14 is fixedly connected with fermentation effect controller 15, stirring The rod 13 is close to the inside of the fermentation cylinder 1, and one fermentation effect controller 15 is installed on both sides of the upper part of the upper sealing cover 14, and a temperature controller and a humidity controller are respectively installed inside the fermentation effect controller 15, BWD-3K130A dry Transformer computer temperature controller temperature controller, humidity controller is Yatek TH135 humidity controller, by starting the rotating rod 12, the rotating rod 12 drives the stirring rod 13 to rotate, and the stirring rod 13 drives the fermented material inside the fermentation cylinder 1 to mix Stirring treatment, while the upper sealing cover 14 is installed on the top of the fermentation cylinder 1, the upper sealing cover 14 seals the top of the fermentation cylinder 1, and the outer side of the upper sealing cover 14 is equipped with a fermentation effect controller 15, two fermentation effect controllers 15 respectively adjust the temperature and humidity inside the fermentation cylinder 1 to increase the fermentation effect of the material.

Referring to Fig. 2 and Fig. 5, the lower part of the sealing sleeve 10 is fixedly connected to the inside of the fermenting cylinder 1, the outside of the sampling plate 9 is provided with a groove, the groove communicates with the inside of the sampling tank 11, and the second fastening bolt 7 passes through The limiting plate 8 is threaded inside the lower part of the fermentation cylinder 1 at the same time, by turning the second fastening bolt 7, the second fastening bolt 7 drives the limiting plate 8 to reduce the limit, and the limiting plate 8 is taken out from the bottom of the fermentation cylinder 1, and at the same time Rotate the sampling plate 9, an opening is formed between the sampling tank 11 set inside the sampling plate 9 and the sealing sleeve 10, and at the same time, the fermentation flow inside the fermentation cylinder 1 flows to the inside of the sealing sleeve 10, and the sampling plate 9 is pulled out downwards, and the sealing sleeve is sealed at the same time. The cover 10 is exposed outside, and the upper part of the sampling plate 9 blocks the interior of the fermentation cylinder 1, so that when it is necessary to observe the fermentation effect of the fermented product inside the fermentation cylinder 1, the sealing of the interior of the fermentation cylinder 1 is increased, and at the same time, when the fermented product is not fermented When it is sufficient, the sampling plate 9 can be pushed to move downwards, and the sampling plate 9 continues to seal and limit the inner sealing process of the sealing sleeve 10 .

With reference to Fig. 3, the lower part of the support pin 18 is movable socketed on the bottom of the fermenting cylinder 1, the filter baffle 17 is close to the outer wall of the sealing sleeve 10, and the inside of the filter baffle 17 is provided with a water outlet hole, through which the bottom of the filter baffle 17 A support limiting pin 18 is installed, and the supporting limiting pin 18 is movably socketed on the base of the fermentation cylinder 1, and the support limiting pin 18 limits the position of the filter baffle 17, while the filter baffle 17 forms an opening with the inside of the fermentation cylinder 1, and When the rotating rod 12 rotates, the connecting rod 16 can rotate around the lower part of the rotating rod 12, that is, when the rotating rod 12 rotates, the connecting rod 16 is not disturbed, and the filter baffle 17 supports the material, and the lower part of the filter baffle 17 Openings are formed to facilitate the circulation of excess liquid inside the fermented product, and when the device is cleaned later, the filter baffle 17 can be taken out along with the rotating rod 12, and the filter baffle 17 can be taken out together with the person who carries it, increasing the cleaning time of the internal parts of the fermentation cylinder 1 Increased convenience.

Working principle: when in use, the interior of the fermenting tube 1 is filled with fermented products, and the sealing cover 14 is put on to seal the upper part of the fermented tube 1, and at the same time, the fermentation effect controller 15 adjusts the fermentation environment of the fermented product, when the liquid content inside the fermented product When it is too much, the liquid flows through the filter baffle 17 to the inside of the fermentation cylinder 1, and at the same time starts the motor installed on the top of the rotating rod 12, and the motor drives the rotating rod 12 to rotate, and the stirring rod 13 mixes the fermented product, and at the same time rotates the sealing plate 6 , the sealing plate 6 drives the excess liquid inside the fermentation cylinder 1 to discharge, and when it is necessary to observe the fermentation effect of the fermentation product inside the fermentation cylinder 1 during fermentation, the second fastening bolt 7 is loosened, and the sampling plate 9 is driven to move downward, and at the same time The sampling tank 11 provided inside the rotating sampling plate 9 communicates with the groove provided on the outside of the sealing sleeve 10. At the same time, the groove drives the fermentation flow to the inside of the sampling tank 11. At the same time, the sampling plate 9 is drawn out, and the sampling plate 9 drives the sampling tank 11 to expose On the outside of the fermentation cylinder 1, the upper part of the sampling plate 9 continuously blocks the inside of the sealing sleeve 10. So far, when the fermentation effect of the fermented product is observed, the contact between the fermented product and the outdoor air can be avoided, resulting in damage to the fermented product. At the same time, after the fermentation is over, the lower part of the fermentation cylinder 1 is pushed to turn over, and the first fastening bolt 4 moves inside the chute on the outside of the angle adjustment support plate 3, that is, the upper part of the fermentation cylinder 1 is tilted, so as to quickly drive the fermented product from The effect of taking out the inside of the fermenting cylinder 1.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a fermentation equipment for D-psicose mass production, includes fermentation cylinder (1) and seal cover (10), second fastening bolt (7) are installed to one side of fermentation cylinder (1) lower part, the inboard activity of second fastening bolt (7) has cup jointed limiting plate (8), the middle part activity of limiting plate (8) has cup jointed sampling plate (9), dwang (12), its characterized in that have been cup jointed in the upper portion activity of seal cover (10): seal cover (10) have been cup jointed in the outside activity of sampling board (9), sampling groove (11) have been seted up to the inside of sampling board (9), connecting rod (16) have been cup jointed in one side activity of dwang (12) lower part, the lower part fixedly connected with of connecting rod (16) filters baffle (17), support limit round pin (18) are installed to the lower part of filtering baffle (17).

2. A fermentation apparatus for mass production of D-psicose according to claim 1, wherein: the fermentation cylinder is characterized in that a positioning rod (2) is fixedly connected to the outer side of the fermentation cylinder (1), an angle adjusting support plate (3) is movably sleeved on the outer portion of the positioning rod (2), a first fastening bolt (4) is fixedly connected to the outer side of the lower portion of the positioning rod (2), the lower portion of the angle adjusting support plate (3) is installed on the ground, and an arc-shaped sliding groove is formed in the outer portion of the angle adjusting support plate (3).

3. A fermentation apparatus for mass production of D-psicose according to claim 1, wherein: the outer side of the lower portion of the fermentation cylinder (1) is fixedly connected with a limiting clamping sleeve (5), the inner side of the limiting clamping sleeve (5) is movably sleeved with a sealing plate (6), a water outlet hole is formed in the outer side of the lower portion of the fermentation cylinder (1), and a movable space is formed in the limiting clamping sleeve (5) by the sealing plate (6).

4. The fermentation apparatus for mass production of D-psicose according to claim 1, wherein: the outside of dwang (12) is connected with puddler (13) admittedly, sealed lid (14) have been cup jointed in the outside activity on dwang (12) upper portion, the outside fixedly connected with fermentation effect controller (15) of sealed lid (14) on, the inside of fermentation cylinder (1) is hugged closely in puddler (13), fermentation effect controller (15) respectively install one in the both sides on sealed lid (14) upper portion, fermentation effect controller (15) internally mounted has temperature controller and humidity controller respectively.

5. The fermentation apparatus for mass production of D-psicose according to claim 1, wherein: the lower part of the sealing sleeve (10) is fixedly connected inside the fermentation cylinder (1), the outer part of the sampling plate (9) is provided with a groove, the groove is communicated with the inner part of the sampling groove (11), and the second fastening bolt (7) penetrates through the limiting plate (8) and is limited in the lower part of the fermentation cylinder (1) through threads.

6. The fermentation apparatus for mass production of D-psicose according to claim 1, wherein: the lower part of the supporting and limiting pin (18) is movably sleeved at the bottom of the fermentation cylinder (1), the filtering baffle (17) is tightly attached to the outer wall of the sealing sleeve (10), and a water outlet hole is formed in the filtering baffle (17).
