Abstract

The utility model discloses a ventilated packing carton, which comprises a carton body, a through-hole block 1, a dust-proof net 1, a position-limiting corner block, and a support seat. A through-hole block 1 is fixedly arranged, and the outer surfaces of both sides of the carton body near the top end are penetrated and fixedly provided with a through-hole block 2 . The ventilated packaging carton is provided with a through-hole block 1 and a through-hole block 2, and the carton body is provided with a through-hole block 1 at equal intervals on the side near the bottom end and a through-hole block 1 on the outer surface of the carton body near the top. Through setting the through hole block 2, the overall distribution of the through holes is relatively uniform, so that when multiple cartons are stacked, the adjacent cartons will not interfere with the vents, thereby improving the ventilation effect inside the body. Second, the through-hole handle is fixed on the outer side, which not only ensures the overall ventilation effect, but also facilitates the taking of the carton body, and is easy to use as a whole.

Description

A ventilated packaging carton

technical field

The utility model relates to the technical field of cartons, in particular to a ventilated packing carton.

Background technique

Corrugated carton is the most widely used packaging product, and its consumption has always been the first among all kinds of packaging products. For more than half a century, corrugated boxes have gradually replaced wooden boxes and other transportation packaging containers due to their superior performance and good processing performance, and have become the main force of transportation packaging. In addition to protecting the goods and facilitating storage and transportation, it also plays the role of beautifying and promoting the goods. Corrugated boxes are green and environmentally friendly products, which are conducive to environmental protection and are conducive to loading, unloading and transportation.

In the prior art, the hexahedron of the carton is a regular hexahedron structure, and most of the vents are set at the bottom and top or for a single vent, so that when multiple cartons are stacked, the adjacent cartons will block the vents. If it is tight, the ventilation effect will be lost, and the ventilation effect will be affected. If the items are stored in the carton for too long, mildew and deterioration may occur, which cannot meet the needs of users.

Utility model content

The purpose of this utility model is to provide a ventilated packaging carton to solve the problem in the prior art proposed in the above-mentioned background technology. The hexahedron of the carton is a regular hexahedron structure, and most of the vents are arranged at the bottom and top or as a single vent. Set it so that when multiple cartons are stacked, the adjacent cartons will block the vents tightly, lose the ventilation effect, and affect the ventilation effect. If the items are stored in the cartons for too long, mold and deterioration may occur. Problems that cannot meet the needs of users.

In order to achieve the above purpose, the utility model provides the following technical solutions: a ventilated packaging carton, including a carton body, a through hole block 1, a dustproof net 1, a limit corner block, a support seat, the carton body is close to the bottom The outer surface is evenly spaced through and fixed with a through-hole block 1, and the outer surfaces of both sides of the carton body near the top are all penetrated and fixed with a through-hole block 2, and the through-hole block 2 is far away from the inside of the carton body. The outer surface of one side is fixedly installed with through-hole handles, and the opening ends of the through-hole handles are all facing the bottom side of the carton body, and the through-hole handle and the second through-hole block are provided with through-hole conduction. A buffer pad is attached to the bottom inner wall of the carton body.

Preferably, the corners of the bottom end of the carton body are bonded and fixed with limiting corner protectors, and the outer surfaces of the bottom ends of the limit corner protectors are all fixedly installed with support seats;

The adoption of the above technical solution enables the whole body to protect the easily damaged corners of the bottom corner of the carton body through the limit corner protectors during use, prolonging the service life, and at the same time, through the setting of the support seat, the carton body is lifted and isolated.

Preferably, a limit interference frame is fixedly installed between the outer surface of the bottom side of the limit corner block near the middle position of the bottom end of the carton body, and the limit interference frame is set in an "X" shape. The outer surface of the top end of the collision frame is attached to the outer surface of the bottom end of the carton body;

The adoption of the above technical solution allows the whole body to be protected by the limit interference frame when it is in use, thereby improving the load-bearing performance of the bottom end of the carton body, thereby prolonging the service life of the whole body and ensuring the overall use effect.

Preferably, one side of the through-hole block 1 is fitted with a dust-proof net 1, and one side of the through-hole block 2 is fitted with a dust-proof net 2;

Adopting the above-mentioned technical scheme makes the whole body pass through the setting of dust-proof net 1 and dust-proof net 2, so that the whole body can isolate external impurities and dust on one side during ventilation, and ensure the cleanliness inside the carton body.

Preferably, the interior of the carton body close to the bottom end is engaged with a collision partition, and the height of the collision partition is greater than the height of the through-hole block 1, and the outer surface of the side of the through-hole handle near the bottom is rotated and installed. With rotating cover;

The adoption of the above technical scheme enables the whole body to resist the setting of the partition plate when in use, thereby facilitating blocking and isolation of the through-hole block one, thereby ensuring the sealing performance of the whole body, and can be disassembled and taken out when the whole body is not in use.

Preferably, an engaging block is installed in the middle of the outer surface of one side of the rotating cover near the bottom end, and a conflicting groove is embedded in the outer surface of the bottom end of the through-hole handle;

Adopting the above-mentioned technical solution, the entire body is engaged by the engagement block and the interference groove during use, so that the rotating cover plate is interfered and sealed, so that the through-hole handle and the through-hole block are not insulated from the outside world for air circulation seal.

Compared with the prior art, the beneficial effect of the utility model is: the ventilated packaging carton:

1. There are through-hole block 1 and through-hole block 2. The carton body is provided with through-hole block 1 at equal intervals on the sides near the bottom end, and through-hole block 1 is provided with through-holes on the outer surfaces of both sides of the carton body near the top. Block 2 makes the overall distribution of the through holes more uniform, so that when multiple cartons are stacked, the adjacent cartons will not interfere with the vents, thereby improving the ventilation effect inside the body. At the same time, it is fixed on the outside of the second through hole The through-hole handle, while ensuring the overall ventilation effect, is also convenient to take the carton body, and the overall use is convenient;

2. Set up a limited interference frame, a support seat and a limit corner block. During the use of the carton body, through the setting of the limit corner block and the support seat, the whole body can be aligned with the corner of the carton body during use. The bottom surface is supported and protected to prolong its service life. At the same time, when the whole is in use, the limit resistance frame is set to make the load-bearing effect of the bottom of the carton body better and prolong the overall service life;

3. It is equipped with dust-proof net 1, dust-proof net 2, interference partition and rotating cover plate. When the whole is in use, it passes through the settings of dust-proof net 1 and dust-proof net 2, so that the whole can avoid impurities during the ventilation process Dust enters to play the role of isolation and protection. At the same time, when the carton body does not need ventilation, the through-hole block can be blocked by the friction and engagement of the barrier plate, and at the same time, the through-hole handle will be through-holed at the bottom of the through-hole handle by rotating the cover plate. Isolated and sealed, the overall operation is simple and convenient to use.

Description of drawings

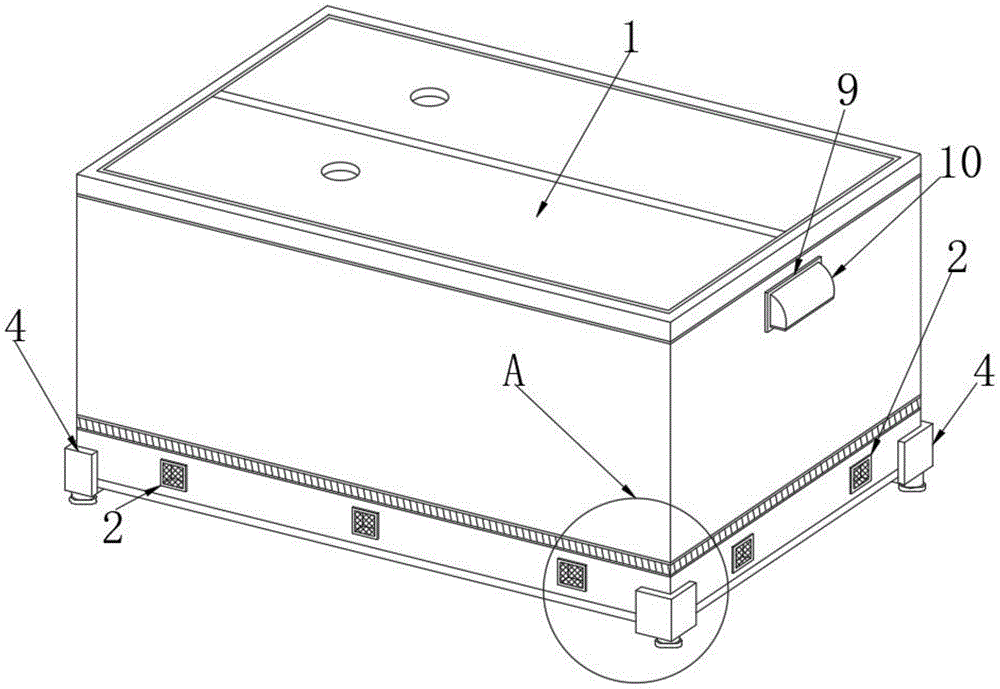

Fig. 1 is a schematic diagram of the overall three-dimensional structure of the utility model;

Fig. 2 is a three-dimensional structural schematic diagram of the carton body and the limit interference frame of the utility model disassembled;

Fig. 3 is the schematic diagram of enlarged structure at A place in Fig. 1 of the utility model;

Fig. 4 is a three-dimensional structure diagram of the utility model through hole block 2 and the through hole handle disassembled from above.

In the figure: 1. Carton body; 2. Through-hole block 1; 3. Dust-proof net 1; 4. Limiting corner block; 5. Support seat; 6. Limiting interference frame; 7. Cushion pad; Partition plate; 9, through-hole block two; 10, through-hole handle; 11, dust-proof net two; 12, rotating cover plate; 13, engaging block; 14, conflict groove.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, the utility model provides a technical solution: a ventilated packaging carton, including a carton body 1, a through-hole block-2, a dust-proof net-3, a limiting corner block 4, and a support seat 5 , limit interference frame 6, buffer pad 7, interference partition 8, through-hole block 2 9, through-hole handle 10, dust-proof net 2 11, rotating cover plate 12, engaging block 13 and interference groove 14, carton body 1. The outer surface near the bottom is evenly spaced through and bonded to be fixed with a through-hole block 1 2. The outer surfaces of both sides of the carton body 1 near the top are both penetrated and fixed with a through-hole block 2 9. The through-hole block 2 9 is far away from the One side of the outer surface of the carton body 1 is fixedly installed with a through-hole handle 10, and the opening ends of the through-hole handle 10 are all facing the bottom side of the carton body 1, and the through-hole handle 10 is connected to the through-hole block. The two 9s are provided with through conduction, and the inner wall of the bottom end of the carton body 1 is fitted with a buffer pad 7, so that the whole body passes through a plurality of through hole blocks 1 2 and through hole block 2 9 in use. setting, so that the overall ventilation effect is good, and the overall ventilation effect is guaranteed. At the same time, the buffer pad 7 that is fitted on the inner wall of the bottom end of the carton body 1 can play a certain role in buffer protection. At the same time, the buffer pad 7 can be rubber or foam.

The corners of the bottom end of the carton body 1 are bonded and fixed with a limit corner protector 4, and the outer surface of the bottom end of the limit corner protector 4 is fixedly installed with a support seat 5; the limit corner protector 4 is close to the carton body 1 Between the outer surface of one side of the bottom end in the middle position of the bottom end, there is fixedly installed a limit interference frame 6. The limit interference frame 6 is arranged in an "X" shape. The outer surface is bonded, and the carton body 1 is bonded and installed through the limit corner block 4 at the bottom corner during use, so as to play a certain role of corner protection, and at the same time facilitate the installation and fixation of the support seat 5, The overall stability is higher, and the carton body 1 is supported to a certain height through the setting of the support seat 5 as a whole, so as to prevent the bottom outer surface of the carton body 1 from directly contacting the ground and play a certain role of lifting protection. In the process of use, the bottom end of the carton body 1 is supported by the setting of the limit interference frame 6, so that after the article is placed inside the carton body 1, the overall load-bearing effect of the bottom plate at the bottom end of the carton body 1 is better, making the bottom end It is not easy to be broken and damaged, prolongs the overall service life, ensures the overall use effect, and is easy to use as a whole.

One side of the through-hole block 2 is fitted with a dust-proof net 1 3, and one side of the through-hole block 9 is fitted with a dust-proof net 2 11. The carton body 1 passes through the Through-hole block 1 2 and through-hole block 2 9 are snap-fitted and installed with dust-proof net 1 3 and dust-proof net 2 11, so that the whole can isolate certain dust and impurities during the ventilation process, thereby ensuring that the carton body 1 The internal cleanliness ensures the overall use effect.

The inside of the carton body 1 close to the bottom is engaged with a barrier partition 8, and the height of the barrier 8 is greater than the height of the through-hole block 12, and the outer surface of the through-hole handle 10 near the bottom is rotated and installed. Cover plate 12; a locking block 13 is installed in the middle of the outer surface of the rotating cover plate 12 near the bottom end, and a collision groove 14 is embedded in the outer surface of the bottom end side of the through-hole handle 10, so that the whole body is in use. When the carton body 1 does not need to be ventilated, the interference partition plate 8 can be engaged and installed on the bottom of the carton body 1, so that all the through hole blocks 1 and 2 can be opposed to block and seal it, and at the same time, the rotating cover The plate 12 is rotated, and the engagement block 13 on one side is used to engage and interfere with the inside of the interference groove 14, so that the rotating cover plate 12 can block and seal the vent at the bottom of the through-hole handle 10, so that the through-hole block two 9 is also sealed and isolated, so that the whole carton body 1 cannot be ventilated, and the overall operation is simple and convenient to use, so that the overall use of the carton body 1 is wide.

Working principle: when using the ventilated packaging carton, the through hole block 1, the limit corner block 4, the support seat 5, the limit interference frame 6, the through hole block 2 9, and the through hole handle 10 in the device 1. Both the rotating cover plate 12 and the engaging block 13 can be made of plastic materials or other hard materials, and most of the fixing methods between them are glued or integrally formed during processing. The overall use effect is good and easy to use, which increases the overall practicability. The standard parts used in the utility model can be purchased from the market, and the special-shaped parts can be customized according to the instructions and the records of the drawings. The specific connection methods of each part adopt mature bolts, rivets, welding Such conventional means, machinery, parts and equipment all adopt the conventional models in the prior art, which will not be described in detail here, and the contents not described in detail in this specification belong to the prior art known to those skilled in the art.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A ventilated packaging carton, comprising a carton body (1), a through-hole block (2), a dust-proof net (3), a limit corner block (4), and a support seat (5), characterized in that : the outer surface of the carton body (1) near the bottom is evenly spaced through and fixed with a through-hole block one (2), and the outer surfaces of both sides of the carton body (1) near the top are all through and fixed through the adhesive There are two through-hole blocks (9), and the outer surface of the side of the through-hole block two (9) away from the inside of the carton body (1) is fixedly installed with a through-hole handle (10), and the through-hole handle (10) ) are all facing the bottom side of the carton body (1), and the through-hole handle (10) and the through-hole block two (9) are provided with through conduction, and the bottom of the carton body (1) A buffer pad (7) is fitted on the inner wall of the end. 2. A ventilated packaging carton according to claim 1, characterized in that: the bottom corners of the carton body (1) are bonded and fixed with limiting corner protectors (4), the limiting The outer surface of the bottom end of the corner protector (4) is fixedly installed with a support seat (5). 3. A ventilated packaging carton according to claim 2, characterized in that: the limit corner block (4) is fixed between the outer surface of the bottom side near the middle of the bottom of the carton body (1) Install and set the limit interference frame (6), the limit interference frame (6) is "X" shape setting, the top outer surface of the limit interference frame (6) and the bottom end outer surface of the carton body (1) fit. 4. A ventilated packaging carton according to claim 1, characterized in that: one side of the through-hole block (2) is fitted with a dust-proof net (3), and the through-hole One side inside of block two (9) is fitted with dustproof net two (11). 5. A ventilated packaging carton according to claim 1, characterized in that: the inside of the carton body (1) close to the bottom end is provided with a collision partition (8), and the collision partition (8) The height is greater than the height of through hole block one (2), and the outer surface of the side of the through hole handle (10) near the bottom end is rotatably installed with a rotating cover plate (12). 6. A ventilated packaging carton according to claim 5, characterized in that: an engaging block (13) is installed in the middle of the outer surface of the side of the rotating cover (12) close to the bottom end, A collision groove (14) is embedded in the outer surface of the bottom end of the hole handle (10).
