Abstract

The utility model relates to a high-efficiency edge grinding mechanism for glass, which comprises a box body. The left and right sides and the front and rear sides of the inner cavity of the box are fixedly connected with support rods, and a plurality of support rods are fixedly connected with support plates. , the left and right sides of the inner cavity of the box are fixedly connected with fans, the bottom of the inner cavity of the box is fixedly connected with two guide plates, and the left and right sides of the inner cavity of the box are fixedly connected with the top of the corresponding guide plate. The cleaning assembly, the top of the box cavity is provided with a grinding assembly, and the box communicates with a collection box through a through hole. The high-efficiency grinding mechanism of the glass, when in use, put the glass on the support plate, and grind it through the grinding component, start the fan at the same time to blow the glass debris to the guide plate, and start the cleaning component to blow the glass debris on the guide plate Chips are swept from the through hole to the collection box for centralized treatment, and the overall structure realizes the purpose of efficient glass edge grinding mechanism for easy cleaning.

Description

A high-efficiency grinding mechanism for glass

technical field

The utility model relates to the technical field of glass processing, in particular to a high-efficiency glass edge grinding mechanism.

Background technique

Glass is an amorphous solid that can maintain a certain shape. It is a substance obtained by gradually cooling the glass paste melt and increasing its temperature.

In the process of glass production, edging processing is required to reduce the possibility of glass cutting the human body, and in the process of edging, there will be a lot of glass debris scattered all over the place, and manual cleaning is required when cleaning. , relatively troublesome, so a high-efficiency grinding mechanism for glass is proposed to solve the above problems.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a high-efficiency glass edging mechanism, which has the advantages of easy cleaning, etc., and solves the need for edging processing in the glass production process to reduce the possibility of glass cutting the human body Sex, and in the process of edging, there will be a lot of glass debris scattered everywhere, and it needs to be manually cleaned bit by bit when cleaning.

In order to achieve the above purpose, the utility model provides the following technical solutions: a high-efficiency glass edging mechanism, including a box body, the left and right sides and the front and back sides of the inner cavity of the box are fixedly connected with support rods, and a plurality of the There are support plates fixedly connected between the support rods, fans are fixedly connected to the left and right sides of the inner cavity of the box, and two guide plates are fixedly connected to the bottom of the inner cavity of the box, and the left and right sides of the inner cavity of the box are fixedly connected to each other. A cleaning assembly which is in contact with the top of the corresponding guide plate is fixedly connected, a grinding assembly is arranged on the top of the inner cavity of the box, and the box is connected to a collection box through a through hole.

The cleaning assembly includes a shell fixedly connected to the corresponding side of the inner cavity wall of the box, the inner cavity walls on the opposite side of the two shells are fixedly connected with a drive motor, and the output shaft of the drive motor is fixedly connected with a drive shaft , the outer surface of the drive shaft is threadedly connected with a drive block, the bottom of the drive block is fixedly connected with a connecting rod, and the bottom of the connecting rod is fixedly connected with a cleaning brush in contact with the top of the guide plate.

Further, the outer surface of the drive shaft is provided with external threads, and the inner cavity of the drive block is provided with internal threads matching the external threads.

Further, the top of the drive block is fixedly connected with a limit rod that is slidably connected to the top of the inner cavity of the casing, and the top of the inner cavity of the casing is provided with a limit chute matching the limit rod.

Further, the top of the housing is arc-shaped, and the longitudinal section of the support rod is circular.

Further, the top of the collection box is fixedly connected with two positioning blocks slidingly connected with the bottom of the box body, and the longitudinal section of the positioning blocks is T-shaped.

Further, the bottom of the box is provided with a positioning groove matching the positioning block, and the positioning groove communicates with the front of the box.

Further, the grinding assembly includes a linear motor slidingly connected to the top of the box cavity, the output shaft of the linear motor is fixedly connected with an electric push rod, the output shaft of the electric push rod is fixedly connected with a rotating motor, and the rotating The output shaft of the motor is fixedly connected with a rotating shaft, and a polishing sheet is sleeved on the outer surface of the rotating shaft.

Compared with the prior art, the technical solution of the present application has the following beneficial effects:

The high-efficiency grinding mechanism of the glass, when in use, places the glass on the support plate and grinds it through the grinding component. While grinding, start the fan to blow the glass debris to the guide plate, and start the cleaning component to remove the glass debris on the guide plate. Chips are swept from the through hole to the collection box for centralized processing. The overall structure realizes the purpose of efficient glass edge grinding mechanism for easy cleaning and saves cleaning time.

Description of drawings

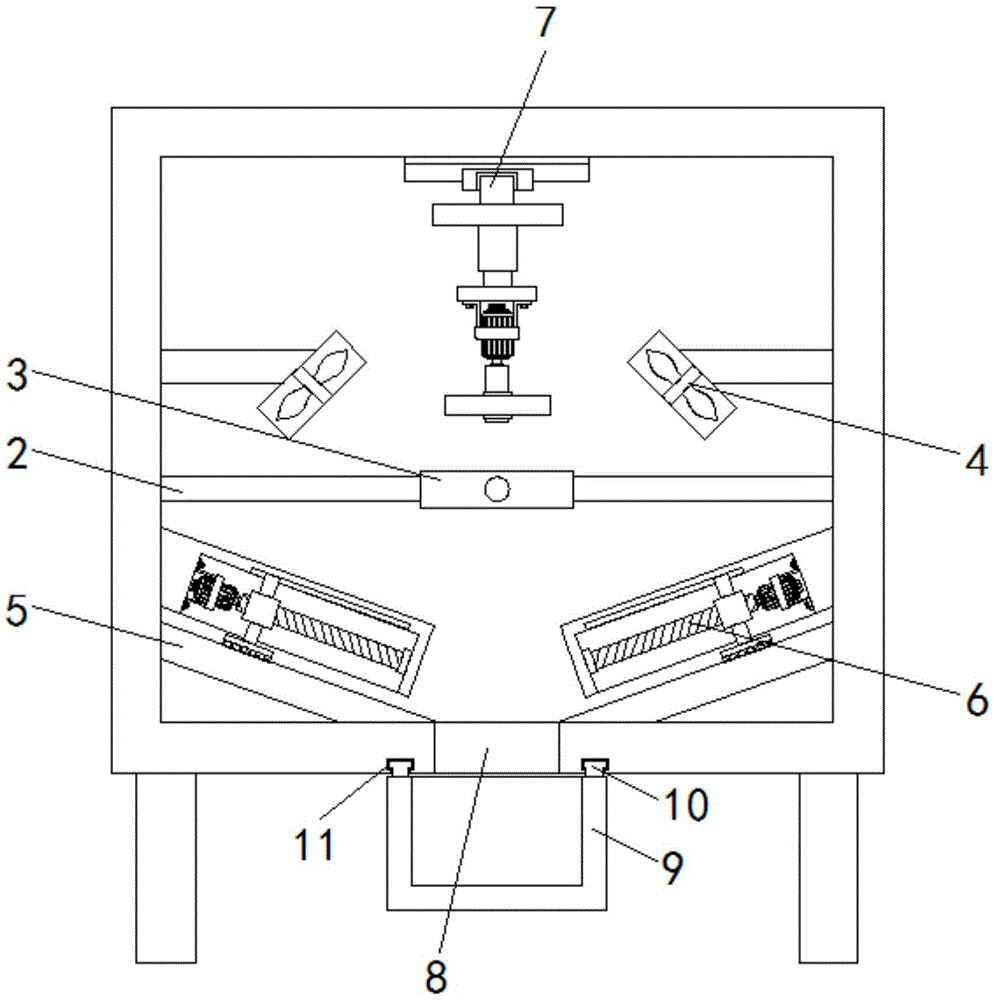

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the cleaning assembly of the utility model;

Fig. 3 is a structural schematic diagram of the grinding assembly of the present invention.

In the figure: 1 box body, 2 support rod, 3 support plate, 4 fan, 5 guide plate, 6 cleaning assembly, 61 shell, 62 drive motor, 63 drive shaft, 64 drive block, 65 connecting rod, 66 cleaning brush, 67 Limit rod, 7 grinding components, 71 linear motor, 72 electric push rod, 73 rotating motor, 74 rotating shaft, 75 grinding sheet, 8 through hole, 9 collecting box, 10 positioning block, 11 positioning groove.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1, Fig. 2 and Fig. 3, a high-efficiency glass edging mechanism in this embodiment includes a box body 1, and the left and right sides and the front and back sides of the inner cavity of the box body 1 are fixedly connected with support rods 2 , a support plate 3 is fixedly connected between a plurality of support rods 2, and fans 4 are fixedly connected to the left and right sides of the inner cavity of the box body 1; Shards of glass blow down. Two guide plates 5 are fixedly connected to the bottom of the inner cavity of the box body 1 , and the two guide plates 5 are arranged symmetrically, and the guide plates 5 are fixedly connected to the front and back of the inner cavity of the box body 1 .

The left and right sides of the inner cavity of the box body 1 are fixedly connected with the cleaning assembly 6 which is in contact with the top of the corresponding guide plate 5, the top of the inner cavity of the box body 1 is provided with a grinding assembly 7, and the box body 1 is connected with a collection box 9 through a through hole 8 Part of the glass debris can slide to the through hole 8 by itself under the action of the guide plate 5, and enter the collection box 9 for centralized storage. The top of the collection box 9 is fixedly connected with two positioning blocks 10 that are slidingly connected to the bottom of the box body 1. The longitudinal section of the positioning block 10 is T-shaped, and the bottom of the box body 1 is provided with a positioning groove 11 that is compatible with the positioning block 10. , the positioning groove 11 communicates with the front of the box body 1, and the setting of the positioning block 10 and the positioning groove 11 plays a bearing role on the collection box 9, and also plays a positioning role on the installation of the collection box 9 and the box body 1; The front side is fixedly connected with a handle, and the collection box 9 can be pulled out from the front side by the handle 9 .

The grinding assembly 7 includes a linear motor 71 that is slidably connected to the top of the inner chamber of the casing 1, and the output shaft of the linear motor 71 is fixedly connected with an electric push rod 72, and the linear motor 71 can drive the electric push rod 72 to move left and right and move forward and backward; The linear motor 71 is a known prior art, so there is no need to go into details about its specific structural connection relationship and working principle; Shaft 74, the outer surface of the rotating shaft 74 is sleeved with a polishing sheet 75; wherein, the rotating motor 73 drives the rotation of the polishing sheet 75, and then the position of the polishing sheet 75 is controlled by the electric push rod 72 and the linear motor 71 to edge the glass .

The cleaning assembly 6 includes a housing 61 fixedly connected to the corresponding side of the inner cavity wall of the box body 1. The top of the housing 61 is arc-shaped, and the longitudinal section of the support rod 2 is circular; the shapes of the housing 61 and the support rod 2 make the glass debris It is difficult to accumulate on the shell 61 and the support rod 2, and a small amount of glass debris can only be accumulated with a hairbrush. The inner cavity walls on the opposite sides of the two shells 61 are fixedly connected with a drive motor 62, the output shaft of the drive motor 62 is fixedly connected with a drive shaft 63, and the outer surface of the drive shaft 63 is screwed with a drive block 64, and the drive block 64 The bottom is fixedly connected with a connecting rod 65, the bottom of the connecting rod 65 is fixedly connected with a cleaning brush 66 in contact with the top of the guide plate 5, and the top of the drive block 64 is fixedly connected with a limit rod 67 slidingly connected with the top of the inner cavity of the housing 61. The top of the inner cavity of the housing 61 is provided with a limit chute compatible with the limit rod 67; the setting of the limit rod 67 and the limit chute plays a limiting role on the drive block 64, so that when the drive shaft 63 rotates, The drive block 64 will not follow the rotation, but move left and right.

In this embodiment, the rotation of the drive shaft 63 is driven by the drive motor 62. Under the restriction of the limit rod 67, the drive block 64 and the connecting rod 65 drive the cleaning brush 66 to scrub the guide plate 5, so that the guide plate 5 cannot be brushed. The glass shards that fall naturally are swept into the collecting box 9 and concentrated, which saves the labor of manual cleaning.

It should be noted that the outer surface of the drive shaft 63 is provided with external threads, and the inner cavity of the drive block 64 is provided with internal threads matching the external threads.

The working principle of the above-mentioned embodiment is:

(1) When in use, place the glass on the support plate 3, start the rotating motor 73 to drive the rotation of the polishing sheet 75, control the up and down movement of the polishing sheet 75 through the electric push rod 72, and control the left and right of the polishing sheet 75 through the linear motor 71 motion and linear motion to edge the glass, start the blower 4 at the same time to blow the glass debris down to the guide plate 5, the inclined guide plate 5 can guide the glass debris to the collection box 9, and the adhered glass Debris needs to start the drive motor 62 to drive the rotation of the drive shaft 63, thereby driving the cleaning brush 66 to scrub along the surface of the guide plate 5 through the drive block 64 and the connecting rod 65, so that most of the glass debris enters the collection box 9 Storage, the overall structure realizes the purpose of the efficient edging mechanism of the glass for easy cleaning and saves cleaning time.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a glass's high-efficient edging mechanism, includes box (1), its characterized in that: the cleaning device is characterized in that supporting rods (2) are fixedly connected to the left side and the right side and the front side of an inner cavity of the box body (1), supporting plates (3) are fixedly connected among the supporting rods (2), fans (4) are fixedly connected to the left side and the right side of the inner cavity of the box body (1), two guide plates (5) are fixedly connected to the bottom of the inner cavity of the box body (1), cleaning assemblies (6) which are in contact with the tops of the corresponding guide plates (5) are fixedly connected to the left side and the right side of the inner cavity of the box body (1), polishing assemblies (7) are arranged on the tops of the inner cavity of the box body (1), and the box body (1) is communicated with a collecting box (9) through holes (8);

clearance subassembly (6) include shell (61) that correspond one side fixed connection with box (1) inner chamber wall, two the equal fixedly connected with driving motor (62) of inner chamber wall on one side of the back of the body of shell (61), the output shaft fixedly connected with drive shaft (63) of driving motor (62), the surface threaded connection of drive shaft (63) has drive block (64), the bottom fixedly connected with connecting rod (65) of drive block (64), the bottom fixedly connected with of connecting rod (65) and clearance brush (66) of guide board (5) top contact.

2. The efficient edging mechanism for glass according to claim 1, characterized in that: the outer surface of the driving shaft (63) is provided with an external thread, and the inner cavity of the driving block (64) is provided with an internal thread matched with the external thread.

3. The efficient edging mechanism for glass according to claim 1, characterized in that: the top fixedly connected with of drive block (64) and shell (61) inner chamber's top sliding connection's gag lever post (67), the spacing spout with gag lever post (67) looks adaptation is seted up at the top of shell (61) inner chamber.

4. The efficient edging mechanism for glass according to claim 1, characterized in that: the top of shell (61) is the arc, the longitudinal section of bracing piece (2) is circular.

5. The efficient edging mechanism for glass according to claim 1, characterized in that: the top of the collecting box (9) is fixedly connected with two positioning blocks (10) which are in sliding connection with the bottom of the box body (1), and the longitudinal sections of the positioning blocks (10) are T-shaped.

6. The efficient edging mechanism for glass according to claim 5, characterized in that: the bottom of the box body (1) is provided with a positioning groove (11) matched with the positioning block (10), and the positioning groove (11) is communicated with the front side of the box body (1).

7. The efficient edging mechanism for glass according to claim 1, characterized in that: grinding assembly (7) include with top sliding connection's of box (1) inner chamber linear electric motor (71), the output shaft fixedly connected with electric putter (72) of linear electric motor (71), the output shaft fixedly connected with rotating electrical machines (73) of electric putter (72), the output shaft fixedly connected with rotation axis (74) of rotating electrical machines (73), the surface of rotation axis (74) has cup jointed polishing piece (75).
