CN218691245U - Recycled concrete vibrating device - Google Patents

Abstract

The utility model discloses a vibrating device for recycled concrete, which belongs to the technical field of recycled concrete and comprises a base. The upper end of the base is provided with a mounting frame. The bottom end of the base is provided with a lower protective cover, the inside of the lower protective cover is provided with a vibrating table body, the bottom end of the base is symmetrically connected with a collection pipe, and the bottom end of the collection pipe is provided with a cleaning and collecting assembly. An exhaust fan is installed in the middle of the top of the collection assembly; the utility model is provided with a convenient cover assembly, which can press the upper protective cover along the guide rod to fit it with the lower protective cover, ensuring the convenience of equipment adjustment, and the overall structure does not need motor drive. The installation cost is low, and at the same time, the upper protective cover can be opened quickly and conveniently to ensure the use effect of the equipment, improve work efficiency, and ensure the production quality of recycled concrete.

Description

A vibrating device for recycled concrete

technical field

The utility model belongs to the technical field of recycled concrete, in particular to a vibrating device for recycled concrete.

Background technique

Recycled concrete means that waste concrete blocks are crushed, cleaned and graded, mixed with gradation in a certain proportion, partially or completely replaced by natural aggregates (mainly coarse aggregates) such as sand and gravel, and then added with cement, water, etc. new concrete. Recycled concrete can have the following situations according to the combination of aggregates: all aggregates are recycled aggregates; coarse aggregates are recycled aggregates, fine aggregates are natural sand; coarse aggregates are natural gravel or pebbles, fine aggregates The raw materials are recycled aggregates; recycled aggregates replace part of the coarse or fine aggregates.

The prior art has the following problems: In a recycled concrete vibrating device disclosed in the prior art, the cost of adjusting the upper protective cover is high during use, and the screw rod needs to be lubricated, which is inconvenient to use. It is inconvenient to handle, and the surface of the grille mesh is easy to attach dust to affect the filtering effect.

Utility model content

In order to solve the problems raised in the above-mentioned background technology. The utility model provides a recycled concrete vibration device, which has the characteristics of low use cost and good cleaning and collection effect.

In order to achieve the above purpose, the utility model provides the following technical solutions: a recycled concrete vibrating device, including a base, the upper end of the base is provided with a mounting frame, and the inside of the mounting frame is provided with a convenient cover assembly, the convenient cover The bottom end of the cover assembly is provided with a lower protective cover, the inside of the lower protective cover is provided with a vibrating table body, the bottom end of the base is symmetrically connected with a collection pipe, and the bottom end of the collection pipe is provided with a cleaning and collection assembly. An exhaust fan is installed in the middle of the top of the cleaning and collecting assembly.

Preferably, the convenient cover assembly includes a guide rod, a positioning rod, a guide seat, a V-shaped plate, an upper protective cover, a support spring, a movable block, a limit spring and an adjustment rod, wherein the inner bottom end of the installation frame A guide rod is symmetrically fixed, a support spring is sleeved on the bottom surface of the guide rod, a movable block is arranged on the upper end of the support spring, an upper protective cover is arranged between the movable blocks, and the upper protective cover The upper end is symmetrically provided with a guide seat, the interior of the guide seat is provided with a positioning rod, the surface of the positioning rod is sleeved with a limit spring, one end of the positioning rod is provided with a V-shaped plate, and one end of the V-shaped plate An adjustment rod is attached.

Preferably, a limiting block is provided at the end of the positioning rod close to the V-shaped plate, and a positioning block is provided on the surface of the positioning rod corresponding to the limiting spring.

Preferably, the inside of the bottom end of the guide rod is provided with a positioning socket corresponding to the positioning rod.

Preferably, a fixed shaft is provided between the V-shaped plate and the adjusting rod, and the surface of the adjusting rod is provided with anti-skid lines.

Preferably, the cleaning and collecting assembly includes a scraper, a strong magnetic block, a damping shaft, a grid plate, a collection box and a collection box, wherein a collection box is provided at the bottom of the collection pipe, and the inside of the collection box is A grid mesh plate is arranged symmetrically, a collection box is arranged on one side of the grid mesh plate, and a scraper is arranged inside the collection box corresponding to the grid mesh plate, and a damping plate is arranged at one end of the collection box corresponding to the collection box Shaft, the surface of the damping shaft is provided with a strong magnetic block.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model is equipped with a convenient cover assembly, which can press the upper protective cover along the guide rod to fit it with the lower protective cover, so as to ensure the convenience of equipment adjustment. The overall structure does not need to be driven by a motor, and the installation cost is low. At the same time, it can be fast and convenient. Open the upper protective cover to ensure the use effect of the equipment, improve work efficiency, and ensure the production quality of recycled concrete.

2. The utility model can pull the collection box to take out the recycled concrete fragments generated by the vibration by setting the cleaning and collecting components, which improves the convenience of fragment processing and saves human resources. At the same time, it can clean the grid mesh and improve the filtering effect , to ensure the quality of the working environment.

Description of drawings

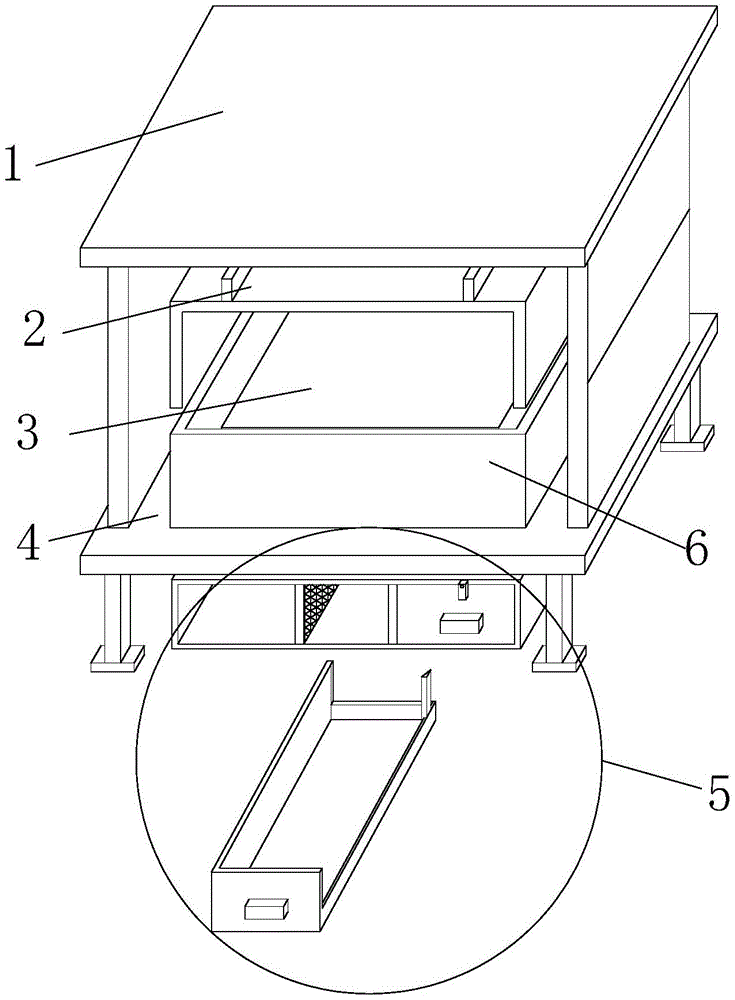

Fig. 1 is a structural perspective view of the utility model;

Fig. 2 is the structural front view of the utility model;

Fig. 3 is a schematic structural diagram of the convenient capping assembly of the present invention;

Fig. 4 is a top view of the structure of the convenient cover assembly of the present invention;

Fig. 5 is a structural schematic diagram of the cleaning and collecting assembly of the present invention.

In the figure: 1. Mounting frame; 2. Convenient cover assembly; 21. Guide rod; 22. Positioning rod; 23. Guide seat; 24. V-shaped plate; 25. Upper protective cover; 26. Support spring; 27. Activity Block; 28, limit spring; 29, adjusting rod; 3, vibrating table body; 4, base; 5, cleaning and collecting assembly; 51, scraper; 52, strong magnetic block; 53, damping shaft; 55, collection box; 56, collection box; 6, lower protective cover; 7, exhaust fan; 8, collection pipe.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example 1

Please refer to Figures 1-5, the utility model provides the following technical solutions: a recycled concrete vibration device, including a base 4, the upper end of the base 4 is provided with a mounting frame 1, and the inside of the mounting frame 1 is provided with a convenient cover assembly 2, which is convenient The bottom end of the cover assembly 2 is provided with a lower protective cover 6, the inside of the lower protective cover 6 is provided with a vibrating table body 3, the bottom end of the base 4 is symmetrically connected with a collection pipe 8, and the bottom end of the collection pipe 8 is provided with a cleaning and collection assembly 5. A suction fan 7 is installed in the middle of the top of the cleaning collection assembly 5 .

Specifically, the convenient cover assembly 2 includes a guide rod 21, a positioning rod 22, a guide seat 23, a V-shaped plate 24, an upper protective cover 25, a support spring 26, a movable block 27, a limit spring 28 and an adjustment rod 29, wherein, The inner bottom of the installation frame 1 is symmetrically fixed with a guide rod 21, the bottom surface of the guide rod 21 is sleeved with a support spring 26, the upper end of the support spring 26 is provided with a movable block 27, and an upper protective cover is provided between the movable blocks 27 25, the upper end of the upper protective cover 25 is symmetrically provided with a guide seat 23, the interior of the guide seat 23 is provided with a positioning rod 22, the surface of the positioning rod 22 is sleeved with a limit spring 28, and one end of the positioning rod 22 is provided with a V-shaped plate 24 , One end of the V-shaped plate 24 is connected with an adjusting rod 29 .

By adopting the above technical scheme, when the recycled concrete is vibrated, the recycled concrete is first placed on the surface of the vibrating table body 3, and then the upper protective cover 25 is pressed to make the movable blocks 27 on both sides move downward along the guide rod 21, and at the same time The support spring 26 is compressed under force. When the positioning rod 22 corresponds to the positioning hole, the limit spring 28 resets so that the positioning rod 22 is inserted into the positioning hole. At the same time, the upper protective cover 25 is closely attached to the surface of the lower protective cover 6 to ensure that the recycled concrete is vibrating. Fragments will not collapse during the process, which improves the safety of vibration work. When the upper protective cover 25 needs to be opened, the adjusting rod 29 is rotated along the fixed axis, so that the V-shaped plate 24 is forced to drive the positioning rod 22 to move, and the limit spring 28 compression, when the positioning rod 22 disengaged from the positioning hole inside the guide rod 21, the support spring 26 resets and jacks up the upper protective cover 25, thereby separating it from the lower protective cover 6.

Specifically, a limiting block is provided at one end of the positioning rod 22 close to the V-shaped plate 24 , and a positioning block is provided on the surface of the positioning rod 22 corresponding to the limiting spring 28 .

By adopting the above technical solution, it is ensured that the V-shaped plate 24 can drive the positioning rod 22 to move inside the guide seat 23 during adjustment, so as to improve the stability of the equipment in use.

Specifically, the inside of the bottom end of the guide rod 21 is provided with a positioning socket corresponding to the positioning rod 22 .

By adopting the above technical solution, it is ensured that the upper protective cover 25 can be inserted into the positioning jack after adjustment, the protective effect is ensured, and the firmness of the upper protective cover 25 is improved.

Specifically, a fixed shaft is provided between the V-shaped plate 24 and the adjusting rod 29 , and the surface of the adjusting rod 29 is provided with anti-slip lines.

By adopting the above technical solution, the convenience of adjusting the V-shaped plate 24 is ensured and human resources are saved.

When this embodiment is in use: when vibrating the recycled concrete, first place the recycled concrete on the surface of the vibrating table body 3, then press the upper protective cover 25 so that the movable blocks 27 on both sides move down along the guide rod 21, Support spring 26 is compressed by force simultaneously, and when location bar 22 is corresponding with location hole, limit spring 28 resets and location bar 22 is inserted in location hole, and upper protective cover 25 is close to the surface of lower protective cover 6 simultaneously, guarantees that recycled concrete is in During the vibration process, the fragments will not collapse, which improves the safety of the vibration work. When the upper protective cover 25 needs to be opened, the adjustment rod 29 is rotated along the fixed axis, so that the V-shaped plate 24 is forced to drive the positioning rod 22 to move, and at the same time, the position is limited. When the spring 28 is compressed, when the positioning rod 22 is disengaged from the positioning hole inside the guide rod 21, the support spring 26 resets and lifts the upper protective cover 25, thereby separating it from the lower protective cover 6, improving the convenience of equipment use and reducing the setting. cost.

Example 2

The difference between this embodiment and Embodiment 1 is that specifically, the cleaning and collecting assembly 5 includes a scraper 51, a strong magnetic block 52, a damping shaft 53, a grid plate 54, a collection box 55 and a collection box 56, wherein the collection The bottom end of pipe 8 is provided with collection box 55, and the inside of collection box 55 is provided with grille mesh plate 54 symmetrically, and one side of grille mesh plate 54 is provided with collection box 56, and the inside of collection box 56 corresponds to grid mesh plate 54 A scraper 51 is provided, one end of the collection box 55 is provided with a damping shaft 53 corresponding to the collection box 56 , and a strong magnetic block 52 is provided on the surface of the damping shaft 53 .

By adopting the above-mentioned technical scheme, the exhaust fan 7 is started during the vibration process of the recycled concrete, and the debris generated by the vibration is sucked into the inside of the collection box 55 along the collection pipe 8, and the debris falls into the collection box 56 for collection. When the collection box 56 needs to be cleaned At this time, rotate the strong magnetic block 52 along the damping shaft 53 so that it no longer limits the collection box 56, then pull the collection box 56 out of the collection box 55, and at the same time, the scraper 51 scrapes the surface of the grid mesh plate 54 In addition to cleaning, the filtering effect of the grid net plate 54 is improved, the quality of dust removal is ensured, the convenience of cleaning the grid net plate 54 is improved, and human resources are saved.

When this embodiment is in use: start the exhaust fan 7 in the vibration process of the regenerated concrete, and the debris generated by the vibration will be sucked into the inside of the collection box 55 along the collection pipe 8, and the debris will fall into the collection box 56 for collection. When the collection box 56 needs to be collected When cleaning, rotate the strong magnetic block 52 along the damping shaft 53 so that it no longer limits the collection box 56, and then pull the collection box 56 out from the inside of the collection box 55, while the scraper 51 cleans the surface of the grid mesh plate 54. Scraping and cleaning can improve the filtering effect of the grid net plate 54, ensure the quality of dust removal, improve the convenience of cleaning the grid net plate 54, and save human resources.

The structure and operating principle of the vibrating table body 3 in the utility model have been disclosed in a recycled concrete vibrating device disclosed in Chinese Patent Application No. 202122924006.6.

Working principle and application process of the utility model: when the utility model is in use, when the recycled concrete is vibrated, the recycled concrete is first placed on the surface of the vibrating table body 3, and then the upper protective cover 25 is pressed to make its two sides move Block 27 moves down along guide rod 21, and support spring 26 is pressed under force simultaneously, and when positioning rod 22 corresponds to positioning hole, limit spring 28 resets so that positioning rod 22 is inserted in the positioning hole, and upper protective cover 25 is closely attached to the bottom simultaneously. The surface of the protective cover 6 ensures that the recycled concrete fragments will not collapse during the vibration process, which improves the safety of the vibration work. When the upper protective cover 25 needs to be opened, the adjustment lever 29 is rotated along the fixed axis, so that the V-shaped plate 24 is subjected to The force drives the positioning rod 22 to move, and the limit spring 28 is compressed simultaneously. When the positioning rod 22 is separated from the positioning hole inside the guide rod 21, the supporting spring 26 resets and lifts the upper protective cover 25, thereby separating it from the lower protective cover 6 , improve the convenience of equipment use and reduce the installation cost;

During the vibration process of recycled concrete, start the exhaust fan 7 to suck the fragments generated by the vibration into the collection box 55 along the collection pipe 8, and at the same time, the fragments fall into the collection box 56 for collection. Rotate the strong magnetic block 52 so that it no longer limits the collection box 56, then pull the collection box 56 out from the inside of the collection box 55, and at the same time, the scraper 51 scrapes and cleans the surface of the grid mesh plate 54 to improve the grid. The filtering effect of the mesh plate 54 ensures the quality of dust removal, improves the convenience of cleaning the grid mesh plate 54, and saves human resources.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a recycled concrete vibrating device, includes the base, its characterized in that: the upper end of base is provided with the mounting bracket, and the inside of mounting bracket is provided with convenient closing cap subassembly, and the bottom of convenient closing cap subassembly is provided with down the protective cover, and the inside of lower protective cover is provided with the shaking table body, and the bottom symmetric connection of base has the collecting pipe, and the bottom of collecting pipe is provided with clearance collection subassembly, installs the extraction fan in the middle of the top of clearance collection subassembly.

2. A recycled concrete vibratory apparatus as claimed in claim 1, wherein: convenient closing cap subassembly includes the guide bar, the locating lever, the guide holder, the V template, go up the protective cover, supporting spring, the movable block, spacing spring and regulation pole, wherein, the inside bottom symmetry of mounting bracket is fixed with the guide bar, the bottom surface of guide bar cup joints and is provided with supporting spring, supporting spring's upper end is provided with the movable block, be provided with the protective cover between the movable block, the upper end symmetry of going up the protective cover is provided with the guide holder, the inside of guide holder is provided with the locating lever, the surface of locating lever cup joints and is provided with spacing spring, the one end of locating lever is provided with the V template, the one end of V template is connected with the regulation pole.

3. A recycled concrete vibratory apparatus as claimed in claim 2, wherein: one end of the positioning rod, which is close to the V-shaped plate, is provided with a limiting clamping block, and the surface of the positioning rod is provided with a positioning block corresponding to the limiting spring.

4. A recycled concrete vibratory apparatus as claimed in claim 2, wherein: and a positioning jack is arranged in the bottom end of the guide rod corresponding to the positioning rod.

5. A recycled concrete vibratory apparatus as claimed in claim 2, wherein: a fixed shaft is arranged between the V-shaped plate and the adjusting rod, and anti-skid lines are arranged on the surface of the adjusting rod.

6. A recycled concrete vibratory apparatus as recited in claim 1, wherein: the cleaning and collecting assembly comprises a scraper, a strong magnetic block, a damping shaft, a grid screen plate, a collecting box and a collecting box, wherein the collecting box is arranged at the bottom end of the collecting pipe, the grid screen plate is symmetrically arranged in the collecting box, the collecting box is arranged on one side of the grid screen plate, the scraper is arranged in the collecting box corresponding to the grid screen plate, the damping shaft is arranged at one end of the collecting box corresponding to the collecting box, and the strong magnetic block is arranged on the surface of the damping shaft.
