CN218667894U - Steel house assembling connecting part - Google Patents

Abstract

The utility model discloses an assembled connecting part of a steel structure house, relates to the field of steel structures, and comprises an H-shaped connecting piece used for connecting longitudinal I-beams and transverse I-beams, and a connecting assembly is installed on the H-shaped connecting piece , as well as installation components for arranging lines or pipelines. The installation components include arc-shaped arms that are rotatably installed on both sides of the H-shaped connector, and vertical bases that are fixed on both sides of the H-shaped connector by bolts, and the vertical base A limit assembly for fixing the arc-shaped arm is also provided, and the limit assembly includes a matching limit ball groove and an elastic hemisphere. Compared with the prior art, the present application can realize rapid installation between I-beams in different directions, and improve the installation efficiency of pipeline structure arrangement.

Description

Assembled connection part for a steel structure house

technical field

The utility model relates to the field of steel structures, in particular to an assembly connecting part of a steel structure house.

Background technique

Steel structure is a structure composed of steel materials, which is one of the main types of building structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plates. The characteristics of steel are high strength, self-weight It is light, has good overall rigidity and strong deformation ability, so it is especially suitable for building large-span, super-high and super-heavy buildings; the material has good homogeneity and isotropy, and is an ideal elastic body, which is most in line with the basic principles of general engineering mechanics. It is assumed that the material has good plasticity and toughness, can have large deformation, and can withstand dynamic load well; the construction period is short; its high degree of industrialization can carry out specialized production with high degree of mechanization.

In the prior art, the Chinese patent document with the publication number CN112523354B proposes a steel structure building assembly connecting part, which is used to realize the quick connection between vertically arranged I-beams, but the connecting part is fixed in different directions. When using I-beams, it is necessary to drill multiple holes for the I-beams in different directions, and the installation efficiency is low. In addition, the steel structure buildings built with I-beams often need to set up independent pipelines or wiring channels, which will also reduce the steel structure. The overall construction progress of the structural building, therefore, we disclose a steel structure building assembly connection part to meet the rapid installation requirements of I-beams and wiring channels in different directions.

Utility model content

The purpose of this utility model is to provide a steel structure building assembly connection part to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: an assembled connection part for a steel structure house, including an H-shaped connector for connecting the longitudinal I-beam and the transverse I-beam, the longitudinal I-beam and the The horizontal I-beam is vertically arranged, the H-shaped connector is engaged on the side corresponding to the longitudinal I-beam and the horizontal I-beam, and a connection assembly is installed on the H-shaped connector, and the connection assembly It includes a plurality of bolts sleeved in the H-shaped connecting piece and passing through the longitudinal I-beam and the transverse I-beam respectively;

The H-shaped connector is also equipped with an installation assembly for arranging lines or pipelines. The installation assembly includes arc-shaped arms that are rotatably installed on both sides of the H-shaped connector, and are fixed and installed on the H-shaped connector by the bolts. The vertical bases on both sides of the H-shaped connector, and the vertical base is also provided with a limit assembly for fixing the arc arm, and the limit assembly includes a matching limit ball groove and an elastic hemisphere.

Preferably, the longitudinal I-beam is provided with two installation holes corresponding to one end of the transverse I-beam, and the two ends of the plurality of bolts respectively pass through the corresponding installation holes and the said horizontal I-beam. The vertical base extends to one side of the vertical base on the corresponding side, and the width of the vertical base is equal to the width of the H-shaped connector;

Both ends of the plurality of bolts are threaded with fastening nuts, and the plurality of fastening nuts are fitted to the vertical bases on the corresponding sides respectively.

Preferably, the H-shaped connector is also provided with a reinforcing structure to improve the supporting strength of the H-shaped connector, the reinforced structure includes two bearing plates welded on one side of the H-shaped connector, and the two The bearing plates are attached to both sides of the transverse I-beam respectively, and reinforcing ribs are welded between the two bearing plates and the H-shaped connector.

Preferably, both sides of the H-shaped connector are fixedly mounted with rotating shafts of the same height, and one ends of the two arc-shaped arms are respectively rotatably mounted on the corresponding rotating shafts.

Preferably, a plurality of wire harness holes with different diameters are opened on the two arc-shaped arms, and one end of the two arc-shaped arms is fixedly connected with a pipe ring for arranging pipes.

Preferably, a plurality of limit ball grooves are provided on the top and bottom of the two arc-shaped arms respectively, and fixed blocks of the same height are fixedly installed on both sides of the H-shaped connector, and the plurality of said The elastic hemispheres are respectively fixedly mounted on the corresponding fixed blocks.

Preferably, a plurality of evenly distributed waist-shaped distribution reducing holes are opened on the two pipe rings.

Technical effect and advantage of the present utility model:

1. The structure of the utility model is reasonable. When installing, use two of the bolts to pass through the corresponding installation holes, the vertical base and the H-shaped connector, and connect the H-shaped connector to the longitudinal I-beam first, and then use the other two The bolt runs through the horizontal I-beam and the H-shaped connector, and the H-shaped connector is used to connect the longitudinal I-beam and the horizontal I-beam. Compared with the existing technology, the number of holes drilled on the I-beam is reduced, and the While reducing the workload, it can also realize rapid installation between I-beams in different directions, and improve the installation efficiency of the pipeline structure.

2. In the utility model, after the H-shaped connector is installed, select a suitable wire harness hole according to the diameter of the line, and pass the wire harness through the corresponding wire harness hole to complete easy wiring, and connect the pipe through the pipe ring on the corresponding side to realize For the quick installation of the pipeline, when there is no need to install the pipeline, the arc arm can be rotated so that the corresponding elastic hemisphere snaps into the corresponding limit ball groove to realize the hidden storage of the arc arm and avoid occupying space.

Description of drawings

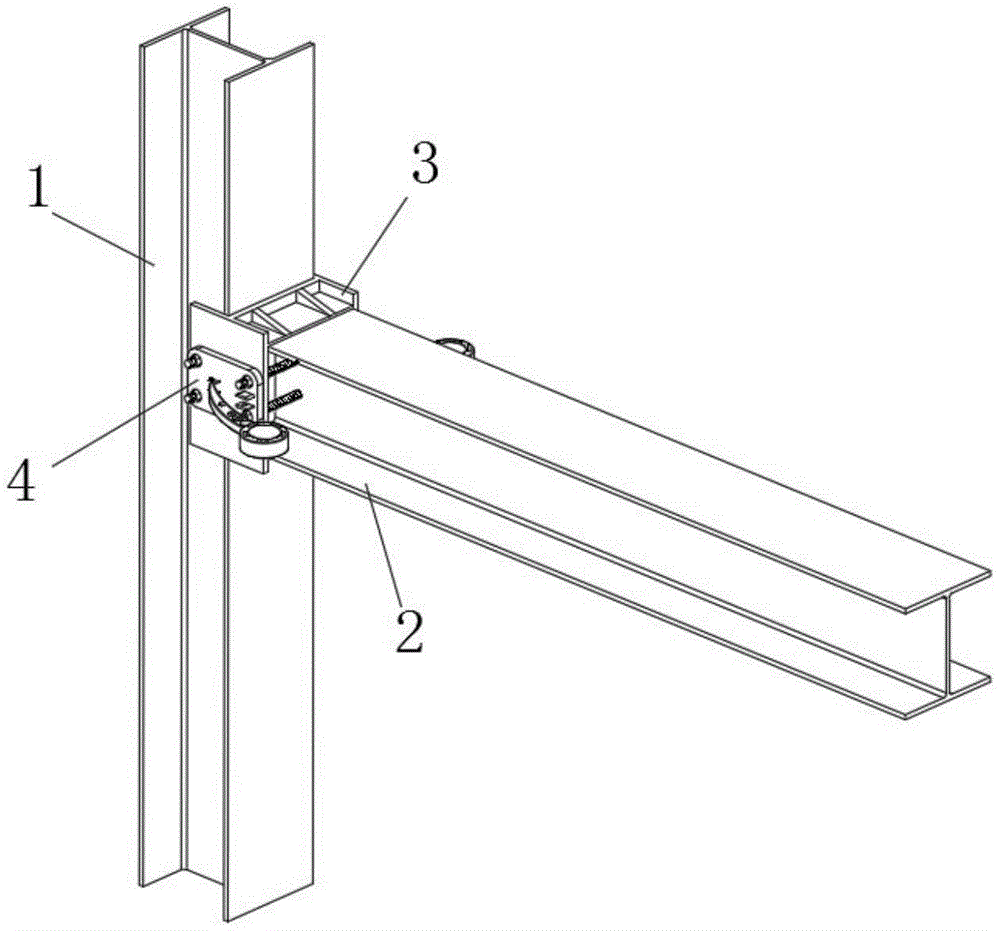

Fig. 1 is a schematic diagram of the three-dimensional structure of the utility model;

Fig. 2 is a partial top view structure schematic diagram of the utility model;

Fig. 3 is a three-dimensional structural schematic diagram of the I-beam connecting part of the utility model;

Fig. 4 is a schematic diagram of the three-dimensional structure of the H-shaped connector of the present invention.

In the figure: 1. Longitudinal I-beam; 2. Horizontal I-beam; 3. H-shaped connector; 4. Vertical base; 5. Mounting hole; 6. Bolt; 7. Fastening nut; 8. Loading plate; 9 10. Arc arm; 11. Beam hole; 12. Pipe ring; 13. Limiting ball groove; 14. Fixed block; 15. Elastic hemisphere.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides an assembled connection part for a steel structure house as shown in Figures 1-4, including an H-shaped connector 3 for connecting the longitudinal I-beam 1 and the transverse I-beam 2, the longitudinal I-beam 1 and the horizontal I-beam 2 The horizontal I-beam 2 is vertically arranged, and the H-shaped connector 3 is engaged on the side corresponding to the longitudinal I-beam 1 and the horizontal I-beam 2. The H-shaped connector 3 is equipped with a connecting component, and the connecting component includes a sleeve set on the H A plurality of bolts 6 that run through the longitudinal I-beam 1 and the transverse I-beam 2 in the connecting piece 3, and the installation assembly for arranging lines or pipelines is installed on the H-shaped connection piece 3. The arc-shaped arms 10 on both sides of the H-shaped connector 3, and the vertical base 4 fixedly installed on both sides of the H-shaped connector 3 by bolts 6, and the vertical base 4 is also provided with a limit assembly for fixing the arc-shaped arm 10 The limit assembly includes a matching limit ball groove 13 and an elastic hemisphere 15. By setting the H-shaped connector 3, the longitudinal I-beam 1 and the transverse I-beam 2 are clamped, and the bolt 6 is used to penetrate the longitudinal work. The beam 1, the horizontal I-beam 2 and the vertical base 4, compared with the existing installation method, can not only realize the rapid installation of the arc-shaped arm 10 used to fix the line or pipeline, but also do not need to be installed at the end of the I-beam. A number of holes are opened at the top to improve the splicing efficiency between I-beams in the vertical direction.

Further, in the above scheme, two installation holes 5 corresponding to the positions of the longitudinal I-beam 1 and one end of the transverse I-beam 2 are provided, and the two ends of a plurality of bolts 6 respectively pass through the corresponding installation holes 5 and The vertical base 4 extends to one side of the corresponding side vertical base 4 respectively, and the width of the vertical base 4 is equal to the width of the H-shaped connector 3, and both ends of a plurality of bolts 6 are screwed with fastening nuts 7, And a plurality of fastening nuts 7 are fitted with the vertical base 4 on the corresponding side respectively. When installing, use two of the bolts 6 to pass through the corresponding mounting holes 5, the vertical base 4 and the H-shaped connector 3, and connect the H-shaped connector 3 is preferentially connected to the longitudinal I-beam 1, and then the other two bolts 6 are used to penetrate the horizontal I-beam 2 and the H-shaped connector 3, and the vertical I-beam 1 and the horizontal I-beam 2 are connected by the H-shaped connector 3 Compared with the existing technology, the number of drilling holes on the I-beam is reduced, and the workload is reduced. At the same time, it can also realize rapid installation between I-beams in different directions, and improve the installation of the pipeline structure. efficiency.

Further, in the above scheme, the H-shaped connector 3 is also provided with a reinforcing structure to improve the supporting strength of the H-shaped connector 3. The reinforced structure includes two bearing plates 8 welded on one side of the H-shaped connector 3, two The bearing plates 8 are respectively attached to both sides of the horizontal I-beam 2, and reinforcing ribs 9 are welded between the two bearing plates 8 and the H-shaped connector 3, splicing the longitudinal I-beam 1 and the transverse I-beam 2 , put one end of the horizontal I-beam 2 into the H-shaped connector 3 and place it on one of the bearing plates 8, use two of the bolts 6 to connect the H-shaped connector 3 and the longitudinal I-beam 1, and then One end of the horizontal I-beam 2 is supported by the bearing plate 8, without manual continuous jacking up of one end of the horizontal I-beam 2, which is convenient for installation and saves physical strength, and the setting of the reinforcing rib 9 improves the supporting strength of the bearing plate 8 .

Further, in the above scheme, both sides of the H-shaped connector 3 are fixedly installed with rotating shafts of the same height, and one end of the two arc arms 10 is respectively rotated and installed on the corresponding rotating shafts. There are a plurality of wire harness holes 11 with different apertures, and one end of the two arc arms 10 is fixedly connected with a pipe ring 12 for arranging pipes, and a plurality of limit ball grooves 13 are opened in the two arc arms 10 respectively. The top and bottom of the H-shaped connector 3 are fixedly installed with fixed blocks 14 of the same height on both sides of the H-shaped connector 3. A plurality of elastic hemispheres 15 are fixedly installed on the corresponding fixed blocks 14. After the H-shaped connector 3 is installed, Select the appropriate wire harness hole 11 according to the diameter of the line, and pass the wire harness through the corresponding wire harness hole 11 to complete easy wiring, and put the pipe through the pipe ring 12 on the corresponding side to realize the quick installation of the pipe. When there is no need to install the pipeline, The arc-shaped arm 10 can be rotated so that the corresponding elastic hemisphere 15 is engaged in the corresponding limiting ball groove 13 to realize the hidden storage of the arc-shaped arm 10 and avoid occupying space.

Further, in the above solution, a plurality of evenly distributed waist-shaped distribution reducing holes are opened on the two pipe rings 12 , and the overall weight of the arc-shaped arm 10 is reduced by setting the reducing distribution holes.

The practical working principle: when installing, use two of the bolts 6 to pass through the corresponding installation holes 5, the vertical base 4 and the H-shaped connector 3, and connect the H-shaped connector 3 to the longitudinal I-beam 1 first, and then use the The other two bolts 6 run through the horizontal I-beam 2 and the H-shaped connector 3, and the H-shaped connector 3 is used to connect the longitudinal I-beam 1 and the horizontal I-beam 2. The number of drilling holes on the beam can reduce the workload, and at the same time, it can also realize the rapid installation between the beams in different directions, and improve the installation efficiency of the layout of the pipeline structure.

After the H-shaped connector 3 is installed, select the appropriate wire harness hole 11 according to the diameter of the line, pass the wire harness through the corresponding wire harness hole 11, complete easy wiring, and put the pipe through the pipe ring 12 on the corresponding side, so as to realize the connection of the pipe. Quick installation, when there is no need to install the pipeline, the arc arm 10 can be rotated so that the corresponding elastic hemisphere 15 is engaged in the corresponding limit ball groove 13, so that the arc arm 10 can be hidden and stored to avoid occupying space.

Finally, it should be noted that: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model, although the utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements on some of the technical features. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model, All should be included within the protection scope of the present utility model.

Claims (7)

1. The utility model provides a adapting unit is assembled to steel house which characterized in that: the connecting structure comprises an H-shaped connecting piece (3) used for connecting a longitudinal joist steel (1) and a transverse joist steel (2), wherein the longitudinal joist steel (1) and the transverse joist steel (2) are vertically arranged, the H-shaped connecting piece (3) is clamped on one side of the longitudinal joist steel (1) corresponding to the transverse joist steel (2), a connecting assembly is installed on the H-shaped connecting piece (3), and the connecting assembly comprises a plurality of bolts (6) which are sleeved in the H-shaped connecting piece (3) and respectively penetrate through the longitudinal joist steel (1) and the transverse joist steel (2);

still install the installation component who is used for arranging circuit or pipeline on H shape connecting piece (3), the installation component is installed including rotating arc arm (10) of H shape connecting piece (3) both sides, and pass through bolt (6) fixed mounting be in perpendicular base (4) of H shape connecting piece (3) both sides, just still be equipped with on perpendicular base (4) and be used for fixing the spacing subassembly of arc arm (10), spacing subassembly includes spacing ball groove (13) and the elasticity hemisphere (15) of looks adaptation.

2. The splicing and connecting component for the steel structure house according to claim 1, which is characterized in that: two mounting holes (5) corresponding to each other in position are formed in each of the longitudinal I-shaped steel (1) and one end of each of the transverse I-shaped steel (2), two ends of each of the bolts (6) penetrate through the corresponding mounting hole (5) and the corresponding vertical base (4) respectively and extend out of one side of the corresponding vertical base (4), and the width of each vertical base (4) is equal to that of the corresponding H-shaped connecting piece (3);

and fastening nuts (7) are sleeved at the two ends of the bolts (6) in a threaded manner, and the fastening nuts (7) are respectively attached to the vertical bases (4) on the corresponding sides.

3. The splicing and connecting component for the steel structure house according to claim 1, which is characterized in that: still be equipped with the improvement on H shape connecting piece (3) support the additional strengthening of intensity, the additional strengthening is including welding two loading boards (8) of H shape connecting piece (3) one side, two loading board (8) respectively with the both sides of horizontal I-steel (2) are laminated mutually, and two loading board (8) with all weld between H shape connecting piece (3) strengthening rib (9).

4. The splicing connecting component for the steel structure houses as claimed in claim 1, which is characterized in that: the two sides of the H-shaped connecting piece (3) are fixedly provided with rotating shafts with the same height, and one ends of the two arc-shaped arms (10) are respectively and rotatably arranged on the corresponding rotating shafts.

5. The splicing and connecting component for the steel structure house according to claim 4, wherein: two all set up bunch hole (11) that a plurality of apertures differ on arc arm (10), and two the equal fixedly connected with of one end of arc arm (10) is used for arranging pipeline circle (12) of pipeline.

6. The splicing and connecting component for the steel structure house according to claim 5, wherein: it is a plurality of spacing ball groove (13) are seted up respectively two the top and the bottom of arc arm (10), just the equal fixed mounting in both sides of H shape connecting piece (3) has highly uniform fixed block (14), and is a plurality of elasticity hemisphere (15) is fixed mounting respectively and is corresponding on fixed block (14).

7. The splicing and connecting component for the steel structure house according to claim 5, wherein: a plurality of waist-shaped reducing holes which are uniformly distributed are formed in the two pipeline rings (12).
