Abstract

The utility model relates to a device for collecting and cleaning corrugated paper cutting waste, which comprises a processing cabinet, a processing bucket is fixedly connected to the inner side of the processing cabinet, a sealing cover is provided on one side of the processing bucket, and the rear end surface of the processing cabinet is fixedly connected to There is a drive case, the inner side of the drive case is fixedly connected with a crushing motor, the main shaft of the crushing motor is fixedly connected with a driving gear through a coupling, the inside of the drive case is provided with a driven gear, and one of the driving gears is Both the side and the side of the driven gear are fixedly connected with a crushing knife group through the rotating shaft, and the inner side of the processing box is equipped with a belt feeding mechanism; the waste can be further crushed, and the crushed waste is transported regularly for subsequent compaction. The work provides convenience, and the compaction of waste materials can not only reduce the space occupied by waste materials, thereby improving the collection capacity, but also reduce the number of equipment shutdowns and effectively improve work efficiency, which is worthy of promotion and use.

Description

A device for collecting and cleaning corrugated paper cutting waste

technical field

The utility model relates to a device for collecting and cleaning corrugated paper cutting waste, which belongs to the technical field of corrugated paper processing.

Background technique

Corrugated paper is a plate made of liner paper and corrugated corrugated paper formed by corrugating rollers. It is generally divided into two types: single corrugated board and double corrugated board. According to the size of the corrugated board, it is divided into: A, B, C , E, and F five types. The invention and application of corrugated paper has a history of more than 100 years. It has the advantages of low cost, light weight, easy processing, high strength, excellent printing adaptability, and convenient storage and transportation. More than 80% of corrugated paper All can be recycled and regenerated. Corrugated paper can be used as packaging for food or digital products. It is relatively environmentally friendly and widely used. When recycling, it is necessary to use a cutting waste collection and cleaning device.

Most of the existing corrugated paper cutting waste collection and cleaning devices do not have the function of compacting the waste after cutting. The waste is too loose, which not only occupies a large space, but also causes too many shutdowns to process it, which is serious Affected overall work efficiency, so need a kind of corrugated cardboard cutting waste collection cleaning device, so that for people to use.

Utility model content

The purpose of this utility model is to provide a device for collecting and cleaning corrugated paper cutting waste, which can further pulverize the waste, and regularly transport the pulverized waste, which provides convenience for the subsequent compaction work. The compaction of the waste can not only The space occupied by waste materials is reduced, thereby improving the collection capacity, reducing the number of equipment shutdowns, and effectively improving work efficiency, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

A device for collecting and cleaning corrugated paper cutting waste, including a processing cabinet, a processing barrel is fixedly connected to the inner side of the processing cabinet, a sealing cover is provided on one side of the processing barrel, and a drive cabinet is fixedly connected to the rear end of the processing cabinet, The inner side of the drive case is fixedly connected with a pulverizing motor, the main shaft of the pulverizing motor is fixedly connected with a driving gear through a coupling, the inside of the driving case is provided with a driven gear, and one side of the driving gear is connected to the driven gear. One side of the gears is fixedly connected with a crushing knife group through a rotating shaft, a belt feeding mechanism is provided on the inside of the processing cabinet, a feeding motor is fixedly connected to the rear end of the processing cabinet, and a collector is slidingly connected to the inside of the bottom of the processing cabinet. box.

Further, the diameter of the driving gear matches that of the driven gear, and the driving gear and the driven gear are meshed with each other.

Further, one side of the collection box is fixedly connected with a blanking plate arranged obliquely, and the blanking plate is attached and slidably connected to the belt feeding mechanism.

Further, a protective box is fixedly connected to the inner side of the bottom end surface of the processing cabinet, a storage battery is fixedly connected to the inner side of the bottom of the protective box, a controller is fixedly connected to the inner side of the top of the protective box, and the inner side of the top of the protective box is fixed There is a timer connected.

Further, the feeding motor is electrically connected to the timer and the controller through wires, and the timer is electrically connected to the controller through wires.

Further, the rear end surface of the processing cabinet is fixedly connected with an adjusting motor, the main shaft of the adjusting motor is fixedly connected with an adjusting turntable through a coupling, and one side of the adjusting turntable is connected with an adjusting link through a rotating shaft. The other end of the adjusting link is rotatably connected to a hydraulic push rod, and the other end of the hydraulic push rod is fixedly connected to a compacting plate.

Further, a fixing plate is fixedly connected to the inner side of the processing cabinet, and the hydraulic push rod penetrates and is slidably connected to the fixing plate, and the external dimensions of the compacting plate match the internal dimensions of the collection box.

The beneficial effects of the utility model are:

Through the belt feeding mechanism, timer, hydraulic push rod and compacting plate, etc., when in use, the waste is put into the processing barrel, and the driving gear is rotated by the crushing motor, and the two crushing knife groups can be rotated synchronously under the transmission between the gears. Crushing it can reduce the space occupied by the waste during collection, and time the power-on work of the feeding motor through the timer, turn the belt feeding mechanism for feeding within a certain period of time, and stop for a certain period of time for subsequent processing The work provides a gap, which makes the cooperation between the structures more reasonable. In the process of stopping the feeding mechanism, the adjustment motor rotates the adjustment turntable, and the hydraulic push rod is raised and lowered by adjusting the connecting rod. In the process of moving the hydraulic push rod down, it can be compacted. The board compacts the waste. After compaction, the space occupied by the waste can be greatly reduced, which provides convenience for people's collection work. Moreover, this can reduce the number of times the equipment is shut down for processing, and greatly improves the work efficiency. In summary, when the utility model is in use, the waste can be further pulverized, and the pulverized waste can be transported regularly, which provides convenience for the subsequent compaction work, and the compaction of the waste can not only reduce the occupation of waste It can improve the collection capacity, reduce the number of equipment shutdowns, and effectively improve work efficiency. It is worth promoting and using. .

Description of drawings

The accompanying drawings are used to provide a further understanding of the utility model, and constitute a part of the description, and are used to explain the utility model together with the specific embodiments of the utility model, and do not constitute a limitation to the utility model.

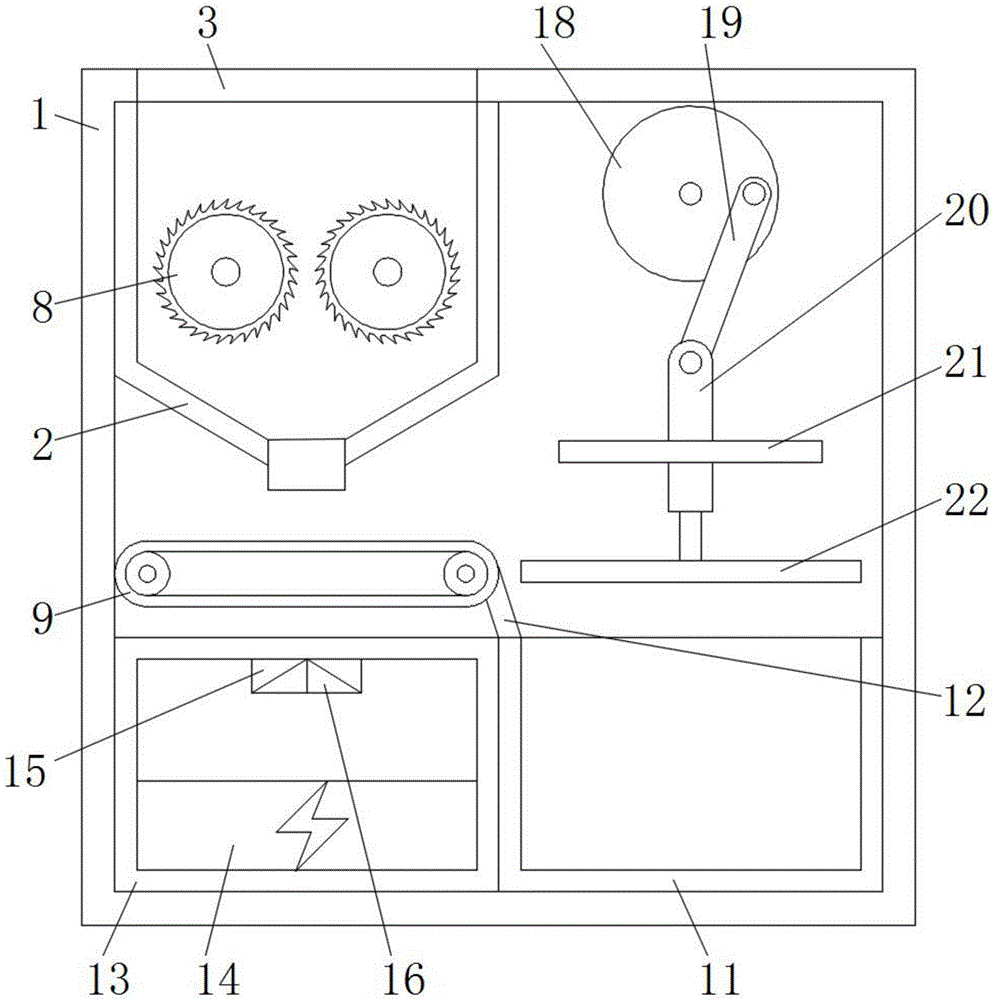

Figure 1 is a schematic diagram of the overall structure of a corrugated paper cutting waste collection and cleaning device of the present invention;

Fig. 2 is a schematic diagram of the installation structure of the driving case of a corrugated paper cutting waste collection and cleaning device of the present invention;

Fig. 3 is a schematic diagram of the internal structure of the driving case of a corrugated paper cutting waste collection and cleaning device of the present invention;

Labels in the figure: 1. Processing case; 2. Processing barrel; 3. Sealing cover; 4. Drive case; 5. Pulverizing motor; 6. Driving gear; 7. Driven gear; 8. Pulverizing knife group; mechanism; 10. feeding motor; 11. collecting box; 12. blanking plate; 13. protective box; 14. storage battery; 15. controller; 16. timer; 17. regulating motor; 18. regulating turntable; 19. regulating Connecting rod; 20, hydraulic push rod; 21, fixed plate; 22, compacting plate.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Embodiment 1, please refer to Fig. 1-Fig. 3, the utility model provides a kind of technical scheme:

A device for collecting and cleaning corrugated paper cutting waste, comprising a processing case 1, a processing barrel 2 is fixedly connected to the inner side of the processing case 1, a sealing cover 3 is provided on one side of the processing barrel 2, and a driving case 4 is fixedly connected to the rear end of the processing case 1 , the inner side of the driving case 4 is fixedly connected with a crushing motor 5, the main shaft of the crushing motor 5 is fixedly connected with a driving gear 6 through a coupling, and the inside of the driving case 4 is provided with a driven gear 7, and one side of the driving gear 6 is connected to the driven gear. One side of gear 7 is all fixedly connected with pulverizer group 8 by rotating shaft, and the inboard of processing cabinet 1 is provided with belt feeding mechanism 9, and the rear end face of processing cabinet 1 is fixedly connected with feeding motor 10, and the bottom inner side of processing cabinet 1 is slidably connected with collection box 11.

As a preferred technical solution of the present utility model, the diameter of the driving gear 6 matches the diameter of the driven gear 7, and the driving gear 6 and the driven gear 7 are meshed with each other; A pulverizing knife group 8 further pulverizes the corrugated paper waste, reducing the space occupied when it is collected.

As a preferred technical solution of the present utility model, one side of the collection box 11 is fixedly connected with a blanking plate 12 arranged obliquely, and the blanking plate 12 is fitted and slidably connected to the belt feeding mechanism 9; it is convenient for feeding and blanking. .

As a preferred technical solution of the present utility model, a protective box 13 is fixedly connected to the inner side of the bottom end surface of the processing cabinet 1, a battery 14 is fixedly connected to the inner side of the bottom of the protective box 13, and a controller 15 is fixedly connected to the inner side of the top of the protective box 13. The inside of the top of the protective box 13 is fixedly connected with a timer 16, and the feeding motor 10 is electrically connected to the timer 16 and the controller 15 respectively by electric wires, and the timer 16 is electrically connected to the controller 15 by electric wires; The power-on work of the feeding motor 10 is timed, and the feeding mechanism is rotated for feeding within a certain period of time, and the machine is shut down for a certain period of time, which provides gaps for subsequent processing and makes the cooperation between structures more reasonable.

Embodiment 2 please refer to Fig. 1, the difference between this embodiment and embodiment 1 is:

The rear end face of the processing cabinet 1 is fixedly connected with an adjusting motor 17, the main shaft of the adjusting motor 17 is fixedly connected with an adjusting turntable 18 through a coupling, and one side of the adjusting turntable 18 is connected with an adjusting connecting rod 19 through a rotating shaft. The other end is rotatably connected with a hydraulic push rod 20, the other end of the hydraulic push rod 20 is fixedly connected with a compacting plate 22, the inner side of the processing cabinet 1 is fixedly connected with a fixed plate 21, and the hydraulic push rod 20 is slidably connected to the fixed plate 21, And the external dimensions of the compaction plate 22 match the internal dimensions of the collection box 11; the waste material falling into the collection box 11 can be squeezed, and after it is compacted, the space occupied by the waste material can be greatly reduced, providing people with The collection work provides convenience, and this can reduce the number of equipment shutdowns and greatly improve work efficiency.

The working principle of the utility model: when in use, the waste material is put into the processing barrel 2, and the driving gear 6 is rotated by the crushing motor 5, and the two crushing knife groups 8 can be rotated synchronously under the transmission between the gears to crush it, which can reduce the collection cost. The space occupied by the time waste, and, by the timer 16, the energization of the feeding motor 10 is timed, and the belt feeding mechanism 9 is rotated for feeding within a certain period of time, and the machine is stopped for a certain period of time, providing a gap for the follow-up processing work, so that The cooperation between the structures is more reasonable. During the process of stopping the feeding mechanism, the adjustment motor 17 rotates the adjustment dial 18, and the hydraulic push rod 20 is cyclically raised and lowered by the adjustment connecting rod 19. When the hydraulic push rod 20 moves down, it can pass through the compacting plate. 22. Compact the waste. After compacting it, the space occupied by the waste can be greatly reduced, which provides convenience for people to collect. The hydraulic push rod 20 moves the compaction plate 22 to reach a more suitable position, which not only ensures the reasonable operation of the structure, but also ensures the effect of compaction.

It is obvious to those skilled in the art that the present invention is not limited to the details of the above exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential features of the present invention. Therefore, no matter from all points of view, the embodiments should be regarded as exemplary and non-restrictive, and the scope of the present invention is defined by the appended claims rather than the above description, so it is intended to fall within the scope of the claims All changes within the meaning and range of equivalents of the required elements are included in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

In addition, it should be understood that although this specification is described according to implementation modes, not each implementation mode only contains an independent technical solution, and this description in the specification is only for clarity, and those skilled in the art should take the specification as a whole , the technical solutions in the various embodiments can also be properly combined to form other implementations that can be understood by those skilled in the art.

Claims (7)

1. The utility model provides a corrugated paper cutting garbage collection cleaning device, includes processor case (1), its characterized in that: the utility model discloses a belt feeding device, including treater case (1), inboard fixedly connected with treatment vessel (2) of treater case (1), one side of treatment vessel (2) is equipped with sealed lid (3), the rear end face fixedly connected with drive machine case (4) of treater case (1), inboard fixedly connected with crushing motor (5) of drive machine case (4), the main shaft of crushing motor (5) passes through shaft coupling fixedly connected with driving gear (6), the inboard of drive machine case (4) is equipped with driven gear (7), one side of driving gear (6) and one side of driven gear (7) all through pivot fixedly connected with crushing knife tackle (8), the inboard of treater case (1) is equipped with belt feeding mechanism (9), the rear end face fixedly connected with feeding motor (10) of treater case (1), the inboard sliding connection in bottom of treater case (1) has collecting box (11).

2. The corrugated paper cutting waste collecting and cleaning device as claimed in claim 1, wherein: the diameter size of the driving gear (6) is matched with that of the driven gear (7), and the driving gear (6) is meshed with the driven gear (7) and connected with the driven gear.

3. The corrugated paper cutting waste collecting and cleaning device as claimed in claim 1, wherein: one side of the collecting box (11) is fixedly connected with a blanking plate (12) which is obliquely arranged, and the blanking plate (12) is attached to the belt feeding mechanism (9) in a sliding mode.

4. The corrugated paper cutting waste collecting and cleaning device as claimed in claim 1, wherein: the inner side of the bottom end face of the processing case (1) is fixedly connected with a protective case (13), the inner side of the bottom of the protective case (13) is fixedly connected with a storage battery (14), the inner side of the top of the protective case (13) is fixedly connected with a controller (15), and the inner side of the top of the protective case (13) is fixedly connected with a timer (16).

5. The corrugated paper cutting waste collecting and cleaning device as claimed in claim 4, wherein: the feeding motor (10) is respectively and electrically connected with the timer (16) and the controller (15) through electric wires, and the timer (16) is electrically connected with the controller (15) through electric wires.

6. The corrugated paper cutting waste collecting and cleaning device as claimed in claim 1, wherein: the rear end face of processor case (1) fixedly connected with adjusting motor (17), the main shaft of adjusting motor (17) passes through shaft coupling fixedly connected with regulation carousel (18), one side of adjusting carousel (18) is rotated through the pivot and is connected with adjusting connecting rod (19), the other end of adjusting connecting rod (19) is rotated and is connected with hydraulic push rod (20), the other end fixedly connected with compacting plate (22) of hydraulic push rod (20).

7. The corrugated paper cutting waste collecting and cleaning device as claimed in claim 6, wherein: the inner side of the processor case (1) is fixedly connected with a fixing plate (21), the hydraulic push rod (20) penetrates through the fixing plate (21) in a sliding connection mode, and the appearance size of the compacting plate (22) is matched with the inner size of the collecting box (11).
