Abstract

The utility model provides an easy-to-adjust forestry insect trap lamp, which includes an insect extermination assembly and a power supply assembly. The insect extermination assembly includes a box body, an electric telescopic rod and a cover plate; There are four electric telescopic rods, and the top of the electric telescopic rods is fixedly connected with a cover plate; the power supply assembly includes a support plate, a second motor, a screw rod and a slide rod. The utility model drives the cover plate to move through the electric telescopic rod, and closes the box in strong wind or rainy and snowy weather, preventing rain and snow from wetting electrical components such as electric insect nets and insect trap lamps, and can also prevent foreign objects from being driven by strong winds from hitting electrical components. Components have a good protective effect on electrical components and prolong the service life. The second motor drives the screw to rotate, so that the slider moves upwards, preventing tall trees from blocking the sun and causing the photovoltaic panels to fail to work normally, ensuring that the photovoltaic panels can be stable. power supply, so as to achieve the purpose of energy saving.

Description

An easily adjustable forestry insect trap lamp

technical field

The utility model relates to an insect-attracting lamp, in particular to an easily adjustable forestry insect-attracting lamp, which belongs to the technical field of forestry management.

Background technique

Forestry refers to the production sector that protects the ecological environment and maintains ecological balance, cultivates and protects forests to obtain timber and other forest products, and utilizes the natural characteristics of forest trees to play a protective role. It is one of the important components of the national economy.

In order to reduce the impact of pests on forestry, relevant departments have adopted many protective measures. Among them, insect trap lamps, as an environmentally friendly and pollution-free method, are also widely used in forestry pest control. When the existing insect trap lamps are used, they are subject to Under the influence of strong wind and rainy and snowy weather, electrical equipment such as light tubes are more likely to be damaged. At the same time, due to the overall height of the trees, the solar panels used for power supply are easily blocked by some trees and cannot work normally. Therefore, a Easily adjustable forestry insect light traps.

Utility model content

In view of this, the utility model hopes to provide an easily adjustable forestry insect trap lamp to solve or alleviate the technical problems existing in the prior art, and at least provide a beneficial option.

The technical solution of the embodiment of the utility model is realized as follows: a forestry insect trap light that is easy to adjust includes an insect extermination assembly and a power supply assembly, and the insect extermination assembly includes a box body, an electric telescopic rod and a cover plate;

Four electric telescopic rods are symmetrically fixedly connected to the bottom of the inner side wall of the box body, and a cover plate is fixedly connected to the top of the electric telescopic rods;

The power supply assembly includes a support plate, a second motor, a screw rod and a slide rod;

A second motor is installed on the bottom of the support plate, the output shaft of the second motor is fixedly connected to one end of the screw rod, and the outer wall of the screw rod is slidably connected to a slide rod.

Further preferably: a main body assembly is provided on one side of the disinsection assembly, and the main body assembly includes a base, a column, a first motor, a threaded rod, a slider, a wind speed sensor, and a rain and snow sensor;

A column is fixedly connected to the upper surface of the base, and the support plate is fixedly connected to the inside of the column.

Further preferably: a first motor is installed on the top of the column, the output shaft of the first motor is fixedly connected to the top of the threaded rod, the outer wall of the threaded rod is slidably connected to a slider, and the box is fixedly connected on the front surface of the slider.

Further preferably: a wind speed sensor and a rain and snow sensor are installed on the top of the column.

Further preferably: the insect extermination assembly also includes a box door, a heater, an insect collecting box, a controller, an insect trap lamp and an electric insect net;

A box door is hinged on the front surface of the box body, a heater is installed at the bottom of the inner side wall of the box body, an insect collecting box is arranged on the top of the heater, and a controller is installed on the inner side wall of the box body.

Further preferably: an insect trap light and an electric insect net are installed on the lower surface of the cover plate, and the insect trap light is arranged inside the electric insect net.

Further preferably: the power supply assembly further includes a third motor, a mounting base, a fourth motor, a connecting rod, a photovoltaic panel and a light control sensor;

The third motor is installed inside the slide bar, and the output shaft of the third motor is fixedly connected with the lower surface of the mounting seat.

Further preferably: a fourth motor is installed on one side of the mounting base, the output shaft of the fourth motor is fixedly connected to one side of the connecting rod, a photovoltaic panel is installed on one end of the connecting rod, and the photovoltaic panel The light control sensor is installed on the top.

The embodiment of the utility model has the following advantages due to the adoption of the above technical scheme:

1. The utility model drives the cover plate to move through the electric telescopic rod. In the case of strong wind or rainy and snowy weather, the box is closed to prevent the rain and snow from wetting electrical components such as electric insect nets and insect trap lamps, and at the same time, it can also prevent foreign objects from being driven by strong winds. Impact on electrical components can provide better protection for electrical components and prolong their service life.

2. The utility model drives the screw rod to rotate through the second motor, so that the sliding rod moves upwards, prevents the photovoltaic panels from being unable to work normally due to the tall trees blocking the sunlight, and ensures the stable power supply of the photovoltaic panels, thereby achieving the purpose of energy saving.

The above summary is for illustrative purposes only and is not intended to be limiting in any way. In addition to the illustrative aspects, embodiments and features described above, further aspects, embodiments and features of the present invention will be readily apparent by reference to the drawings and the following detailed description.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present application or in the prior art, the following will briefly introduce the drawings that need to be used in the embodiments or technical descriptions. Obviously, the drawings in the following description are only For some embodiments of the present application, those of ordinary skill in the art can also obtain other drawings based on these drawings without creative effort.

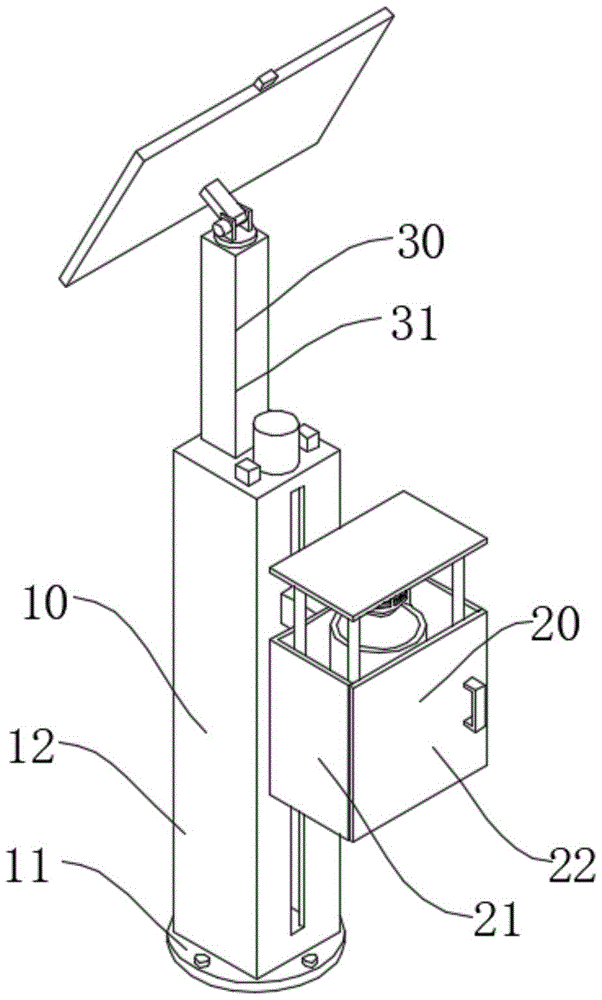

Fig. 1 is a structural diagram of the utility model;

Fig. 2 is the box internal structure diagram of the present utility model;

Fig. 3 is a column structure diagram of the utility model;

Fig. 4 is the internal structure diagram of the column of the present utility model;

Fig. 5 is a diagram of the internal structure of the slide bar of the present invention.

Reference signs: 10, main body assembly; 11, base; 12, upright column; 14, first motor; 15, threaded rod; 16, slider; 17, wind speed sensor; 18, rain and snow sensor; 20, pest control assembly; 21. Box body; 22. Box door; 23. Heater; 24. Insect collecting box; 25. Controller; 26. Electric telescopic rod; 27. Cover plate; 28. Insect trap lamp; 29. Electric insect net; 30 , power supply component; 31, support plate; 32, second motor; 33, screw rod; 34, slide rod; 35, third motor; 36, mounting seat; 37, fourth motor; 38, connecting rod; 39, photovoltaic board; 310, light control sensor.

Detailed ways

In the following, only some exemplary embodiments are briefly described. As those skilled in the art would realize, the described embodiments may be modified in various different ways, all without departing from the spirit or scope of the present invention. Accordingly, the drawings and descriptions are to be regarded as illustrative in nature and not restrictive.

Embodiments of the utility model will be described in detail below in conjunction with the accompanying drawings.

As shown in Figures 1-5, the embodiment of the utility model provides an easy-to-adjust forestry insect trap lamp, including an insect extermination assembly 20 and a power supply assembly 30, and the insect extermination assembly 20 includes a box body 21, an electric telescopic rod 26 and a cover plate 27;

The bottom of the inner wall of the box body 21 is symmetrically fixedly connected with four electric telescopic rods 26, and the top of the electric telescopic rods 26 is fixedly connected with a cover plate 27;

The power supply assembly 30 includes a support plate 31, a second motor 32, a screw rod 33 and a slide rod 34;

A second motor 32 is mounted on the bottom of the support plate 31 , an output shaft of the second motor 32 is fixedly connected to one end of a screw rod 33 , and a slide rod 34 is slidably connected to the outer wall of the screw rod 33 .

In this embodiment, specifically: one side of the disinsection assembly 20 is provided with a main body assembly 10, and the main body assembly 10 includes a base 11, a column 12, a first motor 14, a threaded rod 15, a slider 16, a wind speed sensor 17 and rain and snow sensor 18;

A column 12 is fixedly connected to the upper surface of the base 11 , and the support plate 31 is fixedly connected to the inside of the column 12 .

In this embodiment, specifically: the top of the column 12 is equipped with a first motor 14, the output shaft of the first motor 14 is fixedly connected to the top of the threaded rod 15, the outer wall of the threaded rod 15 is slidably connected to a slider 16, and the box body 21 is fixedly connected to the front surface of the slider 16, and the first motor 14 drives the threaded rod 15 to rotate, thereby driving the slider 16 to move, so that the box body 21 moves up and down, which is convenient for the operator to clean the insect collecting box 24, and can also increase the number of lures. The illumination range of the insect lamp 28 improves the effect of attracting insects.

In this embodiment, specifically: a wind speed sensor 17 and a rain and snow sensor 18 are installed on the top of the column 12, and the wind speed sensor 17 and the rain and snow sensor 18 monitor the wind speed and the weather respectively to prevent bad weather from affecting the service life of the insect trap lamp 28.

In this embodiment, specifically: the deinsectization assembly 20 also includes a box door 22, a heater 23, an insect collection box 24, a controller 25, an insect trap light 28 and an electric insect net 29;

The front surface of casing 21 is hinged with casing door 22, and heater 23 is installed on the inner side wall bottom of casing 21, and the top of heater 23 is provided with insect collection box 24, and the inner side wall of casing 21 is equipped with controller 25, and box Door 22 is convenient to take out and put into insect collecting box 24, and heater 23 is used for killing and drying worm body, prevents worm body from rotting and going bad, and controller 25 is used for controlling the operating state of a plurality of motors and electric telescopic rod 26.

In this embodiment, specifically: the lower surface of the cover plate 27 is equipped with an insect trap lamp 28 and an electric insect net 29, the insect trap lamp 28 is arranged inside the electric insect net 29, the insect trap lamp 28 is used to attract pests, and the electric insect net 29 The net 29 is used to trap pests.

In this embodiment, specifically: the power supply assembly 30 further includes a third motor 35, a mounting base 36, a fourth motor 37, a connecting rod 38, a photovoltaic panel 39 and a light control sensor 310;

The third motor 35 is installed inside the sliding rod 34 , and the output shaft of the third motor 35 is fixedly connected with the lower surface of the mounting seat 36 .

In this embodiment, specifically: the fourth motor 37 is installed on one side of the mounting base 36, the output shaft of the fourth motor 37 is fixedly connected to one side of the connecting rod 38, and a photovoltaic panel 39 is installed on one end of the connecting rod 38. A light control sensor 310 is installed on the top of the board 39. Through the above settings, the light control sensor 310 can automatically track and locate the position of the sun according to the light intensity, and adjust the direction of the photovoltaic panel 39 through the third motor 35 and the fourth motor 37 to ensure that the photovoltaic Plate 39 is always facing the sun.

When the utility model is working: the pests are attracted and captured by the insect trap lamp 28 and the electric insect net 29, and the insect body is dried by the heater 23. When rain, snow or windy weather occurs, the wind speed sensor 17 and the rain and snow sensor 18 send signals To the controller 25, the controller 25 controls the electric telescopic rod 26 to work, so that the cover plate 27 moves downward, and the box body 21 is closed to prevent rain, snow and strong wind from affecting the service life of the electrical equipment. After being covered by trees, turn on the second motor 32 to drive the screw rod 33 to rotate and move the slide rod 34 upwards, thereby improving the position of the photovoltaic panel 39 and ensuring that the photovoltaic panel 39 can be fully irradiated by sunlight, thereby stably converting electric energy into the battery. Electric energy is provided for the work of the insect trap lamp 28 at night.

The above is only a specific embodiment of the utility model, but the scope of protection of the utility model is not limited thereto, and any person familiar with the technical field can easily think of its various Any changes or replacements should be covered within the protection scope of the present utility model. Therefore, the protection scope of the present utility model should be based on the protection scope of the claims.

Claims (8)

1. An easy-to-adjust forestry insect trap lamp, including an insect extermination assembly (20) and a power supply assembly (30), characterized in that: the insect extermination assembly (20) includes a box body (21), an electric telescopic rod (26 ) and a cover plate (27); four electric telescopic rods (26) are symmetrically fixedly connected to the bottom of the inner side wall of the box body (21), and a cover plate (27) is fixedly connected to the top of the electric telescopic rod (26) ; The power supply assembly (30) includes a support plate (31), a second motor (32), a screw rod (33) and a slide rod (34); the second motor (32) is installed on the bottom of the support plate (31) , the output shaft of the second motor (32) is fixedly connected to one end of the screw rod (33), and the outer wall of the screw rod (33) is slidably connected to a slide rod (34). 2. An easily adjustable forestry insect trap lamp according to claim 1, characterized in that: one side of the insect extermination assembly (20) is provided with a main body assembly (10), and the main body assembly (10) includes Base (11), column (12), first motor (14), threaded rod (15), slider (16), wind speed sensor (17) and rain and snow sensor (18); A column (12) is fixedly connected to the upper surface of the base (11), and the support plate (31) is fixedly connected to the inside of the column (12). 3. An easily adjustable forestry insect trap lamp according to claim 2, characterized in that: a first motor (14) is installed on the top of the column (12), and the output of the first motor (14) The shaft is fixedly connected to the top of the threaded rod (15), the outer wall of the threaded rod (15) is slidably connected to the slider (16), and the box (21) is fixedly connected to the front surface of the slider (16). 4. The easily adjustable forestry insect trap lamp according to claim 3, characterized in that: a wind speed sensor (17) and a rain and snow sensor (18) are installed on the top of the column (12). 5. An easily adjustable forestry insect trap lamp according to claim 1, characterized in that: the insect extermination assembly (20) also includes a box door (22), a heater (23), an insect collection box (24 ), controller (25), insect trap lamp (28) and electric insect net (29); A box door (22) is hinged on the front surface of the box body (21), a heater (23) is installed at the bottom of the inner side wall of the box body (21), and an insect collector is arranged on the top of the heater (23). A box (24), a controller (25) is installed on the inner wall of the box (21). 6. An easily adjustable forestry insect trap lamp according to claim 5, characterized in that: the lower surface of the cover plate (27) is equipped with an insect trap lamp (28) and an electric insect net (29). Described insect trap lamp (28) is arranged on the inside of electric insect net (29). 7. An easily adjustable forestry insect trap lamp according to claim 1, characterized in that: the power supply assembly (30) also includes a third motor (35), a mounting base (36), a fourth motor (37 ), connecting rod (38), photovoltaic panel (39) and light control sensor (310); The third motor (35) is installed inside the slide bar (34), and the output shaft of the third motor (35) is fixedly connected to the lower surface of the mounting base (36). 8. An easily adjustable forestry insect trap lamp according to claim 7, characterized in that: a fourth motor (37) is installed on one side of the mounting base (36), and the fourth motor (37) The output shaft of the connecting rod (38) is fixedly connected to one side of the connecting rod (38), a photovoltaic panel (39) is installed at one end of the connecting rod (38), and a light control sensor (310) is installed on the top of the photovoltaic panel (39).
