Abstract

The utility model relates to a hard top-lifting sleeping cabin for automobile, including top cap, bottom plate, lifting frame, door plant, upper side board and lower side board, the bottom plate is opened has the opening of being convenient for to pass in and out and is used for fixing the fixing device at the car top, lifting frame includes supporting roof, supporting baseplate, upper folding portion and lower folding portion and electric drive arrangement, the upper end of upper folding portion connects supporting roof, upper end swing joint of upper folding portion lower extreme and lower folding portion, lower folding portion lower extreme connection supporting baseplate, electric drive arrangement includes electric putter and drive mechanism, upper folding portion and lower folding portion connect drive mechanism respectively, electric putter and drive mechanism drive upper folding portion and lower folding portion to expand each other or fold each other; the top cover and the bottom plate are close to each other, and at the moment, the top cover, the lifting frame, the upper side plate, the lower side plate, the door plate and the bottom plate are overlapped to form a closed sleeping compartment, so that the occupied space of the hard jacking sleeping compartment is reduced.

Description

Hard top-lifting sleeping cabin for automobile

Technical Field

The utility model relates to the field of automobiles, in particular to hard top-lifting sleeping cabin for automobile.

Background

Present outdoor self-driving travel fan and cross-country fan like driving the car to go to the tourism, because the car inner space is limited, the user can't have a rest in the car comfortably, consequently appear one kind on the market and install the hard top sleeping compartment that rises at the car top, the hard top sleeping compartment that rises can regard as the bedroom to use, at ordinary times the hard top sleeping compartment that rises is folding, do not influence the car operation, during the rest, the user expandes hard top sleeping compartment that rises, the user gets into the rest in the hard top sleeping compartment that rises through the skylight of opening the car, satisfy the user demand.

However, the prior art includes: patent numbers: CN201821776288.1, name: a hard top-lifting type sleeping cabin adopts a triangular roof tent structure, the front end of a rectangular top cover is hinged with a bottom plate, two supporting cylinders are opened through side edges, the rear end of the rectangular top cover is turned up and opened around the hinged position of the front end, and a triangular cubic cabin body is formed around a soft shed on three sides of the rectangular top cover through a support. The disadvantages are as follows: (1) limited by the triangular cabin body, the inner space of the tent is narrow. (2) After the tent is opened, the space is small due to the fact that the air cylinder is arranged on the side face, a window is not easy to arrange, and lighting is not good in the tent.

Patent numbers: CN202010461370.0, name: a shear type quick lifting top device for a vehicle and the vehicle using the shear type quick lifting top device are characterized in that shear type lifting devices are arranged on two sides of the shear type lifting device, a cylinder pushes the shear type lifting devices to lift the top cover, and a support surrounds soft sheds on four sides of the top cover to form a rectangular cubic cabin. The disadvantages are as follows: (1) after the tent is opened, the window is difficult to arrange on the side surface due to the lifting device on the side surface, and the lighting in the tent is not good. (2) The soft shed is made of cloth, so that the soft shed is poor in warm-keeping effect and is easily damaged by sharp objects.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a expand with folding simple, sturdy and durable, folding mechanism do not influence the hard top bedroom that rises for car of the function of top bedroom.

The purpose of the utility model is realized like this:

a hard top-lifting sleeping cabin for an automobile comprises a top cover, a bottom plate, a lifting frame, a door plate, an upper side plate and a lower side plate, wherein the bottom plate is provided with an opening convenient for entering and exiting and a fixing device for fixing the bottom plate on the top of the automobile;

the top cover and the bottom plate are arranged up and down, the lifting frames are arranged between the top cover and the bottom plate and are respectively positioned at the front side and the rear side of the bottom plate, and an installation area is formed between each lifting frame and the other lifting frame;

the upper side plate is arranged in the mounting area, the left side wall and the right side wall of the upper side plate are respectively connected with the upper folding part corresponding to the lifting frame in a sealing mode, the upper side of the upper side plate is connected with the top cover in a sealing mode, the lower side of the upper side plate is provided with waterproof foam, the lower side plate is arranged in the mounting area, the upper side of the lower side plate is provided with the waterproof foam, the left side wall and the right side wall of the lower side plate are respectively connected with the lower folding part corresponding to the lifting frame in a sealing mode, and the lower side of the lower side plate is connected with the bottom plate in a sealing mode;

the door plate is connected with the top cover/the bottom plate/the lifting frame in a rotating mode, corresponding waterproof parts are arranged on the periphery of the lifting frame corresponding to the periphery of the door plate, when the door plate rotates to be tightly attached to the waterproof parts, the inner cavity of the lifting frame is sealed by the door plate, and when the door plate rotates to be far away from the lifting frame, the inner cavity of the lifting frame is opened by the door plate.

When the user need expand the hard top sleeping berth that rises, electric putter passes through drive mechanism and drives folding portion and lower folding portion and expand each other, thereby expand lifting frame, lifting frame drives the upper plate and expands each other with the lower curb plate, user's upset door plant after that, make the door plant seal the lifting frame inner chamber, thereby make the top cap, lifting frame, the upper plate, the lower curb plate, door plant and bottom plate enclose into the sleeping berth of expansion state, and the top cap, lifting frame, the upper plate, the lower curb plate, door plant and bottom plate junction all adopt sealed mode to connect, improve the water-proof effects of hard top sleeping berth greatly.

When the user need fold the hard bedroom that rises, the user at first rotates the door plant, makes the door plant open the lift frame inner chamber, and electric putter passes through drive mechanism and drives folding portion and lower folding portion and draw close each other after that to folding lift frame, upper plate and lower curb plate draw close each other simultaneously, and top cap and bottom plate draw close each other simultaneously, and top cap, lift frame, upper plate, lower curb plate, door plant and bottom plate coincide this moment form the bedroom of the state of foldeing, reduce the occupation space of the hard bedroom that rises.

The purpose of the utility model can also adopt the following technical measures to solve:

further, the downside of epipleural is provided with L type breach, L type breach department is provided with waterproof bubble cotton, the upside of epipleural is provided with L type breach, and L type breach department is provided with waterproof bubble cotton, when epipleural and epipleural expand each other, the L type breach of epipleural and the L type breach cooperation of epipleural, waterproof bubble cotton extrudees with waterproof bubble cotton each other simultaneously, and epipleural connect into the integer board.

When the hard top-lifting sleeping compartment is unfolded, the upper side plate and the lower side plate are mutually unfolded, the L-shaped notch of the upper side plate is inserted into the L-shaped notch of the lower side plate, meanwhile, the waterproof foam and the waterproof foam are mutually extruded, the upper side plate and the lower side plate form a whole plate, the waterproof foam seals the connecting gap between the upper side plate and the lower side plate, and the waterproof effect of the hard top-lifting sleeping compartment is greatly improved.

Further, the top cap is opened there is the mounting groove, it has waterproof bubble cotton to go up the mounting groove built-in, go up the curb plate upside and arrange the mounting groove in, waterproof bubble is cotton sealed goes up the clearance between mounting groove and the last curb plate, the bottom plate is opened there is lower mounting groove, the mounting groove is built-in to have waterproof bubble cotton down, the curb plate is arranged in down the mounting groove down, waterproof bubble is cotton sealed down the clearance between mounting groove and the last curb plate.

In the last mounting groove of top cap was arranged in to the epipleural upside, waterproof bubble simultaneously sealed epipleural and the clearance of last mounting groove between, improve the water-proof effects between epipleural and the top cap, in the lower mounting groove of bottom plate was arranged in to the epipleural downside, waterproof bubble simultaneously sealed epipleural and the clearance between the mounting groove down improved the water-proof effects between epipleural and the bottom plate to improve the water-proof effects in hard top rising sleeping cabin.

Further, the upper side plate and the lower side plate are provided with waterproof rubber strips towards the door plate left side position, the upper side plate and the lower side plate are provided with waterproof rubber strips towards the door plate right side position, the top cover is provided with waterproof rubber strips towards the door plate upper side position, the bottom plate is provided with waterproof rubber strips towards the door plate lower side position, and a plurality of waterproof rubber strips constitute waterproof.

Further, the top cap periphery is provided with turn-ups under the round, turn-ups inboard encloses into the storage tank down, the storage tank embeds there is waterproof bubble cotton, the bottom plate is provided with one and circles the turn-ups, it sets up waterproof bubble cotton to go up the turn-ups top, when top cap and bottom plate draw close each other, go up the turn-ups and stretch into the storage tank in, waterproof bubble cotton extrudees each other. The top cover is provided with a window convenient for light transmission and ventilation and a solar panel.

Further, the top cover is a hard heat insulation top cover, the bottom plate is a hard heat insulation bottom plate, the door plate is a hard heat insulation door plate, the upper side plate is a hard heat insulation upper side plate, and the lower side plate is a hard heat insulation lower side plate.

Top cap, bottom plate, door plant, upper side board and lower side plate are the heat insulation board body of stereoplasm, adopt the heat insulation board body of stereoplasm, avoid the top sleeping compartment that rises firmly to be punctured by sharp-pointed object, and factor of safety is high, makes the top sleeping compartment that rises firmly simultaneously possess the heat insulation effect that keeps warm, and the user is more comfortable at the top sleeping compartment that rises firmly.

Further, the door plant includes electric rotating device, first gear and second gear, electric rotating device includes first rotating electrical machines, worm wheel and worm, first rotating electrical machines, worm wheel and worm are arranged in the door plant, the worm wheel is connected in first rotating electrical machines's pivot, the first gear that door plant lateral wall external connection corresponds is stretched out respectively at the worm both ends, and the worm tip stretches out the first gear and forms the pivot outward, lifting frame opens there is the shaft hole, the worm tip inserts in the shaft hole that corresponds, and the door plant uses the pivot to rotate as rotation center, and the second gear setting corresponds the shaft hole position at lifting frame in addition, first gear and second gear meshing, first rotating electrical machines passes through worm wheel, worm and drives first gear rotatory, and first gear is rotatory around the second gear to it is rotatory to drive the door plant autogiration.

After the door plant sets up electric rotary device, the door plant can convert the electric door plant into, and when the door plant need expand or fold, the work of the first rotating electrical machines of user control, first rotating electrical machines pass through worm wheel, worm and drive first gear rotatory, and the second gear is rotatory around the second gear to realize the door plant autogiration, thereby realize whole hard top-lifting sleeping cabin full automatization, promote user experience.

The door plate further comprises an automatic locking device, the automatic locking device comprises a first lock pin, a second lock pin, a screw rod and a second rotating motor, the screw rod is arranged in the door plate in a rotating mode, the first lock pin is arranged in the door plate, one end of the first lock pin faces the side wall of the door plate, the other end of the first lock pin is sleeved on the screw rod, the second lock pin is arranged in the door plate, one end of the second lock pin faces the side wall of the door plate, the other end of the second lock pin is sleeved on the screw rod, the second rotating motor is connected with the screw rod, the second rotating motor drives the screw rod to rotate, the screw rod drives the first lock pin and the second lock pin to move, the first lock pin and the second lock pin synchronously extend out of or retract into the door plate, and lock holes convenient for inserting the first lock pin or the second lock pin are formed in the top and the bottom of the lifting frame respectively.

When the door plate is in a completely folded state, the first lock pin and the second lock pin are just aligned to the upper positioning hole, the second rotating motor drives the first lock pin and the second lock pin to extend out of the door plate and be inserted into the corresponding upper positioning hole, the folded state of the door plate is automatically locked, when the door plate is in an unfolded state, the first lock pin and the second lock pin are just aligned to the lower positioning hole, the second rotating motor drives the second lock pin and the second lock pin to extend out of the door plate and be inserted into the corresponding lower positioning hole, the unfolded state of the door plate is automatically locked, the door plate can be locked in the unfolded state or the folded state, and the safety of the hard lifting top sleeping cabin is greatly improved.

Further, still include the remote controller, the bottom plate is provided with control panel, control panel is provided with socket and USB power supply interface, electric putter, first rotating electrical machines, second rotating electrical machines connect control panel respectively, control panel's power supply is provided by automobile power source or solar panel or battery, remote controller and control panel communication, the break-make of remote controller control electric putter, first rotating electrical machines, second rotating electrical machines, socket and USB power supply interface. The user can control through the remote controller, and the operation is more simple and convenient.

The utility model has the advantages as follows:

the utility model discloses, when the user need expand the hard top sleeping cabin that rises, electric putter passes through drive mechanism and drives folding portion and lower folding portion and expand each other, thereby expand lifting frame, lifting frame drives the upper side board and expands each other with the lower side board, user's upset door plant after that, make the door plant seal lifting frame inner chamber, thereby make the top cap, lifting frame, the upper side board, the lower side board, door plant and bottom plate enclose into the sleeping cabin of expansion state, and the top cap, lifting frame, the upper side board, the lower side board, door plant and bottom plate junction all adopt sealed mode to connect, improve the water-proof effects of the hard top sleeping cabin that rises greatly.

The utility model discloses, when the user need fold hard top sleeping compartment that rises, the user at first rotates the door plant, makes the door plant open the lifting frame inner chamber, electric putter passes through drive mechanism and drives folding portion and fold up each other down each other after that to folding lifting frame, the while epipleural and lower curb plate draw together each other, top cap and bottom plate draw together each other simultaneously, top cap, lifting frame, epipleural, lower curb plate, door plant and bottom plate coincide form the sleeping compartment of foldeing the state this moment, reduce the occupation space of hard top sleeping compartment that rises.

The utility model discloses, after the door plant set up electric rotary device, the door plant can convert the electronic door plant into, when the door plant need expand or fold, the work of the first rotating electrical machines of user control, first rotating electrical machines pass through worm wheel, worm and drive first gear rotatory, and the second gear is rotatory around the second gear to realize door plant autogiration, thereby realize whole hard top bedroom full automatization that rises, promote user experience.

The utility model discloses, when the door plant is in perfect folding condition, locating hole in first lockpin and second lockpin alignment just, second rotating electrical machines drives first lockpin and second lockpin this moment and stretches out the door plant outer interpolation and go into corresponding last locating hole, accomplishes the fold condition automatic locking of door plant, when the door plant is in completion expansion state, locating hole under first lockpin and second lockpin alignment just, second rotating electrical machines drives second lockpin and second lockpin this moment and stretches out the door plant and insert corresponding lower locating hole outward, accomplishes the expansion state automatic locking of door plant, and the door plant is in expansion state or fold condition and all can lock, improves the security of the top sleeping compartment that rises greatly.

Drawings

Fig. 1 is a schematic view (folded state) of a hard-rise top deck for an automobile.

Fig. 2 is a cross-sectional view of fig. 1.

Fig. 3 is another angular cross-sectional view of fig. 1.

Fig. 4 is a schematic view of a hard-lift couches for a motor vehicle (deployed state).

Fig. 5 is a cross-sectional view of fig. 4.

Fig. 6 is an enlarged view of a portion a of fig. 5.

Fig. 7 is an enlarged view of a portion B of fig. 5.

Fig. 8 is another angular cross-sectional view of fig. 4.

Fig. 9 is an enlarged view of a portion C of fig. 8.

Fig. 10 is an enlarged view of a portion D of fig. 8.

Fig. 11 is an enlarged view of a portion E of fig. 8.

Fig. 12 is a schematic view of a hard-rise top deck for an automobile (door panel flipped over state).

Fig. 13 is a schematic view of the lifting frame (folded state).

Fig. 14 is a schematic view of the lifting frame (half-deployed state).

Fig. 15 is a sectional view (half-spread state) of the lifting frame.

Fig. 16 is a schematic view of the lifting frame (unfolded state).

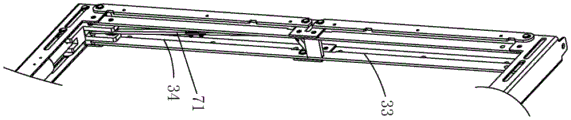

Fig. 17 is a partial schematic view of the lifting frame.

Fig. 18 is an exploded view of the lift frame.

Fig. 19 is a schematic view of a door panel (motorized door panel).

Detailed Description

The invention is further described with reference to the following figures and examples:

referring to fig. 1 to 19, a hard-lift top sleeping compartment for an automobile comprises a top cover 1, a bottom plate 2, a lifting frame 3, a door panel 4, an upper side plate 5 and a lower side plate 6, wherein the bottom plate 2 is provided with an opening 21 for facilitating entry and exit and a fixing device for fixing the bottom plate on the top of the automobile, the lifting frame 3 comprises a supporting top plate 31, a supporting bottom plate 32, an upper folding part 33, a lower folding part 34 and an electric driving device 7, the upper end of the upper folding part 33 is connected with the supporting top plate 31, the lower end of the upper folding part 33 is movably connected with the upper end of the lower folding part 34, the lower end of the lower folding part 34 is connected with the supporting bottom plate 32, the electric driving device 7 comprises an electric push rod 71 and a transmission mechanism 72, the upper folding part 33 and the lower folding part 34 are respectively connected with the transmission mechanism 72, the electric push rod 71 is connected with the transmission mechanism 72, and the electric push rod 71 drives the upper folding part 33 and the lower folding part 34 to be unfolded or folded with each other through the transmission mechanism 72;

the top cover 1 and the bottom plate 2 are arranged one above the other, the lifting frames 3 are arranged between the top cover 1 and the bottom plate 2 and are respectively positioned at the front side and the rear side of the bottom plate 2, and an installation area is formed between one lifting frame 3 and the other lifting frame 3;

the upper side plate 5 is arranged in an installation area, the left and right side walls of the upper side plate 5 are respectively connected with an upper folding part 33 corresponding to the lifting frame 3 in a sealing manner, the upper side of the upper side plate 5 is connected with the top cover 1 in a sealing manner, the lower side of the upper side plate 5 is provided with waterproof foam, the lower side plate 6 is arranged in the installation area, the upper side of the lower side plate 6 is provided with the waterproof foam, the left and right side walls of the lower side plate 6 are respectively connected with a lower folding part 34 corresponding to the lifting frame 3 in a sealing manner, and the lower side of the lower side plate 6 is connected with the bottom plate 2 in a sealing manner;

the door plate 4 is connected with the top cover 1/the bottom plate 2/the lifting frame 3 in a rotating mode, corresponding waterproof parts are arranged around the lifting frame 3 corresponding to the door plate 4, when the door plate 4 is rotated to be tightly attached to the waterproof parts, the door plate 4 seals the inner cavity of the lifting frame 3, and when the door plate 4 is rotated to be far away from the lifting frame 3, the inner cavity of the lifting frame 3 is opened by the door plate 4.

When the user need expand the hard top sleeping berth, electric putter 71 passes through drive mechanism 72 and drives folding portion 33 and lower folding portion 34 and expand each other, thereby expand lifting frame 3, lifting frame 3 drives upper plate 5 and lower side plate 6 and expands each other, user upset door plant 4 after that, make door plant 4 seal lifting frame 3 inner chamber, thereby make top cap 1, lifting frame 3, upper plate 5, lower side plate 6, door plant 4 and bottom plate 2 enclose into the sleeping berth of expansion state, and top cap 1, lifting frame 3, upper plate 5, lower side plate 6, door plant 4 and bottom plate 2 junction all adopt sealed mode to connect, improve the water-proof effects of hard top sleeping berth greatly.

When the user need fold the hard bedroom that rises, the user at first rotates door plant 4, make door plant 4 open lifting frame 3 inner chamber, electric putter 71 drives folding portion 33 and folding portion 34 and draws close each other down through drive mechanism 72 after that, thereby folding lifting frame 3, simultaneously upper plate 5 and lower side plate 6 draw close each other, top cap 1 and bottom plate 2 draw close each other simultaneously, top cap 1 this moment, lifting frame 3, upper plate 5, lower side plate 6, door plant 4 and the 2 coincide formation bedrooms of the state of foldeing of bottom plate, reduce the occupation space of the hard bedroom that rises.

Further, an L-shaped notch 51 is formed in the lower side of the upper side plate 5, waterproof foam is arranged at the position of the L-shaped notch 51, an L-shaped notch 51 is formed in the upper side of the lower side plate 6, waterproof foam 8 is arranged at the position of the L-shaped notch 51, when the upper side plate 5 and the lower side plate 6 are unfolded mutually, the L-shaped notch 51 of the upper side plate 5 is matched with the L-shaped notch 51 of the lower side plate 6, meanwhile, the waterproof foam 8 and the waterproof foam 8 are extruded mutually, and the upper side plate 5 and the lower side plate 6 are connected into a whole plate.

When the bedroom that rises hard expandes, go up curb plate 5 and lower curb plate 6 and expand each other, in the L type breach 51 of 5 of curb plate inserted the L type breach 51 of lower curb plate 6, waterproof bubble cotton 8 extrudees each other with waterproof bubble cotton 8 simultaneously, and a whole board is constituteed to 5 of curb plate and lower curb plate 6, and waterproof bubble cotton 8 seals the joint gap between 5 of curb plate and the lower curb plate 6, improves the water-proof effects of the bedroom that rises hard greatly.

Further, top cap 1 is opened there is mounting groove 11, it has cotton 8 of waterproof bubble to go up mounting groove 11 embeds, in mounting groove 11 was arranged in to 5 upsides of curb plate, waterproof bubble is cotton 8 seals up the clearance between mounting groove 11 and the curb plate 5, bottom plate 2 is opened has lower mounting groove 24, mounting groove 24 embeds has cotton 8 of waterproof bubble down, in mounting groove 24 was arranged in down to curb plate 6, waterproof bubble is cotton 8 seals down the clearance between mounting groove 24 and the curb plate 5 down.

In 5 upsides of epipe were arranged in the last mounting groove 11 of top cap 1, the cotton 8 sealed epipe of waterproof bubble simultaneously 5 and the clearance between the last mounting groove 11 improve the water-proof effects between epipe 5 and the top cap 1, 6 downside of lower plate are arranged in the lower mounting groove 24 of bottom plate 2, and the cotton 8 sealed lower plate of waterproof bubble simultaneously 6 and the clearance between lower mounting groove 24 improve the water-proof effects between lower plate 6 and the bottom plate 2 to improve the water-proof effects in hard top lift sleeping compartment.

Further, the upper plate 5 and the lower plate 6 are provided with waterproof rubber strip 9 towards the 4 left side positions of door plant, the upper plate 5 and the lower plate 6 are provided with waterproof rubber strip 9 towards the 4 right side positions of door plant, top cap 1 is provided with waterproof rubber strip 9 towards the 4 upside positions of door plant, bottom plate 2 is provided with waterproof rubber strip 9 towards the 4 downside positions of door plant, and a plurality of waterproof rubber strips 9 constitute waterproof.

Further, the periphery of top cap 1 is provided with turn-ups 12 under the round, turn-ups 12 inboard encloses into the storage tank down, the storage tank embeds has waterproof bubble cotton 8, bottom plate 2 is provided with turn-ups 22 on one, it sets up waterproof bubble cotton 8 to go up turn-ups 22 top, when top cap 1 and bottom plate 2 draw close each other, go up turn-ups 22 and stretch into in the storage tank, waterproof bubble cotton 8 extrudees each other. The roof 1 is provided with windows 13 for light transmission and ventilation and with solar panels 14.

Further, the top cover 1 is a hard heat insulation top cover 1, the bottom plate 2 is a hard heat insulation bottom plate 2, the door plate 4 is a hard heat insulation door plate 4, the upper side plate 5 is a hard heat insulation upper side plate 5, and the lower side plate 6 is a hard heat insulation lower side plate 6.

Top cap 1, bottom plate 2, door plant 4, last curb plate 5 and lower curb plate 6 are the thermal-insulated insulation board body of stereoplasm, adopt the thermal-insulated insulation board body of stereoplasm, avoid the hard bedroom of rising the top to be punctured by sharp-pointed article, factor of safety is high, makes the hard bedroom of rising the top possess the thermal-insulated effect that keeps warm simultaneously, and the user is more comfortable at the rest of the hard bedroom of rising the top.

Further, the door panel 4 includes an electric rotating device 41, a first gear 42 and a second gear 43, the electric rotating device 41 includes a first rotating motor 411, a worm wheel 412 and a worm 413, the first rotating motor 411, the worm wheel 412 and the worm 413 are disposed in the door panel 4, a rotating shaft of the first rotating motor 411 is connected to the worm wheel 412, two ends of the worm 413 respectively extend out of a side wall of the door panel 4 to connect with the corresponding first gear 42, and an end of the worm 413 extends out of the first gear 42 to form a rotating shaft, the lifting frame 3 is provided with a shaft hole 35, an end of the worm 413 is inserted into the corresponding shaft hole 35, the door panel 4 rotates around the rotating shaft as a rotation center, the second gear 43 is disposed at a position of the lifting frame 3 corresponding to the shaft hole 35, the first gear 42 is engaged with the second gear 43, the first rotating motor 411 drives the first gear 42 to rotate through the worm wheels 412 and the worm 413, and the first gear 42 rotates around the second gear 43, thereby driving the door panel 4 to rotate automatically.

After the door panel 4 sets up electric rotary device 41, door panel 4 can convert electric door panel 4 into, and when door panel 4 need expand or fold, the work of first rotating electrical machines 411 of user control, first rotating electrical machines 411 drive first gear 42 rotatory through worm wheel 412, worm 413, and second gear 43 is rotatory around second gear 43 to realize door panel 4 autogiration, thereby realize whole top sleeping compartment full automatization that rises firmly, promote user experience.

Further, the door panel 4 further includes an automatic locking device 42, the automatic locking device 42 includes a first lock pin 421, a second lock pin 422, a screw 423 and a second rotating motor 424, the screw 423 is rotatably disposed in the door panel 4, the first lock pin 421 is disposed in the door panel 4, one end of the first lock pin 421 faces a side wall of the door panel 4, the other end of the first lock pin 421 is sleeved on one end of the screw 423, which faces the side wall of the door panel, the second lock pin 422 is disposed in the door panel 4, one end of the second lock pin 422 faces the side wall of the door panel 4, the other end of the second lock pin 422 is sleeved on the screw 423, the second rotating motor 424 is connected to the screw 423, the second rotating motor 424 drives the screw 423 to rotate, the screw 423 drives the first lock pin 421 and the second lock pin 422 to move, the first lock pin 421 and the second lock pin 422 are synchronously extended or retracted into the door panel 4, and a lock hole 36 for the first lock pin 421 or the second lock pin 422 to be inserted into is respectively formed at the top and the bottom of the lifting frame 3.

When the door panel 4 is in a completely folded state, the first locking pin 421 and the second locking pin 422 are just aligned with the upper positioning hole, at the moment, the second rotating motor 424 drives the first locking pin 421 and the second locking pin 422 to extend out of the door panel 4 and insert into the corresponding upper positioning hole, so that the folded state of the door panel 4 is automatically locked, when the door panel 4 is in an unfolded state, the first locking pin 421 and the second locking pin 422 are just aligned with the lower positioning hole, at the moment, the second rotating motor 424 drives the second locking pin 422 and the second locking pin 422 to extend out of the door panel 4 and insert into the corresponding lower positioning hole, so that the unfolded state of the door panel 4 is automatically locked, the door panel 4 can be locked in the unfolded state or the folded state, and the safety of the hard-lift top sleeping cabin is greatly improved.

Further, the remote controller is further included, the bottom plate 2 is provided with a control panel, the control panel is provided with a socket and a USB power supply interface, the electric push rod 71, the first rotating motor 411 and the second rotating motor 424 are respectively connected with the control panel, the power supply of the control panel is provided by an automobile power supply or a solar panel 14 or a storage battery, the remote controller is communicated with the control panel, and the remote controller controls the on-off of the electric push rod 71, the first rotating motor 411, the second rotating motor 424, the socket and the USB power supply interface. The user can control through the remote controller, and the operation is more simple and convenient.

The working principle is as follows:

when the user need expand the hard top sleeping berth that rises, electric putter 71 drives through drive mechanism 72 and goes up folding portion 33 and lower folding portion 34 and expand each other, thereby expand lifting frame 3, lifting frame 3 drives the epipleural 5 and lower curb 6 and expand each other, user upset door plant 4 after that, make door plant 4 seal lifting frame 3 inner chamber, thereby make top cap 1, lifting frame 3, go up the curb 5, lower curb 6, door plant 4 and bottom plate 2 enclose into the sleeping berth of expansion state, and top cap 1, lifting frame 3, go up the curb 5, lower curb 6, door plant 4 and 2 junctions of bottom plate all adopt sealing mode to connect, improve the water-proof effects of the hard top sleeping berth that rises greatly.

The working principle is as follows:

when the user need fold the hard bedroom that rises, the user at first rotates door plant 4, make door plant 4 open lifting frame 3 inner chamber, electric putter 71 drives folding portion 33 and folding portion 34 and draws close each other down through drive mechanism 72 after that, thereby folding lifting frame 3, simultaneously upper plate 5 and lower side plate 6 draw close each other, top cap 1 and bottom plate 2 draw close each other simultaneously, top cap 1 this moment, lifting frame 3, upper plate 5, lower side plate 6, door plant 4 and the 2 coincide formation bedrooms of the state of foldeing of bottom plate, reduce the occupation space of the hard bedroom that rises.

Claims (10)

1. The utility model provides a hard top-lifting sleeping compartment that car was used, includes top cap, bottom plate, lifting frame, door plant, epipleural and lower side plate, the bottom plate is opened has the opening of the business turn over of being convenient for and is used for fixing the fixing device at the car top, its characterized in that: the lifting frame comprises a supporting top plate, a supporting bottom plate, an upper folding part, a lower folding part and an electric driving device, wherein the upper end of the upper folding part is connected with the supporting top plate, the lower end of the upper folding part is movably connected with the upper end of the lower folding part, the lower end of the lower folding part is connected with the supporting bottom plate, the electric driving device comprises an electric push rod and a transmission mechanism, the upper folding part and the lower folding part are respectively connected with the transmission mechanism, the electric push rod is connected with the transmission mechanism, and the electric push rod drives the upper folding part and the lower folding part to be mutually unfolded or mutually folded through the transmission mechanism;

the top cover and the bottom plate are arranged one above the other, the lifting frames are arranged between the top cover and the bottom plate and are respectively positioned at the front side and the rear side of the bottom plate, and an installation area is formed between each lifting frame and the other lifting frame;

the upper side plate is arranged in the mounting area, the left side wall and the right side wall of the upper side plate are respectively connected with the upper folding parts of the corresponding lifting frames in a sealing mode, the upper side of the upper side plate is connected with the top cover in a sealing mode, the lower side of the upper side plate is provided with waterproof foam, the lower side plate is arranged in the mounting area, the upper side of the lower side plate is provided with the waterproof foam, the left side wall and the right side wall of the lower side plate are respectively connected with the lower folding parts of the corresponding lifting frames in a sealing mode, and the lower side of the lower side plate is connected with the bottom plate in a sealing mode;

the door plate is connected with the top cover/the bottom plate/the lifting frame in a rotating mode, corresponding waterproof parts are arranged on the periphery of the lifting frame corresponding to the periphery of the door plate, when the door plate is rotated to be tightly attached to the waterproof parts, the inner cavity of the lifting frame is sealed by the door plate, and when the door plate is rotated to be far away from the lifting frame, the inner cavity of the lifting frame is opened by the door plate.

2. The hard-rise top deck for an automobile as set forth in claim 1, wherein: the downside of epipleural is provided with L type breach, L type breach department is provided with waterproof bubble cotton, the upside of lower plate is provided with L type breach, and L type breach department is provided with waterproof bubble cotton, when epipleural and lower plate expand each other, the L type breach of epipleural and the L type breach cooperation of lower plate, waterproof bubble cotton extrudees with waterproof bubble cotton each other simultaneously, epipleural and lower plate connect into whole board.

3. The hard-rise top deck for an automobile as set forth in claim 1, wherein: the top cap is opened there is the mounting groove, it has waterproof bubble cotton to go up the mounting groove built-in, go up the curb plate upside and arrange in the mounting groove, waterproof bubble is cotton seals up the clearance between mounting groove and the last curb plate, the bottom plate is opened there is lower mounting groove, the mounting groove is built-in to have waterproof bubble cotton down, the curb plate is arranged in down the mounting groove down, waterproof bubble is cotton seals down the clearance between mounting groove and the last curb plate down.

4. The hard-rise top deck for an automobile as set forth in claim 1, wherein: the door plate is characterized in that a waterproof rubber strip is arranged on the upper side plate and the lower side plate towards the left side of the door plate, a waterproof rubber strip is arranged on the upper side plate and the lower side plate towards the right side of the door plate, a waterproof rubber strip is arranged on the top cover towards the upper side of the door plate, a waterproof rubber strip is arranged on the bottom plate towards the lower side of the door plate, and the waterproof pieces are formed by the waterproof rubber strips.

5. The hard-rise top deck for an automobile as set forth in claim 1, wherein: the top cap periphery is provided with turn-ups under the round, turn-ups inboard encloses into the storage tank down, the storage tank embeds has waterproof bubble cotton, the bottom plate is provided with one and circles the turn-ups, it is cotton to go up the turn-ups top and set up waterproof bubble, when top cap and bottom plate draw close each other, go up the turn-ups and stretch into the storage tank in, waterproof bubble cotton extrudees each other.

6. The hard-rise top deck for an automobile as set forth in claim 1, wherein: the top cover is provided with a window which is convenient for light transmission and ventilation and a solar panel.

7. The hard-lift top deck for an automobile of claim 1, wherein: the top cover is a hard heat insulation top cover, the bottom plate is a hard heat insulation bottom plate, the door plate is a hard heat insulation door plate, the upper side plate is a hard heat insulation upper side plate, and the lower side plate is a hard heat insulation lower side plate.

8. The hard-rise top deck for an automobile as set forth in claim 1, wherein: the door plant includes electric rotating device, first gear and second gear, electric rotating device includes first rotating electrical machines, worm wheel and worm, first rotating electrical machines, worm wheel and worm are arranged in the door plant, the worm wheel is connected in first rotating electrical machines's pivot, the first gear that door plant lateral wall external connection corresponds is stretched out respectively at the worm both ends, and the worm tip stretches out the outer pivot that forms of first gear moreover, lifting frame opens there is the shaft hole, the worm tip inserts in the shaft hole that corresponds, and the door plant uses the pivot rotatory as rotation center, and the second gear setting corresponds the shaft hole position at lifting frame in addition, first gear and second gear meshing, first rotating electrical machines passes through worm wheel, worm and drives first gear rotatory, and first gear is rotatory around the second gear to it is rotatory to drive the door plant autogiration.

9. The hard-rise top deck for an automobile of claim 8, wherein: the door plate further comprises an automatic locking device, the automatic locking device comprises a first lock pin, a second lock pin, a screw rod and a second rotating motor, the screw rod is arranged in the door plate in a rotating mode, the first lock pin is arranged in the door plate, one end of the first lock pin faces the side wall of the door plate, the other end of the first lock pin is sleeved on the screw rod, the second lock pin is arranged in the door plate, one end of the second lock pin faces the side wall of the door plate, the other end of the second lock pin is sleeved on the screw rod, the second rotating motor is connected with the screw rod, the screw rod drives the first lock pin and the second lock pin to move, the first lock pin and the second lock pin synchronously extend out of or retract into the door plate, and lock holes convenient for inserting the first lock pin or the second lock pin are formed in the top and the bottom of the lifting frame respectively.

10. The hard-rise top deck for an automobile of claim 9, wherein: the remote control device is characterized by further comprising a remote controller, the bottom plate is provided with a control panel, the control panel is provided with a socket and a USB power supply interface, the electric push rod, the first rotating motor and the second rotating motor are respectively connected with the control panel, power supply of the control panel is provided by an automobile power supply or a solar panel or a storage battery, the remote controller is communicated with the control panel, and the remote controller controls on-off of the electric push rod, the first rotating motor, the second rotating motor, the socket and the USB power supply interface.
