Abstract

The utility model discloses a carton die-cutting machine for cleaning waste paper scraps, which comprises a drive motor, a top plate, and a die cutter. The drive motor is fixedly connected to the surface of the top plate, and one end of the drive motor is fixedly connected with a sleeve. A second threaded rod is sleeved in the sleeve, and one end of the second threaded rod is fixedly connected to the second fixing block. In the utility model, the motor drives the threaded rod to rotate, and the threaded rod drives the fixed block to move. During the movement, the fixed block is connected to the second connecting rod and the brush connected to the bottom surface of the second connecting rod to clean the workbench. By using the brush to clean the workbench back and forth, so as to achieve a better cleaning effect, this is through the second motor to drive the second gear to rotate, the second gear drives the gear when it rotates, the gear drives the connecting shaft, and through driving the connecting shaft The die-cutting knife fixed on the surface of the connecting shaft is rotated and replaced.

Description

A carton die-cutting machine for cleaning waste paper scraps

technical field

The utility model relates to the technical field of die-cutting machines, in particular to a carton die-cutting machine for cleaning waste paper scraps.

Background technique

After inspection, it is found that the publication number is CN213383204U, a die-cutting machine for carton production that is convenient for cleaning waste, including a support seat, a workbench is provided at the center of the top of the support seat, and four corners of the top of the support seat are provided with There are support columns, the tops of the four support columns are connected to the four corners of the bottom of the fixed plate, two guide columns are arranged on the fixed plate, and the bottoms of the two guide columns pass through the two ends of the fixed plate and the first limiting plate The tops of the two guide columns pass through the fixed plate and are connected to the two ends of the second limiting plate. A telescopic cylinder is arranged at the center of the first limiting plate. During the process of cutting the cartons, a large amount of paper scraps will be generated, and these paper scraps cannot be effectively dealt with. Avoiding the impact of the paper scraps on the follow-up work has brought great inconvenience to the use of operators. Convenience, but when the paper scraps are exported through the air inlet and the connecting pipe, the paper scraps cannot be cleaned normally when encountering large paper scraps, and the surface of the workbench cannot be effectively cleaned. At the same time, the cleaned paper scraps are not convenient Centralized collection, for this purpose a carton die-cutting machine that is convenient for cleaning waste paper scraps is proposed.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides a carton die-cutting machine which is convenient for cleaning waste paper scraps, which has the advantages of better cleaning, centralized collection, and high temperature resistance, and further solves the problems in the above-mentioned background technology.

(2) Technical solution

In order to realize the above-mentioned advantages of better cleaning, centralized collection, and high temperature protection, the specific technical scheme adopted by the utility model is as follows:

A carton die-cutting machine for cleaning waste paper scraps, comprising a drive motor, a top plate, and a die cutter, the drive motor is fixedly connected to the surface of the top plate, and one end of the drive motor is fixedly connected to a sleeve, and the sleeve is sleeved There is a second threaded rod, and one end of the second threaded rod is fixedly connected to the second fixed block, a second motor is fixedly connected to both sides inside the second fixed block, and one end of the second motor is fixedly connected to a second gear, the The second gear meshes with the connecting gear, and the gear is fixedly welded on the outer surface of the connecting shaft, the surface of the connecting shaft is welded with a block, and the surface of the block is fixedly connected with a fixing nut.

Further, the surface on both sides of the bottom of the top plate is fixedly connected to the second support column, and the left side surface of the second support column is fixedly connected to a motor, one end of the motor is fixedly connected to a threaded rod, and the outside of the threaded rod is sleeved with a fixed block, A second connecting rod is fixedly connected to one end of the fixing block, and a brush is fixedly connected to the bottom surface of the second connecting rod.

Further, the bottom surface of the second support column is fixedly connected to the top surface of the base plate, and the support columns are fixedly connected to both sides of the bottom surface of the base plate, and the right side of the support column is fixedly connected to a storage box on the bottom surface of the base plate, and the storage box An electric telescopic rod is fixedly connected to both sides of the inner wall of the box, and one end of the electric telescopic rod is fixedly connected to a baffle plate, and a second baffle plate is fixedly connected to both sides of the inner wall of the storage box above the baffle plate.

Further, a hinge is welded on the bottom surface of the storage box, and one end of the hinge is welded to one end of the discharge opening, and one end of the discharge opening is provided with a buckle, and the buckle is located on the bottom surface of the storage box.

Further, both sides of the top surface of the second fixing block are fixedly connected with fixing rods, and the fixing rods penetrate the top plate.

Further, the top surface of the bottom plate is fixedly connected with a workbench, and the bottom surface of the bottom plate is fixedly connected with a horizontal plate.

Further, there are two groups of motors and threaded rods, and the two groups of motors and threaded rods are evenly distributed on the left side surface of the second support column.

Further, there are multiple electric telescopic rods, and the multiple electric telescopic rods are evenly distributed on both sides of the inner wall of the storage box.

Further, there are two baffles in total, and the two baffles are respectively distributed on both sides of the inner wall of the storage box.

Further, a groove is opened in the block, and a die-cutter is clamped in the groove, and the die-cutter is fixed in the groove by a fixing nut.

(3) Beneficial effects

Compared with the prior art, the utility model provides a carton die-cutting machine which is convenient for cleaning waste paper scraps, and has the following beneficial effects:

(1), the utility model adopts the brush, the second motor, and the gear. In the actual use process, the motor drives the threaded rod to rotate, and the threaded rod drives the fixed block to move. During the movement, the fixed block is connected The second connecting rod is connected with the brush on the bottom surface of the second connecting rod to clean the workbench. By using the brush to clean the workbench back and forth, a better cleaning effect can be achieved. At the same time, when the die-cutting machine works for a long time The surface temperature of the die cutter will increase accordingly. In order to avoid the carton being ignited due to the high temperature of the die cutter, the second motor drives the second gear to rotate. When the second gear rotates, it drives the gear, and the gear drives the connecting shaft. By driving the connecting shaft, the die-cutter fixed on the surface of the connecting shaft is rotated and replaced, so as to prevent the die-cutter from igniting the carton due to excessive temperature during long-term cutting, thereby increasing the stability and reliability of the device.

(2), the utility model adopts the electric telescopic rod, the baffle, and the discharge port. In the actual use process, the paper scraps brushed by the brush fall into the storage box. After passing through the electric telescopic rod and the baffle, Squeeze the paper scraps, prevent the paper scraps from extending upward through the horizontal plate at the bottom of the bottom plate during the extrusion process, and at the same time open the buckle after the extrusion is completed to discharge the paper scraps through the discharge port, and pass the squeezed paper The crumbs are smaller and more convenient to take and store, thereby reducing the trouble of manual cleaning, thereby achieving the effect of saving time and labor, and increasing the practicability and diversification of the device.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only the present invention. For some embodiments of the present invention, those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative efforts.

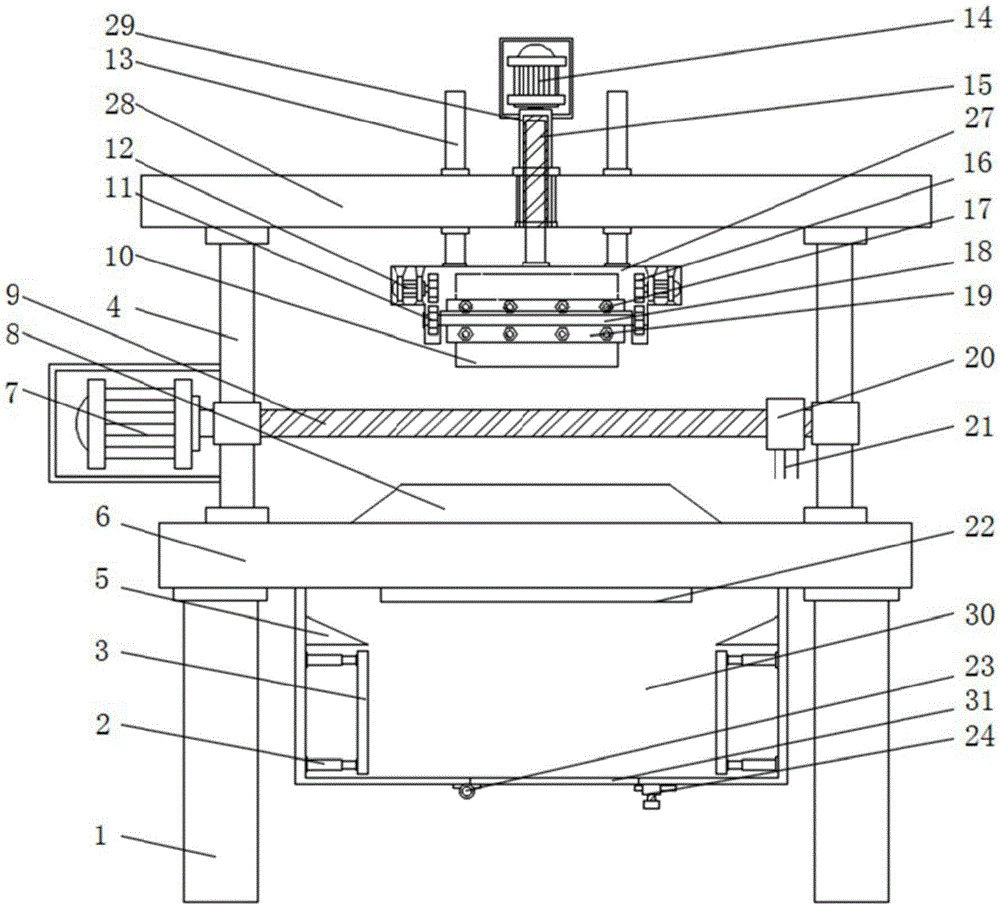

Fig. 1 is the structural schematic diagram of a kind of carton die-cutting machine that is convenient to clean up waste paper of the present utility model;

Fig. 2 is a schematic diagram of the second fixed block of a carton die-cutting machine for cleaning waste paper scraps of the utility model;

Fig. 3 is a schematic diagram of the cleaning structure of a carton die-cutting machine for cleaning waste paper scraps of the present invention.

In the figure: 1. Support column; 2. Electric telescopic rod; 3. Baffle plate; 4. Second support column; 5. Second baffle plate; 6. Bottom plate; 7. Motor; 8. Workbench; 9. Threaded rod ; 10, die cutter; 11, gear; 12, second motor; 13, fixed rod; 14, drive motor; 15, second threaded rod; 16, second gear; 17, fixed nut; 18, connecting shaft; 19. Block; 20. Fixed block; 21. Brush; 22. Horizontal plate; 23. Hinge; 24. Buckle; 25. Second connecting rod; 27. Second fixed block; 28. Top plate; 29. Set Tube; 30, storage box; 31, discharge port; 32, groove.

Detailed ways

In order to further illustrate the various embodiments, the utility model provides accompanying drawings, which are a part of the disclosure content of the utility model, which are mainly used to illustrate the embodiments, and can cooperate with the relevant descriptions in the manual to explain the operating principles of the embodiments. With reference to these contents, those skilled in the art should be able to understand other possible implementations and advantages of the present invention. The components in the figures are not drawn to scale, and similar component symbols are generally used to represent similar components.

According to an embodiment of the utility model, a carton die-cutting machine for cleaning waste paper scraps is provided.

The utility model is now further described in conjunction with the accompanying drawings and specific embodiments. As shown in Figures 1-3, a carton die-cutting machine for cleaning waste paper scraps according to an embodiment of the utility model includes a drive motor 14, a top plate 28, Die cutter 10, drive motor 14 is fixedly connected on top plate 28 surface, and drive motor 14 one end is fixedly connected with sleeve 29, sleeve 29 is sleeved with second threaded rod 15, and second threaded rod 15 one end is fixedly connected on The second fixed block 27, the second motor 12 is fixedly connected to both sides inside the second fixed block 27, and one end of the second motor 12 is fixedly connected to the second gear 16, the second gear 16 meshes with the gear 11, and the gear 11 is fixedly welded On the outer surface of the connecting shaft 18, the two sides of the connecting shaft 18 surface are welded with clamping blocks 19, and the surface of the clamping block 19 is fixedly connected with a fixed nut 17. By setting the drive motor 14, the second fixed block 27 can be driven to expand and contract. 18 surface both sides are welded with block 19, fixed nut 17 to be convenient to fixing two die cutters 10.

In one embodiment, the surface on both sides of the bottom of the top plate 28 is fixedly connected to the second support column 4, and the left side surface of the second support column 4 is fixedly connected to the motor 7, and one end of the motor 7 is fixedly connected to the threaded rod 9, and the outside of the threaded rod 9 A fixed block 20 is socketed, and one end of the fixed block 20 is fixedly connected with a second connecting rod 25, and the bottom surface of the second connecting rod 25 is fixedly connected with a brush 21, and the screw rod 9 can be driven to rotate by setting the motor 7. During the rotation of the rod 9, the fixed block 20 which is socketed outside is driven, and the second connecting rod 25 and the hair brush 21 connected by one end of the fixed block 20 can repeatedly clean the surface of the workbench.

In one embodiment, the bottom surface of the second support column 4 is fixedly connected to the top surface of the bottom plate 6, and the two sides of the bottom surface of the bottom plate 6 are fixedly connected to the support column 1, and the right side of the support column 1 is located on the bottom surface of the bottom plate 6 and is fixedly connected to the storage. box 30, and both sides of the inner wall of the storage box 30 are fixedly connected with an electric telescopic rod 2, one end of the electric telescopic rod 2 is fixedly connected with a baffle 3, and the upper side of the baffle 3 is fixedly connected with a second stop on both sides of the inner wall of the storage box 30 The plate 5 facilitates the collection of paper scraps by setting the storage box 30 , while the electric telescopic rod 2 connected in the storage box 30 and the second baffle plate 5 can squeeze the paper scraps.

In one embodiment, a hinge 23 is welded on the bottom surface of the storage box 30, and one end of the hinge 23 is welded to one end of the discharge opening 31, and one end of the discharge opening 31 is provided with a buckle 24, and the buckle 24 is located at the bottom of the storage box 30 On the surface, the discharge opening 31 can be fixed on the bottom of the storage box 30 by setting the buckle 24 , and the hinge 23 is provided to facilitate the connection between the storage box 30 and the discharge opening 31 .

In one embodiment, the two sides of the top surface of the second fixed block 27 are fixedly connected with fixed rods 13, and the fixed rods 13 pass through the top plate 28, the fixed position of the second fixed block 27 can be limited by setting the fixed rods 13, The rod 13 can ensure the stability of the second fixed block 27 when stretching up and down.

In one embodiment, the top surface of the bottom plate 6 is fixedly connected to the workbench 8, and the bottom surface of the bottom plate 6 is fixedly connected to the horizontal plate 22, by setting the horizontal plate at the bottom of the bottom plate 6, it can prevent upward expansion when squeezing paper scraps.

In one embodiment, two groups of motors 7 and threaded rods 9 are arranged, and two groups of motors 7 and threaded rods 9 are evenly distributed on the left side surface of the second support column 4. By arranging two groups of motors 7 and threaded rods 9, it is convenient to The stable operation of the fixed block 20, the second connecting rod 25, and the hair brush 21.

In one embodiment, multiple electric telescopic rods 2 are provided, and the multiple electric telescopic rods 2 are evenly distributed on both sides of the inner wall of the storage box 30. of stability.

In one embodiment, two baffles 3 are provided in total, and the two baffles 3 are respectively distributed on both sides of the inner wall of the storage box 30 , and the two baffles 3 are provided to facilitate squeezing paper scraps.

In one embodiment, a groove 32 is provided in the clamping block 19, and a die cutter 10 is clamped in the groove 32, and the die cutter 10 is fixed in the groove 32 by a fixing nut 17. By setting the fixing nut 17, The groove 32 can facilitate the replacement and fixing of the die cutter 10 .

Working principle: In actual use, the motor 7 drives the threaded rod 9 to rotate, and the threaded rod 9 drives the fixed block to move. During the movement, the second connecting rod 25 is connected to the bottom of the second connecting rod 25 through the fixed block 20 The brush 21 connected to the surface cleans the workbench 8. By using the brush 21 to clean the workbench 8 back and forth, a better cleaning effect is achieved. At the same time, the surface of the die-cutting knife 10 will The temperature will increase accordingly. In order to prevent the carton from being ignited due to the high temperature of the die cutter 10, the second motor 12 drives the second gear 16 to rotate. When the second gear 16 rotates, it drives the gear 11, and the gear 11 drives the connecting shaft. 18. By driving the connecting shaft 18, the die-cutter 10 fixed on the surface of the connecting shaft 18 is rotated and replaced, so as to prevent the die-cutter 10 from igniting the carton due to excessive temperature during long-term cutting, and brush it down with the brush 21 The scraps of paper fall into the storage box 30, and the scraps of paper are squeezed through the electric telescopic rod 2 and the baffle plate 3, and the horizontal plate 22 at the bottom of the bottom plate 6 prevents the scraps of paper from extending upward during the extrusion process. After the extrusion is completed, open the buckle 24 to discharge the paper scraps through the discharge port 31. The squeezed paper scraps are smaller and more convenient to take and store, thereby reducing the trouble of manual cleaning, thereby achieving the effect of saving time and effort. , thereby increasing the practicability and diversification of the device.

In this utility model, unless otherwise clearly specified and limited, terms such as "installation", "setting", "connection", "fixation" and "rotation" should be understood in a broad sense, for example, it may be a fixed connection, It can also be detachable connection, or integrated; it can be mechanical connection or electrical connection; it can be directly connected or indirectly connected through an intermediary, and it can be the internal communication of two components or the interaction of two components Unless otherwise clearly defined, those skilled in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model shall be included in the Within the protection scope of the present utility model.

Claims (10)

1. A carton die-cutting machine that is convenient for cleaning waste paper scraps, comprising a drive motor (14), a top plate (28), a die cutter (10), it is characterized in that the drive motor (14) is fixedly connected to the top plate ( 28) surface, and one end of the drive motor (14) is fixedly connected with a sleeve (29), the sleeve (29) is sleeved with a second threaded rod (15), and one end of the second threaded rod (15) is fixedly connected In the second fixed block (27), a second motor (12) is fixedly connected to both sides inside the second fixed block (27), and one end of the second motor (12) is fixedly connected to a second gear (16), so The second gear (16) meshes with the connecting gear (11), and the gear (11) is fixedly welded on the outer surface of the connecting shaft (18), and the surface of the connecting shaft (18) is welded with a block (19), and the block ( 19) The surface is fixedly connected with a fixing nut (17). 2. A carton die-cutting machine for cleaning waste paper scraps according to claim 1, characterized in that, the surface on both sides of the bottom of the top plate (28) is fixedly connected to the second support column (4), and the second support The left side surface of the column (4) is fixedly connected with a motor (7), and one end of the motor (7) is fixedly connected with a threaded rod (9), and the outside of the threaded rod (9) is sleeved with a fixed block (20), and the fixed One end of the block (20) is fixedly connected with a second connecting rod (25), and the bottom surface of the second connecting rod (25) is fixedly connected with a brush (21). 3. A kind of carton die-cutting machine that is convenient for cleaning waste paper scraps according to claim 2, is characterized in that, the bottom surface of the second support column (4) is fixedly connected with the top surface of the base plate (6), and the base plate ( 6) Support columns (1) are fixedly connected to both sides of the bottom surface, and the right side of the support column (1) is fixedly connected to the bottom surface of the bottom plate (6) with a storage box (30), and the inner wall of the storage box (30) has two The side is fixedly connected with an electric telescopic rod (2), and one end of the electric telescopic rod (2) is fixedly connected with a baffle (3), and the upper part of the baffle (3) is fixedly connected with a second Two baffles (5). 4. A carton die-cutting machine for cleaning waste paper scraps according to claim 3, characterized in that a hinge (23) is welded on the bottom surface of the storage box (30), and one end of the hinge (23) is welded At one end of the discharge port (31), a buckle (24) is provided at one end of the discharge port (31), and the buckle (24) is located on the bottom surface of the storage box (30). 5. A carton die-cutting machine for cleaning waste paper scraps according to claim 1, characterized in that, both sides of the top surface of the second fixed block (27) are fixedly connected with fixed rods (13), and fixed The rod (13) runs through the top plate (28). 6. A carton die-cutting machine for cleaning waste paper scraps according to claim 3, characterized in that, the top surface of the bottom plate (6) is fixedly connected with a workbench (8), and the bottom surface of the bottom plate (6) is Fixedly connect the horizontal plate (22). 7. A kind of carton die-cutting machine that is convenient for cleaning waste paper scraps according to claim 2, is characterized in that, described motor (7), screw rod (9) are provided with two groups altogether, and two groups of motors (7) ), threaded rods (9) are evenly distributed on the left side surface of the second support column (4). 8. A carton die-cutting machine for cleaning waste paper scraps according to claim 3, characterized in that there are multiple electric telescopic rods (2), and the multiple electric telescopic rods (2) are evenly distributed On both sides of the inner wall of the storage box (30). 9. A carton die-cutting machine for cleaning waste paper scraps according to claim 3, characterized in that there are two baffles (3) in total, and the two baffles (3) are respectively distributed to store Object box (30) inner wall both sides. 10. A carton die-cutting machine for cleaning waste paper scraps according to claim 1, characterized in that, a groove (32) is opened in the block (19), and the groove (32) is locked A die cutter (10) is connected, and the die cutter (10) is fixed in the groove (32) by a fixing nut (17).
