Abstract

The utility model discloses a multi-station turntable flat-head saw, which comprises a frame and an electric control box installed on the frame. A motor, a turntable assembly driven by the motor and a tool for grinding bamboo and wood are respectively installed on the frame. Cutter assembly; the turntable assembly includes a turntable shaft vertically installed on the frame, a turntable mounted on the turntable shaft, and a workpiece clamp assembly fixed on the turntable. The work clamp assembly has multiple and drives the bamboo The wood is sent to the tool assembly for processing. This machine is vertical, with multiple clamps, the clamps are automatically opened or closed, workers only need to fill and collect; easy to operate, high work efficiency.

Description

Multi-station rotary table saw

technical field

The utility model relates to the technical field of bamboo and wood processing equipment, more specifically, it relates to a multi-station rotary table saw.

Background technique

In bamboo wood processing, there is a process of smoothing the ends of bamboo wood. Existing processing method: tie multiple sections of bamboo into a bundle, then put them into a horizontal flat-head saw, cut off the ends neatly with a cutter, take them out after completion, replace the bamboo and reprocess. Problems existing in the existing processing equipment: inconvenient operation and low work efficiency.

Utility model content

Aiming at the deficiencies in the prior art, the purpose of this utility model is to provide a multi-station rotary table saw with convenient operation and high work efficiency.

The above-mentioned technical purpose of the utility model is achieved through the following technical solutions: a multi-station turntable flat head saw, including a frame and an electric control box installed on the frame, motors are respectively installed on the frame, and the Drive the rotating turntable assembly and the tool assembly for grinding bamboo and wood; the turntable assembly includes a turntable shaft vertically installed on the frame, a turntable installed on the turntable shaft, and a workpiece clamp assembly fixed on the turntable. There are multiple components, and the bamboo wood is sent to the cutter assembly for processing under the drive of the turntable.

It is further provided that each of the work clamp assemblies includes a cylindrical clamp, a clamp platform located at the bottom of the clamp, and a clamp controller for controlling the opening or closing of the clamp.

It is further provided that the clamp controller includes a cylinder controller, a cylinder fixed on the turntable, one end is hinged to the clamp, the other end is connected to a pull rod of the cylinder and a sensor fixed above the clamp, and the frame is located on the workpiece inlet and outlet position, an induction block is installed above the turntable, and the sensor is located under the induction block, then the sensor transmits a signal to the cylinder controller, and the cylinder controller controls the cylinder to open the clamp through the pull rod.

It is further provided that the shape of the induction block is an arc shape, and its length covers 1-3 clamps.

It is further provided that the tool assembly includes an adjusting slider pair fixed on the frame and a tool whose height is adjusted by the adjusting slider pair.

It is further provided that a dust collection device is provided beside the cutter, and the dust collection device includes a dust collection hood, a dust collection pipe connected to the dust collection hood, and a suction fan connected to the dust collection pipe.

It is further provided that the clamp includes a vertically arranged storage chamber and a door hinged to one side of the storage chamber and clamping the bamboo and wood in the storage chamber.

Working principle: the motor is started, and the fixture is opened at the position where the workpiece enters and exits. The worker puts bamboo and wood into the holding room of the fixture, and the turntable drives the fixture to rotate. When the sensor on the fixture goes out of the range of the sensing block, the sensor transmits the signal to The electric control box, the electric control box controls the reversing valve to open, and the cylinder operates to push out the pull rod and close the door of the fixture; the closed fixture is brought to the tool to smooth the upper end of the bamboo wood, and after processing, it is continued to be brought in and out of the workpiece At the material position, the sensor on the fixture enters the range of the sensing block, the sensor transmits the signal to the electric control box, and the electric control box controls the reversing valve to close, then the cylinder retracts the pull rod, opens the sealing door of the fixture, and the worker takes out the finished product processed in the storage room. Bamboo and wood are replaced with processed bamboo and wood, and the cycle works like this.

To sum up, the utility model has the following beneficial effects: the machine is vertical and has multiple clamps, which are automatically opened or closed, and workers only need to fill and collect; the operation is simple and the work efficiency is high.

Description of drawings

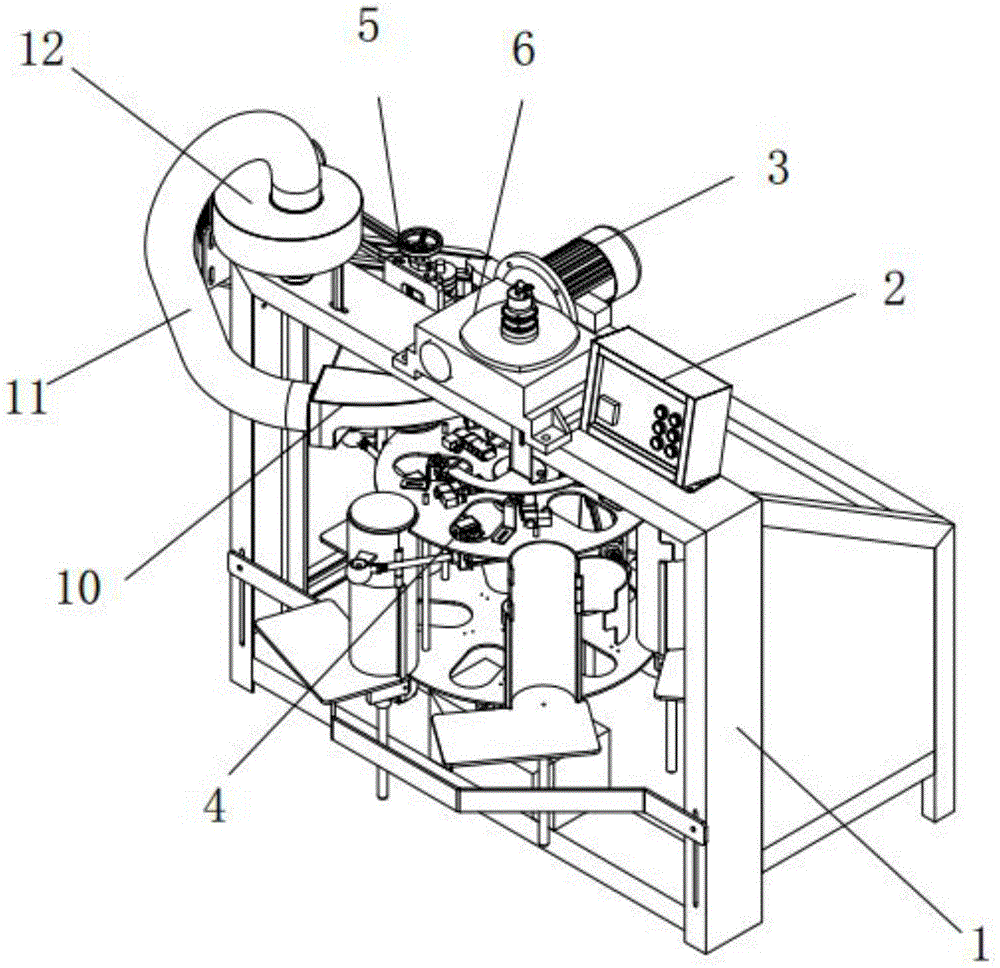

Fig. 1 is the overall structure schematic diagram of the present embodiment;

Fig. 2 is the structural representation of the turntable assembly of the present embodiment;

Fig. 3 is the structural representation of the tool assembly of the present embodiment;

Description of drawings: 1. Rack; 2. Electric control box; 3. Motor; 4. Turntable assembly; 41. Turntable shaft; 42. Turntable; 43. Work clamp assembly; 44. Electric rotary joint; 5. Tool assembly; 6. Reducer; 431. Fixture; 432. Fixture platform; 433. Fixture controller; 434. Containment room; 435. Sealing door; 436. Docking block; 437. Card slot; 45. Cylinder controller; 46. Cylinder; , pull rod; 48, sensor; 49, hinged block; 7, induction block; 8, adjusting slider pair; 9, knife; 10, dust cover;

Detailed ways

Below in conjunction with accompanying drawing, the utility model is described in further detail.

As shown in Figures 1-3, the multi-station turntable 42-type flat head saw includes a frame 1 and an electric control box 2, a motor 3, a turntable assembly 4 and a cutter assembly 5 respectively installed on the frame 1.

2, the turntable assembly 4 includes a turntable shaft 41 vertically installed on the frame 1, a turntable 42 installed on the turntable shaft 41, and a workpiece holder assembly 43 fixed on the turntable 42, and an electric rotary joint is installed on the turntable shaft 41. 44. The motor 3 is connected with a reducer 6, the electric rotary joint 44 is connected with the reducer 6, and the motor 3 is started to drive the turntable shaft 41 to rotate through the reducer 6.

There are multiple workpiece holder assemblies 43 and bamboo and wood are sent to the tool assembly 5 for processing under the drive of the rotating disk 42 . In this embodiment, five workpiece holder assemblies 43 are provided. Each workpiece clamp assembly 43 includes a cylindrical clamp 431 , a clamp platform 432 located at the bottom of the clamp 431 , and a clamp controller 433 for controlling the opening or closing of the clamp 431 . Each clamp 431 includes a vertically arranged storage chamber 434 and a door seal 435 hinged on one side of the storage chamber 434 and clamping bamboo and wood in the storage chamber 434 . The storage chamber 434 is semi-cylindrical in shape, and the sealing door 435 is hinged on the upper half of the storage chamber 434 . The side of the sealing door 435 has a docking block 436 , and the side of the storage chamber 434 is provided with a slot 437 , when the sealing door 435 closes the storage chamber 434 , the docking block 436 enters the slot 437 .

The clamp controller 433 includes a cylinder controller 45 , a cylinder 46 fixed on the turntable 42 , one end hinged to the clamp 431 , a pull rod 47 connected to the cylinder 46 at the other end, and a sensor 48 fixed above the clamp 431 . A pair of hinged blocks 49 are arranged on the front of the sealing door 435, and one end of the pull rod 47 is located between the hinged blocks 49 and connected with a pin.

An induction block 7 is installed on the frame 1 and above the turntable 42 at the position where the workpiece is fed in and out. The shape of the induction block 7 is an arc shape, and its length covers 1-3 clamps 431 . When the clamp 431 rotates, the sensor 48 above it goes under the sensing block 7, and the sensor 48 transmits a signal to the cylinder controller 45, and the cylinder controller 45 controls the cylinder 46 to open the clamp 431 through the pull rod 47.

The cylinder controller 45 in this embodiment adopts a reversing valve, and the sensor 48 transmits a signal to the electric control box 2, and the electric control box 2 controls the opening or closing of the reversing valve, thereby controlling the ventilation or shutoff of the cylinder 46.

Referring to FIG. 3 , the cutter assembly 5 includes an adjusting slider pair 8 fixed on the frame 1 and a cutter 9 whose height is adjusted by the adjusting slider pair 8 . The cutter 9 is connected with the cutter motor by a belt, and the cutter 9 is driven by the cutter motor to work. A dust collection device is arranged beside the cutter 9, and the dust collection device includes a dust collection hood 10, a dust collection pipe 11 connected to the dust collection hood 10 and a suction fan 12 connected to the dust collection pipe 11. When the cutting tool 9 is being ground, a large amount of sawdust is produced, and the dust collecting device can absorb the sawdust to make the working environment cleaner.

The motor 3 is started, and the clamp 431 is in an open state at the position where the workpiece is fed in and out. range, the sensor 48 transmits the signal to the electric control box 2, and the electric control box 2 controls the reversing valve to open, then the cylinder 46 operates to push out the pull rod 47, and closes the sealing door 435 of the fixture 431; the closed fixture 431 is brought to the tool 9 for grinding The upper end of the flat bamboo wood will continue to be taken to the workpiece feeding and discharging position after processing, and the sensor 48 on the fixture 431 will enter the range of the sensing block 7, and the sensor 48 will transmit the signal to the electric control box 2, and the electric control box 2 will control it. Reversing valve is closed, and then cylinder 46 retracts pull bar 47, opens the sealing door 435 of fixture 431, and the workman takes out the bamboo wood processed in the accommodation chamber 434, changes the bamboo wood of processing on behalf of others, so cycle work.

The specific embodiment is only an explanation of the utility model, and it is not a limitation of the utility model. Those skilled in the art can make modifications to the embodiment without creative contribution as required after reading this description, but as long as the utility model All claims are protected by patent law.

Claims (7)

1. A multi-station rotary table saw, including a frame and an electric control box installed on the frame. The tool assembly; the turntable assembly includes a turntable shaft vertically installed on the frame, a turntable mounted on the turntable shaft, and a workpiece clamp assembly fixed on the turntable. There are multiple workpiece clamp assemblies driven by the turntable. The bamboo wood is sent to the tool assembly for processing. 2. The multi-station rotary table saw according to claim 1, characterized in that: each of the workpiece clamp assemblies includes a cylindrical clamp, a clamp platform located at the bottom of the clamp, and a clamp control for controlling the opening or closing of the clamp device. 3. The multi-station rotary table saw according to claim 2, characterized in that: the clamp controller includes a cylinder controller, a cylinder fixed on the rotary table, one end is hinged to the clamp, and the other end is connected to a pull rod of the cylinder And the sensor fixed on the top of the fixture, the frame is located at the workpiece feeding and discharging position, an induction block is installed above the turntable, and the sensor is located under the induction block, then the sensor transmits the signal to the cylinder controller, so The air cylinder controller controls the air cylinder to open the clamp through the pull rod. 4. The multi-station rotary table saw according to claim 3, characterized in that: the shape of the induction block is an arc shape, and its length covers 1-3 clamps. 5 . The multi-station rotary table saw according to claim 1 , wherein the cutter assembly includes a pair of adjusting sliders fixed on the frame and a cutter whose height is adjusted by the pair of adjusting sliders. 6 . 6. The multi-station rotary table saw according to claim 5, characterized in that: a dust collection device is provided beside the cutter, and the dust collection device includes a dust collection hood and a dust collection pipe connected to the dust collection hood and a suction fan connected to the dust collection pipe. 7 . The multi-station rotary table saw according to claim 2 , wherein the clamp comprises a vertical storage chamber and a door hinged to one side of the storage chamber to clamp bamboo and wood in the storage chamber. 8 .
