Abstract

The utility model belongs to the technical field of ceramic membranes, in particular to a self-cleaning ceramic membrane. The utility model comprises a membrane shell, in which several tubular membrane cores are installed, and a self-cleaning plug is installed at the liquid inlet end of the tubular membrane core, and the self-cleaning plug includes a hollow hole for plugging the liquid inlet end of the tubular membrane core. Shaped plunger, the outer wall of the plunger is embedded with several high-pressure flushing tanks along the circumference of the plunger, and the flushing tanks are attached to the inner wall of the tubular membrane core, and the flushing tanks are connected to external water sources through high-pressure water pipes. When the ceramic membrane needs to be cleaned, the control valve is opened, and the high-pressure flushing tank sprays out a high-pressure water column to wash the inner wall of the tubular membrane core, so that the ceramic membrane can complete the cleaning work without disassembly.

Description

A self-cleaning ceramic membrane

technical field

The utility model belongs to the technical field of ceramic membranes, in particular to a self-cleaning ceramic membrane.

Background technique

Ceramic membrane is a new type of material membrane. According to different supports, the configuration of ceramic membrane can be divided into three types: flat plate, tubular, and multi-channel. During use, pollution and blockage will occur, and the permeation flux of the membrane will gradually decrease. Decline, especially for ceramic membranes used in sewage treatment, fouling occurs at any time.

In order to save the cost of use, the ceramic membrane can be used all the time without damage. After the traditional tubular ceramic membrane is used for a period of time, although the outside is easy to clean, the inside is difficult to clean, or the cleaning is not complete. It is necessary to disassemble both ends to take out the inner membrane core, and then clean it in an external cleaning equipment. Utilization, this is not only time-consuming and labor-intensive, but also the frequent disassembly and assembly of the ceramic membrane will easily affect the sealing performance of the entire membrane module, resulting in a higher failure rate during use and reducing its life.

Utility model content

In order to overcome the above defects in the prior art, the utility model provides a self-cleaning ceramic membrane. The utility model has the advantages of free from disassembly and convenient cleaning.

In order to achieve the above object, the utility model adopts the following technical solutions:

A self-cleaning ceramic membrane, including a membrane shell, a number of tubular membrane cores are installed in the membrane shell, and a self-cleaning plug is installed at the liquid inlet end of the tubular membrane core, and the self-cleaning plug includes a plug for plugging the tubular membrane. The hollow plunger at the liquid inlet end of the core, the outer wall of the plunger is embedded with several high-pressure flushing tanks along the circumference of the plunger, and the flushing tanks are attached to the inner wall of the tubular membrane core, and the flushing tanks are connected to the external water source through the high-pressure water pipe connect.

Preferably, the water inlet end of the membrane shell is provided with a top cover, and the top of the plunger is fixedly connected to the top cover. The self-cleaning plug also includes a collar fixedly sleeved on the outside of the plunger. The outer diameter of the collar is larger than that of the tubular membrane. The diameter of the core and the size of the plunger are set to match the size of the tubular membrane core.

Preferably, a cavity is provided in the plug wall of the plunger, the cavity is connected to the high-pressure water pipe through a communication pipe, and several water outlets are provided in the cavity, and each water outlet communicates with a high-pressure flushing tank at a corresponding position.

Preferably, a cavity is provided in the top cover, the top of the cavity communicates with the liquid inlet pipe, and the liquid outlet of the cavity communicates with the top of the plunger.

Preferably, the water outlet end of the membrane shell is provided with a bottom cover, the bottom cover is provided with a first through hole, the top cover is provided with a second through hole, the bottom cover is connected with the top cover through a connecting rod, and the two ends of the connecting rod respectively penetrate The first through hole and the second through hole are threadedly connected with the nut.

Preferably, a control valve is installed on the high-pressure water pipe.

Preferably, the slag discharge end of the tubular membrane core is connected to the slag discharge pipe, and the bottom of the membrane shell is provided with a liquid discharge pipe.

The afterbody of the high-pressure washing tank (14) is open-shaped.

The utility model has the advantages of:

(1) The utility model installs a self-cleaning plug on the liquid inlet end of the tubular membrane core, which can prevent impurities from entering the high-pressure flushing tank and blocking the high-pressure flushing tank; when the ceramic membrane is used normally, the high-pressure flushing tank does not produce water, The slag discharge pipe can discharge the separated solid impurities. When the ceramic membrane needs to be cleaned, the control valve is opened, and the high-pressure flushing tank sprays high-pressure water column to wash the inner wall of the tubular membrane core, so that the ceramic membrane can be cleaned without disassembly. Finish cleaning.

(2) The top cover of the membrane shell of the utility model adopts a hollow structure. One end of the top cover is connected to the liquid inlet pipe, and the other end is connected with the tubular membrane core through a self-cleaning plug. When the number of tubular membrane cores is large, the liquid enters first. into the top cover, and then evenly enters into each tubular membrane core to ensure that each tubular membrane core is used effectively, and when cleaning the tubular membrane core, the cleaning water can still enter the top cover, which is beneficial to the top cover Cleaning is also done to a higher degree.

(3) The ceramic membrane of the utility model can achieve the purpose of cleaning the inside without disassembly, avoiding the problem of poor sealing caused by frequent disassembly and assembly of the ceramic membrane; and the tail of the high-pressure flushing tank in the ceramic membrane is open, realizing The purpose of flushing the inner wall of the tubular membrane core in a large area avoids the situation that the cleaning area of the high-pressure flushing tank with a single straight path is small.

Description of drawings

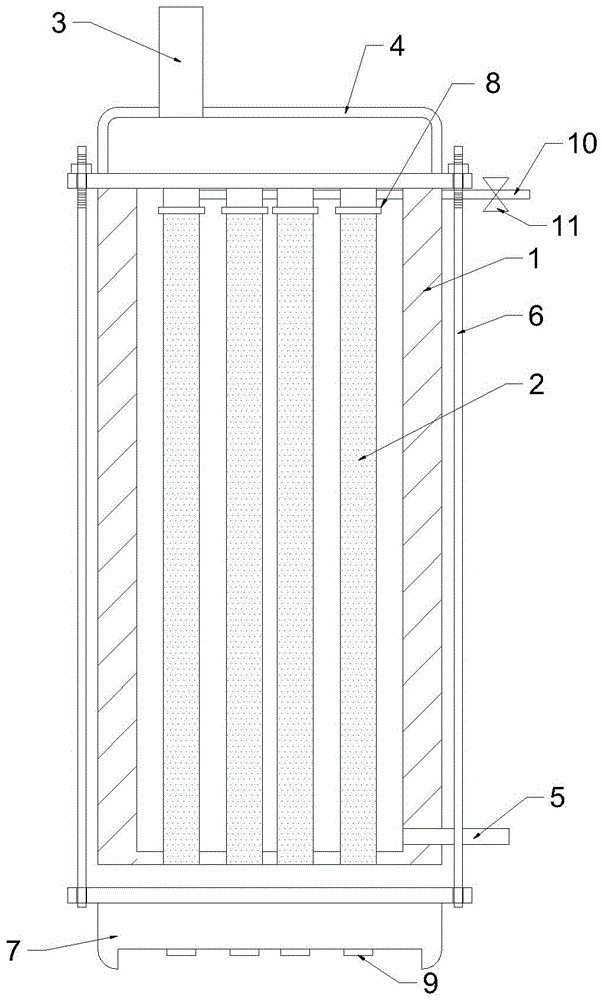

Fig. 1 is a schematic diagram of the internal structure of the ceramic membrane of the present invention.

Fig. 2 is a schematic structural diagram of the self-cleaning plug of the present invention viewed from above.

Fig. 3 is a structural schematic diagram of the self-cleaning plug of the present invention.

In the figure: 1-Membrane shell, 2-Tube membrane core, 3-Inlet pipe, 4-Top cover, 5-Drain pipe, 6-Connecting rod, 7-Bottom cover, 8-Self-cleaning plug, 9 - slag discharge pipe, 10 - high pressure water pipe, 11 - control valve, 12 - connecting pipe, 13 - plunger, 14 - high pressure flushing tank.

Detailed ways

As shown in Figure 1-3, a self-cleaning ceramic membrane, the tubular membrane core 2 is installed in the membrane shell 1, and there are multiple sets, which can improve the working efficiency of the ceramic membrane, and the two ends of the membrane shell 1 are respectively installed The top cover 4 and the bottom cover 7, wherein the inside of the top cover 4 is provided with a cavity, the top of the cavity is connected to the liquid inlet pipe 3, and the bottom of the cavity is provided with a number of liquid outlets, which communicate with the top of the plunger 13 , and the plunger 13 is fixedly connected with the top cover 4. The cavity provided in the top cover 4 allows the liquid to enter the cavity through the liquid inlet pipe 3, and then enters each tubular membrane core through the self-cleaning plug 8 2, so that each tubular membrane core 2 can be effectively utilized.

Specifically, the top cover 4 and the bottom cover 7 are connected by a connecting rod 6, and the connecting rod can be a screw, one end of which passes through the bottom cover to be provided with a first through hole, and the other end passes through the second through hole on the top cover 4, and is screwed on. Nut, as the nut is tightened, the top cover 4 and the bottom cover 7 are close to each other, and are tightly pressed against the two ends of the membrane shell 1 to realize sealing. At this time, the plunger 13 of the self-cleaning plug 8 is also inserted into the tubular membrane core 2 The liquid inlet end, and since the self-cleaning plug 8 is also provided with a collar, the plunger 13 will not fully extend into the tubular membrane core 2 .

Further, the self-cleaning plug 8 includes a plunger 13 and a collar. One end of the plunger 13 is inserted into the liquid inlet end of the tubular membrane core 2. Several high-pressure flushing tanks 14 are embedded on the outer peripheral side of the plunger 13. When the column When the plug 13 is inserted into the tubular membrane core 2, the high-pressure flushing tank 14 is attached to the inner wall of the tubular membrane core 2 to form a through hole with openings at both ends. Since the plug wall of the plunger 13 is provided with a cavity, the The top of the hole communicates with the cavity, and the cavity on several plungers 13 communicates with the high-pressure water pipe 10 through the communication pipe 12, so that the external water source flows into the cavity through the high-pressure water pipe 10, and enters the through hole through the cavity Finally, the high-pressure water source flows down the inner wall of the tubular membrane core 2 to clean the inner wall of the tubular membrane core 2. In addition, the tail of the high-pressure flushing tank 14 is in an open shape, which realizes the purpose of flushing the inner wall of the tubular membrane core 2 in a large area, and avoids the small cleaning area of the through holes in the straight path.

Furthermore, the slag discharge end of the tubular membrane core 2 is connected to the slag discharge pipe 9. When the ceramic membrane works normally, the high pressure water pipe 10 is in a normally closed state through the control valve 11, and the slag discharge pipe 9 at this time is used to discharge the pipe When the ceramic membrane is self-cleaning, the slag discharge pipe 9 is used to discharge the residue after flushing and a part of the liquid that has not entered the drain pipe 5.

There is a gap between the tubular membrane core 2 and the membrane shell 1, and the gap is connected to the liquid discharge pipe 5. During use, the separated solid impurities are discharged from the slag discharge pipe 9, and the liquid enters the gap through the outer wall of the tubular membrane core 2. Drain pipe 5 discharges. The number of tubular membrane cores 2 is the same as the number of self-cleaning plugs 8, and the self-cleaning plugs 8 are connected to each other through the connecting pipe 12, so that the high-pressure clean water of the high-pressure water pipe 10 can enter the interior of each self-cleaning plug 8, and the high-pressure water pipe 10 external water supply system.

The working process of the device will be described in detail below in conjunction with the drawings in the embodiments.

The high-pressure water pipe 10 is connected to the external water supply system. The external water source enters the high-pressure water pipe 10 through the opening of the control valve 11, and flows into the cavity of each plunger 13 through the communication pipe 12, and then enters the high-pressure flushing tank 14. Due to the high-pressure flushing The notch of the groove 14 fits the inner wall of the tubular membrane core 2 to form a through hole, so the high-pressure water source enters the through hole and flows down the inner wall of the tubular membrane core 2, thereby realizing the purpose of flushing the inner wall of the tubular membrane core 2. And because the tail of the high-pressure flushing tank 14 is in an open shape, the inner wall of the tubular membrane core 2 can be flushed on a large scale;

In addition, if you want to further clean the ceramic membrane, you can install a motor at the bottom of the tubular membrane core 2, and the output end of the motor can be connected to several tubular membrane cores 2 through a chain, so that when the motor rotates, it can drive the tubular membrane core 2 to rotate. At this time, the plunger 13 does not move, and even if only one high-pressure flushing tank 14 is provided, the entire tubular membrane core 2 can be cleaned.

The above are only preferred embodiments of the utility model creation, and are not intended to limit the utility model creation. Any modifications, equivalent replacements and improvements made within the spirit and principles of the utility model creation should be included in the Within the scope of protection created by the utility model.

Claims (8)

1. The utility model provides a self-cleaning formula ceramic membrane, a serial communication port, including membrane shell (1), install a plurality of tubular membrane cores (2) in membrane shell (1), self-cleaning end cap (8) are installed to the feed liquor end of tubular membrane core (2), self-cleaning end cap (8) are including plunger (13) that are used for plugging in the cavity form of tubular membrane core (2) feed liquor end, the outer wall of plunger (13) inlays along the circumference of plunger (13) and is equipped with a plurality of high pressure flushing tank (14), and the inner wall laminating of flushing tank and tubular membrane core (2), the flushing tank is connected with external water source through high pressure water pipe (10).

2. A self-cleaning ceramic membrane according to claim 1, wherein: the membrane shell (1) intake the end and be equipped with top cap (4), the top and top cap (4) fixed connection of plunger (13), self-cleaning end cap (8) are still including the lantern ring of fixed cover location plunger (13) outside, the external diameter of the lantern ring is greater than the diameter of tubular membrane core (2), the size of plunger (13) and the size phase-match setting of tubular membrane core (2).

3. A self-cleaning ceramic membrane according to claim 2, wherein: the plunger is characterized in that a cavity is arranged in the wall of the plunger (13), the cavity is connected with a high-pressure water pipe (10) through a communicating pipe (12), the cavity is provided with a plurality of water outlets, and each water outlet is communicated with a high-pressure flushing tank (14) in a corresponding position.

4. A self-cleaning ceramic membrane according to claim 2, wherein: the plunger type liquid level meter is characterized in that a containing cavity is arranged in the top cover (4), the top of the containing cavity is communicated with the liquid inlet pipe (3), and the liquid outlet of the containing cavity is communicated with the top of the plunger (13).

5. A self-cleaning ceramic membrane according to claim 2, wherein: the water outlet end of the membrane shell (1) is provided with a bottom cover (7), the bottom cover (7) is provided with a first through hole, the top cover (4) is provided with a second through hole, the bottom cover (7) is connected with the top cover (4) through a connecting rod (6), and two ends of the connecting rod (6) respectively penetrate through the first through hole and the second through hole and are in threaded connection with a nut.

6. A self-cleaning ceramic membrane according to claim 1, wherein: and a control valve (11) is arranged on the high-pressure water pipe (10).

7. A self-cleaning ceramic membrane according to claim 1, wherein: the slag discharging end of the tubular membrane core (2) is connected with a slag discharging pipe (9), and a liquid discharging pipe (5) is arranged at the bottom of the membrane shell (1).

8. A self-cleaning ceramic membrane according to claim 1, wherein: the tail part of the high-pressure flushing groove (14) is open.
