Abstract
The utility model discloses a building engineering crack degree of depth size detection device, including support frame and chi board, the support frame is fixed the relative both ends in chi board bottom surface, be provided with on the chi board and detect the structure, include: the measuring device comprises a width measuring part, a long hole, a moving block and a depth measuring part, wherein the width measuring part is arranged on the ruler plate, the long hole is formed in the surface of the ruler plate, the moving block is connected in the long hole in a sliding mode, and the depth measuring part is arranged on the moving block. The utility model discloses slip cap suit is connected on the chi board, and both ends are provided with the support frame and can not drop, can carry at any time, need form a complete set again carry a round bar can, measuring method is simple quick, only need promote the slip cap can, do not need other instruments.
Description
Technical Field
The utility model belongs to the technical field of the construction tool technique and specifically relates to a building engineering crack depth of depth size detection device is related to.
Background
After a house building or a road and bridge building is used for a long time, due to various limitations of natural weather, self materials and the like, the building can crack, great potential safety hazards are caused, the crack of the building needs to be detected, and the building can be continuously used only after reaching the standard.
At present, the means for detecting the cracks of the building mainly adopts a manual measurement method, such as a steel tape measure for measuring the length and the positioning distance of each crack; and measuring the width of the crack by using a scale magnifier. Because the concrete experiment period is long, the crack is more, the manual measurement method work efficiency is low, the labor intensity is high, the detection speed is slow, the structural error is large, and the detection process is very inconvenient.
A building crack detection device that laid open No. CN202021481730.5 provided, including the slide caliper rule, be provided with the scale mark on the slide caliper rule, be connected with first survey needle along its scale direction sliding on the slide caliper rule, the one end sliding connection of slide caliper rule has the second survey needle, second survey needle and first survey needle parallel arrangement, the slip direction of second survey needle is perpendicular with the slip direction of first survey needle, is provided with the retainer between second survey needle and the slide caliper rule.
However, the detection device has the following disadvantages: 1. contain a large amount of connection accessories, all need loaded down with trivial details installation every use, adjust the flexibility degree moreover poor, the operation is complicated.
2. The width of the crack can only be detected, the depth of the crack cannot be detected, and the function is single.
SUMMERY OF THE UTILITY MODEL
In order to achieve the purpose, the technical scheme adopted by the utility model is that the utility model provides a building engineering crack depth size detection device, which comprises a support frame and a ruler plate, wherein the support frame is fixed at two opposite ends of the bottom surface of the ruler plate, and the ruler plate is provided with a detection structure;
the detection structure includes: a width measuring section, a long hole, a moving block, and a depth measuring section;
the width measuring part is arranged on the ruler plate, the long hole is formed in the surface of the ruler plate, the moving block is connected in the long hole in a sliding mode, and the depth measuring part is arranged on the moving block.
Further, the width measuring unit includes: the sliding sleeve, the long groove, the pulley and the scale needle;
the sliding sleeve is connected to the ruler plate in a sleeved mode, the long groove is formed in the bottom face of the ruler plate, the pulley is arranged on the inner surface of the sliding sleeve and located in the long groove, and the scale needle is fixed to the side end face of the sliding sleeve.
Further, the depth measuring section includes: a round hole, a round rod, a depth ruler and a triangular pointer block;
the circular hole is formed in the surface of the moving block, the circular rod is inserted into the circular hole, the depth ruler mark is arranged on the surface of the circular rod, and the triangular pointer block is fixed at two opposite ends of the surface of the moving block.
Preferably, the lower end of the round rod is of a conical structure.
Preferably, the cross section of the sliding sleeve is of a C-shaped structure.
Compared with the prior art, the utility model has the advantages and positive effects that 1, the sliding sleeve is sleeved and connected on the ruler plate, the supporting frames arranged at the two ends can not fall off and can be carried at any time, a round bar needs to be carried in a matched manner, the measuring mode is simple and quick, only the sliding sleeve needs to be pushed, and other tools are not needed;
2. still be provided with the round bar for in the circular hole on the cooperation movable block inserted the crack, the cracked degree of depth of measurable quantity, the function is more used and is increased simply swiftly.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor.

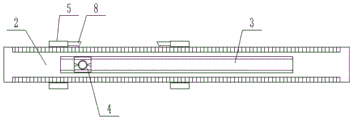

Fig. 1 is a schematic structural diagram of a crack depth detection device for construction engineering according to this embodiment;
fig. 2 is a side cross-sectional view of a crack depth detection device for construction engineering provided in this embodiment;
fig. 3 is a schematic structural diagram of a round bar portion of the device for detecting the depth of the crack in the construction engineering provided by the embodiment;
fig. 4 is a partial enlarged view of a moving block portion of the construction crack depth detection device provided in this embodiment;
shown in the figure: 1. a support frame; 2. a ruler plate; 3. a long hole; 4. a moving block; 5. a sliding sleeve; 6. a long groove; 7. a pulley; 8. a scale needle; 9. a circular hole; 10. a round bar; 11. a depth scale mark; 12. and (5) a triangular pointer block.
Detailed Description
In order to make the aforementioned objects, features and advantages of the present invention more clearly understood, the present invention will be further described with reference to the accompanying drawings and examples. It should be noted that the embodiments and features of the embodiments of the present application may be combined with each other without conflict.
In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, however, the present invention may be practiced in other ways than those specifically described herein, and therefore the present invention is not limited to the limitations of the specific embodiments of the present disclosure.
In the embodiment, as can be seen from fig. 1 to 4 in the specification, the device for detecting the depth of the crack in the building engineering comprises a support frame 1 and a ruler plate 2, wherein the support frame 1 is fixed at two opposite ends of the bottom surface of the ruler plate 2, and a detection structure is arranged on the ruler plate 2;
the detection structure includes: a width measuring unit, a long hole 3, a moving block 4, and a depth measuring unit;
the width measuring part is arranged on the ruler plate 2, the long hole 3 is formed in the surface of the ruler plate 2, the moving block 4 is connected in the long hole 3 in a sliding mode, and the depth measuring part is arranged on the moving block 4.
The width measuring section includes: the sliding sleeve 5, the long groove 6, the pulley 7 and the scale needle 8;
the sliding sleeve 5 is connected to the ruler plate 2 in a sleeved mode, the long groove 6 is formed in the bottom face of the ruler plate 2, the pulley 7 is arranged on the inner surface of the sliding sleeve 5 and located in the long groove 6, and the scale needle 8 is fixed to the end face of the side of the sliding sleeve 5.
The depth measuring section includes: a round hole 9, a round rod 10, a depth ruler 11 and a triangular pointer block 12;
the circular hole 9 is formed in the surface of the moving block 4, the circular rod 10 is inserted into the circular hole 9, the depth ruler mark 11 is arranged on the surface of the circular rod 10, and the triangular pointer block 12 is fixed at two opposite ends of the surface of the moving block 4.
From the above, it can be seen that: the lower end of the round rod 10 is in a conical structure, so that the round rod can be conveniently inserted into a crack and can enter the deepest position as much as possible.
From the above, it can be seen that: the cross section of the sliding sleeve 5 is of a C-shaped structure, the sliding sleeve can transversely slide on the ruler plate 2, and the position of a crack is determined through the scale needle 8.
Wherein, it is important to point out that in the concrete implementation process, the support frame 1 is put at the crack and is shown, supports in the crack both sides through support frame 1, then according to the position in crack, removes sliding sleeve 5 and removes scale needle 8 to crack edge, then looks over ruler board 2 and also just the interval distance of two scale needles 8 and show the size, when measuring the degree of depth, moves movable block 4 to the middle of the crack, then inserts round bar 10 in the round hole 9 of movable block 4 and then shows the degree of depth through the corresponding degree of depth scale mark 11 position of triangle pointer piece 12.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in other forms, and any person skilled in the art may use the above-mentioned technical contents to change or modify the equivalent embodiment into equivalent changes and apply to other fields, but any simple modification, equivalent change and modification made to the above embodiments according to the technical matters of the present invention will still fall within the protection scope of the technical solution of the present invention.
Claims (5)
1. The device for detecting the depth of the crack of the building engineering comprises a support frame and a ruler plate, wherein the support frame is fixed at two opposite ends of the bottom surface of the ruler plate;
the detection structure includes: a width measuring section, a long hole, a moving block, and a depth measuring section;
the width measuring part is arranged on the ruler plate, the long hole is formed in the surface of the ruler plate, the moving block is connected in the long hole in a sliding mode, and the depth measuring part is arranged on the moving block.
2. The apparatus for detecting the depth of the crack in the construction engineering according to claim 1, wherein the width measuring unit comprises: the sliding sleeve, the long groove, the pulley and the scale needle;
the sliding sleeve is sleeved and connected on the ruler plate, the long groove is formed in the bottom surface of the ruler plate, the pulley is arranged on the inner surface of the sliding sleeve and located in the long groove, and the scale needle is fixed on the side end face of the sliding sleeve.
3. The apparatus for detecting the depth of the crack in the construction engineering according to claim 1, wherein the depth measuring unit comprises: the device comprises a circular hole, a round rod, a depth ruler mark and a triangular pointer block;
the circular hole is formed in the surface of the moving block, the circular rod is inserted into the circular hole, the depth ruler mark is arranged on the surface of the circular rod, and the triangular pointer block is fixed at two opposite ends of the surface of the moving block.
4. The apparatus as claimed in claim 3, wherein the lower end of the round rod is conical.
5. The constructional engineering crack depth detection device as claimed in claim 2, wherein the sliding sleeve is of a C-shaped cross section.
