Abstract

The utility model belongs to the technical field of air purifiers, in particular to a cooling and humidifying air purifier, aiming at the existing air purifiers generally blowing air to the water curtain to achieve the purpose of cooling and humidifying when performing humidification, resulting in air and water vapor For the problem of insufficient mixing, the following scheme is now proposed, which includes a purifier housing, the inner wall of the purifier housing is provided with two T-shaped grooves, and the inner walls of the two T-shaped grooves are slidingly connected with T-shaped blocks. The top of the T-shaped block is fixedly connected with a water storage frame, and the inside of the purifier shell is fixedly connected with two inclined plates, and a water curtain is fixedly connected between the two inclined plates, and the interior of the purifier shell is fixedly connected with two The utility model atomizes the water by setting the water storage frame, inclined plate, water curtain, supporting plate, water pump, generator and atomizing nozzle, and forms a water film on the surface of the water curtain, which is convenient for contact with the air to mix.

Description

A cooling and humidifying air purifier

technical field

The utility model relates to the technical field of air purifiers, in particular to a cooling and humidifying air purifier.

Background technique

The working principle of the air purifier is that the motor and fan in the machine circulate the indoor air, and the polluted air passes through the air filter in the machine to remove or absorb various pollutants. The air purifier will also install a negative ion generator at the air outlet (the high voltage in the negative ion generator generates DC negative high voltage during operation), which will continuously ionize the air and generate a large number of negative ions, which will be sent out by the micro fan to form a negative ion airflow to achieve clean, The purpose of purifying the air.

In the prior art, when the air purifier is humidifying, it generally blows the air to the water curtain to achieve the purpose of cooling and humidifying, resulting in insufficient mixing of air and water vapor, so we propose a cooling and humidifying air purifier for Solve the above problems.

Utility model content

The purpose of this utility model is to solve the shortcoming that the mixing of air and water vapor is not sufficient because the air purifier generally blows air to the water curtain to achieve the purpose of cooling and humidifying when humidifying, and proposes a cooling and humidifying air purifier .

In order to achieve the above object, the utility model adopts the following technical solutions:

A cooling and humidifying air purifier, comprising a purifier shell, the inner wall of the purifier shell is provided with two T-shaped slots, the inner walls of the two T-shaped slots are slidingly connected with T-shaped blocks, and the top of the T-shaped block A water storage frame is fixedly connected, and two slanting plates are fixedly connected to the inside of the purifier shell, and a water curtain is fixedly connected between the two sloping plates. An installation frame is fixedly connected between the two installation frames, the outer wall of the installation frame is fixedly connected with a mounting plate, the outer wall of the mounting plate is fixedly connected with a motor, one end of the output shaft of the motor is fixedly connected with a fan blade, and the outer wall of the purifier is fixedly connected with a fan blade. There is an atomizing mechanism inside.

Preferably, the atomization mechanism includes a liquid level sensor, a supporting plate with a hollow structure is fixedly connected to the inside of the purifier housing, a water pump and a generator are fixedly connected to the top of the supporting plate, and the supporting plate The outer wall of the purifier is uniformly fixed and communicated with a plurality of atomizing nozzles, the interior of the purifier shell is fixedly connected with two filter screens, the outer wall of the inclined plate is fixedly connected with the outer wall of the liquid level sensor, and the liquid level sensor is located at the water storage In the frame, the clear water in the water storage frame is detected by setting a liquid level sensor to realize functions such as water shortage protection, water shortage alarm, and waterproof overflow.

Preferably, the outer wall of the purifier housing is provided with a rectangular groove, the inner wall of the rectangular groove is slidingly connected with the outer wall of the water storage frame, and the inner wall of the purifier housing is fixedly connected with two limiting bars.

Preferably, the outer wall of the purifier shell is uniformly provided with a plurality of air inlet holes, the outer wall of the purifier shell is provided with an air outlet groove, and the inner wall of the air outlet groove is equipped with an air outlet grille, which facilitates cooling and humidification by setting the air outlet grille The air after that is guided and discharged.

Preferably, a groove is formed on the top of the purifier housing, and a controller is fixedly connected to the inside of the groove.

Preferably, two hoses are fixedly connected to the input end of the water pump, and one end of the two hoses communicates with the supporting plate and the outer wall of the water curtain respectively.

Preferably, the output end of the water pump is fixed and communicated with the water storage frame through a hose, and four universal wheels are installed on the bottom of the purifier shell, and the purifier shell can be moved easily by setting the universal wheels.

Compared with the prior art, the utility model has the advantages of:

This scheme atomizes the water by setting the water storage frame, inclined plate, water curtain, supporting plate, water pump, generator and atomizing nozzle, and forms a water film on the surface of the water curtain, which is convenient for mixing with air, and the motor runs The outside air enters the shell of the purifier through the air inlet and the filter, and mixes with the atomized water to form a process of cooling and humidifying.

Description of drawings

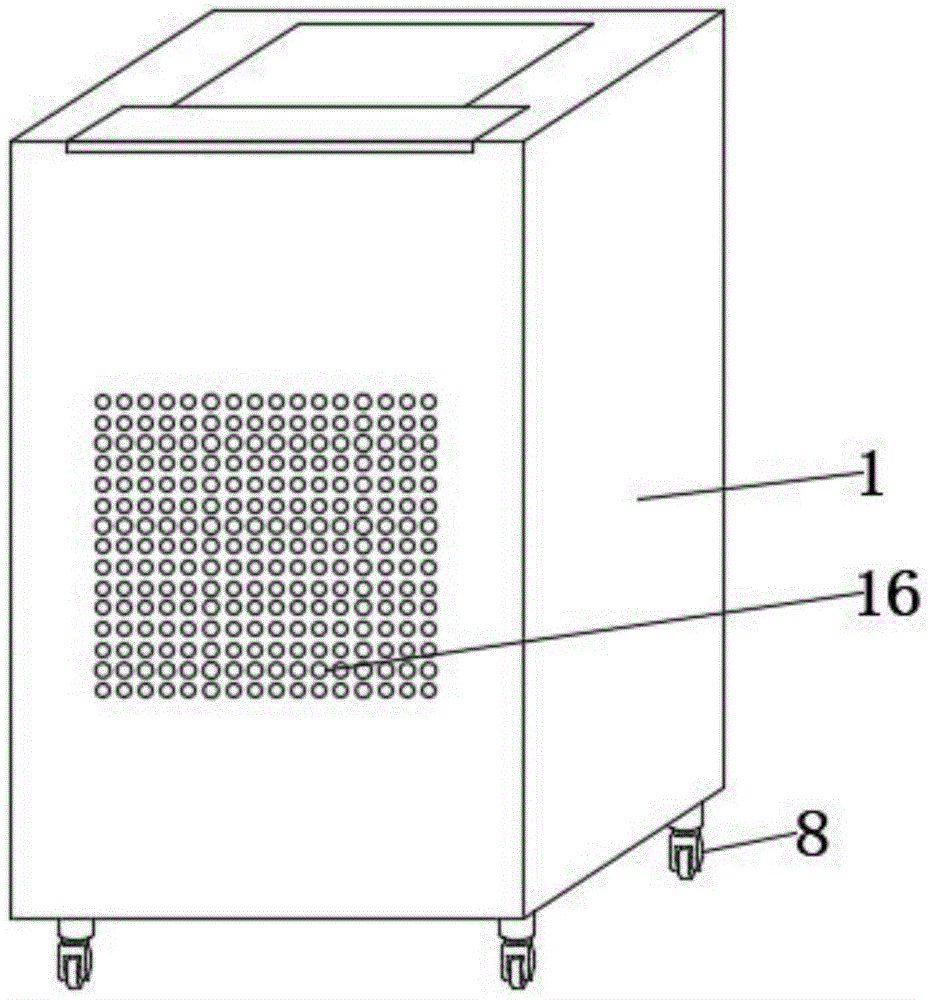

Fig. 1 is a three-dimensional structural schematic diagram of a cooling and humidifying air purifier proposed by the utility model;

Fig. 2 is a schematic cross-sectional structure diagram of a cooling and humidifying air purifier proposed by the utility model;

Fig. 3 is a side view structural schematic diagram of a cooling and humidifying air purifier proposed by the utility model.

In the figure: 1. Purifier shell; 2. T-shaped block; 3. Water storage frame; 4. Limiting bar; 5. Inclined plate; 6. Water curtain; 7. Mounting frame; Motor; 10. Installation frame; 11. Fan blade; 12. Supporting plate; 13. Water pump; 14. Generator; 15. Atomizing nozzle; 16. Air intake hole; 17. Filter screen; 18. Air outlet grille; 19. Liquid level sensor.

Detailed ways

As shown in Figures 1-3, it relates to a cooling and humidifying air purifier, including a purifier shell 1, the inner wall of the purifier shell 1 is provided with two T-shaped slots, and the inner walls of the two T-shaped slots are slidingly connected with T Type block 2, the outer wall of the purifier shell 1 is provided with a rectangular groove, the inner wall of the rectangular groove is slidingly connected with the outer wall of the water storage frame 3, the inner wall of the purifier shell 1 is fixedly connected with two limit bars 4, and the T-shaped block 2 The top is fixedly connected with a water storage frame 3, and the inside of the purifier shell 1 is fixedly connected with two inclined plates 5, and a water curtain 6 is fixedly connected between the two inclined plates 5, and the two inclined plates 5 connect the inside of the purifier shell 1 Separated so that the air can enter the air outlet grille 18 through the water curtain 6, the interior of the purifier housing 1 is fixedly connected with two installation frames 7, and the installation frame 10 is fixedly connected between the two installation frames 7, and the outer wall of the installation frame 10 is fixed. A mounting plate is connected, the outer wall of the mounting plate is fixedly connected with a motor 9, one end of the output shaft of the motor 9 is fixedly connected with a fan blade 11, the top of the purifier shell 1 is provided with a groove, and the inside of the groove is fixedly connected with a controller to purify The interior of the device housing 1 is provided with an atomizing mechanism.

As shown in Figures 1-3, the atomization mechanism includes a liquid level sensor 19, which detects the clear water in the water storage frame 3, and the inside of the purifier shell 1 is fixedly connected with a hollow structure support plate 12 , the top of the support plate 12 is fixedly connected with a water pump 13 and a generator 14, and the input end of the water pump 13 is fixedly connected with two hoses, and one end of the two hoses is fixedly connected with the outer wall of the support plate 12 and the water curtain 6 respectively , the outer wall of the supporting plate 12 is uniformly fixed and communicated with a plurality of atomizing nozzles 15, the atomizing nozzles 15 atomize the water to facilitate subsequent mixing with the air, and the output end of the water pump 13 is fixed to the water storage frame 3 through a hose Intercommunication, four universal wheels 8 are installed on the bottom of the purifier shell 1, the purifier shell 1 moves through the universal wheels 8, the inside of the purifier shell 1 is fixedly connected with two filter screens 17, and the outer wall of the purifier shell 1 A plurality of air inlet holes 16 are evenly opened, and the outer wall of the purifier shell 1 is provided with an air outlet groove, and the inner wall of the air outlet groove is equipped with an air outlet grille 18, and the outer wall of the swash plate 5 is fixedly connected with the outer wall of the liquid level sensor 19, and the liquid level sensor 19 is located in the water storage frame 3.

Working principle: when in use, slide the water storage frame 3 out through the T-shaped block 2 and the T-shaped groove, add clean water into the water storage frame 3, and the water pump 13 runs to transport the water to the support plate 12 and the water curtain 6, the generator 14 runs to drive the atomizing nozzle 15 to vibrate, so that the tip of the atomizing nozzle 15 forms a standing wave to atomize the water, and a layer of water film is formed on the water curtain 6, and the motor 9 runs to make the fan blade 11 Rotate, the outside air enters the purifier shell 1 through the air inlet 16 and the filter screen 17, mixes with the atomized water to form a process of cooling and humidifying, and passes through the water curtain 6 and is discharged through the air outlet grille 18 .

The above is only a preferred specific implementation mode of this embodiment, but the scope of protection of this embodiment is not limited thereto. Anyone familiar with the technical field within the technical scope disclosed in this embodiment Any equivalent replacement or change of the technical solution and the concept of the utility model of the example shall fall within the scope of protection of the present embodiment.

Claims (7)

1. A cooling and humidifying air purifier, comprising a purifier shell (1), characterized in that, the inner wall of the purifier shell (1) is provided with two T-shaped grooves, and the inner walls of the two T-shaped grooves are all slidably connected There is a T-shaped block (2), the top of the T-shaped block (2) is fixedly connected with a water storage frame (3), and the inside of the purifier shell (1) is fixedly connected with two inclined plates (5). A water curtain (6) is fixedly connected between the two inclined plates (5), and two installation frames (7) are fixedly connected to the inside of the purifier shell (1), and two installation frames (7) are fixedly connected with a water curtain (6). Mounting frame (10), the outer wall of the mounting frame (10) is fixedly connected with a mounting plate, the outer wall of the mounting plate is fixedly connected with a motor (9), and one end of the output shaft of the motor (9) is fixedly connected with a fan blade (11 ), the inside of the purifier housing (1) is provided with an atomizing mechanism. 2. A cooling and humidifying air purifier according to claim 1, characterized in that the atomization mechanism includes a liquid level sensor (19), and the interior of the purifier shell (1) is fixedly connected with a hollow structure A supporting plate (12), the top of the supporting plate (12) is fixedly connected with a water pump (13) and a generator (14), and the outer wall of the supporting plate (12) is evenly fixed and communicated with a plurality of atomizing nozzles (15), the inside of the purifier housing (1) is fixedly connected with two filter screens (17), the outer wall of the inclined plate (5) is fixedly connected with the outer wall of the liquid level sensor (19), and the liquid level The sensor (19) is located in the water storage frame (3). 3. A cooling and humidifying air purifier according to claim 1, characterized in that, the outer wall of the purifier shell (1) is provided with a rectangular groove, and the inner wall of the rectangular groove slides with the outer wall of the water storage frame (3) connected, the inner wall of the purifier housing (1) is fixedly connected with two limiting strips (4). 4. A cooling and humidifying air purifier according to claim 1, characterized in that, the outer wall of the purifier shell (1) is evenly provided with a plurality of air inlet holes (16), and the purifier shell (1) ) is provided with an air outlet groove on the outer wall, and an air outlet grille (18) is installed on the inwall of the air outlet groove. 5. A cooling and humidifying air purifier according to claim 1, characterized in that a groove is provided on the top of the purifier housing (1), and a controller is fixedly connected to the inside of the groove. 6. A kind of cooling and humidifying air purifier according to claim 2, characterized in that, the input end of the water pump (13) is fixedly connected with two flexible pipes, and one end of the two flexible pipes is respectively connected to the support plate ( 12) and the outer wall of water curtain (6) are fixed and communicated. 7. A cooling and humidifying air purifier according to claim 2, characterized in that the output end of the water pump (13) is fixed and communicated with the water storage frame (3) through a hose, and the purifier shell (1 ) is equipped with four universal wheels (8) at the bottom.
