Abstract

The utility model provides a PVC-coated polyester wire drawing machine. The PVC-coated polyester wire drawing machine includes a wire drawing machine body, a motor is fixedly connected to the left side of the wire drawing machine body, the output shaft of the motor is provided with a driving shaft, and the right side of the inner wall of the wire drawing machine body is provided with a The driving shaft, the opposite end of the driving shaft and the driven shaft are fixedly connected with a clamping block, and a winding roller is installed between the opposite sides of the two clamping blocks, and the two sides of the inner wall of the wire drawing machine body An adjustment plate is slidably connected between the sides, the bottom of the adjustment plate is fixedly connected with a fixed plate, the right side of the fixed plate is rotatably connected with a reciprocating screw rod, and the outer surface of the reciprocating screw rod is threadedly connected with a threaded block. The PVC-coated polyester wire drawing machine provided by the utility model makes the polyester yarn evenly wound on the winding roller, avoids accumulation of the polyester yarn in a certain place during winding, not only improves the winding quality of the polyester yarn, but also increases the aesthetics.

Description

A PVC coated polyester wire drawing machine

technical field

The utility model relates to the field of wire drawing machines, in particular to a PVC-coated polyester wire drawing machine.

Background technique

PVC wrapped in polyester yarn can increase the strength of polyester, and make polyester yarn have strong resistance to oxidizing agents, reducing agents and strong acids. In the prior art, the polyester yarn wrapped by PVC is generally made by a drawing machine.

When the existing wire drawing machine is working, it is generally necessary to set a winding mechanism on the outside of the wire drawing machine to wind the drawn polyester yarn, so as to avoid the polyester yarn from being twisted and knotted.

According to the patent provided by the patent No. CN212560596U, it regulates the resistance of the damping block so that when the inner drum rotates, the winding roller will not rotate. Since the winding roller will not rotate, it can effectively avoid the occurrence of polyester filaments. breakage situation.

However, when the winding roller is rotating and winding, the polyester yarn is easy to accumulate in a certain place of the winding roller, which makes the polyester yarn take-up uneven and affects the quality of later products.

Therefore, it is necessary to provide a PVC-coated polyester wire drawing machine to solve the above technical problems.

Utility model content

The utility model provides a PVC-coated polyester wire drawing machine, which solves the problems in the background technology.

In order to solve the above technical problems, the PVC-coated polyester wire drawing machine provided by the utility model includes a wire drawing machine body, a motor is fixedly connected to the left side of the wire drawing machine body, the output shaft of the motor is provided with a drive shaft, and the wire drawing The right side of the inner wall of the machine body is provided with a driven shaft, and the opposite ends of the driving shaft and the driven shaft are fixedly connected with a clamping block, and a winding roller is installed between the opposite sides of the two clamping blocks An adjustment plate is slidably connected between the two sides of the inner wall of the wire drawing machine body, a fixed plate is fixedly connected to the bottom of the adjustment plate, and a reciprocating screw rod is connected to the right side of the fixed plate in rotation, and the reciprocating screw rod The outer surface is threadedly connected with a threaded block, the bottom of the threaded block is fixedly connected with a wire loop, the outer surface of the driving shaft is fixedly connected with a first pulley, and the outer surface of the reciprocating screw rod is fixedly connected with a second pulley.

Preferably, the top of the wire drawing machine body is provided with an adjusting screw, and the bottom end of the adjusting screw is rotatably connected to the top of the adjusting plate.

Preferably, a groove is provided on the left side of the inner wall of the drawing machine body, and a sliding block is slidably connected to the inside of the groove, and a compression spring is arranged between the sliding block and the side wall of the groove, and the The right side of the sliding block is rotatably connected with a rotating shaft, and the outer surface of the rotating shaft is fixedly connected with a third pulley, and the third pulley is connected with the first pulley and the second pulley through a belt transmission.

Preferably, positioning pins are fixedly connected to opposite sides of the two clamping blocks, and the positioning pins are inserted into the inside of the winding roller.

Preferably, the outer surface of the driven shaft is rotatably connected to a moving plate, the bottom of the moving plate is slidably connected to the bottom of the inner wall of the wire drawing machine body, and the bottom of the inner wall of the wire drawing machine body is fixedly connected to a cylinder. One end of the air cylinder is fixed on the moving plate.

Preferably, a supporting structure is provided on the left side of the moving plate, and the supporting structure includes an arc-shaped plate, and several rolling columns are arranged on the inner surface of the arc-shaped plate.

Compared with related technologies, the PVC-coated polyester wire drawing machine provided by the utility model has the following beneficial effects:

The utility model provides a PVC-coated polyester wire drawing machine. The polyester yarn is wound on the winding roller after passing through the wire loop. After the motor is started, the rotation of the motor drives the driving shaft to rotate, so that the winding roller rotates and the polyester yarn is wound up. and the rotation of the driving shaft will drive the first pulley to rotate, and then the second pulley will rotate, driving the reciprocating screw to rotate, making the thread block reciprocate left and right, driving the wire loop to reciprocate left and right, so that the polyester yarn is evenly wound on the winding roller , to avoid the accumulation of polyester yarn somewhere when it is rolled, which not only improves the quality of polyester yarn winding, but also increases the aesthetics.

Description of drawings

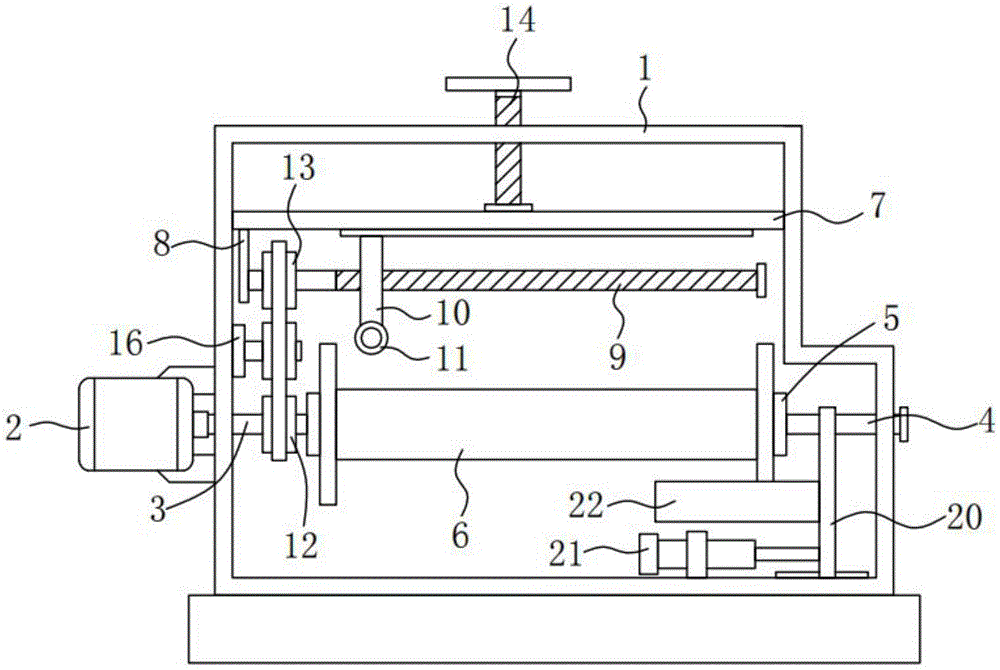

Fig. 1 is a schematic structural view of a preferred embodiment of the PVC-coated polyester wire drawing machine provided by the utility model;

Fig. 2 is a schematic side view of the first pulley shown in Fig. 1;

FIG. 3 is a schematic side view of the supporting structure shown in FIG. 1 .

Labels in the figure: 1. Wire drawing machine body; 2. Motor; 3. Driving shaft; 4. Driven shaft; 5. Clamping block; 6. Winding roller; 7. Adjusting plate; 8. Fixed plate; 9. Reciprocating wire Rod; 10, threaded block; 11, wire ring; 12, first pulley; 13, second pulley; 14, adjusting screw; 15, groove; 16, sliding block; 17, compression spring; 18, rotating shaft; 19 , the third pulley; 20, the moving plate; 21, the cylinder; 22, the support structure; 221, the arc plate; 222, the rolling column.

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is further described.

Please refer to Fig. 1, Fig. 2, Fig. 3 in combination, wherein Fig. 1 is a structural schematic diagram of a preferred embodiment of the PVC-coated polyester wire drawing machine provided by the utility model; Fig. 2 is a diagram of the first belt pulley shown in Fig. 1 Schematic side view; FIG. 3 is a schematic side view of the support structure shown in FIG. 1 . The PVC-coated polyester wire drawing machine includes a wire drawing machine body 1, a motor 2 is fixedly connected to the left side of the wire drawing machine body 1, the output shaft of the motor 2 is provided with a drive shaft 3, and the right side of the inner wall of the wire drawing machine body 1 is A driven shaft 4 is provided, the opposite ends of the driving shaft 3 and the driven shaft 4 are fixedly connected with a clamping block 5, and a winding roller 6 is installed between the opposite sides of the two clamping blocks 5 An adjustment plate 7 is slidably connected between the two sides of the inner wall of the wire drawing machine body 1, the bottom of the adjustment plate 7 is fixedly connected with a fixed plate 8, and the right side of the fixed plate 8 is rotatably connected with a reciprocating screw rod 9, The outer surface of the reciprocating screw rod 9 is threadedly connected with a threaded block 10, the bottom of the threaded block 10 is fixedly connected with a wire loop 11, the outer surface of the driving shaft 3 is fixedly connected with a first pulley 12, and the reciprocating wire The outer surface of the rod 9 is fixedly connected with a second pulley 13 .

The top of the wire drawing machine body 1 is provided with an adjusting screw 14, and the bottom end of the adjusting screw 14 is rotatably connected to the top of the adjusting plate 7. By manually rotating the adjusting screw 14, the adjusting screw 14 can be driven to move upward or downward. Move, so that the height of the wire loop 11 can be adjusted, and the tension of the polyester filament can be adjusted indirectly.

The left side of the inner wall of the wire drawing machine body 1 is provided with a groove 15, the inside of the groove 15 is slidably connected with a sliding block 16, and a compression spring is arranged between the sliding block 16 and the side wall of the groove 15 17. The right side of the sliding block 16 is rotatably connected with a rotating shaft 18, and the outer surface of the rotating shaft 18 is fixedly connected with a third pulley 19, and the third pulley 19 is connected to the first pulley 12 and the second pulley 13. are connected by a belt drive.

When the adjusting plate 7 is upward, the distance between the first pulley 12 and the second pulley 13 increases, which will cause the sliding block 16 to move forward, squeeze the compression spring 17, and the third pulley 19 can play a tensioning role on the belt , when the adjustment plate 7 moves downward, the distance between the first pulley 12 and the second pulley 13 decreases, which will make the sliding block 16 move backward, and the compression spring 17 rebounds due to the elastic force, so that the first pulley 12 and the second pulley When the distance between the two belt pulleys 13 increases or decreases, the transmission can be stabilized.

Positioning pins are fixedly connected to opposite sides of the two clamping blocks 5 , and the positioning pins are inserted into the inside of the winding roller 6 .

The outer surface of the driven shaft 4 is rotatably connected with a moving plate 20 , the bottom of the moving plate 20 is slidingly connected to the bottom of the inner wall of the wire drawing machine body 1 , and the bottom of the inner wall of the wire drawing machine body 1 is fixedly connected with a cylinder 21 , one end of the cylinder 21 is fixed on the moving plate 20 .

The extension of the cylinder 21 drives the moving plate 20 to move to the right, so that the driven shaft 4 moves to the right, so that the distance between the two clamping blocks 5 increases, and the winding roller 6 is no longer fixed, so that the winding roller 6 Easy to disassemble.

A support structure 22 is provided on the left side of the moving plate 20 , the support structure 22 includes an arc-shaped plate 221 , and several rolling columns 222 are provided on the inner surface of the arc-shaped plate 221 .

The setting of the arc-shaped plate 221 can support the winding roller 6. When dismounting, the winding roller 6 will not fall directly, and the rolling column 222 is in contact with the winding roller 6, so that the winding roller 6 is rotating. , the friction between the two is greatly reduced and will not affect the rotation of the winding roller 6 .

The working principle of the PVC coated polyester wire drawing machine provided by the utility model is as follows:

Pass the polyester yarn through the wire loop 11 and wind it on the winding roller 6. After the motor 2 is started, the rotation of the motor 2 drives the driving shaft 3 to rotate, so that the winding roller 6 rotates, the polyester yarn is wound up, and the driving shaft 3 rotates It will drive the first pulley 12 to rotate, and then make the second pulley 13 to rotate, drive the reciprocating screw rod 9 to rotate, make the thread block 10 reciprocate left and right, drive the wire loop 11 to reciprocate left and right, so that the polyester filament is evenly wound on the winding roller 6 .

Compared with related technologies, the PVC-coated polyester wire drawing machine provided by the utility model has the following beneficial effects:

Pass the polyester yarn through the wire loop 11 and wind it on the winding roller 6. After the motor 2 is started, the rotation of the motor 2 drives the driving shaft 3 to rotate, so that the winding roller 6 rotates, the polyester yarn is wound up, and the driving shaft 3 rotates It will drive the first pulley 12 to rotate, and then make the second pulley 13 to rotate, drive the reciprocating screw rod 9 to rotate, make the thread block 10 reciprocate left and right, drive the wire loop 11 to reciprocate left and right, so that the polyester filament is evenly wound on the winding roller 6 , to avoid the accumulation of polyester yarn somewhere when it is rolled, which not only improves the quality of polyester yarn winding, but also increases the aesthetics.

The above is only an embodiment of the utility model, and does not limit the patent scope of the utility model. Any equivalent structure or equivalent process conversion made by using the utility model specification and accompanying drawings, or directly or indirectly used in other Related technical fields are all included in the patent protection scope of the present utility model in the same way.

Claims (6)

1. The utility model provides a PVC cladding dacron wire drawing machine, includes wire drawing machine body (1), its characterized in that: the utility model discloses a wire drawing machine, including wire drawing machine body (1), the output shaft of motor (2) is provided with driving shaft (3), the right side of wire drawing machine body (1) inner wall is provided with driven shaft (4), driving shaft (3) with the equal fixedly connected with grip block (5) of the relative one end of driven shaft (4), two install winding roller (6) between the relative one side of grip block (5), sliding connection has regulating plate (7) between the both sides of wire drawing machine body (1) inner wall, the bottom fixedly connected with fixed plate (8) of regulating plate (7), the right side of fixed plate (8) is rotated and is connected with reciprocal lead screw (9), the surface threaded connection of reciprocal lead screw (9) has thread block (10), the bottom fixedly connected with wire ring (11) of thread block (10), the surface fixedly connected with first belt pulley (12) of driving shaft (3), the surface fixedly connected with second belt pulley (13) of reciprocal lead screw (9).

2. The PVC coated polyester fiber drawing machine according to claim 1, wherein an adjusting screw (14) is arranged at the top of the drawing machine body (1), and the bottom end of the adjusting screw (14) is rotatably connected to the top of the adjusting plate (7).

3. The PVC coated polyester wire drawing machine according to claim 1, wherein a groove (15) is formed in the left side of the inner wall of the wire drawing machine body (1), a sliding block (16) is connected to the inside of the groove (15) in a sliding manner, a compression spring (17) is arranged between the sliding block (16) and the side wall of the groove (15), a rotating shaft (18) is connected to the right side of the sliding block (16) in a rotating manner, a third belt pulley (19) is fixedly connected to the outer surface of the rotating shaft (18), and the third belt pulley (19) is connected with the first belt pulley (12) and the second belt pulley (13) in a belt transmission manner.

4. The PVC-coated polyester drawing machine according to claim 1, wherein one side of each of the two clamping blocks (5) opposite to each other is fixedly connected with a positioning pin, and the positioning pins are inserted into the winding rollers (6).

5. The PVC coated polyester wire drawing machine according to claim 1, wherein a moving plate (20) is rotatably connected to the outer surface of the driven shaft (4), the bottom of the moving plate (20) is slidably connected to the bottom of the inner wall of the wire drawing machine body (1), an air cylinder (21) is fixedly connected to the bottom of the inner wall of the wire drawing machine body (1), and one end of the air cylinder (21) is fixed on the moving plate (20).

6. The PVC-coated polyester fiber drawing machine according to claim 5, wherein a supporting structure (22) is arranged at the left side of the moving plate (20), the supporting structure (22) comprises an arc-shaped plate (221), and a plurality of rolling columns (222) are arranged on the inner surface of the arc-shaped plate (221).
