Abstract

The application relates to the field of disinfection technology, and discloses a mask disinfection and storage device, including: a box body, the box body is used to store the mask; UVC lamp beads, the UVC lamp beads are arranged on the inner wall of the box body, and are used to clean the masks in the box body. UV radiation for disinfection. By setting UVC lamp beads in the box body and using ultraviolet rays to sterilize the masks stored in the box body, not only can the masks still in the use cycle be properly preserved, but also the masks can be sterilized to prolong the service life of the masks.

Description

A mask disinfection storage device

technical field

The present application relates to the technical field of disinfection, in particular to a mask disinfection storage device.

Background technique

N95 masks can be worn for 3 days or 8 hours continuously under normal circumstances, and ordinary medical masks can be worn continuously for 4 hours in clinical practice. But the actual situation is that the actual use time of most masks is far shorter than its usable cycle. Many people put masks that have been worn for a while into their pockets or bags, causing the inside of the mask to be polluted, and continuing to wear it will be detrimental to health; discarding it will cause a burden on resources and the environment. Under normal circumstances, if these masks are properly preserved and sterilized to a certain extent, they can be used for a longer period of time.

At present, there are some mask storage devices on the market, such as mask storage bags, etc., but these portable equipment lack professional disinfection functions. Although masks that have been used for a short time can be temporarily stored, there is a risk of cross-infection and contamination of masks.

Therefore, how to store and sterilize the mask and prolong the service life of the mask is a problem that those skilled in the art need to solve urgently.

Utility model content

The purpose of this application is to provide a mask disinfection and storage device, which is used to store and sterilize the masks and prolong the service life of the masks.

In order to solve the above technical problems, the application provides a mask disinfection storage device, including:

A box body, the box body is used to accommodate masks;

UVC lamp beads, the UVC lamp beads are arranged on the inner wall of the box body, and are used to irradiate the mask in the box body with ultraviolet light for disinfection.

Preferably, the box body includes a bottom box and a box cover, one side of the bottom box is connected to one side of the box cover through a rotating joint, and the bottom box and the box cover are fastened together to form a rectangular parallelepiped box body.

Preferably, the bottom box is provided with a main board compartment, the main board compartment is provided with a control circuit main board, the box cover is provided with a first battery compartment, and the first battery compartment is provided with the control circuit. The lithium battery connected to the motherboard, the UVC lamp beads are evenly arranged on the outer surface of the motherboard compartment and the first battery compartment.

Preferably, a second battery compartment is further provided between the bottom box and the box cover, the second battery compartment is connected to the rotating connector, and both sides of the second battery compartment are provided with UVC lamp beads.

Preferably, a switch connected to the control circuit board is also included, and the switch is arranged on the outer surface of the box body.

Preferably, it also includes a working indicator light connected to the control circuit main board, the working indicator light is arranged on the outer surface of the box body, and is used to indicate the working state of the UVC lamp bead.

Preferably, it also includes a power indicator light connected to the control circuit main board, and the power indicator light is arranged on the outer surface of the box body.

Preferably, the switch, the power indicator light and the work indicator light are arranged in sequence along the length direction of the outer side wall of the bottom box.

Preferably, the main board of the control circuit further includes a timing module, and the timing module is used to record the working time of the working indicator light each time it is turned on.

Preferably, the outer surfaces of the mainboard compartment, the first battery compartment and the second battery compartment are all plated with an aluminum layer.

A mask disinfection and storage device provided by the application includes: a box body, the box body is used to accommodate the mask; UVC lamp beads, the UVC lamp beads are arranged on the inner wall of the box body, and are used to irradiate the masks in the box body with ultraviolet light to sterilize . By setting UVC lamp beads in the box body and using ultraviolet rays to sterilize the masks stored in the box body, not only can the masks still in the use cycle be properly preserved, but also the masks can be sterilized to prolong the service life of the masks.

Description of drawings

In order to illustrate the embodiments of the present application more clearly, the following will briefly introduce the accompanying drawings used in the embodiments. Obviously, the accompanying drawings in the following description are only some embodiments of the present application. As far as people are concerned, other drawings can also be obtained based on these drawings on the premise of not paying creative work.

Fig. 1 is the structural diagram of the unfolded state of a kind of mouth mask disinfection storage device that the embodiment of the application provides;

Fig. 2 is the structural diagram of another kind of mouth mask disinfection storage device that the embodiment of the present application provides;

Fig. 3 is a cross-sectional view of a buckled state of a mask disinfection storage device provided in the embodiment of the present application;

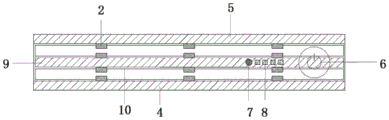

Fig. 4 is a cross-sectional view of another mask disinfection and storage device provided in the embodiment of the present application;

The reference signs are as follows: 1 is the box body, 2 is the UVC lamp bead, 3 is the rotating connector, 4 is the main board compartment, 5 is the first battery compartment, 6 is the switch, 7 is the working indicator light, 8 is the power indicator light, 9 is the second battery compartment, 10 is the aluminum layer, 101 is the box cover, and 102 is the bottom box.

Detailed ways

The following will clearly and completely describe the technical solutions in the embodiments of the present application with reference to the drawings in the embodiments of the present application. Obviously, the described embodiments are only some of the embodiments of the present application, not all of them. Based on the embodiments in this application, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of this application.

Due to the lack of high-efficiency disinfection function of the current mask storage bags, although masks that have been used for a short time can be temporarily stored, there is a risk of cross-infection and contamination of the masks. In addition, the common ultraviolet disinfection box is mostly used for disinfection of daily necessities at home, such as water cups, toothbrushes, etc. The equipment is bulky and inconvenient to carry.

The core of this application is to provide a mask disinfection and storage device. Combined with the actual use needs, a portable mask disinfection and storage device that not only considers portability but also has good disinfection and sterilization functions is proposed. The masks in the mask can be efficiently sterilized to prolong its service life, and at the same time it is easy to carry and can be taken with you.

In order to enable those skilled in the art to better understand the solution of the present application, the present application will be further described in detail below in conjunction with the drawings and specific implementation methods.

Fig. 1 is the structural diagram of a kind of mouth mask disinfection storage device that the embodiment of the present application provides, as shown in Fig. 1, a kind of mouth mask disinfection storage device comprises: box body 1, box body 1 is used for receiving mouth mask; UVC lamp bead 2, The UVC lamp bead 2 is arranged on the inner wall of the box body 1, and is used to irradiate the mask in the box body 1 with ultraviolet light for disinfection.

The embodiment of the present application does not specifically limit the shape and size of the box body 1 . In order to facilitate portability, the volume of the box body 1 is usually made as small as possible. Specifically, the box body 1 may include a bottom box 102 and a box cover 101, and one side of the bottom box 102 is connected to one side of the box cover 101 through a rotating connector 3. The rotating connecting piece 3 connected between them is not specified, the rotating connecting piece 3 can be a rotating shaft or a hinge, etc., the bottom box 102 and the box cover 101 can rotate around the rotating connecting piece 3, when the bottom box 102 and the box cover 101 are fastened together Form a cuboid box body, after the bottom box 102 and the lid 101 are fastened together, the size is half of the time when unfolded, so it is convenient to put into pockets, bags and the like. For the convenience of carrying, the whole box body 1 is made as small and exquisite as possible. In one case, the surface area of the opening when the bottom box 102 and the box cover 101 are opened and flattened is about 100mm*150mm, which can be put into N95 masks and ordinary medical masks.

The inner wall of the box body 1 of the embodiment of the present application is provided with UVC lamp beads 2, and the masks stored in the box body 1 are irradiated with ultraviolet rays, thereby disinfecting the masks. The number and specifications of the UVC lamp beads 2 in the embodiments of the present application Not specifically limited.

A mask disinfection and storage device provided in the embodiment of the present application includes: a box body, the box body is used to accommodate the mask; UVC lamp beads, the UVC lamp beads are arranged on the inner wall of the box body, and are used to irradiate the masks in the box body with ultraviolet rays to disinfect. By setting UVC lamp beads in the box body and using ultraviolet rays to sterilize the masks stored in the box body, not only can the masks still in the use cycle be properly preserved, but also the masks can be sterilized to prolong the service life of the masks.

Based on the above-mentioned embodiments, the bottom box 102 of the embodiment of the present application is provided with a main board compartment 4, a control circuit main board is provided inside the main board compartment 4, a first battery compartment 5 is provided inside the box cover 101, and a first battery compartment 5 is provided inside the first battery compartment 5. The lithium battery connected to the main board of the control circuit and the UVC lamp beads 2 are evenly arranged on the outer surfaces of the main board compartment 4 and the first battery compartment 5 .

In the embodiment of the present application, a motherboard compartment 4 is provided at the bottom of the bottom box 102. The area occupied by the motherboard compartment 4 can be the same as the area of the bottom wall of the bottom box 102. UVC lamp beads 2 are evenly distributed on the surface. The bottom of the box cover 101 is provided with a first battery compartment 5, the area occupied by the first battery compartment 5 can be the same as the area of the bottom wall of the box cover 101, and the outer surface of the first battery compartment 5 is evenly distributed with UVC lamp beads 2 , the first battery compartment 5 is provided with a lithium battery connected to the control circuit main board, and the control circuit main board controls the charging and discharging of the lithium battery. Of course, it is also possible that the main board compartment 4 is disposed on the box cover 101 and the first battery compartment 5 is disposed on the bottom case 102 .

In the embodiment of the present application, by setting the lithium battery and the control circuit board to supply power to the UVC lamp beads, it can be guaranteed that there is no need to connect the power supply for a period of time, and the portability of the mask disinfection and storage device is further improved.

Based on the above-mentioned embodiment, Fig. 2 is a structural diagram of another kind of mask disinfection and storage device provided in the embodiment of the present application. As shown in Fig. 2, a second battery compartment is also provided between the bottom box 102 and the box cover 101 9. The second battery compartment 9 is connected to the rotating connector, and both sides of the second battery compartment 9 are provided with UVC lamp beads 2 .

For the convenience of carrying, the volume of the box body 1 is generally made relatively small. When the mask is stored in the box body 1, the mask needs to be folded in half and then put into the box body. In order to further improve the sterilization effect and battery life, and better match the mask storage effect, this application also has a second battery compartment 9 between the bottom box 102 and the box cover 101, the second battery compartment 9 has a built-in lithium battery, and the two sides of the second battery compartment 9 are evenly arranged with UVC lamp beads 2 . The mask is folded in half and put into the box body 1, and the second battery compartment 9 is inserted into the folding gap of the mask, so that the whole of the mask can be covered by UVC light, which improves the sterilization efficiency of the mask.

Based on the above-mentioned embodiment, Fig. 3 is a cross-sectional view of a buckled state of a mask disinfection storage device provided by the embodiment of the present application; Fig. 4 is a cross-sectional view of another buckled state of a mask disinfection storage device provided by the embodiment of the present application. As shown in FIG. 3 and FIG. 4 , the outer surfaces of the main board compartment 4 , the first battery compartment 5 and the second battery compartment 9 are all coated with an aluminum layer 10 . As short-wave ultraviolet rays, UVC can effectively kill common bacterial viruses such as Escherichia coli and Staphylococcus aureus. It can destroy the molecular structure of DNA (deoxyribonucleic acid) or RNA (ribonucleic acid) in microbial cells, causing growth cell death and The regenerative cells die to achieve the effect of sterilization and disinfection. In addition, the aluminum-coated layer 10 can ensure that the UVC light is fully utilized, ensuring the killing efficiency of microorganisms to the greatest extent.

Based on the above-mentioned embodiments, the embodiment of the present application further includes a switch 6 connected to the main board of the control circuit, and the switch 6 is arranged on the outer surface of the box body 1 . It also includes a working indicator light 7 connected to the control circuit main board. The working indicator light 7 is arranged on the outer surface of the box body 1 to indicate the working state of the UVC lamp bead 2 . It also includes a power indicator light 8 connected to the control circuit main board, and the power indicator light 8 is arranged on the outer surface of the box body 1 .

In the embodiment of the present application, the switch 6 is set to control the work of the UVC lamp bead 2, and the user can turn on or off the UVC lamp bead 2 through the switch 1 according to needs, without keeping the UVC lamp bead 2 in the working state all the time, which can save energy consumption to a certain extent . The working indicator light 7 is convenient for the user to determine the working state of the UVC lamp bead 2 according to the on and off of the working indicator light 7 . The power indicator 8 is convenient for the user to understand the current power of the device, and can be charged in time when the power is insufficient. Regarding how to display the power through the power indicator 8, it can be that the power indicator 8 displays different colors to indicate different power levels, and green means that the power is sufficient , the yellow battery is still half, and the red is insufficient battery; you can also set multiple battery indicator lights, as shown in Figure 3 and Figure 4, set 4 battery indicator lights, when the 4 battery indicator lights are on, it indicates the battery level Sufficient, if only one battery indicator light is on, it means that the battery is insufficient.

Based on the above embodiments, the switch 6 , the power indicator light 8 and the work indicator light 7 are arranged along the length direction of the outer wall of the bottom box 102 in the embodiment of the present application.

In the embodiment of the present application, the switch 6, the power indicator light 8 and the work indicator light 7 are arranged along the length direction of the outer wall instead of along the height direction of the outer wall. Therefore, the thickness of the box body 1 can be made as much as possible. Small, flat box, small overall volume, more convenient to carry.

Based on the above embodiment, it is considered that when the user turns on the UVC lamp bead 2 to disinfect the mask in the box body 1, he may forget to turn off the UVC lamp bead 2, which consumes more electricity. Based on this, the main board of the control circuit in the embodiment of the present application further includes a timing module, and the timing module is used to record the working time of each time the working indicator light 7 is turned on. When the working indicator light 7 lights up, it means that the UVC lamp bead 2 is in the working state. When the working time of the working indicator light 7 reaches the preset value each time, the control circuit main board controls the power-off to turn off the UVC lamp bead 2. The general working time is 99 seconds.

The mask disinfection and storage device provided by this application adopts a foldable box structure. On the one hand, the mask can be stored in a small space and is easy to carry. On the other hand, UVC lamp beads on the upper and lower sides are formed after folding. , to fully sterilize the masks in the storage box. At the same time, the aluminum-coated layer inside the box improves the reflection of UVC light, improves the utilization rate of UVC, and makes the sterilization more efficient. The aluminum-coated layer also has a certain antibacterial function. When the mask is not placed, turn on the switch button to sterilize the storage box by itself. Ageing. Therefore, the mask disinfection and storage device provided by the application has the characteristics of portability, high-efficiency sterilization, low production cost, and long service life.

A kind of mask disinfection storage device provided by this application has been introduced in detail above. Each embodiment in the description is described in a progressive manner, each embodiment focuses on the difference from other embodiments, and the same and similar parts of each embodiment can be referred to each other. It should be pointed out that those skilled in the art can make some improvements and modifications to the application without departing from the principles of the application, and these improvements and modifications also fall within the protection scope of the claims of the application.

It should also be noted that in this specification, relative terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that these entities or operations There is no such actual relationship or order between the operations. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Claims (10)

1. A mask disinfection storage device, comprising:

the mask box comprises a box body (1), wherein the box body (1) is used for accommodating a mask;

UVC lamp pearl (2), UVC lamp pearl (2) are located the inner wall of box body (1), be used for right in the box body (1) the gauze mask carries out ultraviolet irradiation with the disinfection.

2. Mask disinfection storage device according to claim 1, characterized in that the box body (1) comprises a bottom box (102) and a box cover (101), one side of the bottom box (102) is connected with one side of the box cover (101) through a rotary connector (3), and the bottom box (102) and the box cover (101) are buckled to form a cuboid box body.

3. The mask disinfection storage device of claim 2, wherein a main board bin (4) is arranged in the bottom box (102), a control circuit main board is arranged in the main board bin (4), a first battery bin (5) is arranged in the box cover (101), a lithium battery connected with the control circuit main board is arranged in the first battery bin (5), and the UVC lamp beads (2) are uniformly distributed on the outer surfaces of the main board bin (4) and the first battery bin (5).

4. The mask disinfection storage device of claim 3, wherein a second battery compartment (9) is further arranged between the bottom box (102) and the box cover (101), the second battery compartment (9) is connected with the rotary connecting piece (3), and both side surfaces of the second battery compartment (9) are provided with UVC lamp beads (2).

5. The mask disinfection storage device of claim 3, further comprising a switch (6) connected with the control circuit main board, wherein the switch (6) is arranged on the outer surface of the box body (1).

6. The mask disinfection storage device according to claim 5, further comprising a working indicator light (7) connected with the control circuit board, wherein the working indicator light (7) is arranged on the outer surface of the box body (1) and used for indicating the working state of the UVC lamp beads (2).

7. The mask disinfection storage device of claim 6, further comprising an electric quantity indicator light (8) connected with the control circuit main board, wherein the electric quantity indicator light (8) is arranged on the outer surface of the box body (1).

8. The mask disinfection storage device of claim 7, wherein the switch (6), the electric quantity indicator light (8) and the work indicator light (7) are arranged in this order along the length direction of the outer side wall of the bottom case (102).

9. The mask disinfection and storage device according to claim 6, wherein the control circuit board further comprises a timing module, and the timing module is used for recording the working time of the working indicator lamp (7) in each lighting process.

10. Mask disinfection storage device according to claim 4, characterized in that the outer surfaces of the main board compartment (4), the first battery compartment (5) and the second battery compartment (9) are plated with aluminum layers (10).
