Abstract

The utility model relates to a training table whose stand can be turned over by 90 degrees for easy storage. A table top turning mechanism is provided between the table top and the supporting legs, and it is turned 90 degrees to one side by the table top turning mechanism. The wiring and the power bottom box are installed between the tops of the supporting legs, and the bottom of the supporting legs is installed On the supporting foot beam, it forms an inverted T-shaped structure with the supporting foot beam. The front and rear ends of the supporting foot beam are respectively equipped with locking casters and universal casters. The table turning mechanism includes an integrated plastic plate, safety handle, hardware Buckle 7, pull rod shaft and hardware pull rod; compared with the prior art, the utility model can turn the table panel to one side to realize 90-degree flip, and enhance the stability and firmness, and reduce the occupied space. At the same time, it also brings convenience to the transportation and use process.

Description

A training table whose frame can be turned 90 degrees for easy storage

technical field

The utility model relates to the technical field of office equipment, in particular to a training table whose stand can be turned over 90 degrees for easy storage.

Background technique

At present, most of the traditional training tables are of fixed structure, generally composed of a table top and table legs for supporting the table top, with fixed size and large space occupation. Even when the training table is idle and not being used, it has to take up a lot of space in the training place. Moreover, the stability of the training tables in the current market is not good, and most of them adopt the wire control method or the simple buckle structure method, which is not conducive to multi-frequency use. In addition, the storage of the office wires of the existing training desks is generally not very neat and beautiful, which affects the overall harmonious aesthetics of the training desk, but also brings some troubles to the use.

Utility model content

The purpose of this utility model is to solve the above-mentioned shortcomings and provide a training table that can be turned over by 90 degrees for easy storage. The floor space is reduced, and it also brings convenience to the transportation and use process.

In order to achieve the above purpose, design a training table that can be turned over by 90 degrees for easy storage. Connected to the top of the support leg 12, a table top turning mechanism is provided between the table top 2 and the support leg 12, and the table top turning mechanism is used to make a 90-degree turn to one side. The bottom box of the power supply 10, the bottom of the supporting leg 12 is installed on the supporting foot beam 13, and forms an inverted T-shaped structure with the supporting foot beam 13, and the front and rear ends of the supporting foot beam 13 are equipped with casters.

Further, the table turning mechanism includes an integrated plastic plate 3, a safety handle 6, a hardware buckle 7, a pull rod shaft 8 and a hardware pull rod 9, and the integrated plastic plate 3 is installed on the back of the table panel 2 through a screw fixing hole 4, so that The one-piece plastic plate 3 is provided with a card slot that cooperates with the hardware buckle 7, and the hardware buckle 7 is locked in the slot when the table panel 2 is in a horizontal state; the hardware buckle 7 is connected with the safety handle 6, After the safety handle 6 is pulled, the pull rod shaft 8 is driven to rotate, and the pull rod shaft 8 is connected to the hardware pull rod 9. After the hardware buckle 7 is released under the drive of the safety handle 6, when the table panel 2 rotates around the rotation shaft 5 Detached from the slot, the table top 2 is rotated 90 degrees to one side and contacts the support leg 12 .

Further, the hardware pull rod 9 is connected to the up and down toggle valve 18 through the pull rod shaft 8, and the up and down toggle valve 18 can be movable up and down and installed in the movable shaft fixing plate 17, and the movable shaft fixing plate 17 is installed on the integrated plastic On the plate 3, the metal rod 9 drives the up and down toggle valve 18 to move up and down, and the up and down toggle valve 18 lever toggles the up and down movable buckle 19 to expand and contract, and the up and down movable buckle 19 is arranged in the integrated plastic plate 3, The up and down movable buckle 19 is connected with the hardware buckle 7 in cooperation.

Further, the wiring and power bottom box 10 is box-shaped with an open upper end, and the longitudinal section is U-shaped. The left and right ends of the wiring and power bottom box 10 are fixed on the supporting legs 12. Wire and power supply bottom box 10 is distributed with wire passing holes, which can be used to store office wires, realize the line storage function, and avoid complicated and messy desktop lines.

Further, the middle part of the supporting foot beam 13 is provided with a connecting shaft 16, and the bottom of the supporting leg 12 is installed on the supporting foot beam 13 through the connecting shaft 16. Preferably, the bottom of the supporting leg 12 is sleeved in the connecting shaft 16, which enhances the Structural stability, the front and rear ends of the supporting foot beam 13 are respectively equipped with locking casters 11 and swivel casters 14, so that the overall movement and locking of the training table can be realized.

Further, anti-collision strips 1 are installed around the table top 2 in the circumferential direction, and the table top 2 is connected to the support legs 12 through the anti-collision strips 1 after turning 90 degrees to one side, thereby avoiding training The table was damaged due to collision during storage and use.

Compared with the prior art, the utility model has the following advantages:

(1) In this utility model, through the pulling of the edge, the transmission mechanism at both ends is stretched, and the metal buckle on the inner side of the plastic is moved to rotate, so as to cooperate with the fitting and loosening of the hardware, and the table top can be rotated to one side to realize a 90-degree flip;

(2) The utility model uses precision hardware to control the locking mechanism, which is integrally formed with plastic, which enhances the stability and firmness, and effectively prolongs the service life;

(3) The plastic system of the utility model is stable, and the whole structure can realize a stable structure without relying on beams and columns, and it is convenient to move and lock with casters;

(4) The utility model brings a lot of convenience both in the process of transportation and use, and can achieve the purpose of cost saving and simplification of storage;

(5) The utility model can realize the ideal function of accommodating office lines, facilitates line storage, and avoids complicated and messy desktop lines.

Description of drawings

Fig. 1 is a structural representation one (horizontal state) of the utility model;

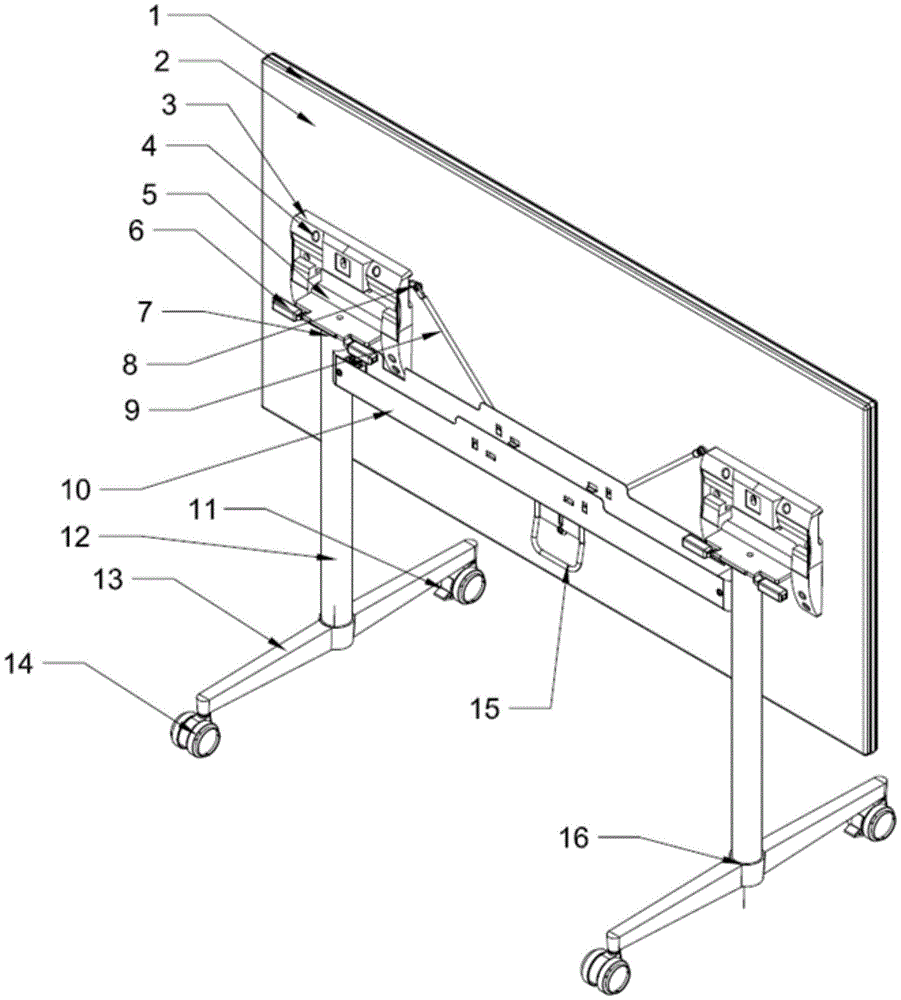

Fig. 2 is a structural schematic diagram two of the present utility model (after turning over 90 degrees);

Fig. 3 is a diagram of the locking use state of the present utility model;

Fig. 4 is a state diagram of the tabletop of the utility model flipped and accommodated;

Fig. 5 is a partial enlarged view of the utility model;

In the figure: 1, anti-collision strip 2, table top 3, integrated plastic plate 4, screw fixing hole 5, rotating shaft 6, safety handle 7, hardware buckle 8, pull rod shaft 9, hardware pull rod 10, wiring and power bottom box 11. Locking caster 12, supporting leg 13, supporting foot beam 14, universal caster 15, control handle 16, connecting shaft 17, movable shaft fixing plate 18, up and down toggle valve 19, up and down movable buckle 20, stabilizer.

Detailed ways

Below in conjunction with accompanying drawing, the utility model is further described as follows:

As shown in accompanying drawing 1 and accompanying drawing 2, the utility model provides a kind of training table that can be turned over by 90 degrees for easy storage, including a table top 2, a table top turning mechanism, supporting legs 12, supporting foot beams 13 and casters, The table top 2 is rotatably connected to the top of the support leg 12 through the rotating shaft 5, and a table top turning mechanism is arranged between the table top 2 and the support leg 12, and is turned 90 degrees to one side by the table top turning mechanism. The wiring and power bottom box 10 are installed, the bottom of the supporting leg 12 is installed on the supporting foot beam 13, and forms an inverted T-shaped structure with the supporting foot beam 13, and the front and rear ends of the supporting foot beam 13 are equipped with casters. The top of the table can be turned to one side to achieve 90-degree flip, and the structure is stable and the connection is firm. At the same time, it has the function of storing office wires to avoid complicated and messy desktop lines.

Among them, the countertop turning mechanism includes an integrated plastic plate 3, a safety handle 6, a hardware buckle 7, a pull rod shaft 8 and a hardware pull rod 9, the integral plastic plate 3 is installed on the back of the table panel 2 through the screw fixing hole 4, and the integrated plastic plate 3 is set There is a card slot cooperating with the hardware buckle 7, and the hardware buckle 7 is locked in the slot when the table panel 2 is in a horizontal state; the hardware buckle 7 is connected with the safety handle 6, and the pull rod shaft 8 is driven to rotate after the safety handle 6 is pulled. The pull rod shaft 8 is connected with the hardware pull rod 9. After the hardware buckle 7 is loosened under the drive of the safety handle 6, it is separated from the slot when the table panel 2 rotates around the rotating shaft 5. After the table panel 2 rotates 90 degrees to one side, it is connected to the The supporting legs 12 are in contact; the hardware pull rod 9 is connected to the up and down toggle valve 18 through the pull rod shaft 8, the up and down toggle valve 18 can be moved up and down and installed in the movable shaft fixed plate 17, and the movable shaft fixed plate 17 is installed on the integral plastic plate 3, The hardware pull rod 9 drives the up and down toggle valve 18 to move up and down, the up and down toggle valve 18 lever toggles the up and down movable buckle 19 to expand and contract, the up and down movable buckle 19 is set in the integrated plastic plate 3, the up and down movable buckle 19 and the hardware buckle 7 Mate connection. Specifically, when the hardware pull rod 9 is pulled, the up and down toggle valve 18 is driven to move up and down, and the up and down toggle valve 18 is levered to move the up and down movable buckle 19 to expand and contract. When the up and down movable buckle 19 stretches to the inside, the integrated plastic plate 3 and When the stabilizer 20 is in the horizontal position, loosen the hardware pull rod 9, the up and down movable buckle 19 pops up immediately, and is stuck to the underside of the hardware buckle 7. At this time, the integrated plastic plate 3 and the stabilizer 20 are firmly locked and are in a stable state , that is, in the locked state. When the metal rod 9 is pulled again, at this time, the force is transmitted to move the valve 18 up and down, and the valve 18 is lifted up and down to move the buckle 19. The buckle shrinks to the inside of the integrated plastic plate 3, and the hardware buckle 7. Without pressure, the integrated plastic plate 3 can be turned up immediately.

In the utility model, the wiring and power bottom box 10 is box-shaped with an open upper end, and the longitudinal section is U-shaped. The left and right ends of the wiring and power bottom box 10 are fixed on the supporting legs 12, and the wiring and power bottom Wire passing holes are distributed on the box 10, which can be used to store office wires, realize the function of line storage, and avoid complicated and messy desktop lines. The middle part of the supporting foot beam 13 is provided with a connecting shaft 16, and the bottom of the supporting leg 12 is installed on the supporting foot beam 13 through the connecting shaft 16. Preferably, the bottom of the supporting leg 12 is sleeved in the connecting shaft 16, which enhances the structural stability, and the supporting foot beam 13. Locking casters 11 and universal casters 14 are respectively installed at the front and rear ends, so that the whole movement and locking of the training table can be realized. Anti-collision strips 1 are installed around the table panel 2 in the circumferential direction. After the table panel 2 is turned 90 degrees to one side, it is connected with the support legs 12 through the anti-collision strip 1, thereby avoiding the training table during storage and use. Damaged by collision during the process.

The training table described in the utility model is mainly composed of a table top, a table top turning system, a turning control handle, a strong heating wire box, supporting legs, supporting feet and casters. state, it is a stable state at this time; when the table needs to be folded, pull the safety handle, and the safety handle drives the pull rod shaft to rotate. At this time, the hardware buckle is released, push the side of the table panel, the shaft rotates, and the hardware buckle Detach from the groove, until the table panel is rotated to 90 degrees, one side of the table panel is in contact with the support leg, and the anti-collision strip of the table panel leans against the support leg, then it reaches another stable state, which is also a stroke cycle.

The utility model is not limited by the above-mentioned embodiments, and any other changes, modifications, substitutions, combinations, and simplifications that do not deviate from the spirit and principle of the utility model should be equivalent replacement methods, and are all included in Within the protection scope of the present utility model.

Claims (6)

1. A training table that can be turned over by 90 degrees for storage, is characterized in that: it includes a table top (2), a table top turning mechanism, supporting legs (12), supporting foot beams (13) and casters, and the table top (2) It is rotatably connected to the top of the supporting leg (12) through the rotating shaft (5), and a table turning mechanism is arranged between the table panel (2) and the supporting leg (12), and it is turned to one side by the turning mechanism of the table. Turn over 90 degrees, wiring and power bottom box (10) are installed between the tops of the supporting legs (12), the bottom of the supporting legs (12) is installed on the supporting foot beam (13), and is connected with the supporting foot beam ( 13) An inverted T-shaped structure is formed, and the front and rear ends of the supporting foot beam (13) are equipped with casters. 2. The training table according to claim 1, which can be turned over by 90 degrees for easy storage, characterized in that: the table turning mechanism includes an integrated plastic plate (3), a safety handle (6), and a hardware buckle (7) , pull rod shaft (8) and hardware pull rod (9), the one-piece plastic plate (3) is installed on the back of the table panel (2) through the screw fixing hole (4), and the one-piece plastic plate (3) is provided with hardware The buckle (7) is matched with the connected slot, and the hardware buckle (7) is locked in the slot when the table panel (2) is in a horizontal state; the hardware buckle (7) is connected with the safety handle (6), After the safety handle (6) is pulled, the pull rod shaft (8) is driven to rotate, and the pull rod shaft (8) is connected with the hardware pull rod (9), and the hardware buckle (7) is loosened under the drive of the safety handle (6) Finally, and when the table top (2) rotates around the shaft (5), it is disengaged from the draw-in groove, and the table top (2) contacts the support leg (12) after turning 90 degrees to one side. 3. The training table as claimed in claim 2, which can be turned 90 degrees for easy storage, characterized in that: the metal tie rod (9) is connected to the up and down toggle valve (18) through the tie rod shaft (8), and the up and down Toggle valve (18) can be installed in movable shaft fixed plate (17) movable up and down. The movable valve (18) moves up and down, and the up and down toggle valve (18) lever moves the up and down movable buckle (19) to expand and contract, and the described up and down movable buckle (19) is arranged in the integral plastic plate (3), and the described The up and down movable buckle (19) is cooperatively connected with the hardware buckle (7). 4. The training table according to claim 1, which can be turned over by 90 degrees for easy storage, characterized in that: the wiring and power supply bottom box (10) is box-shaped with an open upper end, and the longitudinal section is U-shaped Type, the left and right ends of the wiring and power bottom box (10) are fixed on the support legs (12), and the wiring and power bottom box (10) are distributed with wire passing holes. 5. The training table according to claim 1, which can be turned over by 90 degrees for easy storage, characterized in that: a connecting shaft (16) is arranged in the middle of the supporting foot beam (13), and the bottom of the supporting leg (12) The connecting shaft (16) is installed on the supporting foot beam (13), and the front and rear ends of the supporting foot beam (13) are respectively equipped with locking casters (11) and universal casters (14). 6. The training table as claimed in claim 1, which can be turned over by 90 degrees for easy storage, characterized in that: the table top (2) is provided with anti-collision strips (1) around the circumference, and the table top (2) After turning over 90 degrees to one side, contact and connect with the support leg (12) through the anti-collision strip (1).
