Abstract

The utility model relates to the technical field of vein implantation, in particular to an improved trousers suitable for patients with femoral vein temporary hemodialysis catheters. It comprises two trouser legs on the left and right sides, and through holes are symmetrically opened on the front surface of the left and right trouser legs near the crotch, and a partition is arranged inside the through hole, an opening is opened in the middle of the partition, and a flip cover is provided on the upper part of the partition. The utility model is provided with an opening in the middle of the interlayer, which is suitable for the requirements of different hemodialysis catheter access positions. The interlayer can avoid direct contact and friction between the catheter and the skin to cause discomfort and protect the privacy of the patient. The flip cover on the interlayer can extend the The catheter that goes out to the outside of the compartment is covered, and the opening size of the exposed operation interface can be adjusted according to actual needs, which is convenient for observation and operation, avoiding the discomfort of the patient caused by repeated putting on and taking off the trousers, and avoiding the risk of the catheter slipping off , Bring great convenience to clinical nursing work.

Description

An improved trousers suitable for patients with femoral vein temporary hemodialysis catheter

technical field

The utility model relates to the technical field of vein implantation, in particular to an improved trousers suitable for patients with femoral vein temporary hemodialysis catheters.

Background technique

In maintenance hemodialysis patients, central venous catheter indwelling is an effective, rapid and convenient temporary blood vessel channel for maintenance hemodialysis treatment. Femoral vein insertion is a commonly used clinical vascular indwelling method and is widely used in renal failure. For treatment, the ordinary patient uniforms usually worn are easy to repeatedly expose the privacy of patients during various operations and catheter handovers, and hemodialysis catheters are high-risk catheters.

With the existing common trousers, nurses need to hand over catheters in each shift. Repeated putting on and taking off trousers increases the discomfort of patients, increases the physical exertion of nurses, and increases the risk of catheter slippage. The work brings a lot of trouble, and the comfort and safety are poor. This design starts from people-oriented, and improves the traditional patient trousers from the perspective of patient comfort, safety, privacy and convenience of clinical operations, and chooses comfortable cotton fabrics. To reduce skin irritation in patients with kidney disease, the openings on the left and right sides of the trousers are suitable for patients with different catheter positions. After opening, the operation interface can be fully exposed for easy observation and operation. In view of this, we propose a temporary hemodialysis catheter for patients with femoral vein Improved sick pants.

Utility model content

The purpose of this utility model is to provide an improved trousers suitable for patients with femoral vein temporary hemodialysis catheter, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides a kind of improved trousers suitable for patients with femoral vein temporary hemodialysis catheter, which includes two left and right trouser legs. An interlayer is provided inside the through hole, and an opening is provided in the middle of the interlayer, and a cover is provided on the upper part of the interlayer, and the side opposite to the two left and right through holes is opposite to the left and right through holes. One side of the cover is movably connected, and the other three sides of the flip cover are connected with the other three sides of the through hole through zippers.

As a further improvement of the technical solution, a plurality of Velcro stickers are provided at the slit of the opening, the Velcro stickers are fixedly connected to one side of the opening, and the other side of the Velcro stickers is movably connected to the other side of the opening.

As a further improvement of the technical solution, the outer surfaces of the multiple Velcro stickers are all provided with fixing clips.

As a further improvement of the technical solution, an elastic band is fixed near the upper and lower edges of the partition, and the upper and lower edges of the elastic band facing the back side are fixedly connected to the upper and lower ends of the through hole respectively.

As a further improvement of the technical solution, bulges are fixed on opposite sides of the left and right flip covers.

As a further improvement of the technical solution, a pocket is fixed inside the flap, and a plurality of anti-slip pads are provided inside the pocket.

Compared with the prior art, the utility model has the beneficial effects:

The improved trousers suitable for patients with femoral vein temporary hemodialysis catheter, by setting an opening in the middle of the partition, it is suitable for the requirements of different hemodialysis catheter access positions, and the partition can avoid the discomfort caused by direct contact and friction between the catheter and the skin To protect the patient's privacy, the flip cover on the compartment can cover the catheter protruding from the compartment, and the opening size of the exposed operation interface can be adjusted according to actual needs, which is convenient for observation and operation, and avoids repeated putting on and taking off the sick pants. The patient's discomfort is avoided, and the risk of catheter slippage is avoided, which brings great convenience to clinical nursing work.

Description of drawings

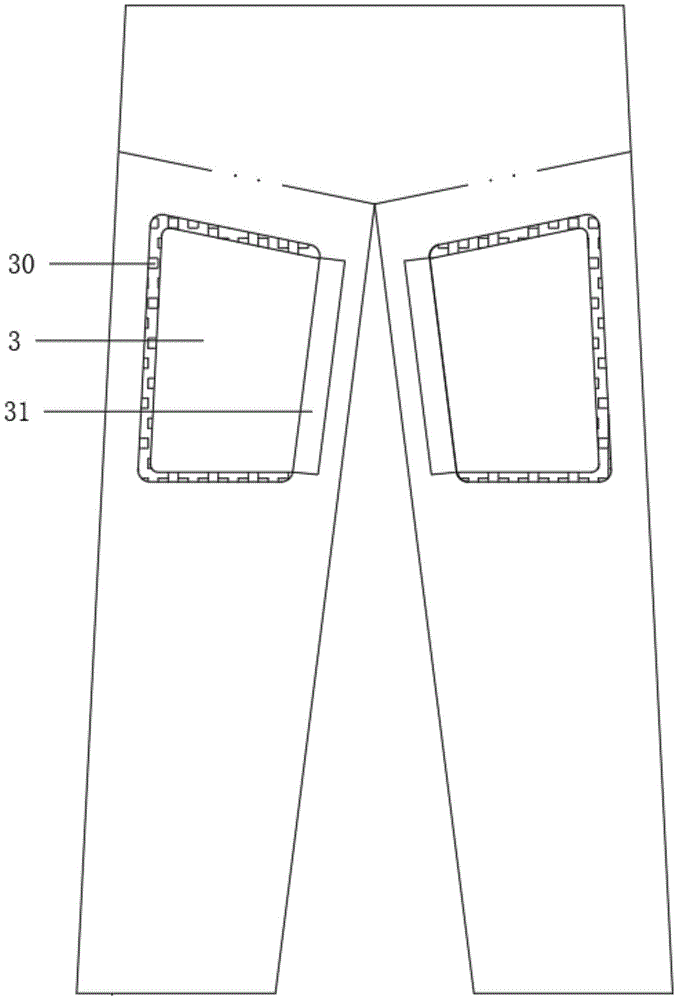

Fig. 1 is the overall structure schematic diagram of the flip cover on the sick trousers cover of the utility model;

Fig. 2 is the whole structure schematic diagram that the sick trousers of the present utility model is removed flip;

Fig. 3 is a schematic diagram of the overall structure of the interlayer and the Velcro of the present utility model;

Figure 4 is a schematic diagram of the overall structure of the flip cover of the present invention;

Fig. 5 is a sectional view of the overall structure of the flip cover of the present invention.

The meanings of each symbol in the figure are:

1. Trouser leg; 10. Through hole;

2. Compartment; 20. Opening; 21. Velcro; 22. Fixing clip; 23. Elastic band;

3. Flip cover; 30. Zipper; 31. Drum bag; 32. Slip pocket; 33. Anti-slip mat.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In describing the present invention, it should be understood that the terms "center", "longitudinal", "transverse", "length", "width", "thickness", "upper", "lower", "front", Orientation indicated by "back", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", etc. Or the positional relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, and does not indicate or imply that the referred device or element must have a specific orientation, be configured in a specific orientation, and operation, and therefore cannot be construed as a limitation of the utility model.

Please refer to Fig. 1-Fig. 5, this embodiment provides a kind of improved trousers suitable for patients with femoral vein temporary hemodialysis catheter, including two left and right trouser legs 1, and the front surfaces of the left and right trouser legs 1 are arranged symmetrically near the crotch. There is a through hole 10, and a partition 2 is arranged inside the through hole 10, and an opening 20 is opened in the middle of the partition 2. The main purpose is that the left and right openings 20 are suitable for temporary hemodialysis catheter placement requirements, and the partition 2 can The vascular indwelling tube protruding from the opening 20 is separated from people's skin to prevent discomfort caused by direct contact and friction between the catheter and the skin. The upper part of the compartment 2 is provided with a flip cover 3, and the left and right flip covers 3 are on opposite sides. One side opposite to the left and right through holes 10 is flexibly connected, and the other three sides of the flip cover 3 are connected with the other three sides of the through hole 10 through a zipper 30. The main purpose is to open the flip cover 3 and adjust the exposure according to actual needs. The operation interface is opened in a large size, which is convenient for observation and operation. When the flip cover 3 is closed, the hemodialysis indwelling tube protruding from the compartment 2 can be covered to prevent bacterial dust.

From the above, the connection structure between the flip cover 3 and the through hole 10 is further disclosed, and the flip cover 3 and the through hole 10 are connected by a double-ended zipper 30. The design of the double-head zipper 30 can adjust the opening size of the exposed operation interface according to actual needs, which is convenient for observation and operation, and the design of the double-head zipper 30 can keep the daily use comfortable and beautiful.

Preferable: trouser leg 10 is made of skin-friendly cotton fabric to reduce skin irritation to patients; zipper 30 suede design is washable and friction-resistant, easy to open and the size of opening 20 can be selected according to actual needs, which is convenient for operation and observation; the largest opening 20 area: Length 25cm*width 25cm to meet the actual nursing operation needs of hemodialysis catheter;

Working process: By protruding the temporary hemodialysis catheter from the opening 20 to the outside of the compartment 2, the opening 20 can be applied to different hemodialysis catheter entry and exit positions. When the medical staff need to hand over the catheter, they only need to open the flip cover 3 , and the flip cover 3 can adjust the opening size of the exposed operation interface according to actual needs.

It is worth noting that the hemodialysis catheter protrudes from the opening 20, and the opening 20 will be stretched by the hemodialysis catheter. A plurality of magic stickers 21 are arranged at the slit of the opening 20. The connection is fixed, so that the other side of the Velcro 21 is movably connected with the other side of the opening 20. When the hemodialysis catheter protrudes from the opening 20, the Velcro 21 can be used to stick the open gap of the catheter.

Further, after the hemodialysis catheter protrudes from the opening 20, the position of the hemodialysis catheter is unstable. Fixing clips 22 are provided on the outer surfaces of the plurality of Velcro 21, and the fixing clips 22 are used to extend the hemodialysis catheter from the opening 20. The out-going catheter is clamped, which helps to ensure the stability of the hemodialysis catheter position and avoids the risk of the catheter slipping off.

In addition, considering the comfort of patients wearing sick trousers, the trouser leg 1 often has a certain degree of looseness. In order to ensure that the opening 20 can fit the human skin and prevent the opening 20 from shifting, it is inconvenient for the medical staff to find the correct position for operation. The upper and lower edges of layer 2 are fixedly provided with elastic bands 23, so that the upper and lower edges of the upper and lower elastic bands 23 are fixedly connected with the upper and lower ends of the through hole 10 respectively. At the same time, it can ensure the comfort of patients wearing sick pants.

Secondly, during the period when hemodialysis is not needed, the hemodialysis indwelling tube will be stored between the flip cover 3 and the compartment 2. In order to ensure the safety of the catheter when people move around, a bulge is fixed on the opposite side of the left and right flip covers 3 31, the inner side of the trouser leg 1 adopts a bulge 31 to open and roll up the cloth with a strong three-dimensional effect and good support, which is conducive to ensuring the safety of the catheter.

Further, because the lengths of the conduits protruding from the opening 20 are inconsistent, it is inconvenient to fix the conduits at other positions close to the fixing clip 22. A pocket 32 is fixed inside the flip cover 3, and a plurality of anti-skid pads 33 are arranged inside the pocket 32. The catheters are rolled up neatly, and then placed inside the pocket 32, which helps to ensure that the longer catheters can be accommodated, and the anti-slip pad 33 inside the pocket 32 can prevent the catheter from moving out of the pocket 32 during people's activities.

The improved trousers of this embodiment, which are suitable for patients with femoral vein temporary hemodialysis catheters, can be used for different hemodialysis catheters by extending the temporary hemodialysis catheters from the opening 20 to the outside of the compartment 2. position, use the fixing clip 22 to clamp the catheter protruding from the opening 20, which is beneficial to ensure the stability of the hemodialysis catheter position, and avoid the risk of catheter slippage. When the medical staff needs to hand over the catheter, just Just pinch the bulge 31 to open the flip cover 3, and the double-headed zipper 30 allows the medical staff to open the flip cover 3 in the form of a rolling shutter, and the design of the double-headed zipper 30 is convenient for the medical staff to adjust the opening size of the exposed operation interface according to actual needs. It brings great convenience to observation and operation.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions are only preferred examples of the utility model, and are not used to limit the utility model. Without departing from the utility model Under the premise of the spirit and scope, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a sick trousers of improvement suitable for interim hemodialysis pipe patient of femoral vein, includes two trouser legs (1) about, its characterized in that: control two trouser legs (1) front surface is close to crotch portion bilateral symmetry and has seted up through-hole (10), through-hole (10) inside is equipped with interlayer (2), interlayer (2) are located middle department and have seted up opening (20), interlayer (2) upper portion department is equipped with flip (3), controls two one side and the left and right sides two of flip (3) opposite side one side department swing joint of through-hole (10) opposite side, flip (3) are in addition trilateral department and through-hole (10) in addition trilateral department pass through zip fastener (30) and are connected.

2. The improved patient pants suitable for patients with femoral vein temporary hemodialysis catheters according to claim 1, wherein: the opening seam of opening (20) is located to be equipped with a plurality of magic subsides (21), magic subsides (21) and opening (20) one side department fixed connection, the opposite side of magic subsides (21) and the opposite side swing joint of opening (20).

3. The improved patient pants suitable for patients with femoral vein temporary hemodialysis catheters according to claim 2, wherein: the outer surfaces of the magic tapes (21) are provided with fixing clamps (22).

4. The improved patient pants suitable for patients with femoral vein temporary hemodialysis catheters according to claim 1, wherein: an elastic band (23) is fixedly arranged at the upper edge and the lower edge of the interlayer (2), and the edge of one side of the elastic band (23) facing back is fixedly connected with the upper end and the lower end of the through hole (10) respectively.

5. The improved patient pants suitable for patients with femoral vein temporary hemodialysis catheters according to claim 1, wherein: bulges (31) are fixedly arranged on the opposite sides of the left and the right turning covers (3).

6. The improved patient pants suitable for patients with femoral vein temporary hemodialysis catheters according to claim 1, wherein: an inserting bag (32) is fixedly arranged on the inner side of the turnover cover (3), and a plurality of anti-slip pads (33) are arranged inside the inserting bag (32).
