Abstract

The utility model discloses an automatic thread cutting and riveting machine for electronic wire production, which comprises a body in which a telescopic rod is fixedly installed, and a push plate fixedly connected with the output end of the telescopic rod and used for pushing the electronic wire is arranged in a transverse groove. , The machine body is equipped with a cutting and riveting integrated mechanism driven by a drive shaft. Drive the short yoke to rotate together through the start lever, the short yoke slides left and right in the long frame, and drives the right rack to slide up and down in the right chute, and at the same time, the right rack is meshed with the rotating gear for transmission, so that the left rack and the right rack Alternate movement up and down, so that the cutting knife and the riveting block can process the electronic wire separately, reducing the process in the production process and improving production efficiency. The output end of the telescopic rod drives the push plate to move to the left in the horizontal groove, pushes the trimmed line segment to the bottom of the riveting block, and at the same time, when receiving the signal from the left rack, the telescopic The electric signal that the rod moves to the right to the initial position is convenient for the next operation.

Description

An automatic wire cutting and riveting machine for electronic wire production

technical field

The utility model relates to the technical field of automatic thread cutting and riveting end machines, in particular to an automatic thread cutting and riveting end machine for electronic wire production.

Background technique

Electronic wire is an abbreviation for the internal wire of electrical equipment. The electrification is mainly based on weak current, which is a different concept from the cable in the strong current category.

When using the electronic wire, it is usually cut to obtain a suitable size, and the riveted end is processed at the cutting port, but in the existing operation process, the electronic wire is often cut by manpower Operation, and then use manpower to carry the cut electronic wires, and carry out riveting processing on the electronic wires. In the process, it often needs to be manually transported to multiple devices, resulting in a large consumption of manpower and low production efficiency. Serious delays in production completion time.

Utility model content

The purpose of the utility model is to solve the problem that the electronic wire cannot be automatically cut and riveted together in the prior art, and proposes an automatic wire cutting and riveting end machine for electronic wire production.

In order to achieve the above object, the utility model adopts the following technical solutions:

An automatic thread cutting and riveting machine for electronic wire production, including a body, an opening for feeding and taking in materials is opened in the body, and a placement table for placing electronic wires is fixedly installed in the body, and a rotating device is installed in the body for rotation Shaft, and a motor is fixedly installed outside the body, a driving shaft fixedly connected with the output point of the motor is installed in the body, a transverse groove is opened in the body, a telescopic rod is fixedly installed in the body, and the transverse groove A push plate fixedly connected with the output end of the telescopic rod and used to push the electronic wire is arranged in the body, and a cutting and riveting integrated mechanism driven by a driving shaft is arranged in the body.

Preferably, the placing table is horizontally arranged at the bottom of the machine body, and the rotating shaft corresponds up and down with the driving shaft and is horizontally arranged in the machine body.

Preferably, the transverse groove is opened horizontally above the placing platform, and the push plate is longitudinally slidably sleeved in the transverse groove.

Preferably, the cutting and riveting integrated mechanism includes a starting rod fixedly sleeved on the driving shaft, a short yoke is integrally formed on the starting rod, a rotating gear is keyed on the rotating shaft, and there are respectively set in the body A left chute and a right chute, the sliding sleeve in the left chute is provided with a left rack meshed with the rotating gear, and the sliding sleeve in the right chute is provided with a right rack meshed with the rotating gear. The long frame of the traction short yoke is fixedly connected to the right rack, and the cutting knife for cutting the electronic wire is fixedly installed on the right rack, and the riveting tool for riveting the electronic wire is fixedly installed on the left rack. piece.

Preferably, the short yoke is slidably sleeved in the long frame, and the left chute and the right chute are arranged symmetrically and vertically on both sides of the machine body.

Preferably, the left rack and the right rack are arranged longitudinally at both ends of the rotating gear, and the cutting knife and the riveting block are respectively arranged at the lower ends of the left rack and the right rack.

Compared with the prior art, the utility model has the following advantages:

1. The utility model drives the starting lever to rotate through the driving shaft, and the starting lever drives the short yoke to rotate together. The short yoke slides left and right in the long frame, and drives the right rack to slide up and down in the right chute. At the same time, the right rack and the rotating gear Engaging transmission, the rotating gear drives the rotating shaft to rotate, and then the rotating gear and the left rack are meshed for transmission, so that the left rack and the right rack move up and down alternately, so that the cutting knife and the riveting block can process the electronic wire respectively.

2. In the utility model, when the right rack drives the cutter to cut the electronic wire, the infrared receiver on the push plate receives the signal on the right rack, and sends an electric signal to the telescopic rod to move to the left, so that the output of the telescopic rod The end drives the push plate to move to the left in the horizontal groove, pushes the trimmed line segment to the bottom of the riveting block, and at the same time, when receiving the signal from the left rack, moves the telescopic rod to the right The electrical signal of the initial position is convenient for the next operation.

Description of drawings

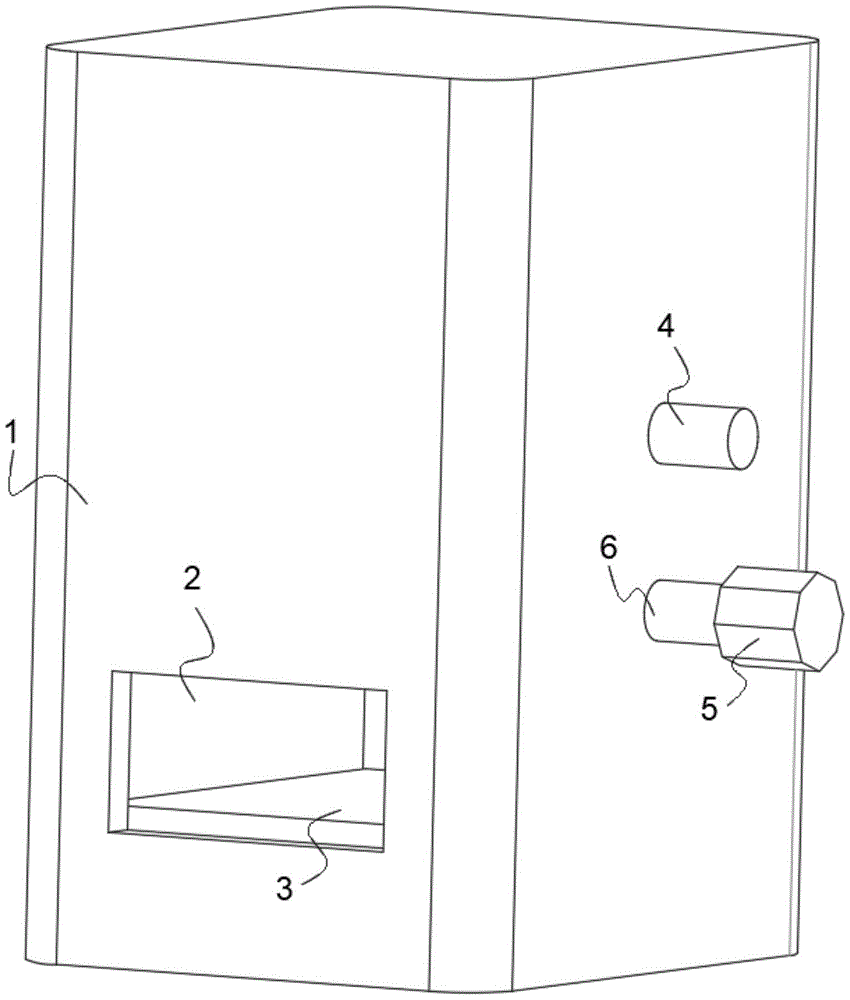

Fig. 1 is a schematic structural view of an automatic wire cutting and riveting machine for electronic wire production proposed by the present invention;

Fig. 2 is the structural schematic diagram of the main sectional view of an automatic wire cutting and riveting end machine for electronic wire production proposed by the utility model;

Fig. 3 is an enlarged schematic diagram of the structure of part A of an automatic wire cutting and riveting machine for electronic wire production proposed by the utility model.

In the figure: 1. Body; 2. Opening; 3. Placement platform; 4. Rotary shaft; 5. Motor; 6. Drive shaft; 7. Start lever; 8. Short yoke; 9. Rotating gear; 10. Left chute ; 11, right chute; 12, left rack; 13, right rack; 14, long frame; 15, cutter;

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example.

Referring to Figures 1-3, an automatic wire cutting and riveting machine for electronic wire production includes a body 1, an opening 2 for feeding and feeding materials is opened in the body 1, and feeding and discharging operations are performed through the opening 2, and the body 1 A placing table 3 for placing electronic wires is fixedly installed in the middle, a rotating shaft 4 is installed in the body 1, and a motor 5 is fixedly installed outside the body 1. The motor 5 can choose a servo motor with a product model of MSME-502G1. The drive shaft 6 fixedly connected to the output point of the motor 5 is installed in rotation, and a transverse groove 17 is provided in the body 1, and a telescopic rod 19 is fixedly installed in the body 1. There is a push plate 18 fixedly connected with the output end of the telescopic rod 19 and used to push the electronic wire. The body 1 is provided with a cutting and riveting integrated mechanism driven by the drive shaft 6 .

The placing platform 3 is horizontally arranged at the bottom of the body 1, the rotating shaft 4 corresponds up and down with the driving shaft 6 and is arranged horizontally in the body 1, and the electronic wire is placed on the placing platform 3 for subsequent processing.

The horizontal groove 17 is opened horizontally above the placement table 3, and the push plate 18 is slid longitudinally and sleeved in the horizontal groove 17. By receiving the infrared signals on the left rack 12 and the right rack 13, the left and right movement of the push plate 18 is controlled. To push the electronic wire.

The cutting and riveting integrated mechanism includes a starting lever 7 fixedly sleeved on the driving shaft 6, a short yoke 8 is integrally formed on the starting lever 7, a rotating gear 9 is keyed on the rotating shaft 4, and a left chute 10 is respectively opened in the body 1. and the right chute 11, the left chute 10 is slidingly sleeved with a left rack 12 meshed with the rotating gear 9, and the rotating gear 9 is respectively engaged with the left rack 12 and the right rack 13, so that the cutting knife 15 and the right rack 13 are engaged. The riveting block 16 alternately moves up and down to alternately process the electronic wires, so as to reduce the production process and improve work efficiency. The sliding sleeve in the right chute 11 is provided with a right rack 13 meshed with the rotating gear 9, and the right rack 13 is fixedly connected with the long frame 14 of the traction short yoke 8, and the right rack 13 is fixedly equipped with a cutting knife 15 for cutting the electronic wire, and the left rack 12 is fixedly installed with a riveting tool for riveting the electronic wire. Briquetting block 16.

The short yoke 8 is slidably set in the long frame 14, and the left chute 10 and the right chute 11 are symmetrically and vertically arranged on both sides of the body 1, and the right rack 13 is driven to move up and down by the actuating lever 7, and is rotated The gear 9 meshes with the left rack 12 and the right rack 13 for transmission, so that the left rack 12 and the right rack 13 move up and down alternately, and then respectively drive the cutting knife 15 and the riveting block 16 to process the electronic wire.

The left rack 12 and the right rack 13 are longitudinally arranged at both ends of the rotating gear 9 , and the cutting knife 15 and the riveting block 16 are respectively arranged at the lower ends of the left rack 12 and the right rack 13 .

The utility model can illustrate its functional principle through the following operation modes:

When the electronic wire needs to be processed, the electronic wire is placed on the placement table 3 from the opening 2, the motor 5 is turned on, the output end of the motor 5 drives the driving shaft 6 to rotate, the driving shaft 6 drives the starting lever 7 to rotate, and the starting lever 7 drives The short yoke 8 rotates together, the short yoke 8 slides left and right in the long frame 14, and drives the right rack 13 to slide up and down in the right chute 11, and at the same time, the right rack 13 meshes with the rotating gear 9 for transmission, and the rotating gear 9 drives the rotating shaft 4 rotate, and then let the rotating gear 9 mesh with the left rack 12, and the left rack 12 slides up and down in the left chute 10, so that the left rack 12 and the right rack 13 move up and down alternately, so that the cutting knife 15 and The riveting block 16 processes the electronic wires respectively;

Secondly, by being provided with infrared sensors on the left rack 12 and the right rack 13, and being provided with an infrared receiver on the push plate 18, when the right rack 13 drives the cutter 15 to complete the electronic wire cutting, the push plate 18 The infrared receiver on the top receives the signal on the right rack 13, and sends an electrical signal to the telescopic rod 19 to move to the left, so that the output end of the telescopic rod 19 drives the push plate 18 to move to the left in the transverse groove 17, and the cut The line segments are pushed together and pushed to the lower position of the riveting block 16. At the same time, when the signal on the left rack 12 is received, an electric signal is given to the telescopic rod 19 to move to the right to the initial position, so as to carry out the next operation. Operation.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. The equivalent replacement or change of the new technical solution and the concept of the utility model shall be covered by the protection scope of the utility model.
