Abstract

The utility model relates to the technical field of sundry collection and treatment equipment, and discloses a water surface sundry collection and treatment equipment, which solves the problem that it is difficult to clean up water areas comprehensively and thoroughly at present, resulting in poor collection and cleaning effect of sundries, which includes a collection box , the right side of the collection box is fixedly installed with a drainage pipe, the inside of the collection box is fixedly installed with a filter screen, the top of the collection box is equipped with a salvage mechanism and an auxiliary mechanism, and the salvage mechanism is connected with the auxiliary mechanism; Cooperate with the water pipe, the connecting pipe and the water pumping pipe, and then the sundries on the water surface can be pumped into the collection box, filtered and collected through the filter, and passed between the motor and the rotating shaft, as well as the driving gear and the driven gear. The cooperation can then make the installation column rotate, and make the water suction pipe drive the rotation of the funnel, so as to facilitate the comprehensive and thorough cleaning of the water area.

Description

A water surface debris collection and treatment equipment

technical field

The utility model belongs to the technical field of debris collection and treatment equipment, in particular to a water surface debris collection and treatment equipment.

Background technique

For small water areas such as moats and scenic lakes, the water flow is stable and the fluidity is poor, and there are many residents and tourists, it is easy to produce a large amount of debris such as plastic bags and empty bottles on the water surface, polluting the water surface and affecting the appearance. In the technology, for the cleaning of debris on the water surface, the staff are usually on the ship, and they are automatically cleaned or manually salvaged depending on the size of the water area. However, the following problems still exist when the staff cleans up the debris on the water surface on the ship:

When the staff is on the ship, they set up a filter on the bow, and then use the boat to move back and forth to automatically clean up the debris. After the debris is collected, it is easy to fall, and the flexibility is poor during operation. It is difficult to completely clean the water area, resulting in debris collection. Cleanup is poor.

Utility model content

In view of the above situation, in order to overcome the defects of the prior art, the utility model provides a water surface sundry collection and treatment equipment, which effectively solves the problem that it is difficult to completely and thoroughly clean the water area at present, resulting in poor collection and cleaning effect of sundries.

In order to achieve the above purpose, the utility model provides the following technical solutions: a water surface debris collection and treatment equipment, including a collection box, the right side of the collection box is fixedly installed with a drain pipe, and the inside of the collection box is fixedly installed with a filter screen to collect The top of the box is installed with a salvage mechanism and an auxiliary mechanism, and the salvage mechanism is connected with the auxiliary mechanism;

The salvage mechanism includes a mounting column located on the top of the collection box, the bottom of the mounting column is rotatably connected to the top of the collecting box, a connecting pipe is fixedly installed on the top of the mounting column, a suction pipe is fixedly installed on the left side of the connecting pipe, and the bottom of the suction pipe A funnel is fixedly installed, the inner side of the connecting pipe is covered with a water pipe, the bottom end of the water pipe is fixedly installed with a water pump, and the water pump is fixed on the top of the collection box.

Preferably, an L-shaped plate is fixedly installed on the top of the collection box, and the L-shaped plate is rotatably connected to the mounting column. The inner top wall of the L-shaped plate is rotatably connected to a rotating shaft, and the outer side of the rotating shaft is fixedly installed with a driving gear. The bottom end of the rotating shaft A motor is fixedly installed, and the bottom of the motor is fixedly connected with the top of the collecting box.

Preferably, a driven gear is fixedly installed on the outside of the mounting column, the driven gear is located inside the L-shaped plate, and the driven gear meshes with the driving gear.

Preferably, the auxiliary mechanism includes an arc-shaped rod fixed on the top of the collection box, the top of the arc-shaped rod is provided with a top groove, the inside of the top groove is fixedly installed with an inner rod, and the outer side of the inner rod is movably installed with a slider. Located inside the top slot.

Preferably, a supporting column is fixedly installed on the top of the slider, and a fixing ring is fixedly installed on the top of the supporting column, and the fixing ring is fixedly sleeved with the water suction pipe.

Compared with the prior art, the beneficial effects of the utility model are:

(1), the utility model, through the cooperation between the water pump and the water delivery pipe and the connection pipe and the water suction pipe, can then extract the sundries on the water surface into the collection box, filter and collect them through the filter screen, and pass them through the motor The cooperation with the rotating shaft and the driving gear and the driven gear can then make the installation column rotate, and make the suction pipe drive the rotation of the funnel, so as to facilitate the comprehensive and thorough cleaning of the water area;

(2) Through the cooperation between the fixed ring and the supporting column, the slider and the inner rod, the new type can make the slider slide along the inner rod when the water pipe rotates, thereby supporting the water pipe, so that the water pipe is stable turn.

Description of drawings

The accompanying drawings are used to provide a further understanding of the utility model, and constitute a part of the description, and are used to explain the utility model together with the embodiments of the utility model, and do not constitute a limitation to the utility model.

In the attached picture:

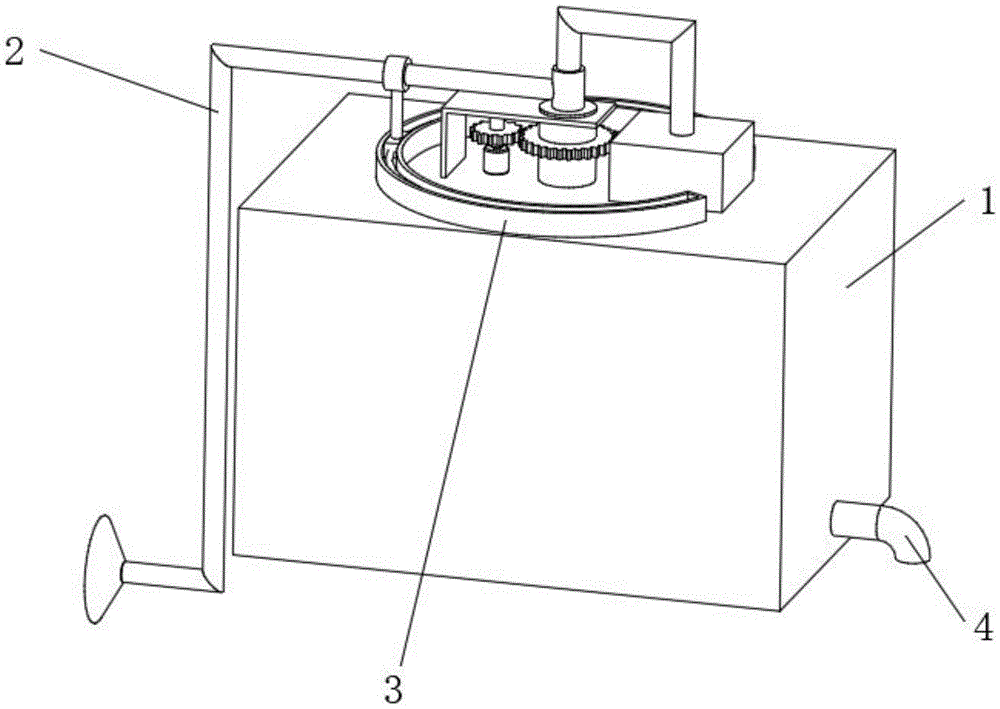

Fig. 1 is the structure schematic diagram of the utility model water surface sundry collection treatment equipment;

Fig. 2 is the utility model collection box sectional structure schematic diagram;

Fig. 3 is a structural schematic diagram of the utility model salvage mechanism;

Fig. 4 is a schematic structural diagram of the auxiliary mechanism of the utility model;

In the figure: 1, collection box; 2, salvage mechanism; 201, installation column; 202, motor; 203, suction pipe; 204, funnel; 205, L-shaped plate; 206, driving gear; 207, rotating shaft; 208, connecting pipe ; 209, water pipe; 2010, water pump; 2011, driven gear; 3, auxiliary mechanism; 301, arc rod; 302, top groove; 303, slider; 304, fixed ring; 305, support column; 306, Inner rod; 4, drainage pipe; 5, filter screen.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. Example: Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present utility model.

Embodiment one, provided by Fig. 1-Fig. 4, the utility model comprises collection box 1, and the right side of collection box 1 is fixedly installed with drainage pipe 4, and the interior of collection box 1 is fixedly installed with filter screen 5, and the inside of collection box 1 A salvage mechanism 2 and an auxiliary mechanism 3 are installed on the top, and the salvage mechanism 2 is connected with the auxiliary mechanism 3 .

Embodiment 2, on the basis of Embodiment 1, the salvage mechanism 2 includes a mounting column 201 located at the top of the collection box 1, the bottom end of the mounting column 201 is rotatably connected to the top of the collection box 1, and the top of the mounting column 201 is fixedly installed with a connection Pipe 208, the left side of connecting pipe 208 is fixedly installed with water pumping pipe 203, and the bottom end of water pumping pipe 203 is fixedly installed with funnel 204, and the inboard of connecting pipe 208 is provided with water delivery pipe 209, and the bottom end of water delivery pipe 209 is fixedly installed with pumping pipe 208. The water pump 2010 and the water pump 2010 are fixed on the top of the collection box 1, the top of the collection box 1 is fixedly installed with an L-shaped plate 205, the L-shaped plate 205 is rotatably connected with the mounting column 201, and the inner top wall of the L-shaped plate 205 is rotatably connected with a rotating shaft 207, the outer side of the rotating shaft 207 is fixedly equipped with a driving gear 206, the bottom end of the rotating shaft 207 is fixedly installed with a motor 202, the bottom of the motor 202 is fixedly connected with the top of the collection box 1, and the outer side of the mounting column 201 is fixedly installed with a driven gear 2011, The driven gear 2011 is located inside the L-shaped plate 205, and the driven gear 2011 meshes with the driving gear 206;

First start the suction pump 2010, extract the sundries on the water surface through the funnel 204, and enter the collection box 1 inside through the water pumping pipe 203, the connecting pipe 208 and the water delivery pipe 209, while the sundries are positioned at the top of the filter screen 5 to filter and collect, and The water is discharged through the drain pipe 4 and reflows into the water area, and then the motor 202 is started to drive the rotation of the rotating shaft 207, and the engagement of the driving gear 206 and the driven gear 2011 drives the rotation of the mounting column 201, and drives the rotation of the connecting pipe 208, Then the rotation of the funnel 204 is driven by the suction pipe 203, and finally the water area is thoroughly cleaned up.

Embodiment 3, on the basis of Embodiment 1, the auxiliary mechanism 3 includes an arc-shaped rod 301 fixed on the top of the collection box 1, the top of the arc-shaped rod 301 is provided with a top groove 302, and the inside of the top groove 302 is fixedly installed with an inner rod 306, the outer side of the inner rod 306 is movably equipped with a slider 303, the slider 303 is located inside the top groove 302, the top of the slider 303 is fixedly equipped with a support column 305, and the top of the support column 305 is fixedly installed with a fixed ring 304, the fixed ring 304 is fixedly socketed with the suction pipe 203;

When the water pipe 203 rotates, the fixed ring 304 and the fixed ring 304 drive the slider 303 to move along the inner rod 306, and play a supporting role for the water pipe 203, thereby facilitating the smooth rotation of the water pipe 203.

Working principle: when in use, first start the water pump 2010, extract the debris on the water surface through the funnel 204, and enter the collection box 1 through the suction pipe 203, the connecting pipe 208 and the water delivery pipe 209, while the debris is located in the filter screen 5 The top of the top is filtered and collected, and the water is discharged through the drain pipe 4 and reflows into the water area, and then the motor 202 is started to drive the rotation of the rotating shaft 207, and the engagement of the driving gear 206 and the driven gear 2011 drives the rotation of the mounting column 201, and Drive the rotation of the connecting pipe 208, then drive the rotation of the funnel 204 through the suction pipe 203, and finally clean up the water area thoroughly. The inner rod 306 moves and supports the water suction pipe 203 so as to facilitate the smooth rotation of the water suction pipe 203 .

Claims (5)

1. A water surface sundry collection and processing equipment, comprising a collection box (1), is characterized in that: the right side of the collection box (1) is fixedly equipped with a drainage pipe (4), and the inside of the collection box (1) is fixedly installed There is a filter screen (5), a salvage mechanism (2) and an auxiliary mechanism (3) are installed on the top of the collection box (1), and the salvage mechanism (2) is connected with the auxiliary mechanism (3); The salvage mechanism (2) comprises a mounting column (201) positioned at the top of the collection box (1), the bottom of the mounting column (201) is rotatably connected to the top of the collection box (1), and the top of the mounting column (201) is fixedly installed with a connection pipe (208), the left side of the connecting pipe (208) is fixedly equipped with a suction pipe (203), the bottom of the suction pipe (203) is fixedly installed with a funnel (204), and the inner side of the connecting pipe (208) is sleeved with a water pipe (209), the bottom end of the water pipe (209) is fixedly equipped with a water pump (2010), and the water pump (2010) is fixed on the top of the collection box (1). 2. The equipment for collecting and treating sundries on the water surface according to claim 1, characterized in that: an L-shaped plate (205) is fixedly installed on the top of the collection box (1), and the L-shaped plate (205) and the mounting column (201) rotating connection, the inner top wall of the L-shaped plate (205) is rotatingly connected with a rotating shaft (207), the outer side of the rotating shaft (207) is fixedly equipped with a driving gear (206), and the bottom end of the rotating shaft (207) is fixedly installed with a motor (202), the bottom of the motor (202) is fixedly connected with the top of the collection box (1). 3. A water surface debris collection and treatment device according to claim 1, characterized in that: a driven gear (2011) is fixedly installed on the outside of the installation column (201), and the driven gear (2011) is located in the L-shaped Inside the plate (205), the driven gear (2011) meshes with the driving gear (206). 4. A water surface debris collection and treatment device according to claim 1, characterized in that: the auxiliary mechanism (3) includes an arc-shaped rod (301) fixed on the top of the collection box (1), the arc-shaped rod ( The top of 301) is provided with top groove (302), and the inside of top groove (302) is fixedly installed with inner rod (306), and the outside of inner rod (306) is movably installed with slide block (303), and slide block (303) is positioned at The interior of the top slot (302). 5. The device for collecting and treating debris on the water surface according to claim 4, characterized in that: a support column (305) is fixedly installed on the top of the slider (303), and a support column (305) is fixedly installed on the top of the support column (305). Fixed ring (304), fixed ring (304) and suction pipe (203) are fixedly socketed.
