Abstract

The utility model provides a combined drug storage device, which comprises a base, two movable plates and six movable blocks, a cavity is opened in the base, and a drive motor is fixedly connected to the upper surface of the inner wall of the cavity. Both output shafts of the drive motor are provided with adjustment components. The utility model controls the drive motor to drive the two screw rods to reverse by setting the movable block, the folding rod and the movable plate. It can be adjusted according to the size of the medicine box and the medicine bottle, which improves the applicability.

Description

A combined drug storage device

technical field

The utility model belongs to the technical field of medicine storage, in particular to a combined medicine storage device.

Background technique

In the warehouse or pharmacy of medicines, medicines are mainly stored in the form of storage racks. When the medicine needs to be stored, the article management personnel will directly place the medicine bottles and medicine boxes containing the medicine on the storage rack. If the medicine bottles and medicine boxes are stacked too much or stacked irregularly, After being impacted by an external force, the medicine bottles and medicine boxes placed on the storage rack may move on its surface, or even fall, causing the medicine bottles and medicine boxes to be broken. Therefore, a combination with an adjustment function is required drug storage device.

Contents of the invention

The purpose of the utility model is to provide a combined medicine storage device aiming at the deficiencies of the prior art.

In order to solve the above technical problems, the utility model adopts the following technical solutions:

A combined drug storage device, comprising a base, two movable plates and six movable blocks, a cavity is opened in the base, a drive motor is fixedly connected to the upper surface of the inner wall of the cavity, and the drive motor Both output shafts are provided with an adjustment assembly, the adjustment assembly is arranged in the support assembly, and the adjustment assembly and the support assembly are both arranged in the cavity.

The adjustment assembly is provided with second bearings, and the two second bearings are respectively arranged on both sides of the inner wall of the cavity. The adjustment assembly is arranged in the two movable blocks located below, and the movable blocks are slidably connected in the sliding hole , six sliding holes are respectively opened on the upper surface of the base and the two movable plates, and the six movable blocks are hinged with the two folding rods through pin shafts.

Further, the front of the movable block is fixedly connected with a limit block, and the limit block is slidably connected in the limit groove, and the six limit grooves are respectively opened on the backs of the inner walls of the six sliding holes.

Further, four multi-stage telescopic rods are arranged inside the base and the two movable panels, and the multi-stage telescopic rods are arranged in front of the folding rod.

Further, the adjustment assembly includes a screw rod, the screw rod is arranged in the support assembly and the second bearing, and the adjacent ends of the two screw rods are respectively fixedly connected with the two output shafts of the drive motor, and the screw rods are threaded It is connected in the screw nut, and the two screw nuts are clamped in the movable block.

Further, the support assembly includes a fixed block, the fixed block is clamped in the cavity, the first bearing is clamped in the fixed block, the screw rod is set in the first bearing, and the fixed block is set Between the drive motor and the screw nut.

Further, two support blocks are fixedly connected to the upper surface of the base and the lower movable plate, and the two support blocks are hinged to the same placing plate through a pin rod, and the lower surfaces of the two placing plates are connected to the base respectively. It overlaps with the upper surface of the movable plate located below, and the upper surfaces of the two placement plates are fixedly connected with a plurality of first fixed shells, two operating rods and second fixed shells.

Further, the second fixed shell is arranged behind the several first fixed shells and the two operating rods, and the two operating rods are arranged between the several first fixed shells.

Compared with the prior art, the utility model has the beneficial effects of:

1. The utility model controls the drive motor to drive the two screw rods to rotate positively in the first bearing and the second bearing by setting the drive motor, screw mandrel, screw nut, movable block, folding rod and movable plate, and the two close to each other The first movable block drives the two movable plates to move upward through the two folding rods. When the two movable plates move to a suitable position, the medicine bottle containing the medicine is put into the first fixed shell, and the medicine bottle containing the medicine is put into the first fixed shell. The box is placed in the second fixed shell, the driving motor is controlled to drive the two screw rods to reverse, the two movable plates move downward, and the two movable plates moving downward contact the medicine bottle or the medicine box, so that the medicine bottle and the medicine box are in contact with each other. The box is fixable between the base and the lower movable plate and between the lower movable plate and the upper movable plate. The utility model can be adjusted according to the size of the medicine box and the medicine bottle, and the applicability is improved.

2. The utility model is provided with an operating lever and a placing plate. When it is necessary to take out the medicine located behind the placing plate, the operating lever is moved forward, and the operating lever drives the placing plate to rotate around the pin rod. When the placing plate rotates 90 degrees , the medicine box and the medicine bottle are facing the operator, so that the user can smoothly take out the medicine box located behind the placement plate, and the operation is simple.

3. The utility model is provided with a multi-stage telescopic rod and a movable plate. When the two movable plates move upward, the movable plate drives the multi-stage telescopic rod to elongate, and the elongated multi-stage telescopic rod can limit the movable plate, so that The movable plate does not shake when it moves, so that the movable plate can drive the placing plate to move smoothly in the vertical direction.

Description of drawings

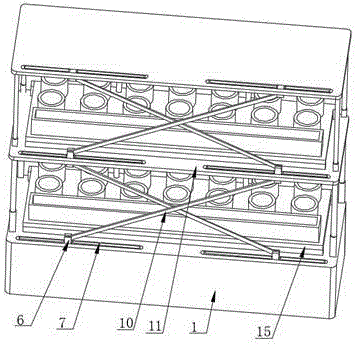

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the rear view structural representation of the utility model;

Fig. 3 is a schematic diagram of a rear view three-dimensional cross-sectional structure of the base of the present invention;

Fig. 4 is the enlarged structural representation of place A of the utility model;

In the figure: 1-base, 2-cavity, 3-drive motor, 4-adjustment assembly, 41-screw, 42-screw nut, 5-support assembly, 51-first bearing, 52-fixed block, 6 -movable block, 7-sliding hole, 8-limiting block, 9-limiting groove, 10-folding rod, 11-movable plate, 12-multi-stage telescopic rod, 13-second bearing, 14-support block, 15 - Placement plate, 16 - first fixed shell, 17 - operating rod, 18 - second fixed shell.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the embodiments of the present invention. Apparently, the described embodiments are only some of the embodiments of the present invention, not all of them. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

It should be noted that, in the case of no conflict, the embodiments of the present invention and the features in the embodiments can be combined with each other.

The utility model will be further described below in conjunction with specific embodiments, but not as a limitation of the utility model.

As shown in Figures 1-4, the utility model includes a base 1, two movable plates 11 and six movable blocks 6, a cavity 2 is provided in the base 1, and a drive motor 3 is fixedly connected to the upper surface of the inner wall of the cavity 2. The two output shafts of the drive motor 3 are both provided with an adjustment assembly 4 , the adjustment assembly 4 is arranged in the support assembly 5 , and both the adjustment assembly 4 and the support assembly 5 are arranged in the cavity 2 .

The adjustment assembly 4 is arranged on the second bearing 13, and the two second bearings 13 are respectively arranged on both sides of the inner wall of the cavity 2. By setting the first bearing 51 and the second bearing 13, the screw rod 41 is arranged on the first bearing 51 and the second bearing 13. In the second bearing 13, and the first bearing 51 and the second bearing 13 are both arranged in the cavity 2, the first bearing 51 and the second bearing 13 can limit and fix the screw rod 41 in the cavity 2, and the adjustment assembly 4 Set in the two movable blocks 6 located below, the movable blocks 6 are slidably connected in the sliding holes 7, and the six sliding holes 7 are respectively opened on the upper surface of the base 1 and the two movable plates 11, by setting the sliding holes 7 and the movable Block 6, because the movable block 6 is slidably connected in the sliding hole 7, the sliding hole 7 can limit the movable block 6, so that the movable block 6 can not shake when moving, so that the movable block 6 can be positioned between the screw mandrel 41 and the wire The rod nut 42 moves smoothly along the axial direction of the screw rod 41, and the six movable blocks 6 are hinged to the two folding rods 10 through pin shafts.

As shown in Figure 3-4, the front of the movable block 6 is fixedly connected with the limit block 8, and the limit block 8 is slidably connected in the limit groove 9. By setting the limit block 8 and the limit groove 9, the limit block 8 Slidingly connected in the limit groove 9, the limit block 8 and the limit groove 9 cooperate with each other to connect the movable plate 11 and the placement plate 15 together, and the six limit grooves 9 are respectively provided on the back of the six slide holes 7 inner walls, The base 1 and the two movable plates 11 are provided with four multistage telescopic rods 12, the multistage telescopic rods 12 are arranged in front of the folding rod 10, and the adjustment assembly 4 includes a screw rod 41, which is arranged on the support assembly 5 and the second In the second bearing 13, one end close to the two screw mandrels 41 is fixedly connected with the two output shafts of the drive motor 3 respectively, and the screw mandrels 41 are threadedly connected in the screw mandrel nut 42. By setting the screw mandrel 41 and the screw mandrel nut 42, Because the outer surface of the screw mandrel 41 is threadedly connected with the screw nut 42, when the screw mandrel 41 rotates, the rotating screw mandrel 41 can drive the screw screw nut 42 to move, and the two screw mandrel nuts 42 are clamped in the movable block 6, The support assembly 5 includes a fixed block 52, the fixed block 52 is clamped in the cavity 2, the first bearing 51 is clamped in the fixed block 52, the screw rod 41 is arranged in the first bearing 51, and the fixed block 52 is arranged on the drive motor 3 Between the screw nut 42, the base 1 and the upper surface of the movable plate 11 below are fixedly connected with two support blocks 14, and the two support blocks 14 are hinged with the same placement plate 15 through a pin rod, and are set by setting Support block 14, because support block 14 is hinged with placement plate 15 by pin bar, placement plate 15 can rotate around two support blocks 14, and the lower surface of two placement plates 15 is connected with base 1 and movable plate 11 below respectively. The upper surfaces are overlapped, and the upper surfaces of the two placement plates 15 are fixedly connected with several first fixed shells 16, two operating rods 17 and second fixed shells 18. By setting the operating rod 17, the user can use the operating rod 17 The placement plate 15 is rotated, and the second fixed shell 18 is arranged behind several first fixed shells 16 and two operating rods 17. By setting the second fixed shell 18, because the medicine box is placed in the second fixed shell 18, the first Two fixed shells 18 fix the medicine box on the placement plate 15, and the two operating levers 17 are arranged between several first fixed shells 16. By setting the first fixed shells 16, the medicine bottle is placed in the first fixed shells 16. , the first fixed shell 16 fixes the medicine bottle on the placement plate 15 .

During use, start the drive motor 3, the drive motor 3 drives two screw mandrels 41 to rotate in the first bearing 51 and the second bearing 13, and the two screw mandrels 41 of the rotation drive the two screw mandrel nuts 42 to approach each other, and the two screw mandrels 41 that are close to each other The two screw nuts 42 drive the two movable blocks 6 below to approach each other, and the two movable blocks 6 close to each other drive the two movable plates 11 to move upward through the two folding rods 10 .

The two movable plates 11 that move upward drive the multi-stage telescopic rod 12 to elongate. When the two movable plates 11 move to a suitable position, the medicine bottle can be put into the first fixed shell 16, and the medicine box is placed in the second fixed shell. In 18, the control drive motor 3 drives the two screw mandrels 41 to reverse;

The two movable plates 11 move downward, and the two movable plates 11 that move downward contact the medicine bottle or the medicine box, so that the medicine bottle and the medicine box can be fixed on the base 1 and the lower movable plate 11 and the lower movable plate 11 and the movable plate 11 above. After finishing using, control driving motor 3 reverse, two movable plates 11 move downwards, and the lower surfaces of two movable plates 11 all contact with first fixed shell 16 and second fixed shell 18, and the size adjustment of this device Small.

The above are only preferred embodiments of the present utility model, and are not intended to limit the implementation and protection scope of the present utility model. For those skilled in the art, they should be able to realize that all equivalent replacements and The solutions obtained by obvious changes shall all be included in the protection scope of the present utility model.

Claims (7)

1. A combined drug storage device, comprising a base (1), two movable plates (11) and six movable blocks (6), characterized in that a cavity (2 ), the upper surface of the inner wall of the cavity (2) is fixedly connected with a drive motor (3), and the two output shafts of the drive motor (3) are provided with an adjustment assembly (4), and the adjustment assembly (4) Arranged in the support assembly (5), the adjustment assembly (4) and the support assembly (5) are both arranged in the cavity (2); The adjustment assembly (4) is arranged on the second bearing (13), and the two second bearings (13) are respectively arranged on both sides of the inner wall of the cavity (2), and the adjustment assembly (4) is arranged on the two lower In the movable block (6), the movable block (6) is slidably connected in the sliding hole (7), and the six sliding holes (7) are set on the upper surface of the base (1) and the two movable plates (11) respectively. , the six movable blocks (6) are hinged with the two folding rods (10) through pin shafts. 2. A combined medicine storage and storage device according to claim 1, characterized in that: the front of the movable block (6) is fixedly connected with a limit block (8), and the limit block (8) is slidably connected In the limiting slots (9), six limiting slots (9) are set on the backs of the inner walls of the six sliding holes (7). 3. A combined drug storage device according to claim 2, characterized in that four multi-stage telescopic rods (12) are arranged inside the base (1) and the two movable plates (11), so that The multi-stage telescopic rod (12) is arranged in front of the folding rod (10). 4. A combined drug storage and storage device according to claim 3, characterized in that: the adjustment assembly (4) includes a screw rod (41), and the screw rod (41) is arranged on the support assembly (5) and in the second bearing (13), the ends of the two screw rods (41) that are close to each other are fixedly connected with the two output shafts of the drive motor (3), and the screw rods (41) are threadedly connected to the screw nuts (42 ), the two screw nuts (42) are clamped in the movable block (6). 5. A combined drug storage and storage device according to claim 4, characterized in that: the support assembly (5) includes a fixed block (52), and the fixed block (52) is clamped in the cavity (2 ), the fixed block (52) is clamped with the first bearing (51), the screw rod (41) is set in the first bearing (51), and the fixed block (52) is set in the driving motor ( 3) and the screw nut (42). 6. A combined drug storage and storage device according to claim 1, characterized in that two support blocks (14) are fixedly connected to the upper surface of the base (1) and the lower movable plate (11) ), the two supporting blocks (14) are hinged to the same placing plate (15) through pin rods, and the lower surfaces of the two placing plates (15) are respectively connected to the base (1) and the movable plate (11) below The upper surfaces are overlapped, and the upper surfaces of the two placement plates (15) are fixedly connected with several first fixed shells (16), two operating rods (17) and second fixed shells (18). 7. A combined drug storage and storage device according to claim 6, characterized in that: the second fixed shell (18) is arranged between several first fixed shells (16) and two operating rods (17) At the rear, two operating levers (17) are arranged between several first fixed shells (16).
