CN218588460U - A kind of soft shell support protective backpack - Google Patents

Abstract

The utility model relates to the technical field of backpacks, in particular to a protective backpack supported by a soft shell. A soft shell support protective backpack of the present application includes a backpack body, the backpack body includes a bag body and a cover body, the bag body and the cover body are opened and closed by a zipper, and a The split pad is connected with the bag body and/or the cover body through a connecting mechanism to ensure the stability of the items inside the backpack and avoid damage due to collision; the backpack body is sequentially provided with a waterproof layer, The buffer layer and the air-permeable layer make the backpack buffer the impact through the buffer layer in the backpack body when the backpack is stressed, so as to better buffer the external impact, protect the user and the articles, and improve the protective performance; the waterproof layer , the cushioning layer, and the air-permeable layer are fixedly connected by polyester sewing thread, which makes the connection between the layers more compact and firm, easy to carry, and saves storage space.

Description

A kind of soft shell support protective backpack

technical field

The utility model relates to the technical field of backpacks, in particular to a protective backpack supported by a soft shell.

Background technique

Backpack refers to the bag on the back, with various shapes and structures. It is a bag or a military blanket bag used to carry personal belongings. In an era of more and more flaunting individuality, various styles such as simplicity, retro, and cartoons are also used from different aspects. Cater to the needs of fashionable people to express their individuality. The style of luggage is also expanding from traditional business bags, school bags, travel bags to pencil cases, coin purses and sachets.

With the development of the times, backpacks have also been technically improved, but when the existing backpacks are used outdoors, in some places where the environment is relatively narrow, the edges of the backpack are often prone to bumps with external objects, which is easy to cause wear and tear on the backpack. Cracks will affect the stability and life of the backpack, and the structure of the backpack is relatively simple. It is difficult to buffer the impact when it is stressed, and it is difficult to improve the protection effect and protect the user, as well as the items in the backpack, such as computers, tablets, etc. Protect fragile products.

At the same time, some backpacks have no support and fixed structure, so that the items inside the backpack are easy to collide due to shaking, resulting in damage to the items.

Therefore, it is necessary to provide a protective backpack that has a cushioning effect and can support and fix items inside the backpack.

Utility model content

The purpose of the utility model is to at least solve one of the technical problems in the prior art, and provide a soft shell support protective backpack.

In order to achieve the above purpose, the technical solution adopted by the utility model is as follows: a soft shell support protective backpack, including a backpack body, the backpack body includes a bag body and a cover body, and the bag body and the cover body are opened and closed by a zipper connection, a partition pad is provided between the bag body and the cover body, and the partition pad is connected to the bag body and/or cover body through a connection mechanism; the backpack body is sequentially provided with waterproof layer, cushioning layer, and breathable layer, and the waterproof layer, cushioning layer, and breathable layer are fixedly connected by polyester sewing thread.

Further, a buffer mechanism is provided in the buffer layer, and the buffer mechanism includes a plurality of buffer blocks, one end of which is in contact with the waterproof layer, and the other end is in contact with the air-permeable layer.

Further, the buffer block is made of elastic material and is designed in an arc shape.

Further, a grid-shaped protective layer is laid on the outside of the air-permeable layer, and the grid-shaped protective layer is woven from nylon filaments.

Further, the bottom of the inner side A of the cover is fixedly connected to the bottom of the inner side B of the bag, and the inner side A and the other edges of the inner side B are openably and closably connected by a zipper.

Further, the partition pad and the inner side A and the inner side B respectively form an object placement chamber.

Further, the connecting mechanism includes a fixing belt, one end surface of the fixing belt is provided with Velcro stickers, and a female Velcro sticker matching with the Velcro stickers is arranged on the split pad.

Further, the partition pad is made of elastic material, and the elastic material is latex material or sponge material.

Further, a lifting handle is fixedly installed on the bag body; a shoulder strap is fixedly installed symmetrically on the rear side of the bag body.

Further, teacup storage bags are provided on both sides of the backpack body.

Beneficial effects of the utility model: From the above description of the utility model, it can be seen that compared with the prior art, a soft shell supporting protective backpack of the utility model includes a backpack body, and the backpack body includes a bag body and a cover body. The bag body and the cover body are connected by zipper opening and closing, a partition pad is arranged between the bag body and the cover body, and the partition pad is connected to the bag body and/or the cover body through a connecting mechanism , to ensure the stability of the items inside the backpack and avoid damage due to collisions; the backpack body is sequentially provided with a waterproof layer, a buffer layer, and a breathable layer from the outside to the inside, so that when the backpack is stressed, the buffer layer in the backpack body will The impact is buffered to achieve better buffering of external impacts, to protect users and items, and to improve protective performance; the waterproof layer, buffer layer, and breathable layer are fixedly connected by polyester sewing threads, so that the layers The connection is more compact and firm, easy to carry, and saves storage space.

Description of drawings

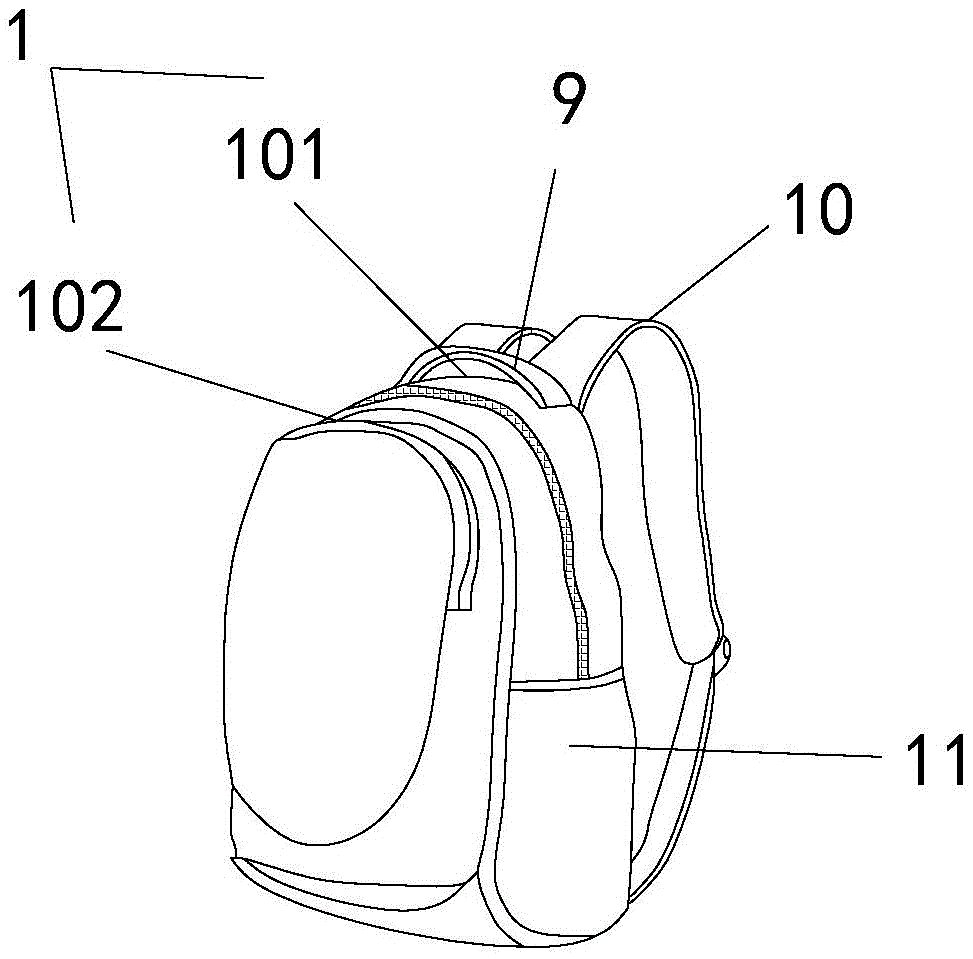

Fig. 1 is a structural schematic diagram of a soft shell supporting protective backpack in a preferred embodiment of the present invention;

Fig. 2 is a schematic diagram of the internal structure of a soft shell supporting protective backpack in a preferred embodiment of the present invention;

Fig. 3 is a schematic structural diagram of the backpack body in a preferred embodiment of the present invention.

Reference signs: 1, backpack body; 101, bag body; 102, cover body; 2, waterproof layer; 3, buffer layer; 4, breathable layer; 5, buffer block; 6, protective layer; 7, split pad; 8 , fixed belt; 9, handle; 10, shoulder strap; 11, teacup placement bag.

Detailed ways

The technical solution in the utility model will be clearly and completely described below in conjunction with the accompanying drawings in the utility model embodiment. Obviously, the described embodiment is only a part of the utility model embodiment, rather than all embodiments .

In the description of the present utility model, it should be noted that unless otherwise specified and limited, the terms "connected" and "connected" should be understood in a broad sense, for example, it can be a fixed connection or a detachable connection, or Integratively connected; it can be mechanically or electrically connected; it can be directly connected or indirectly connected through an intermediary. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

Referring to Figures 1-3, a preferred embodiment of the present utility model, a soft shell support protective backpack, includes a backpack body 1, and the backpack body 1 includes a bag body 101, a cover body 102, and the bag body 101 is connected to the bag body 101. The cover body 102 is opened and closed by a zipper, and a partition pad 7 is arranged between the bag body 101 and the cover body 102, and the partition pad 7 is connected with the bag body 101 and the cover body 102 through a connecting mechanism. , to ensure the stability of the items inside the backpack and to avoid damage due to collisions; The buffer layer buffers the impact to achieve better buffering of external impacts, protects users and articles, and improves protective performance; the waterproof layer 2, buffer layer 3, and breathable layer 4 are fixed by polyester sewing threads The connection makes the connection between the layers more compact and firm, which is convenient to carry and saves storage space.

As a preferred embodiment of the present utility model, it can also have the following additional technical features: a buffer mechanism is provided in the buffer layer 3, and the buffer mechanism includes a plurality of buffer blocks 5, and one end of the buffer block 5 abuts against the waterproof Layer 2 and the other end abut against the air-permeable layer 4, and the buffer block 5 is made of elastic material and is designed in an arc shape, so that when the backpack is stressed, the impact is buffered by the buffer block to achieve better external impact buffer.

In this embodiment, a grid-shaped protective layer 6 is laid on the outside of the air-permeable layer 4, and the grid-shaped protective layer 6 is woven from nylon yarn to ensure the air permeability of the backpack.

In this embodiment, the bottom of the inner side A of the cover body 102 is fixedly connected to the bottom of the inner side B of the bag body 101, and the inner side A and the other edges of the inner side B are openably and closably connected by a zipper. 7 and the inner side A and the inner side B respectively form an article storage cavity, which is convenient for the user to store articles.

In this embodiment, the connection mechanism includes a fixing belt 8, one end surface of the fixing belt 8 is provided with a Velcro sticker, and the split pad 7 is provided with a Velcro female sticker matching the Velcro sticker, which is convenient for fixing Items, to avoid items in the backpack from colliding due to the shaking of the user's walking, resulting in damage to the items.

In this embodiment, the partition pad 7 is made of elastic material, and the elastic material is latex material or sponge material, which further enhances the protection of the products inside the backpack.

In this embodiment, a carrying handle 9 is fixedly installed on the bag body 101, which is convenient for carrying the backpack; and a shoulder strap 10 is fixedly installed symmetrically on the rear side of the bag body 101, which is convenient for the user to carry.

In this embodiment, both sides of the backpack body 1 are provided with teacup storage bags 11, which are convenient for users to place teacups, umbrellas and other items.

The working principle of the utility model: the bag body 101 and the cover body 102 of the backpack are connected by zipper opening and closing, which is convenient for people to store articles; The main body 1 is provided with a waterproof layer 2, a buffer layer 3, a breathable layer 4, and a grid-shaped protective layer 6 in order from the outside to the inside, so that when the backpack is stressed, the shock is buffered through the buffer layer in the backpack body to achieve protection against external shocks. Perform better cushioning, protect users and articles, and improve protective performance; the waterproof layer 2, buffer layer 3, breathable layer 4, and grid-like protective layer 6 are fixedly connected by polyester sewing threads, so that the layers The connection between them is more compact and firm, which is convenient to carry and saves storage space.

On the premise of no conflict, those skilled in the art can freely combine and superimpose the above additional technical features.

It can be understood that the utility model is described through some embodiments, and those skilled in the art know that various changes or equivalents can be made to these features and embodiments without departing from the spirit and scope of the utility model replace. In addition, the features and embodiments may be modified to adapt a particular situation and material to the teachings of the invention without departing from the spirit and scope of the invention. Therefore, the present utility model is not limited by the specific embodiments disclosed here, and all embodiments falling within the scope of the claims of the present application belong to the protection scope of the present utility model.

Claims (10)

1. The utility model provides a soft shell supports protection knapsack which characterized in that: the backpack comprises a backpack body (1), wherein the backpack body (1) comprises a backpack body (101) and a cover body (102), the backpack body (101) is connected with the cover body (102) through a zipper in an opening and closing manner, a dividing pad (7) is arranged between the backpack body (101) and the cover body (102), and the dividing pad (7) is connected with the backpack body (101) and/or the cover body (102) through a connecting mechanism; the backpack body (1) is provided with a waterproof layer (2), a buffer layer (3) and a breathable layer (4) from outside to inside in sequence, and the waterproof layer (2), the buffer layer (3) and the breathable layer (4) are fixedly connected through polyester sewing threads.

2. The soft shell supported backpack of claim 1, wherein: the buffer layer (3) is internally provided with a buffer mechanism, the buffer mechanism comprises a plurality of buffer blocks (5), one end of each buffer block (5) is abutted to the waterproof layer (2), and the other end of each buffer block (5) is abutted to the breathable layer (4).

3. The soft-shelled, supported, protective backpack of claim 2, wherein: the buffer block (5) is made of elastic materials and is in an arc-shaped design.

4. The soft-shelled, supported, protective backpack of claim 1, wherein: a latticed protective layer (6) is laid outside the breathable layer (4), and the latticed protective layer (6) is formed by weaving nylon yarns.

5. The soft-shelled, supported, protective backpack of claim 1, wherein: the bottom of the inner side surface A of the cover body (102) is fixedly connected with the bottom of the inner side surface B of the bag body (101), and the inner side surface A is connected with other edges of the inner side surface B in an openable and closable manner through zippers.

6. The soft shell supported protective backpack of claim 5, wherein: the cutting pad (7) and the inner side surface A and the inner side surface B respectively form an article placing cavity.

7. The soft-shelled, supported, protective backpack of claim 1, wherein: the connecting mechanism comprises a fixing band (8), a hook and loop fastener sticker is arranged on one end face of the fixing band (8), and a hook and loop fastener sticker matched with the hook and loop fastener sticker is arranged on the cutting pad (7).

8. The soft-shelled, supported, protective backpack of claim 7, wherein: the cutting pad (7) is made of an elastic material, and the elastic material is a latex material or a sponge material.

9. The soft shell supported backpack of claim 1, wherein: a lifting handle (9) is fixedly arranged on the bag body (101); the back side surface of the bag body (101) is symmetrically and fixedly provided with braces (10).

10. The soft shell supported backpack of claim 1, wherein: both sides of the backpack body (1) are provided with tea cup placing bags (11).
