CN218587013U

CN218587013U - Generator base with buffering shock-absorbing structure

Info

Publication number: CN218587013U
Application number: CN202222863299.6U
Authority: CN
Inventors: 徐骏军; 徐加宝
Original assignee: Wuxi Jiabao Mechanical And Electrical Complete Set Of Equipment Co ltd
Current assignee: Wuxi Jiabao Mechanical And Electrical Complete Set Of Equipment Co ltd
Priority date: 2022-10-28
Filing date: 2022-10-28
Publication date: 2023-03-07
Anticipated expiration: 2032-10-28

Abstract

The utility model discloses a generator base with buffering shock-absorbing structure, include: the base, the fixed slot is seted up at the top of base, the mounting panel sets up the top at the base, the bottom of mounting panel runs through the fixed slot and extends to its inside, a buffering damper sets up the inside at the fixed slot. The utility model discloses a connecting block, the dead lever, the fly leaf, the fixed block, the fixed axle, the regulating plate, the gyro wheel, the movable plate, the extrusion wheel, buffer spring, the dog, the fixed column, coupling spring, the spread groove, mutually supporting of shock absorber and connecting plate, thereby the absorbing effect of base buffering has been realized, the generator during operation produces vibrations and transmits for the base, avoid making base and ground produce the phenomenon of rigidity collision, thereby the absorbing effect of generator during operation buffering has been improved, avoid causing not hard up phenomenon to the inside part of generator, the service life of generator has been improved.

Description

Generator base with buffering shock-absorbing structure

Technical Field

The utility model relates to a generator base technical field specifically is a generator base with buffering shock-absorbing structure.

Background

The generator is a mechanical device for converting other forms of energy into electric energy, and the generator is usually connected to a base for use.

Application No.: CN201921573927.9, the utility model discloses a mute type generating set, the on-line screen storage device comprises a base, the intermediate position department at base top installs the installation storehouse body, the exhaust bin is installed to one side at base top, the air inlet storehouse is installed to the opposite side at base top, the diesel engine is installed to the intermediate position department of installation storehouse internal portion bottom, the generator is installed to one side that the diesel engine is close to the exhaust bin, one side that the generator was kept away from to installation storehouse internal portion bottom is installed radiator fan, the one end at diesel engine top is provided with the hush pipe, and the hush pipe one side of keeping away from the diesel engine is provided with the air duct, and the air duct extends to the inside in air inlet storehouse. The utility model discloses the device passes through the connecting pipe, mutually support of amortization screen panel and bloop, eliminate the noise that the diesel engine operation in-process produced, the noise cancelling effect is compared and is promoted great in traditional silencer, and strengthen generating set's noise cancelling effect through setting up of multiunit amortization piece, it is higher to block efficiency to sound, the generator base that the above-mentioned case was listed as does not have the absorbing effect of buffering, thereby lead to the generator during operation to produce strong vibrations and pass through the base and transmit for ground, make base and ground produce the rigidity collision, thereby the influence causes not hard up phenomenon to the inside part of generator, thereby influence its life, the practicality is reduced.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a generator base with buffering shock-absorbing structure to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a generator base with buffering shock-absorbing structure, includes:

a base;

the fixing groove is formed in the top of the base;

the mounting plate is arranged at the top of the base, and the bottom of the mounting plate penetrates through the fixing groove and extends into the fixing groove;

the damping device comprises a first damping mechanism, wherein the first damping mechanism is arranged inside a fixing groove and comprises two connecting blocks and a fixing rod, the two connecting blocks are respectively arranged on the left side and the right side of the bottom of a mounting plate, the bottom of each connecting block penetrates through the fixing groove and extends into the fixing groove, the bottoms of the two connecting blocks are fixedly connected through a movable plate, the bottom of the movable plate is provided with two fixing blocks, the front side of each fixing block is provided with a fixing shaft, the surface of each fixing shaft is movably connected with an adjusting plate, one side of each adjusting plate, which is far away from the fixing shaft, is provided with a roller, the two fixing rods are respectively arranged on the left side and the right side of the inner wall of the fixing groove, the surface of each fixing rod is slidably connected with a movable plate, and the bottom of each movable plate is provided with an extrusion wheel matched with the adjusting plate;

and the second buffer damping mechanism is arranged on the base.

Preferably, a buffer spring is sleeved on the surface of the fixing rod, and a stop block is installed at one end, close to the extrusion wheel, of the fixing rod.

Preferably, fixed columns are installed at the middle point of the bottom of the movable plate and the middle point of the bottom of the inner wall of the fixed groove, and connecting springs are sleeved on the surfaces of the two fixed columns.

Preferably, one end of the roller near the inner wall of the fixing groove is in rolling contact with the inner wall of the fixing groove.

Preferably, second buffering damper includes the spread groove, the quantity of spread groove is two and sets up respectively in the left and right sides at base top, the shock absorber is all installed to both sides around the spread groove inner wall bottom, the top of shock absorber runs through the spread groove and extends to its outside, and the top that is located two shock absorbers of homonymy passes through connecting plate fixed connection.

Preferably, one side of the connecting plate, which is close to the mounting plate, is fixedly connected with the mounting plate.

Compared with the prior art, the beneficial effects of the utility model are as follows:

the utility model discloses a connecting block, the dead lever, the fly leaf, the fixed block, the fixed axle, the regulating plate, the gyro wheel, the movable plate, the extrusion wheel, buffer spring, the dog, the fixed column, coupling spring, the spread groove, mutually supporting of shock absorber and connecting plate, thereby the absorbing effect of base buffering has been realized, the generator during operation produces vibrations and transmits for the base, avoid making base and ground produce the phenomenon of rigid collision, thereby the absorbing effect of generator during operation buffering has been improved, avoid causing not hard up phenomenon to the inside part of generator, the life of generator has been improved.

Drawings

FIG. 1 is a schematic perspective view of the present invention;

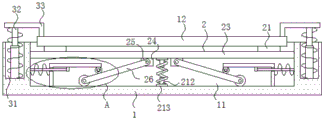

FIG. 2 is a structural section view in elevation of the present invention;

fig. 3 is a partially enlarged view of a in fig. 2 according to the present invention.

In the figure: the damping device comprises a base 1, a fixing groove 11, a mounting plate 12, a first damping mechanism 2, a connecting block 21, a fixing rod 22, a movable plate 23, a fixing block 24, a fixing shaft 25, an adjusting plate 26, a roller 27, a movable plate 28, a squeezing wheel 29, a buffer spring 210, a stop 211, a fixing column 212, a connecting spring 213, a second damping mechanism 3, a connecting groove 31, a vibration absorber 32 and a connecting plate 33.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, a generator base with a buffering and damping structure includes: the base comprises a base 1 and a fixing groove 11, wherein the fixing groove 11 is formed in the top of the base 1.

Mounting panel 12, mounting panel 12 set up at the top of base 1, and the bottom of mounting panel 12 runs through fixed slot 11 and extends to its inside, and the mounting hole has all been seted up to the four corners department at mounting panel 12 top, and the generator passes through the mounting hole and installs on mounting panel 12.

The first buffer damping mechanism 2, the first buffer damping mechanism 2 is disposed inside the fixed slot 11, the first buffer damping mechanism 2 includes two connecting blocks 21 and a fixed rod 22, the two connecting blocks 21 are respectively mounted on the left and right sides of the bottom of the mounting plate 12, the bottom of the connecting block 21 penetrates through the fixed slot 11 and extends into the fixed slot 11, the bottoms of the two connecting blocks 21 are fixedly connected through a movable plate 23, the surface of the movable plate 23 is in sliding contact with the inner wall of the fixed slot 11, the bottom of the movable plate 23 is fixedly connected with two fixed blocks 24, the front of the fixed blocks 24 is fixedly connected with a fixed shaft 25, the surface of the fixed shaft 25 is movably connected with an adjusting plate 26, one side of the adjusting plate 26, which is far away from the fixed shaft 25, one end of the roller 27, which is close to the inner wall of the fixed slot 11, is in rolling contact with the inner wall of the fixed slot 11, the two fixed rods 22 are respectively mounted on the left and right sides of the inner wall of the fixed slot 11, the surface of the fixed rod 22 is slidably connected with a movable plate 28, the bottom of the movable plate 28 is fixedly connected with a squeezing wheel 29, one end of the squeezing wheel 29, which is close to the adjusting plate 26, and one side of the squeezing wheel 211, the movable plate is close to the moving plate 28, the moving plate, the stopper 211, which is connected with the movable plate.

Fixed columns 212 are fixedly connected to the middle point of the bottom of the movable plate 23 and the middle point of the bottom of the inner wall of the fixed groove 11, connecting springs 213 are sleeved on the surfaces of the two fixed columns 212, and two ends of each connecting spring 213 are connected with the inner wall of the fixed groove 11 and the movable plate 23 respectively.

Second buffering damper 3, second buffering damper 3 sets up on base 1, second buffering damper 3 includes connecting groove 31, the quantity of connecting groove 31 is two and sets up respectively in the left and right sides at base 1 top, the equal fixedly connected with shock absorber 32 in both sides around connecting groove 31 inner wall bottom, connecting groove 31 and its outside are run through on the top of shock absorber 32, connecting plate 33 fixed connection is passed through on the top that is located two shock absorbers 32 of homonymy, one side and mounting panel 12 fixed connection that connecting plate 33 is close to mounting panel 12.

Through connecting block 21, dead lever 22, movable plate 23, fixed block 24, fixed axle 25, regulating plate 26, gyro wheel 27, movable plate 28, extrusion wheel 29, buffer spring 210, dog 211, fixed column 212, connecting spring 213, connecting groove 31, mutually supporting of shock absorber 32 and connecting plate 33, thereby base 1 buffering absorbing effect has been realized, the generator during operation produces vibrations and transmits for base 1, avoid making base 1 and ground produce the phenomenon of rigid collision, thereby generator during operation buffering absorbing effect has been improved, avoid causing not hard up phenomenon to the inside part of generator, the life of generator has been improved.

When the generator works on the mounting plate 12 to generate vibration, the mounting plate 12 drives the movable plate 23 to move downwards through the connecting block 21, the movable plate 23 drives the roller 27 to roll at the bottom of the inner wall of the fixing groove 11 through the fixing shaft 25, and meanwhile, the buffer spring 210 drives the extrusion wheel 29 to move on the adjusting plate 26 close to the fixing column 212, and the buffer spring 210, the connecting spring 213 and the shock absorber 32 are used for effectively playing a role in buffering and damping.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a generator base with buffering shock-absorbing structure which characterized in that includes:

a base (1); the fixing groove (11) is formed in the top of the base (1);

the mounting plate (12), the mounting plate (12) is arranged at the top of the base (1), and the bottom of the mounting plate (12) penetrates through the fixing groove (11) and extends to the inside of the fixing groove;

the damping device comprises a first buffering damping mechanism (2), wherein the first buffering damping mechanism (2) is arranged inside a fixing groove (11), the first buffering damping mechanism (2) comprises connecting blocks (21) and fixing rods (22), the number of the connecting blocks (21) is two, the two connecting blocks are respectively installed on the left side and the right side of the bottom of an installation plate (12), the bottom of each connecting block (21) penetrates through the fixing groove (11) and extends to the inside of the fixing groove, the bottoms of the two connecting blocks (21) are fixedly connected through a movable plate (23), the bottom of each movable plate (23) is provided with two fixing blocks (24), the front surface of each fixing block (24) is provided with a fixing shaft (25), the surface of each fixing shaft (25) is movably connected with an adjusting plate (26), one side, far away from the fixing shaft (25), of each adjusting plate (26) is provided with a roller (27), the number of the fixing rods (22) is two, the fixing rods are respectively installed on the left side and the right side of the inner wall of the fixing groove (11), the surface of each fixing rod (22) is slidably connected with a movable plate (28), and the bottom of each moving plate (28) is provided with an extrusion wheel (29) matched with the adjusting plate (26);

and the second buffer damping mechanism (3), and the second buffer damping mechanism (3) is arranged on the base (1).

2. The generator base with the buffer and shock absorption structure as claimed in claim 1, wherein: the surface of the fixed rod (22) is sleeved with a buffer spring (210), and one end, close to the extrusion wheel (29), of the fixed rod (22) is provided with a stop block (211).

3. The generator base with the buffering and shock-absorbing structure as claimed in claim 1, wherein: fixed columns (212) are mounted at the middle points of the bottoms of the movable plate (23) and the middle points of the bottoms of the inner walls of the fixed grooves (11), and connecting springs (213) are sleeved on the surfaces of the two fixed columns (212).

4. The generator base with the buffer and shock absorption structure as claimed in claim 1, wherein: one end of the roller (27) close to the inner wall of the fixing groove (11) is in rolling contact with the inner wall of the fixing groove (11).

5. The generator base with the buffering and shock-absorbing structure as claimed in claim 1, wherein: second buffering damper (3) are including connecting groove (31), the quantity of connecting groove (31) is two and sets up respectively in the left and right sides at base (1) top, shock absorber (32) are all installed to both sides around connecting groove (31) inner wall bottom, the top of shock absorber (32) is run through connecting groove (31) and is extended to its outside, and connecting plate (33) fixed connection is passed through on the top that is located two shock absorbers (32) of homonymy.

6. The generator base with the buffer and shock absorption structure as claimed in claim 5, wherein: one side of the connecting plate (33) close to the mounting plate (12) is fixedly connected with the mounting plate (12).
