Abstract

The utility model relates to the technical field of environmental protection machinery, in particular to a waste water purification device for environmental protection machinery, comprising a water purification box, a connecting pipe is connected to the left side of the water purification box, the connecting pipe is arranged obliquely, and the left side of the connecting pipe is The side is connected with a cylindrical box, the left outer wall of the cylindrical box is provided with a first motor, the left inner wall of the inner cavity of the cylindrical box is rotatably provided with a rotating shaft, the output end of the first motor is connected with the rotating shaft, and the rotating shaft A filter box is set on the top of the filter box, and a plurality of filter holes are set on the side wall of the filter box. Through the setting of the first motor, filter box, inner sleeve, mechanical seal, ribbon and rotating shaft, it is convenient to discharge the filtered particles and impurities. , to improve the filtering and cleaning effect of the structure, through the setting of the second motor, the stirring shaft and the stirring rod, it is convenient for the structure to improve the cleaning effect.

Description

An environmental protection mechanical waste water purification device

technical field

The utility model relates to the technical field of environmental protection machinery, in particular to a wastewater purification device for environmental protection machinery.

Background technique

Wastewater produced in environmental protection machinery processing will contain certain particulate impurities. When treating these wastewater, wastewater needs to be filtered. However, the existing wastewater purification device is easy to block when filtering particulate impurities and it is not convenient to take out the filtered particulate impurities. Therefore, We present an environmentally friendly mechanical wastewater purification device.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides an environmental protection mechanical waste water purification device.

(2) Technical solution

In order to achieve the above purpose, the utility model provides the following technical solution: an environmental protection mechanical waste water purification device, including a clean water box, the left side of the clean water box is connected with a connecting pipe, the connecting pipe is arranged obliquely, and the connecting pipe The left side of the pipeline is connected with a cylindrical box, the left outer wall of the cylindrical box is provided with a first motor, the left inner wall of the inner cavity of the cylindrical box is rotatably provided with a rotating shaft, and the output end of the first motor is connected with the rotating shaft. A filter box is arranged on the rotating shaft, and a plurality of filter holes are arranged on the side wall of the filter box, and a ribbon is arranged on the side wall of the filter box, and the ribbon is adapted to the inner cavity of the cylindrical box, and the filter The side of the box far away from the rotating shaft is connected with an inner sleeve, and the inner sleeve extends into the connecting pipe. The top side of the cylindrical box is connected with a water inlet pipe, and the bottom of the cylindrical box is connected with a slag discharge pipe. The slag pipe is located on the left side of the water inlet pipe, the water outlet pipe is connected to the bottom of the right side of the water purification box, and the top of the front of the water purification box is provided with a material injection port.

In order to increase the mixing effect of medicines, the improvement of the utility model is that a second motor is arranged on the top of the water purification tank, and a stirring shaft is installed on the top wall of the inner cavity of the water purification tank, and the output end of the second motor is connected to the The stirring shaft is connected, and a plurality of stirring rods are arranged on the stirring shaft.

In order to increase the practicability of the structure, the improvement of the utility model is that a deflector is provided on the left side of the bottom wall of the inner cavity of the water purification tank.

In order to facilitate the inspection of the working conditions inside the water purification box, the improvement of the utility model is that an inspection window is embedded in the outer wall of the water purification box.

In order to increase the tightness between the connecting pipe and the inner sleeve, the improvement of the utility model is that the inner sleeve is provided with a mechanical seal near the side wall of the filter box, and the outer wall of the mechanical seal is connected with the inner hole of the connecting pipe. The walls are in contact.

In order to increase the sealing performance between the second motor and the water purification box, the improvement of the utility model is that a sealing member is arranged between the inner cavity wall of the water purification box and the stirring shaft.

(3) Beneficial effects

Compared with the prior art, the utility model provides an environmental protection mechanical wastewater purification device, which has the following beneficial effects:

The environment-friendly mechanical waste water purification device, through the setting of the first motor, filter box, inner sleeve, mechanical seal, ribbon and rotating shaft, facilitates the discharge of filtered particulate impurities and improves the filtering and cleaning effect of this structure. 1. The setting of the stirring shaft and the stirring rod facilitates the improvement of the purification effect of the structure.

Description of drawings

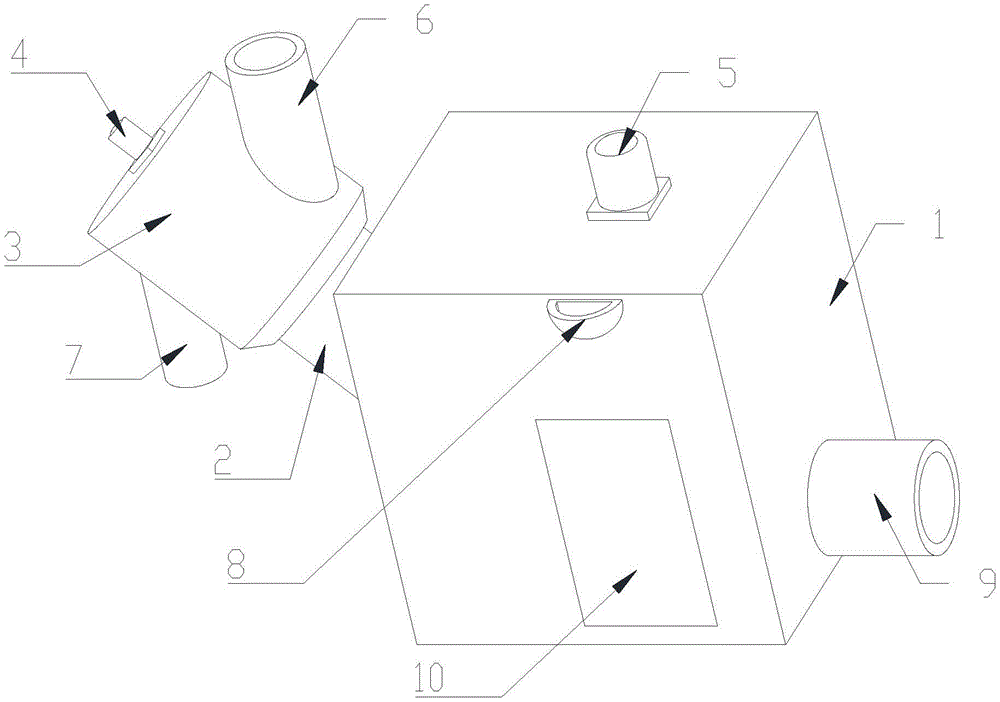

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of filter case of the present utility model, inner sleeve pipe and ribbon place;

Fig. 3 is a schematic side view of the structure of the filter box, the inner casing and the ribbon of the utility model;

Fig. 4 is the schematic diagram of the section structure of the utility model water purification box;

In the figure: 1. Clean water box; 2. Connecting pipe; 3. Cylindrical box; 4. First motor; 5. Second motor; 6. Water inlet pipe; 7. Slag discharge pipe; 8. Filling port; 9. Outlet pipe; 10. Inspection window; 11. Inner casing; 12. Mechanical seal; 13. Filter box; 14. Rotating shaft; 15. Ribbon; 16. Stirring shaft; 17. Stirring rod; sheet; 19, seal.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-4, a kind of environmental protection mechanical waste water purifying device, comprises clean water tank 1, and the left side of described clean water tank 1 is connected with connecting pipeline 2, and described connecting pipeline 2 is arranged obliquely, and described connecting pipeline 2 The left side is connected with a cylindrical box 3, a first motor 4 is arranged on the left side outer wall of the cylindrical box 3, a first motor 4 is arranged on the left side outer wall of the cylindrical box 3, and the inside of the cylindrical box 3 The inner wall on the left side of the cavity is provided with a rotating shaft 14, the output end of the first motor 4 is connected to the rotating shaft 14, the rotating shaft 14 is provided with a filter box 13, and the side wall of the filter box 13 is provided with a plurality of filter holes. The side wall of the filter box 13 is provided with a ribbon 15, the ribbon 15 is compatible with the inner cavity of the cylindrical box 3, and the side of the filter box 13 away from the rotating shaft 14 is connected with an inner sleeve 11, and the inner sleeve The pipe 11 extends into the connecting pipe 2, the top side of the cylindrical box 3 is connected to the water inlet pipe 6, and the bottom of the cylindrical box 3 is connected to the slag discharge pipe 7, and the slag discharge pipe 7 is located on the left side of the water inlet pipe 6 , the bottom of the right side of the clean water tank 1 is connected with a water outlet pipe 9, and the top of the front of the clean water tank 1 is provided with a material injection port 8.

The waste water enters the inner cavity of the cylindrical box 3 through the water inlet pipe 6, and the first motor 4 rotates the rotating shaft 14 to rotate the filter box 13, the ribbon 15 and the inner casing 11, and the waste water is filtered through the filter holes to isolate the particulate impurities in the cylindrical box Between the inner cavity of the body 3 and the filter box 13, the rotating ribbon 15 moves the particulate impurities upwards and is discharged through the slag discharge pipe 7. After filtering, the waste water enters the inner cavity of the filter box 13 and enters the inner casing 11, and then enters the clean water In the inner cavity of the box body 1, the purification agent is added through the injection port 8, and then discharged through the outlet pipe 9.

The above-mentioned water purification box 1 needs to mix the purification medicine evenly during use to improve the purification effect. In order to meet the above-mentioned effect, the top of the water purification box 1 is provided with a second motor 5, and the top of the inner cavity of the water purification box 1 The wall rotation is provided with a stirring shaft 16, the output end of the second motor 5 is connected with the stirring shaft 16, and a plurality of stirring rods 17 are arranged on the stirring shaft 16, and the second motor 5 drives the stirring shaft 16, so that the stirring rods 17 are The waste water and the purification medicine in the inner cavity of the water purification tank 1 are stirred evenly to improve the purification effect.

The above-mentioned clean water tank 1 has the problem that the waste water cannot be evenly stirred by the stirring rod 17 during use. With the addition of the sheet 18, when the waste water enters the inner cavity of the clean water tank 1 through the connecting pipe 2, it flows upward through the barrier of the guide sheet 18, and flows through the stirring rod 17 from top to bottom, so that it can be evenly stirred. The purification effect of the structure is improved.

The above-mentioned clean water box 1 needs to be convenient for real-time viewing of the working conditions inside the clean water box 1 during use. In order to solve this problem, an inspection window 10 is embedded on the outer wall of the clean water box 1. By adding the inspection window 10 It is convenient to check the working status inside the water purification tank 1 in real time.

The above-mentioned inner sleeve 11 and the connecting pipe 2 need to be sealed to prevent particles and impurities from entering the inner cavity of the water purification tank 1. In order to meet the above effects, the inner sleeve 11 is provided with a mechanical seal near the side wall of the filter box 13 12. The outer wall of the mechanical seal 12 is in contact with the inner hole wall of the connecting pipe 2, and through the addition of the filter box 13, the inner casing 11 and the connecting pipe 2 are sealed to prevent impurities from entering the clean water box 1 lumen.

The space between the clean water tank 1 and the stirring shaft 16 needs to be waterproof, and a seal 19 is provided between the inner cavity wall of the clean water tank 1 and the stirring shaft 16 to meet the above effect.

In the description in this article, it should be noted that relational terms such as first and second etc. are only used to distinguish one entity or operation from another entity or operation and do not necessarily require or imply that these entities or operations, any such actual relationship or order exists. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. An environmental protection mechanical waste water purifying device, comprising a clean water box (1), characterized in that: the left side of the clean water box (1) is connected with a connecting pipe (2), and the connecting pipe (2) is inclined Set, the left side of the connecting pipe (2) is connected with a cylindrical box (3), the outer wall of the left side of the cylindrical box (3) is provided with a first motor (4), inside the cylindrical box (3) The inner wall on the left side of the cavity is provided with a rotating shaft (14) for rotation, the output end of the first motor (4) is connected with the rotating shaft (14), the rotating shaft (14) is provided with a filter box (13), and the filter box (13 ) side wall is provided with a plurality of filter holes, and the side wall of the filter box (13) is provided with a ribbon (15), and the ribbon (15) is compatible with the inner cavity of the cylindrical box (3), so The side of the filter box (13) away from the rotating shaft (14) is connected with an inner sleeve (11), and the inner sleeve (11) extends into the connecting pipe (2), and the top side of the cylindrical box (3) A water inlet pipe (6) is connected, and a slag discharge pipe (7) is connected to the bottom of the cylindrical box (3). The slag discharge pipe (7) is located on the left side of the water inlet pipe (6), and the water purification box ( 1) A water outlet pipe (9) is connected to the bottom on the right side, and a material injection port (8) is provided on the top of the front of the water purification tank (1). 2. An environmental protection mechanical wastewater purification device according to claim 1, characterized in that: the top of the water purification box (1) is provided with a second motor (5), and the inside of the water purification box (1) A stirring shaft (16) is arranged on the top wall of the chamber for rotation, the output end of the second motor (5) is connected with the stirring shaft (16), and a plurality of stirring rods (17) are arranged on the stirring shaft (16). 3. The environmental protection mechanical waste water purification device according to claim 2, characterized in that: a deflector (18) is provided on the left side of the bottom wall of the inner cavity of the clean water tank (1). 4. The environmental protection mechanical wastewater purification device according to claim 3, characterized in that: an inspection window (10) is embedded in the outer wall of the water purification box (1). 5. A kind of environment-friendly mechanical wastewater purification device according to claim 4, characterized in that: the inner sleeve (11) is provided with a mechanical seal (12) close to the side wall of the filter box (13), the mechanical The outer wall of the sealing member (12) is in contact with the inner hole wall of the connecting pipe (2). 6. An environmental protection mechanical wastewater purification device according to claim 5, characterized in that: a seal (19) is provided between the inner wall of the water purification box (1) and the stirring shaft (16).
