A green intelligent viewing and driving integrated bird repellent

technical field

The utility model relates to the technical field of bird repellents, in particular to a green intelligent bird repellent integrated with view and drive.

Background technique

High-voltage transmission lines are responsible for the long-distance transmission of electric energy at a higher voltage level. Its health directly affects the reliability, safety and economic efficiency of the user's electricity consumption and its own power supply. Most of the high-voltage transmission lines run overhead in the barren mountains. Due to the wide coverage of high-voltage transmission lines, the ecological environment in which they live is volatile, and will be subject to many unforeseen damages such as natural disasters, man-made damage, and animal hazards, which often cause single-phase grounding short-circuit faults on the line, which are factors that affect the safety of high-voltage transmission lines. In addition to lightning damage and external damage factors, bird damage has become the first factor causing ground faults in high-voltage transmission lines;

Most of the existing intelligent viewing and driving integrated bird repellents are fixed on the top of the supporting column by bolts. When the intelligent viewing and driving integrated bird repelling device needs to be overhauled, the staff needs to climb to the top of the supporting column, which reduces the bird repelling device. It is not easy to use, and most of the existing intelligent viewing and driving integrated bird repellents store electric energy through photovoltaic panels, and the utilization rate of photovoltaic panels to solar energy is low, so it is not convenient to adjust the angle according to the angle of the sun, so We propose a green intelligent viewing and driving integrated bird repellent to solve the above problems.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides a green intelligent viewing and driving integrated bird repelling device, which solves the problems raised in the above-mentioned background technology.

(2) Technical solutions

The utility model specifically adopts the following technical solutions in order to achieve the above object:

A green intelligent viewing and driving integrated bird repellent, including a base plate, a bird repellent body, a clamp rod, a photovoltaic panel and an electric push rod, a support column is fixedly installed on the top of the base plate, and a groove is opened on the support column. A positioning rod is fixedly installed between the inner walls on both sides of the groove, and a support plate is slidably connected to the positioning rod. One side of the support plate is fixedly installed with the bird repellent body, and one side of the support column is fixed A fixed block is installed, and a rotating rod is installed on the supporting column, and a stay rope is wound on the rotating rod, and a fixed pulley is installed on the bottom of the fixed block, and the end of the stay rope is bypassed The top is fixedly connected with the top of the support plate, a circular plate is fixedly installed on the end of the rotating rod, and a plurality of card slots are opened on the circular plate, a fixed rod is fixedly installed on the top of the bottom plate, and a fixed rod is mounted on the fixed rod A clamping rod is slidably connected, and the clamping rod is engaged with one of the multiple clamping slots, and a tilting rod is installed on one side of the clamping rod for rotation.

Further, a rectangular groove is opened on the bottom plate, and a limit rod is fixedly installed between the inner walls of both sides of the rectangular groove, and a moving plate is slidably connected to the limit rod, and one side of the moving plate is connected to the inclined rod. The ends are hinged.

Further, a first spring is fixedly installed between the end of the locking rod and the top of the bottom plate, and the first spring is movably sleeved on the fixing rod.

Further, a second spring is fixedly installed between one side of the moving plate and one inner wall of the rectangular slot, and the second spring is movably sleeved on the limit rod.

Further, a stopper is fixedly installed on the other end of the rotating rod, a handle is fixedly installed on one side of the circular plate, a circular hole is opened on the support plate, and the inner wall of the circular hole is connected with the pull cord. The outside does not touch.

Further, a photovoltaic panel is rotatably installed on the body of the bird repellent, a T-shaped slide rail is fixedly installed on one side of the photovoltaic panel, and a slider is slidably connected to the T-shaped slide rail.

Further, an electric push rod is fixedly mounted on the top of the bird repeller body, and a connecting rod is fixedly mounted on the output end of the electric push rod, and the end of the connecting rod is hinged to one side of the slider.

(3) Beneficial effects

Compared with the prior art, the utility model provides a green intelligent viewing and driving integrated bird repellent, which has the following beneficial effects:

In the utility model, by moving the moving plate, the moving plate drives the clamping rod to slide on the fixed rod through the tilting rod, and the clamping rod is separated from one of the multiple clamping slots. The support plate moves downward, so that the main body of the bird repellent can be lowered for maintenance without climbing. The electric push rod drives the slider to slide on the T-shaped slide rail through the connecting rod. Under the action of extrusion force, the photovoltaic panel Rotate on the body of the bird repeller, so that the angle of the photovoltaic panel can be adjusted.

Description of drawings

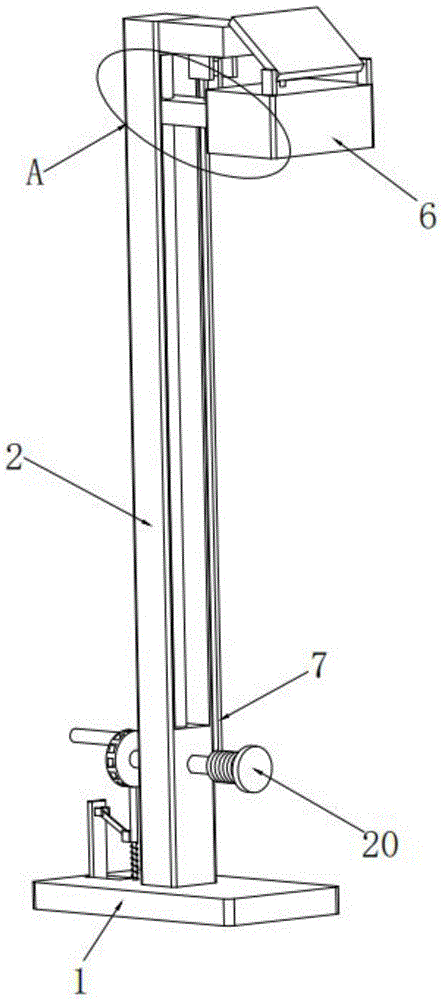

Fig. 1 is a schematic diagram of the three-dimensional structure of the utility model;

Fig. 2 is a schematic diagram of the left stereo structure of the utility model;

Fig. 3 is a schematic diagram of an inclined three-dimensional structure of the utility model;

Fig. 4 is the schematic diagram of enlarged structure of A district in Fig. 1 of the utility model;

Fig. 5 is the schematic diagram of enlarged structure of area B in Fig. 3 of the utility model;

Fig. 6 is a schematic diagram of an enlarged structure of area C in Fig. 2 of the present invention.

In the figure: 1, bottom plate; 2, support column; 3, groove; 4, positioning rod; 5, support plate; 6, bird repellent body; 7, drawstring; 8, fixed block; , circular plate; 11, card slot; 12, fixed rod; 13, card rod; 14, inclined rod; 15, rectangular slot; 16, limit rod; 17, moving plate; 18, first spring; 19, second Spring; 20, block; 21, handle; 22, photovoltaic panel; 23, T-shaped slide rail; 24, slider; 25, electric push rod; 26, connecting rod.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example

As shown in Fig. 1, Fig. 4 and Fig. 5, an embodiment of the utility model proposes a green intelligent viewing and driving integrated bird repellent, including a bottom plate 1, a bird repellent body 6, a clamping rod 13, a photovoltaic panel 22 and an electric Push rod 25, support column 2 is fixedly installed on the top of bottom plate 1, groove 3 is opened on support column 2, positioning rod 4 is fixedly installed between the inner walls of both sides of groove 3, and support plate is slidably connected to positioning rod 4 5. A bird repeller body 6 is fixedly installed on one side of the support plate 5, a fixed block 8 is fixedly installed on one side of the support column 2, a rotating rod 9 is installed on the supporting column 2, and a pull rope 7 is wound on the rotating rod 9 , the bottom of the fixed block 8 is rotatably equipped with a fixed pulley, the end of the stay rope 7 is fixedly connected with the top of the support plate 5 around the top of the fixed pulley, and the end of the rotating rod 9 is fixedly equipped with a circular plate 10. A plurality of draw-in slots 11 are provided, and a fixed rod 12 is fixedly mounted on the top of the bottom plate 1, and a clamp rod 13 is slidably connected to the fixed rod 12, and the clamp rod 13 is engaged with one of the draw-in slots 11, and the clamp One side of the bar 13 is rotatably equipped with a tilting bar 14 .

As shown in Figure 5, in some embodiments, a rectangular groove 15 is provided on the bottom plate 1, and a limit rod 16 is fixedly installed between the inner walls of the two sides of the rectangular groove 15, and a moving plate 17 is slidably connected to the limit rod 16 to move One side of the plate 17 is hinged to the end of the tilting rod 14, and the limit rod 16 limits the moving plate 17 to prevent the moving plate 17 from shifting when moving.

As shown in Figure 5, in some embodiments, a first spring 18 is fixedly installed between the end of the clamping rod 13 and the top of the base plate 1, and the first spring 18 is movably sleeved on the fixed rod 12, and the first spring 18 The setting has played the role of reset.

As shown in FIG. 5 , in some embodiments, a second spring 19 is fixedly installed between one side of the moving plate 17 and one side of the inner wall of the rectangular groove 15 , and the second spring 19 is movably sleeved on the limit rod 16 , The setting of moving plate 17 has played the effect of moving.

As shown in Figure 1, in some embodiments, the other end of the rotating rod 9 is fixedly equipped with a stopper 20, one side of the circular plate 10 is fixedly equipped with a handle 21, and a circular hole is provided on the support plate 5, and the circular hole The inner wall of the inner wall is not in contact with the outside of the stay cord 7, and the setting of the support plate 5 plays the role of connection.

As shown in Figure 6, in some embodiments, a photovoltaic panel 22 is rotatably installed on the bird repellent body 6, and a T-shaped slide rail 23 is fixedly installed on one side of the photovoltaic panel 22, and a slide rail 23 is slidably connected to the T-shaped slide rail 23. The block 24 and the T-shaped slide rail 23 limit the slide block 24 to prevent deviation.

As shown in Figure 6, in some embodiments, an electric push rod 25 is fixedly installed on the top of the bird repellent body 6, and a connecting rod 26 is fixedly installed on the output end of the electric push rod 25, and the end of the connecting rod 26 is connected to the slide block. One side of 24 is hinged, and the setting of electric push rod 25 has realized automation.

Working principle or structural principle, when overhauling, move the moving plate 17, the moving plate 17 slides on the limit rod 16 and compresses the second spring 19, and the moving plate 17 squeezes the tilting rod 14 in the process of moving. Under the effect of extruding force, the inclined rod 14 drives the clamping rod 13 to slide on the fixed rod 12, and the clamping rod 13 compresses the first spring 18 in the process of moving, and the clamping rod 13 is engaged with one of the plurality of clamping grooves 11. Groove 11 is separated, and now under the action of gravity, bird-repelling device body 6 drives support plate 5 to move downward, thereby bird-repelling device body 6 can be lowered for maintenance without climbing. After maintenance, turn handle 21, handle 21 Wind the stay rope 7 through the rotating rod 9, the stay rope 7 drives the support plate 5 to slide on the positioning rod 4, the support plate 5 drives the bird repellent body 6 to move upwards, after the movement, relax the force on the moving plate 17, and then When the first spring 18 in the compressed state resets, under the effect of the elastic force of the first spring 18 itself, the first spring 18 drives the clamping rod 13 to engage with another clamping slot 11 in the plurality of clamping slots 11, thereby driving the Bird device body 6 is fixed, and when adjusting the angle of photovoltaic panel 22, start electric push rod 25, and electric push rod 25 drives connecting rod 26 to move upwards, and connecting rod 26 drives slider 24 to slide on T-shaped slide rail 23 and produces squeeze. Pressure, under the action of extrusion force, the photovoltaic panel 22 rotates on the bird repellent body 6, so that the angle of the photovoltaic panel 22 can be adjusted.

Finally, it should be noted that: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model, although the utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principles of the present utility model shall be included in the protection scope of the present utility model.

Claims (7)

1. The utility model provides an integrative bird ware that drives is seen to green intelligence, includes bottom plate (1), drives bird ware body (6), kelly (13), photovoltaic board (22) and electric putter (25), its characterized in that: the utility model discloses a bird repeller, including bottom plate (1), bottom plate, fixed mounting have support column (2), seted up recess (3) on support column (2), fixed mounting has locating lever (4) between the both sides inner wall of recess (3), sliding connection has backup pad (5) on locating lever (4), one side fixed mounting of backup pad (5) drives bird ware body (6), one side fixed mounting of support column (2) has fixed block (8), rotating mounting has dwang (9) on support column (2), the winding has stay cord (7) on dwang (9), the bottom of fixed block (8) is rotated and is installed the fixed pulley, the top of fixed pulley and the top fixed connection of backup pad (5) are walked around to the tip of stay cord (7), the tip fixed mounting of dwang (9) has plectane (10), seted up a plurality of draw-in grooves (11) on plectane (10), the top fixed mounting of bottom plate (1) has dead lever (12), sliding connection has kel (13) on dead lever (12), kel (13) clamp with one of a plurality of draw-in groove (11) mutually, one side of kel (13) rotates and installs slope pole (14).

2. The integrated bird repeller of the green intelligent viewing and driving system as claimed in claim 1, wherein: the improved structure of the motor is characterized in that a rectangular groove (15) is formed in the bottom plate (1), a limiting rod (16) is fixedly mounted between inner walls of two sides of the rectangular groove (15), a moving plate (17) is connected to the limiting rod (16) in a sliding mode, and one side of the moving plate (17) is hinged to the end portion of the inclined rod (14).

3. The integrated bird repeller of the green intelligent viewing and driving system as claimed in claim 1, wherein: a first spring (18) is fixedly installed between the end portion of the clamping rod (13) and the top of the bottom plate (1), and the first spring (18) is movably sleeved on the fixing rod (12).

4. The integrated bird repeller of green intelligent view and drive of claim 2, which is characterized in that: a second spring (19) is fixedly installed between one side of the moving plate (17) and the inner wall of one side of the rectangular groove (15), and the second spring (19) is movably sleeved on the limiting rod (16).

5. The integrated bird repeller of the green intelligent viewing and driving system as claimed in claim 1, wherein: the other end fixed mounting of dwang (9) has dog (20), one side fixed mounting of plectane (10) has handle (21), the circular port has been seted up on backup pad (5), the inner wall of circular port and the outside contactless of stay cord (7).

6. The integrated bird repeller of the green intelligent viewing and driving system as claimed in claim 1, wherein: drive and rotate on the bird ware body (6) and install photovoltaic board (22), one side fixed mounting of photovoltaic board (22) has T shape slide rail (23), sliding connection has slider (24) on T shape slide rail (23).

7. The integrated bird repeller of green intelligent view and drive of claim 1, which is characterized in that: the top fixed mounting who drives bird ware body (6) has electric putter (25), the output fixed mounting of electric putter (25) has connecting rod (26), the tip of connecting rod (26) is articulated mutually with one side of slider (24).
