Abstract

The utility model discloses a layered grouting device for pulp molding. A discharge pipe is symmetrically installed on the first layer of the hollow pipe. One end of the discharge pipe extends to the inside of the hollow pipe. A telescopic rubber pipe is installed inside the feed inlet. One end of the telescopic rubber pipe is connected to the dredge pump. The top of the console is symmetrically installed with a first support column and a second support column, a top plate is installed between the first support column and the second support column, die-casting equipment is installed on the top of the console, and suction is installed on the top of the top plate. For mud pumps, the bottom of the top plate is provided with a limit groove, and a slider is fitted inside the limit groove, and a hollow tube is installed at the bottom of the slider, and two discharge pipes are symmetrically installed on one side of the hollow tube. , The two material pipes can be discharged at the same time, and the grouting operation can be performed on the layered pulp molding, which greatly improves the processing efficiency.

Description

A layered grouting device for pulp molding

technical field

The utility model relates to the technical field of pulp molding grouting devices, in particular to a layered grouting device for pulp molding.

Background technique

After searching, Patent 1, the patent with Chinese patent authorization number CN 207159708 U, discloses a pulp molding grouting device, relates to the technical field of pulp molding grouting device, specifically a pulp molding grouting device , the grouting device includes a slurry supply box, a slurry injection box and a slurry tank; wherein, the slurry supply box is a square box and the top is provided with a grouting inlet, and the upper part of the square box is a filter cavity, and the filter cavity is set There are a first vibrating filter membrane and a second vibrating filter membrane, the first vibrating filter membrane and the second vibrating filter membrane are electrically connected to the first motor, and the first motor is electrically connected to the frequency converter; the lower part of the square box is the slurry supply The bottom of the slurry supply cavity is provided with four grouting outlets, the middle of the slurry supply cavity is provided with a stirring device, and the stirring device is electrically connected to the first motor; four grouting boxes are provided and are respectively arranged on the sides of the square box. At the bottom of the front, rear, left and right sides, each grouting box is connected with the grouting outlet through a grouting pipeline, and an electromagnetic flow valve is arranged on the grouting pipeline to control the flow rate of the slurry. The lower surface of the grouting box A number of grouting nozzles are provided, and each grouting nozzle is provided with an on-off valve; there are four slurry tanks which are respectively arranged under the four grouting boxes, each slurry tank is connected with a lifting device, and the lifting The device is electrically connected to the second motor, and a slurry discharge pipe is arranged under each slurry tank.

The existing equipment can only inject grout to one layer of molding during use, which reduces production efficiency.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides a layered grouting device for pulp molding, which solves the problem that the existing pulp molding grouting device can only grout one layer of molding during use. This reduces the problem of production efficiency.

(2) Technical solutions

In order to achieve the above purpose, the utility model is achieved through the following technical solutions: a layered grouting device for pulp molding, including an operating table and a hollow tube, the first layer of the hollow tube is provided with a feed port, the The inside of the hollow tube is a hollow structure, and the first layer of the hollow tube is symmetrically equipped with a discharge pipe. One end of the rubber tube is connected to the dredge pump.

Preferably, a first support column and a second support column are installed symmetrically on the top of the operating platform, a top plate is installed between the first supporting column and the second supporting column, and die-casting equipment is installed on the top of the operating platform.

Preferably, a dredge pump is installed on the top of the top plate, a limiting groove is opened at the bottom of the top plate, a slider is fitted inside the limiting groove, and a hollow pipe is installed at the bottom of the slider.

Preferably, a mounting plate is fixedly installed on the outer wall of one side of the second supporting column, an electric push rod is installed on the top of the mounting plate, a first through hole is opened on one side of the second supporting column, and the first through hole through the second support column.

Preferably, one end of the limiting slot is provided with a second through hole, the second through hole is aligned with the first through hole, the first through hole and the second through hole are penetrated by an electric push rod, and the electric push rod One end of the rod extends to the inside of the limit slot, and the outer wall of the slider is connected with the electric push rod.

(3) Beneficial effects

The utility model provides a layered grouting device for pulp molding. Has the following beneficial effects:

The pulp molding grouting device effectively solves the problem that the traditional pulp molding grouting device can only grout one layer of molding during use through the setting of the hollow tube and the discharge pipe, which reduces the production capacity. For the efficiency problem, two discharge pipes are symmetrically installed on one side of the hollow pipe, and the two discharge pipes can discharge materials at the same time, which can be used for grouting operation of layered pulp molding, which greatly improves the processing efficiency.

Description of drawings

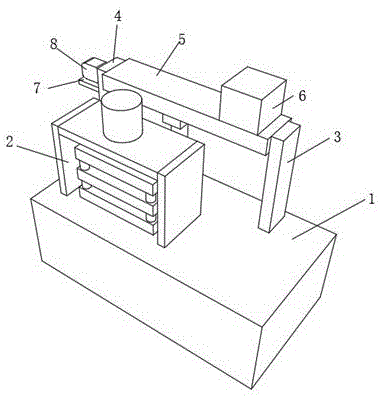

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is the rear view of the console of the utility model;

Fig. 3 is the structural schematic diagram of the second supporting column of the utility model;

Fig. 4 is a schematic diagram of the structure of the bottom of the roof of the utility model.

In the figure, 1. Operating table; 2. Die-casting equipment; 3. First support column; 4. Second support column; 5. Top plate; 6. Suction dredge pump; 7. Mounting plate; 8. Electric push rod; 9. Telescopic rubber tube; 10, hollow tube; 11, first through hole; 12, slider; 13, discharge pipe; 14, limit groove; 15, second through hole; 16, feed port.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-4, the utility model embodiment provides a kind of technical solution: a kind of layered grouting device of pulp molding, comprises operating table 1 and hollow tube 10, and described hollow tube 10 is provided with The feed port 16, the inside of the hollow tube 10 is a hollow structure, the hollow tube 10 is symmetrically installed with a discharge pipe 13 on one layer, and one end of the discharge pipe 13 extends to the inside of the hollow tube 10. A telescopic rubber tube 9 is installed inside the feed port 16, and one end of the telescopic rubber tube 9 is connected to the dredge pump 6. The setting of the dredge pump 6 facilitates the suction of the slurry, and the setting of the telescopic rubber tube 9 facilitates the suction of the dredge pump 6. The slurry is sent into the hollow tube 10, and the discharge pipe 13 is arranged to facilitate the discharge of the slurry inside the hollow tube 10.

The top of the console 1 is symmetrically installed with a first support column 3 and a second support column 4, a top plate 5 is installed between the first support column 3 and the second support column 4, and a die-casting column is installed on the top of the console 1. The arrangement of the equipment 2, the first support column 3 and the second support column 4 facilitates the installation of the top plate 5, and the arrangement of the die-casting equipment 2 can perform die-casting on the slurry.

The top of the top plate 5 is equipped with a dredge pump 6, the bottom of the top plate 5 is provided with a limiting groove 14, and a slider 12 is fitted inside the limiting groove 14, and a hollow pipe 10 is installed at the bottom of the slider 12. , the setting of the limit groove 14 facilitates the installation of the slider 12, and the setting of the slider 12 facilitates the movement of the hollow tube 10.

A mounting plate 7 is fixedly installed on the outer wall of one side of the second support column 4, and an electric push rod 8 is installed on the top of the installation plate 7. A first through hole 11 is opened on one side of the second support column 4, and the first through hole 11 is opened on the side of the second support column 4. A through hole 11 runs through the second support column 4 , and the setting of the mounting plate 7 facilitates the installation of the electric push rod 8 , and the setting of the electric push rod 8 provides power for the movement of the slider 12 .

One end of the limiting slot 14 is provided with a second through hole 15, the second through hole 15 is aligned with the first through hole 11, and the first through hole 11 and the second through hole 15 are penetrated by the electric push rod 8, One end of the electric push rod 8 extends to the inside of the limit groove 14, the outer wall of the slider 12 is connected with the electric push rod 8, and the setting of the first through hole 11 and the second through hole 15 facilitates the extension of the electric push rod 8 into the limit. Bit slot 14 inside.

Working principle: when in use, the slurry is transported to the inside of the hollow tube 10 through the dredge pump 6 and the telescopic rubber tube 9, and then the slurry is discharged and spread through the two discharge pipes 13 symmetrically installed on one side of the hollow tube 10. To the top of the molding, at the same time start the electric push rod 8 when the suction pump 6 is sucking the slurry, the electric push rod 8 pushes the slider 12 to move inside the limit groove 14, and the slider 12 drives the bottom installation during the movement The hollow tube 10 moves, and the hollow tube 10 drives the discharge tube 13 installed on one side to move during the movement, so that the slurry can be evenly spread on the molding inside the die-casting equipment 2. When the grouting is completed Finally, close the dredge pump 6, and then start the die-casting equipment 2 for die-casting.

1. Operating table; 2. Die-casting equipment; 3. First support column; 4. Second support column; 5. Top plate; 6. Suction pump; 7. Installation plate; 8. Electric push rod; 9 , telescopic rubber tube; 10, hollow tube; 11, first through hole; 12, slider; 13, discharge pipe; 14, limit groove; 15, second through hole; It is a common standard part or a part known to those skilled in the art, and its structure and principle can be known to those skilled in the art through technical manuals or through conventional experimental methods.

The basic principles and main features of the utility model and the advantages of the utility model have been shown and described above. For those skilled in the art, it is obvious that the utility model is not limited to the details of the above-mentioned exemplary embodiments, and without departing from the utility model The present utility model can be realized in other specific forms without the spirit or essential features. Therefore, no matter from all points of view, the embodiments should be regarded as exemplary and non-restrictive, and the scope of the present invention is defined by the appended claims rather than the above description, so it is intended to be included in the claims All changes within the meaning and range of equivalents of the required elements are included in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

In addition, it should be understood that although this specification is described according to implementation modes, not each implementation mode only includes an independent technical solution, and this description in the specification is only for clarity, and those skilled in the art should take the specification as a whole , the technical solutions in the various embodiments can also be properly combined to form other implementations that can be understood by those skilled in the art.

Claims (5)

1. A layered grouting device for pulp molding, characterized in that it includes an operating table (1) and a hollow tube (10), and the hollow tube (10) is provided with a feed port (16) on one layer , the interior of the hollow tube (10) is a hollow structure, the hollow tube (10) is symmetrically installed with a discharge pipe (13), and one end of the discharge pipe (13) extends to the hollow tube (10 ), a telescopic rubber tube (9) is installed inside the feed port (16), and one end of the telescopic rubber tube (9) is connected to the dredge pump (6). 2. A layered grouting device for pulp molding according to claim 1, characterized in that: a first support column (3) and a second support column (4) are symmetrically installed on the top of the operating table (1) ), a top plate (5) is installed between the first support column (3) and the second support column (4), and a die-casting device (2) is installed on the top of the operating platform (1). 3. A layered grouting device for pulp molding according to claim 2, characterized in that: a dredge pump (6) is installed on the top of the top plate (5), and a limited opening is provided at the bottom of the top plate (5). A position slot (14), a slider (12) is fitted inside the limit slot (14), and a hollow tube (10) is installed at the bottom of the slider (12). 4. The layered grouting device for pulp molding according to claim 2, characterized in that: a mounting plate (7) is fixedly installed on the outer wall of one side of the second support column (4), and the mounting plate (7) An electric push rod (8) is installed on the top, and a first through hole (11) is opened on one side of the second support column (4), and the first through hole (11) runs through the second support column (4) ). 5. The layered grouting device for pulp molding according to claim 3, characterized in that: a second through hole (15) is opened at one end of the limiting groove (14), and the second through hole (15) is aligned with the first through hole (11), the first through hole (11) and the second through hole (15) are penetrated by the electric push rod (8), and one end of the electric push rod (8) extends to Inside the limiting groove (14), the outer wall of the slider (12) is connected with the electric push rod (8).
