Abstract
The utility model discloses a grain turning machine of processing white spirit can make the lees cooling more even, improves cooling efficiency to reduce intensity of labour, including the conveying line body, air-blower, plenum, bulk cargo axle and the stirring axle that dries in the air of stand, the conveying line body both sides fixed mounting that dries in the air of stand has the striker plate, air-blower fixed mounting is at the conveying line body lateral part that dries in the air of stand, the plenum sets up between the upper portion conveyer belt and the lower part conveyer belt of the conveying line body that dries in the air of stand, with air-blower air outlet link joint, the bulk cargo axle sets up at the conveying line body feed end that dries in the air of stand, keeps being connected with the pivot of installing the bulk cargo motor at the conveying line body lateral part that dries in the air of stand, the stirring axle sets up on the conveying line body that dries in the air of stand, keeps being connected with the stirring motor pivot of installing the conveying line body lateral part that dries in the air of stand.
Description
Technical Field
The utility model relates to a white spirit brewing equipment technical field specifically says a grain machine that turns over of processing white spirit.
Background
In the brewing process, the vinasse is spread and dried in the air to be cooled evenly, the traditional spreading and drying method is to directly place the vinasse on the ground for spreading and drying in the air, and the vinasse for brewing the white spirit can contact a large amount of mixed bacteria, particularly harmful mould, from the ground due to direct contact with the ground, so that the vinasse is mildewed, and the vinasse is seriously polluted. At present, ground airing beds capable of spreading and airing vinasse for cooling are available in the market, generally, distilled high-temperature vinasse are poured on the surface of the ground airing bed to be spread flat, a fan is arranged at the bottom of the ground airing bed, the surface of the ground airing bed is a steel plate with holes, and the fan is used for supplying air to cool the high-temperature vinasse. After waiting high temperature lees to cool off to the required temperature, again spill the bent medicine on the lees and stir, though can make lees cooling under this method, but the one side towards cooling arrangement cools off sooner, can cause the refrigerated inhomogeneous of lees, lead to the cooling effect poor, ground air-curing bed needs the manual work to shovel into the turnover equipment with the shovel with the lees after cooling simultaneously, and intensity of labour is big, and because the shovel head of shovel is made by iron, long-term use can make the shovel rust and can breed the bacterium, use the shovel to turn or shovel the lees, can make iron rust, the bacterium falls into in the lees, cause the mildening and rot of lees, cause serious pollution to the lees.
SUMMERY OF THE UTILITY MODEL
Therefore, in order to solve the above-mentioned not enough, the utility model provides a grain turning machine of processing white spirit herein can make the lees cooling more even, improves cooling efficiency to reduce intensity of labour.
The utility model discloses a realize like this, construct a grain turning machine of processing white spirit, include
The spreading and airing conveying line body is integrally and obliquely arranged, meshes for air to flow are formed in the conveying belt surface of the spreading and airing conveying line body, and material blocking plates are fixedly mounted on two sides of the spreading and airing conveying line body;
the air blowers are provided, and are fixedly arranged on the side part of the spreading and drying conveying line body;
the air chamber is arranged between the upper conveying belt and the lower conveying belt of the spread-drying conveying line body, is communicated with an air outlet of the air blower and is used for sending flowing air to meshes of the upper conveying belt;
the bulk material shafts are arranged at the feeding end of the spreading and drying conveyor line body and comprise second connecting shafts and bulk material rods, the second connecting shafts are connected with rotating shafts of bulk material motors arranged on the side portions of the spreading and drying conveyor line body, the bulk material rods are uniformly and fixedly arranged on the peripheral surface of the second connecting shafts and used for dispersing the vinasse on the spreading and drying conveyor line body;
the turning shaft is arranged on the spreading and airing conveyor line body and comprises a first connecting shaft and a turning rod, wherein the first connecting shaft is connected with a turning motor rotating shaft arranged on the side portion of the spreading and airing conveyor line body, the turning rod is U-shaped and is provided with a plurality of turning rods, and the turning rods are uniformly and fixedly arranged on the peripheral surface of the first connecting shaft and act on turning of scattered vinasse.
Furthermore, the side of the air chamber far away from the air blower is hinged with an air chamber door plate.
The purpose of the arrangement is that the air chamber door plate is opened, so that the vinasse falling into the air chamber from the meshes of the conveyor belt surface can be cleaned.
Furthermore, a discharging hopper used for guiding the vinasse out is fixedly installed at the discharging end of the spreading and airing conveying line body.
This aim at who sets up, go out the hopper and guide the ejection of compact of lees, avoid the lees ejection of compact too dispersion, be not convenient for connect the material.
Furthermore, shaft covers are arranged above the material scattering shaft and the material turning shaft.
The purpose of this setting lies in, the shaft cap blocks the lees that bulk cargo or stirring in-process were taken out, avoids taking lees out and throwing to the ground when bulk cargo axle or stirring axle rotate.
Furthermore, the first connecting shaft, the material turning rod, the second connecting shaft and the material scattering rod are all made of stainless steel.
The stainless steel is corrosion resistant and not easy to rust, and the serious pollution to the vinasse caused by the rust falling into the vinasse is avoided.
Further, the device also comprises a rolling brush and a rotating motor which are used for cleaning the vinasse attached to the surface of the conveyor belt.
The purpose of this setting is in, it is rotatory to drive the round brush through rotating electrical machines, will adhere to the lees brush that dries in the air on the conveying line body at the stand and remove, when the clearance is convenient, has reduced the degree of difficulty of workman's cleaning equipment, reduces intensity of labour.
Furthermore, a material receiving hopper is arranged below the rolling brush.
The purpose of this setting lies in, and the collecting hopper collects the lees that the round brush brushed off to centralized processing.
The utility model has the advantages of as follows:
rotate through bulk cargo motor drive bulk cargo axle, the lees dispersion on the conveying line body that will dry in the air will be spread out, make its thickness reduce, stirring motor drive stirring axle rotates simultaneously, the lees after the dispersion stirs, make lees more even when the forced air cooling refrigerated, improve cooling efficiency, at the in-process that dries in the air in the spread, the conveying line body that dries in the air can be ceaseless drives the lees and marches, and promote its height, at last dry in the air conveying line body discharge end that dries in the air from the spread falls into the turnover equipment, the intensity of labour has been reduced, avoided the workman to shovel lees in-process iron rust simultaneously, the bacterium falls into the lees, cause mildening and rot of lees, cause serious pollution to the lees.
Drawings
Fig. 1 is a schematic structural diagram of the present invention;
FIG. 2 is a side view of FIG. 1;
FIG. 3 isbase:Sub>A sectional view A-A of FIG. 2;
FIG. 4 is a cross-sectional view B-B of FIG. 3;
FIG. 5 is a schematic view of a bulk material shaft;

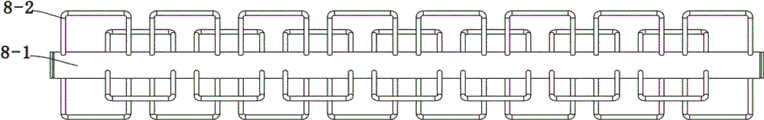

FIG. 6 is a schematic structural view of the material turning shaft;
in the figure: 1. a bulk motor; 2. a material turning motor; 3. a baffle plate; 4. a storage hopper; 5. a blower; 6. spreading and airing the conveyor line body; 7. a shaft cover; 8. a material turning shaft; 9. a bulk shaft; 10. a receiving hopper; 11. an air chamber; 12. a wind chamber door plate; 13. a rotating electric machine; 14. and (7) rolling and brushing.
Detailed Description
The present invention will be described in detail with reference to fig. 1 to 6, and the technical solutions in the embodiments of the present invention will be clearly and completely described, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts all belong to the protection scope of the present invention.
Example 1
As shown in 1~6, the utility model provides a grain turning machine for processing white spirit, which comprises
The spreading and airing conveying line body 6 is integrally and obliquely arranged, meshes for air to flow are formed in the conveying belt surface of the spreading and airing conveying line body 6, and the material blocking plates 3 are fixedly arranged on two sides of the spreading and airing conveying line body 6, wherein the spreading and airing conveying line body 6 can be a chain plate conveyor;
a plurality of blowers 5, wherein the blowers 5 are fixedly arranged at the side part of the spreading and drying conveyor line body 6;
the air chamber 11 is arranged between the upper conveying belt and the lower conveying belt of the spreading and drying conveying line body 6, is communicated with an air outlet of the air blower 5, and is used for sending flowing air to meshes of the upper conveying belt;
the bulk material shafts 9 are arranged at the feeding end of the spreading and drying conveyor line body 6 and comprise second connecting shafts 9-1 and bulk material rods 9-2, wherein the second connecting shafts 9-1 are connected with rotating shafts of bulk material motors 1 arranged on the side portions of the spreading and drying conveyor line body 6, a plurality of bulk material rods 9-2 are uniformly and fixedly arranged on the circumferential surface of the second connecting shafts 9-1 and are used for dispersing the vinasse on the spreading and drying conveyor line body 6;
the turning shaft 8 is arranged on the spreading and airing conveyor line body 6 and comprises a first connecting shaft 8-1 and turning rods 8-2, wherein the first connecting shaft 8-1 is connected with a rotating shaft of a turning motor 2 arranged on the side portion of the spreading and airing conveyor line body 6, the turning rods 8-2 are U-shaped and are provided with a plurality of numbers, and the turning rods 8-2 are uniformly and fixedly arranged on the circumferential surface of the first connecting shaft 8-1 and act on turning dispersed vinasse.
Principle of operation
Starting equipment, wherein a spreading and drying conveyor line body 6 works, an air blower 5 drives air to flow, the flowing air is blown out from meshes on the surface of a conveyor belt under the guidance of an air chamber 11, a bulk material motor 1 drives a bulk material shaft 9 to rotate, and a material turning motor 2 drives a material turning shaft 8 to rotate;
the lees that will cook are emptyd to the line body conveyer belt face on from spreading out 6 feed ends of the conveyer belt body that dries in the air, spreading out 6 drive lees of the conveyer belt body that dries in the air and marchs, stir down in the rotation of bulk cargo pole 9-2, lees begin even dispersion on the conveyer belt face, flowing air blows to lees constantly, take away the heat of lees, rotatory stirring axle 8 stirs the lees after the dispersion, with upper portion lees and lower part lees in turn, make the lees cooling even, improve the cooling effect, lees fall into the turnover equipment from spreading out 6 discharge ends of the conveyer belt body that dries in the air, labor intensity is reduced, avoided the workman to shovel move lees in-process iron rust, the bacterium falls into lees, cause the mildening of lees, cause serious pollution to the lees.
Preferably, the side of the air chamber 11 far away from the air blower 5 is hinged with an air chamber door plate 12, the air chamber door plate 12 can be opened, and the vinasse falling into the air chamber from meshes of the surface of the conveyor belt can be cleaned.
Preferably, 6 discharge end fixed mounting of the conveying line body that dries in the air in the stand is used for the play hopper 4 of deriving the lees, goes out the ejection of compact hopper 4 and guides the ejection of compact of lees, avoids the lees ejection of compact too dispersion, makes the lees scatter to subaerial, is not convenient for connect the material.
Preferably, a shaft cover 7 is arranged above the bulk material shaft 9 and the material turning shaft 8, and the shaft cover 7 blocks the bulk material or the vinasse brought out in the material turning process, so that the vinasse is prevented from being brought out and thrown onto the ground when the bulk material shaft 9 or the material turning shaft 8 rotates.
Preferably, the first connecting shaft 8-1, the material turning rod 8-2, the second connecting shaft 9-1 and the material scattering rod 9-2 are all made of stainless steel.
The stainless steel is corrosion resistant and not easy to rust, and the serious pollution to the vinasse caused by the rust falling into the vinasse is avoided.
Example 2
As shown in fig. 4~5, in embodiment 1, the drying machine further includes a rolling brush 14 and a rotating motor 13 for cleaning the lees attached to the surface of the conveyor belt, the rolling brush 14 is disposed under the conveyor belt at the lower portion of the spreading and drying conveyor line 6, one end of the rolling brush is connected to the rotating shaft of the rotating motor 13, and the brush is in contact with the surface of the conveyor belt.
Principle of operation
The rotating motor 13 drives the rolling brush 14 to rotate, so that the vinasse attached to the spreading and airing conveying line body 6 is brushed off, the cleaning is convenient, the difficulty of cleaning equipment by workers is reduced, and the labor intensity is reduced.
Preferably, a receiving hopper 10 is arranged below the rolling brush, and the receiving hopper 10 collects the vinasse brushed down by the rolling brush 14 so as to facilitate centralized processing.
The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
Claims (7)
1. A grain turning machine for processing white spirit is characterized by comprising
The spreading and airing conveying line body (6) is integrally and obliquely arranged, meshes for air to flow are formed in the conveying belt surface of the spreading and airing conveying line body (6), and material blocking plates (3) are fixedly mounted on two sides of the spreading and airing conveying line body (6);
the air blowers (5) are provided with a plurality of air blowers (5) which are fixedly arranged on the side part of the spreading and drying conveying line body (6);
the air chamber (11) is arranged between the upper conveying belt and the lower conveying belt of the spreading and drying conveying line body (6), is communicated with an air outlet of the air blower (5), and is used for sending flowing air to meshes of the upper conveying belt;
the bulk material shafts (9) are arranged at the feeding end of the spreading and drying conveyor line body (6) and comprise second connecting shafts (9-1) and bulk material rods (9-2), wherein the second connecting shafts (9-1) are connected with a rotating shaft of a bulk material motor (1) arranged on the side part of the spreading and drying conveyor line body (6), a plurality of bulk material rods (9-2) are uniformly and fixedly arranged on the circumferential surface of the second connecting shafts (9-1) and are used for dispersing the vinasse on the spreading and drying conveyor line body (6);
the turning shaft (8) is arranged on the spreading and airing conveyor line body (6) and comprises a first connecting shaft (8-1) and turning rods (8-2), wherein the first connecting shaft (8-1) is connected with a rotating shaft of a turning motor (2) arranged on the side portion of the spreading and airing conveyor line body (6), the turning rods (8-2) are U-shaped and are provided with a plurality of turning rods, and the turning rods are uniformly and fixedly arranged on the circumferential surface of the first connecting shaft (8-1) and act on turning dispersed vinasse.
2. A grain turning machine for processing white spirit according to claim 1, characterized in that the side of the air chamber (11) far away from the air blower (5) is hinged with an air chamber door panel (12).
3. The grain turning machine for processing white spirit according to claim 1, characterized in that a discharge hopper (4) for guiding out the vinasse is fixedly installed at the discharge end of the spreading and drying conveyor line body (6).
4. The grain turning machine for processing white spirit according to claim 1, characterized in that a shaft cover (7) is arranged above the bulk material shaft (9) and the turning shaft (8).
5. The grain turning machine for processing white spirit according to claim 1, characterized in that the first connecting shaft (8-1), the turning rod (8-2), the second connecting shaft (9-1) and the scattering rod (9-2) are all made of stainless steel.
6. The grain turning machine for processing white spirit according to the claim 1~5 further comprising a rolling brush (14) and a rotating motor (13) for cleaning the lees attached on the conveyor belt surface.
7. The grain turning machine for processing white spirit according to claim 6, characterized in that a receiving hopper (10) is arranged below the rolling brush.
