Abstract

The utility model belongs to the technical field of clothing production, in particular to a cutting device, which includes a laser cutting machine, a guide rail frame and a laser device. There is a table top, four pulleys arranged in a rectangular shape are arranged at the bottom of the table top, a belt is connected between the four pulleys, a carriage is slidingly connected between the inner walls on both sides of the laser cutting machine, and a connecting piece is fixed on the outer wall of the belt. The bottom of the part is rotatably connected with a slider, and a horizontal frame is fixed between the two sides of the top of the sliding frame. A cleaning brush is installed on the bottom of the upper end of the horizontal frame, and a motor is fixedly installed on the top side of the table. A lot of rags will be produced during the processing, and a lot of rags will be scattered and piled up on the cutting machine table. The waste needs to be cleaned up manually to ensure the cleanliness of the machine surface, which will cause inconvenience in the working process and affect work efficiency. question.

Description

a cutting device

technical field

The utility model belongs to the technical field of garment production, in particular to a cutting device.

Background technique

In the past, clothing design and processing specifically referred to women's textile, sewing, embroidery and other work. In a more sense, clothing processing refers to modern processing methods, mainly modern machine processing, supplemented by manual processing. The production method, garment processing is a kind of behavior, which cannot be limited in terms of the number of personnel, including cutting, sewing, punching, etc. of the cloth, and the garment factory is an intuitive expression place that directly reflects garment processing. The process from making a plan or draping pattern to cutting the fabric, including planar cutting, draping and prototype cutting, etc.

The laser cutting machine is characterized in that it includes a cutting bed, a metal liner, a laser cutting head, a transmission positioning device, a horizontal guide rail, a longitudinal guide rail and a laser, and a mesh metal liner is laid on the cutting bed, and the two sides of the cutting bed are respectively set The longitudinal guide rails and racks are parallel to each other. The two guide rails are respectively symmetrically provided with a transmission positioning device that can move longitudinally along the two guide rails. The two transmission positioning devices are fixed by a horizontal guide rail. The laser cutting head slides horizontally, and a laser is set on the side of the cutting bed as the laser source of the laser cutting head.

After investigation, the publication (announcement) number: 202021489034.9 discloses a cutting device for clothing design. In this technology, it is disclosed that "the main body of the device can conveniently ensure the flatness of the cloth when cutting the cloth, and place one end of the cloth After the cloth is under the cloth pressing block, use the cloth pressing block to press the cloth tightly, and the laser cutter head cuts on the cloth according to the program input in advance, and at the same time, when the longitudinal moving frame slides through the longitudinal chute, The cloth pressing roller set on the lower surface of the longitudinal moving frame will rotate with the pressing roller supporting frame through the rolling shaft, etc., which has the advantages of "the cloth can be flattened by the cloth pressing roller, so as to avoid the fabric from being wrinkled and affecting the cutting size. The return spring between the pressing roller support frame and the longitudinal moving frame can ensure the pressing of the cloth when the cloth pressing roller rolls, so as to ensure the flattening effect. After the cloth is cut, the cutting platform is lifted from the support platform It can be pulled out from the damping chute to facilitate the removal of the cut fabric" and other technical effects;

However, the cutting machine will produce a large amount of rags during the processing of the cloth, and a large amount of rags will be scattered and piled up on the cutting machine table, and the waste needs to be manually cleaned out to ensure the cleanliness of the machine tool surface, resulting in disruptions in the working process. Inconvenience affects work efficiency.

In order to solve the above problems, this application proposes a cutting device.

Utility model content

In order to solve the above-mentioned problems in the prior art, the utility model provides a cutting device, which has the characteristics of automatically cleaning the remaining rags on the table, and collecting the rags after cleaning, which is convenient for later removal and processing.

In order to achieve the above object, the utility model provides the following technical solutions: a cutting device, including a laser cutting machine, a guide rail frame and a laser device, a guide rail frame is provided above the laser cutting machine, a laser device is provided at the upper end of the guide rail frame, The inside of the laser cutting machine is fixed with a table top, and the bottom of the table top is provided with four pulleys arranged in a rectangle, and a belt is connected between the four pulleys, and the inner walls on both sides of the laser cutting machine slide A sliding frame is connected, and the sliding frame is located below the table top, the outer wall of the belt is fixed with a connecting piece, the bottom of the connecting piece is rotatably connected with a slider, and a horizontal frame is fixed between the two sides of the top of the sliding frame, And the horizontal frame is located above the table top, the upper bottom of the horizontal frame is equipped with a cleaning brush, the top side of the table top is fixedly installed with a motor, and the output end of the motor is fixedly connected with one of the pulleys.

As a preferred technical solution of a cutting device of the present invention, a discharge port is provided inside the front end of the table top, a discharge bin is fixed at the bottom of the front end of the table top, and a collecting tank is slidably connected to the inside of the discharge bin .

As a preferred technical solution of the cutting device of the present invention, both sides of the front end of the laser cutting machine are connected to the organic door through hinges.

As a preferred technical solution of the cutting device of the present invention, the four corners of the cleaning brush are fixedly connected to the horizontal frame by bolts.

As a preferred technical solution of the cutting device of the present invention, a vertical frame is fixedly connected between the two sides of the rear end of the laser cutting machine, and groove frames are fixed on the inner walls of both sides of the vertical frame.

As a preferred technical solution of the cutting device of the present invention, the slider is located in the sliding connection inside the carriage.

Compared with the prior art, the beneficial effect of the utility model is that one of the pulleys is driven to rotate through the output end of the motor, and the belt is driven to move with the cooperation of the other three pulleys. The block drives the sliding frame to slide. When the sliding frame slides to the front end or the rear end, the belt drives the sliding block to slide along the inside of the sliding frame to the other side through the connecting piece, and then the belt drives the sliding frame to slide back through the connecting piece and the sliding block , and then realize the reciprocating movement of the carriage, and at the same time, the carriage drives the cleaning brush to reciprocate through the horizontal frame, and then realizes that the cleaning brush cleans the rags on the table surface.

Use the cleaning brush to sweep the rags on the table to the discharge port, and fall into the collection tank in the discharge bin through the discharge port for collection; finally open the machine door to remove the internal collection tank from the inside of the discharge bin Pull out and dispose of the rags collected inside the collecting chute.

Description of drawings

The accompanying drawings are used to provide a further understanding of the utility model, and constitute a part of the description, and are used to explain the utility model together with the embodiments of the utility model, and do not constitute a limitation to the utility model. In the attached picture:

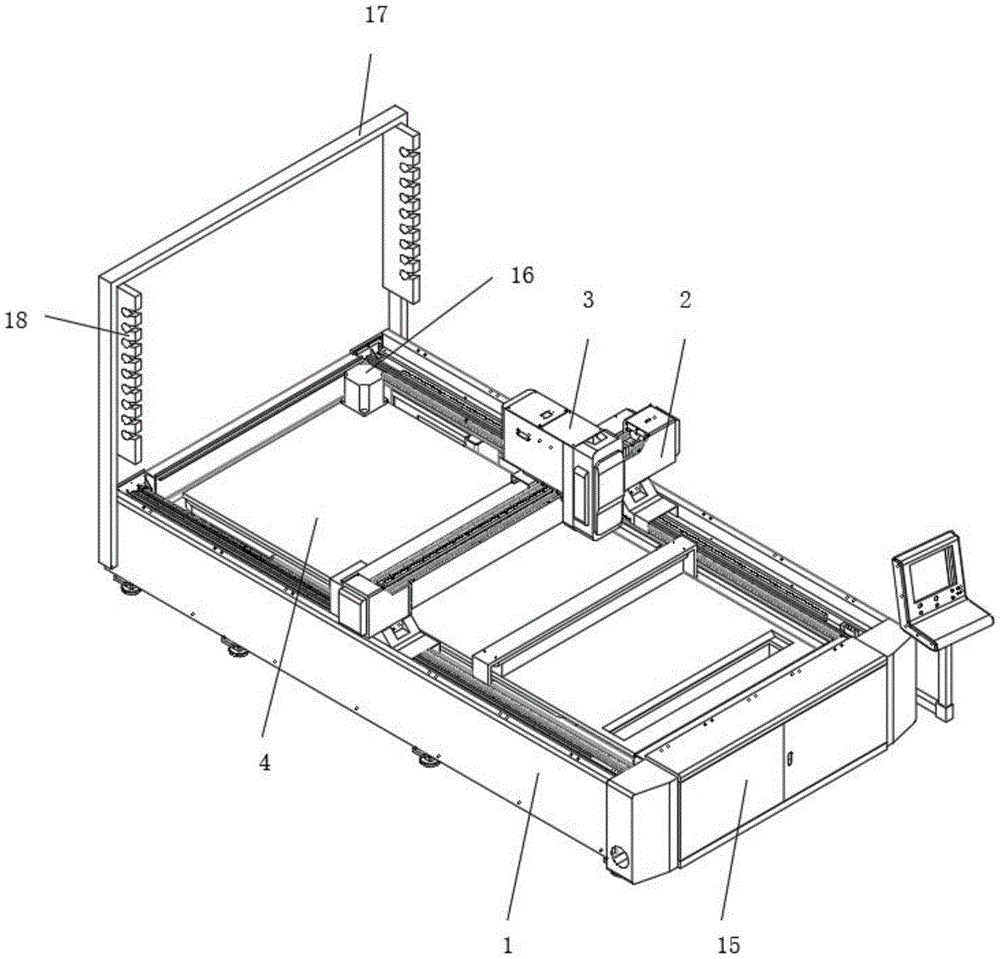

Fig. 1 is the three-dimensional structure schematic diagram of the present utility model;

Fig. 2 is the structural representation of cleaning mechanism in the utility model;

Fig. 3 is the structural representation of the bottom of the table top in the utility model;

Fig. 4 is the structural representation of mesa in the utility model;

In the figure: 1. Laser cutting machine; 2. Rail frame; 3. Laser; 4. Table top; 5. Pulley; 6. Belt; 7. Slider; 8. Connector; 9. Slider; 11. Cleaning brush; 12. Discharging port; 13. Discharging bin; 14. Collecting trough; 15. Machine door; 16. Motor;

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example

Please refer to Figs. 1-4, the utility model provides the following technical solutions: a cutting device, including a laser cutting machine 1, a rail frame 2 and a laser 3, a rail frame 2 is arranged above the laser cutting machine 1, and the upper end of the rail frame 2 A laser 3 is provided, and a table top 4 is fixed inside the laser cutting machine 1. Four belt pulleys 5 arranged in a rectangular shape are arranged at the bottom of the table top 4, and a belt 6 is connected between the four pulleys 5. Both sides of the laser cutting machine 1 A slide frame 7 is slidably connected between the inner walls, and the slide frame 7 is located below the table top 4. The outer wall of the belt 6 is fixed with a connecting piece 8, and the bottom of the connecting piece 8 is rotatably connected with a slide block 9. Between the two sides of the top of the slide frame 7 A horizontal frame 10 is fixed between them, and the horizontal frame 10 is located above the table top 4. A cleaning brush 11 is installed on the bottom of the upper end of the horizontal frame 10, and a motor 16 is fixedly installed on one side of the top of the table top 4, and the output end of the motor 16 is connected to one of them. The pulley 5 is fixedly connected. In this embodiment, the output end of the motor 16 drives one of the pulleys 5 to rotate, and drives the belt 6 to move with the cooperation of the other three pulleys 5. The belt 6 cooperates with the slider through the connector 8 9 drives the sliding frame 7 to reciprocate, and the sliding frame 7 drives the cleaning brush 11 to reciprocate through the horizontal frame 10, and then realizes that the cleaning brush 11 cleans the rags on the surface of the table top 4.

Specifically, a discharge port 12 is provided inside the front end of the table top 4, and a discharge bin 13 is fixed on the bottom front end of the table top 4, and a collecting tank 14 is slidably connected to the inside of the discharge bin 13. In this embodiment, the cleaning brush 11 will The rags on the table top 4 are swept to the discharge port 12, and fall into the collection tank 14 inside the discharge bin 13 through the discharge port 12 for collection.

Specifically, both sides of the front end of the laser cutting machine 1 are hinged to connect the organic door 15. In this embodiment, by opening the machine door 15, the internal collecting tank 14 can be extracted from the inside of the discharge bin 13, and the inside of the collecting tank 14 Collect scraps for disposal.

Specifically, the four corners of the cleaning brush 11 are fixedly connected to the horizontal frame 10 through bolts. In this embodiment, the cleaning brush 11 can be disassembled, which is convenient for replacement after long-term use and wear.

Specifically, a vertical frame 17 is fixedly connected between both sides of the rear end of the laser cutting machine 1, and groove frames 18 are fixed on the inner walls of both sides of the vertical frame 17. In this embodiment, the cloth wound on the shaft can be placed on the Between the groove frames 18 on both sides.

Specifically, the slider 9 is slidingly connected inside the slider 7. In this embodiment, when the belt 6 moves, the slider 9 is driven by the connecting piece 8 to slide the slider 7. When the slider 7 slides to the front end or the rear end , the belt 6 drives the slider 9 to slide along the inside of the slider 7 to the other side through the connector 8, and then the belt 6 drives the slider 7 to slide back through the connector 8 and the slider 9, thereby realizing the reciprocating motion of the slider 7 .

The working principle and application process of the utility model: when the cloth on the laser cutting machine 1 remains a large amount of broken cloth after cutting, the output end of the motor 16 drives one of the pulleys 5 to rotate, and the other three pulleys 5 rotate Cooperate to drive the belt 6 to move. When the belt 6 moves, the slider 9 is driven by the connecting piece 8 to slide. When the slider 7 slides to the front end or the rear end, the belt 6 drives the slider 9 along the Slide the inside of the carriage 7 to the other side, and then the belt 6 drives the carriage 7 to slide back through the connecting piece 8 and the slider 9, thereby realizing the reciprocating motion of the carriage 7, and at the same time the carriage 7 drives the cleaning brush through the horizontal frame 10 11 reciprocates, and then realizes that the cleaning brush 11 cleans the rags on the surface of the table 4; the rags on the table 4 are cleaned to the discharge port 12 through the cleaning brush 11, and fall into the discharge bin 13 through the discharge port 12 Collect the inside of the collection tank 14; finally open the door 15 to extract the internal collection tank 14 from the inside of the discharge bin 13, and process the scraps collected in the collection tank 14.

Finally, it should be noted that: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model, although the utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principles of the present utility model shall be included in the protection scope of the present utility model.

Claims (6)

1. The utility model provides a cutting device, includes laser cutter (1), guide rail frame (2) and laser instrument (3), its characterized in that: the top of laser cutter (1) is equipped with guide rail frame (2), the upper end of guide rail frame (2) is equipped with laser instrument (3), the inside of laser cutter (1) is fixed with mesa (4), the bottom of mesa (4) is equipped with four band pulleys (5) that are the rectangle and arrange, four be connected with belt (6) between band pulley (5), sliding connection has balladeur train (7) between laser cutter (1) both sides inner wall, and balladeur train (7) are located the below of mesa (4), the outer wall of belt (6) is fixed with connecting piece (8), the bottom of connecting piece (8) is rotated and is connected with slider (9), be fixed with crossbearer (10) between the top both sides of balladeur train (7), and crossbearer (10) are located the top of mesa (4), clearance brush (11) are installed to the upper end bottom of crossbearer (10), top one side fixed mounting of mesa (4) has motor (16), and the output and one of motor (16) band pulley (5) fixed connection.

2. A cutting device according to claim 1, characterized in that: the utility model discloses a material storage bin, including mesa (4), mesa (4) have been seted up to the front end inside bin outlet (12), the front end bottom of mesa (4) is fixed with row material storehouse (13), the inside sliding connection of arranging material storehouse (13) has material collecting tank (14).

3. A clipping device according to claim 1, wherein: the two sides of the front end of the laser cutting machine (1) are rotatably connected with a machine door (15) through hinges.

4. A cutting device according to claim 1, characterized in that: four corners of the cleaning brush (11) are fixedly connected with the cross frame (10) through bolts.

5. A clipping device according to claim 1, wherein: fixedly connected with grudging post (17) between the rear end both sides of laser cutter (1), the both sides inner wall of grudging post (17) is fixed with truss (18).

6. A cutting device according to claim 1, characterized in that: the sliding block (9) is positioned in the sliding frame (7) and is connected in a sliding manner.
