Abstract

An adjustable prone position fixation device provided by an embodiment of the utility model relates to the technical field of medical surgical instruments. The adjustable prone position fixation device includes a support unit integrated with the hospital bed and a fixation unit installed inside the support unit for supporting and fixing the user in the prone position. The fixation unit is movably installed inside the support unit. After using the fixing unit to fix the user, if you need to carry down the prone person on the upper end, you can open the engaging assembly at the corresponding position, rotate the rotating frame inside the rotating tank, and then rotate the engaging plate to separate the engaging plate from the fixing of the positioning rod , since the positioning rod on the other side is limited by the engaging groove, the fixing plate can be rotated around the fixed positioning rod, and the user who is fixed at the upper end can be turned over easily, and the user after anesthesia can be easily lifted from the fixing plate move out.

Description

An adjustable prone position fixation device

technical field

The utility model relates to the technical field of medical surgical instruments, in particular to an adjustable prone position fixing device.

Background technique

It is generally believed that anesthesia is a kind of reversible functional inhibition of the central nervous system and (or) peripheral nervous system produced by drugs or other methods. The main feature of this inhibition is the loss of sensation, especially pain sensation. Anesthesia means numbness and numbness, and drunk means intoxication and coma. Therefore, the meaning of anesthesia is to use drugs or other methods to temporarily deprive the patient of the whole or part of the sensation, so as to achieve the purpose of painless surgical treatment. Anesthesiology is a science that uses basic theories, clinical knowledge and techniques related to anesthesia to eliminate surgical pain, ensure patient safety, and create favorable conditions for surgery. Among them, clinical anesthesia is the main part of modern anesthesiology. Generally, before the operation, the patient needs to be anesthetized. During the anesthesia, the patient is sometimes required to be anesthetized in a prone position.

In the prior art (the application number is CN202022682129.9, and the patent name is a Chinese invention patent application for a special position pad for prone position surgery that is convenient to fix.), through the prone position pad, knee joint pad, foot joint pad, and head pad The unique material characteristics greatly improve the antibacterial properties and avoid the infection caused by sweat and blood stains. At the same time, because these materials have excellent softness and support performance, they have compression resistance and shock absorption properties, which can maximize the distribution of pressure and improve comfort. . In the process of realizing the technical solution, the inventor found that at least the following problems existed in the prior art:

After the patient is anesthetized in the prone position, it is often inconvenient for the patient to move, requiring medical staff to carry the patient to the hospital bed. During the transportation, several medical staff need to work together, and the operation is relatively inconvenient.

Utility model content

The purpose of this utility model is to provide an adjustable prone position fixing device, which can solve the problem that patients are often inconvenient to move, and medical personnel need to carry the patient to the sick bed. During the transportation, several medical personnel need to cooperate together, and the operation is relatively inconvenient The problem.

The utility model provides an adjustable prone position fixing device, comprising:

A support unit, the support unit includes a fixed bracket and a snap-fit component installed on the edge of the fixed bracket, and a connecting component is arranged at the lower end of the fixed bracket;

A fixing unit, the fixing unit includes a fixing plate and a support pad installed on the top of the fixing plate, and a first positioning frame and a second positioning frame are respectively arranged on both sides of the supporting pad.

In a specific embodiment, positioning rods are provided on both sides of the fixing plate, and the positioning rods are threaded and movably mounted on both sides of the fixing plate.

In a specific embodiment, a placing frame is provided on the inner side of the fixing bracket, and a mounting frame is installed on the upper end of the fixing bracket.

In a specific embodiment, the engaging assembly includes an engaging plate that is movably installed inside the installation frame, and one side of the lower end of the engaging plate is provided with an engaging groove, and the engaging groove matches the size of the positioning rod .

In a specific embodiment, a swivel frame is movably installed on the upper end of the fixed bracket, and the swivel frame is rotatably installed inside the fixed bracket; inside the swivel tank.

In a specific embodiment, the connecting assembly includes a connecting frame and a limit frame installed inside the connecting frame, an adjusting bolt is installed through the inside of the connecting frame, and the adjusting bolt is movably installed inside the connecting frame, And one end of the adjusting bolt is threadedly installed inside the fixing bracket.

In a specific embodiment, moving grooves are provided on both sides of the fixing plate, and a fixing belt is movably installed inside the moving groove, and an arc frame is arranged on one side of the fixing belt.

In a specific embodiment, both sides of the fixing belt are provided with a mounting frame and fastening bolts movably installed inside the mounting frame, and the fastening bolts are movably mounted inside the moving slot.

In a specific embodiment, the components of the first positioning frame and the second positioning frame are the same, and the first positioning frame and the second positioning frame include a storage frame and a fastening belt movably installed on the upper end of the storage frame .

In a specific embodiment, a holding rod is provided on one side of the storage frame of the first positioning frame, and the holding rod is threadedly mounted on an upper surface of one end of the storage frame.

The embodiment of the utility model provides an adjustable prone position fixing device. After the user is fixed by the fixing unit, if it is necessary to carry down the prone person at the upper end, the engaging assembly at the corresponding position can be opened, and the inside of the rotating groove can be rotated. Rotate the frame, and then rotate the locking plate, so that the locking plate is separated from the fixing of the positioning rod. Since the positioning rod on the other side is limited by the locking groove, the fixed plate can be rotated around the fixed positioning rod, and the upper end can be fixed conveniently. The user turns over to facilitate the anesthetized user to be removed from the top of the fixing plate.

Description of drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the following drawings will be briefly introduced in the embodiments. It should be understood that the following drawings only show some embodiments of the present invention. Therefore, it should not be regarded as a limitation on the scope. For those skilled in the art, other related drawings can also be obtained according to these drawings without creative work.

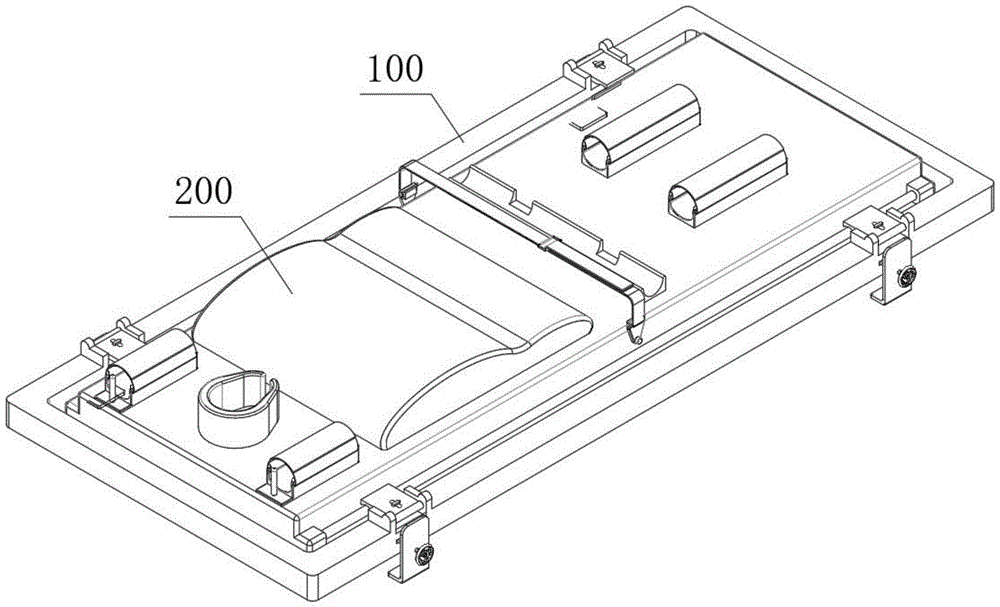

Figure 1 is a schematic diagram of the overall structure of an embodiment of the utility model.

Fig. 2 is a schematic structural diagram of a support unit in an embodiment of the present invention.

Fig. 3 is a schematic diagram of the enlarged structure at A in Fig. 2 of the embodiment of the present invention.

Fig. 4 is a schematic structural diagram of the fixing unit of the embodiment of the present invention.

Fig. 5 is a schematic structural diagram of the connection assembly of the embodiment of the present invention.

Fig. 6 is a schematic structural diagram of the first positioning frame according to the embodiment of the present invention.

Icons: 100-support unit; 110-fixed bracket; 111-placement frame; 112-installation frame; 113-rotation frame; -connection assembly; 131-connecting frame; 132-limiting frame; 133-adjusting bolt; 200-fixing unit; 210-fixing plate; 211-positioning rod; Frame; 231-receiving frame; 232-fastening belt; 233-holding bar; 240-second positioning frame; 250-fixing belt;

Detailed ways

After the patient is anesthetized in the prone position, it is often inconvenient for the patient to move, requiring medical staff to carry the patient to the hospital bed. During the transportation, several medical staff need to work together, and the operation is relatively inconvenient. Therefore, the inventor provided an adjustable prone position fixing device after research. After the user is fixed by the fixing unit, if the person who is prone at the upper end needs to be carried down, the engaging assembly at the corresponding position can be opened, and the inside of the rotating tank can be rotated. Then rotate the locking plate, so that the locking plate is separated from the fixing of the positioning rod. Since the positioning rod on the other side is limited by the locking groove, the fixed plate can be rotated around the fixed positioning rod, and the upper end can be conveniently moved. The fixed user is turned over to facilitate the anesthetized user to be removed from the top of the fixing plate, thereby solving the above-mentioned defects.

Below in conjunction with the accompanying drawings, some embodiments of the present utility model will be described in detail. In the case of no conflict, the following embodiments and features in the embodiments can be combined with each other.

Please refer to Fig. 1 to Fig. 5, the embodiment of the present utility model provides an adjustable prone position fixation device, including a support unit 100 integrated with the hospital bed and a support unit 100 installed inside the support unit The fixed unit 200 is supported and fixed, and the fixed unit 200 is movably installed inside the supporting unit 100 .

The support unit 100 includes a fixing bracket 110 for connecting with the operating bed and a snap-fit component 120 installed on the edge of the fixing bracket 110 for fixing. The connection assembly 130.

The fixing unit 200 includes a fixing plate 210 for supporting the user and a support pad 220 installed on the upper end of the fixing plate 210 for supporting the chest and abdomen of the user. Position-limiting positioning rod 211, the positioning rod 211 is threaded and installed on both sides of the fixed plate 210, and the two sides of the support pad 220 are respectively provided with a first positioning frame 230 and a first positioning frame 230 for fixing the user's hands and legs. The second positioning frame 240 .

The inner side of the fixing bracket 110 is provided with a placing frame 111 for placing the fixing plate 210 , and the upper end of the fixing bracket 110 is installed with a mounting frame 112 for installing the engaging assembly 120 .

The engaging assembly 120 includes a rotating engaging plate 121 that is movably installed inside the mounting frame 112, and one side of the lower end of the engaging plate 121 is provided with an engaging groove 122 for fixing the positioning rod 211, and the engaging groove 122 and the positioning rod 211 are matched in size, and the upper end of the fixed bracket 110 is movably installed with a swivel frame 113 for fixing the engaging plate 121. The rotating frame 113 is rotatably installed inside the fixed bracket 110, and the upper end of the engaging plate 121 is provided with a rotating groove 123. The rotating frame 113 is movably installed in rotating groove 123 insides.

After using the fixing unit 200 to fix the user, if it is necessary to carry down the prone person on the upper end, the engaging assembly 120 at the corresponding position can be opened, the rotating frame 113 inside the rotating groove 123 can be rotated, and then the engaging plate 121 can be rotated to make the engaging plate 121 breaks away from the fixation of the positioning rod 211. Since the positioning rod 211 on the other side is limited by the engaging groove 122, the fixed plate 210 can be rotated around the fixed positioning rod 211, and the user who is fixed at the upper end can be easily turned over to the , it is convenient to remove the anesthetized user from the upper end of the fixing plate 210, and the connecting frame 131 provided on the side of the fixing bracket 110 can fix the fixing bracket 110 and the edge of the hospital bed, thereby preventing the fixing bracket 110 from rotating when the fixing plate 210 inside Following the rotation of the fixing plate 210, the fixing bracket 110 is installed more stably.

Please refer to FIG. 4 and FIG. 6 , the connecting assembly 130 includes a connecting frame 131 for snap-fitting with the hospital bed and a limiting frame 132 installed inside the connecting frame 131 for limiting the connecting frame 131 . The connecting frame 131 An adjusting bolt 133 for adjusting the connecting frame 131 is installed through the inside of the connecting frame 131 . The adjusting bolt 133 is movably installed inside the connecting frame 131 , and one end of the adjusting bolt 133 is threadedly installed inside the fixed bracket 110 .

Both sides of the fixing plate 210 are provided with moving slots 212, and the inside of the moving slots 212 is movably installed with fixing straps 250 for fixing and supporting the patient's legs. The mounting frame 251 and the fastening bolts 252 that are movably installed inside the mounting frame 251 for fixing the mounting frame 251 are movably installed inside the moving groove 212. Or the arc frame 260 that knee position is supported.

The components of the first positioning frame 230 and the second positioning frame 240 are the same, and the first positioning frame 230 and the second positioning frame 240 include a storage frame 231 for placing hands and legs and a storage frame 231 that is movably installed on the storage frame 231 upper end. For the fastening belt 232 that is fastened to the hands and legs, the fastening belt 232 and the fixing belt 250 are all parts made of nylon material, and are fixed by Velcro. The storage frame 231 side of the first positioning frame 230 A grip rod 233 is provided to facilitate the user to grip, and the grip rod 233 is threadedly mounted on an upper surface of one end of the storage frame 231 .

When using the fixing plate 210 to fix the human body, the knee of the prone person can be limited by the arc-shaped arc frame 260 to avoid slipping, and it can be fixed with the fixing belt 250. When fixing the upper person, use the storage frame 231 and the fastening belt 232 fix the prone personnel to avoid the disturbance of the patient affecting the anesthesia operation during the anesthesia operation. At the same time, a grip bar 233 is set on the upper end of the storage rack 231 at the head to facilitate the prone personnel to move after holding it To the appropriate position, it is more convenient to use.

To sum up, in the adjustable prone position fixing device of the embodiment of the present invention, after fixing the user with the fixing unit 200, if it is necessary to remove the person who is lying on the upper end, the engaging assembly 120 at the corresponding position can be opened and rotated. Rotate the rotating frame 113 inside the groove 123, and then rotate the engaging plate 121 to make the engaging plate 121 break away from the fixing of the positioning rod 211. Since the positioning rod 211 on the other side is limited by the engaging groove 122, it can surround the fixed positioning The rod 211 rotates the fixing plate 210 , so that the user whose upper end is fixed can be easily turned over, and the anesthetized user can be removed from the upper end of the fixing plate 210 conveniently.

The above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. For those skilled in the art, the present utility model can have various modifications and variations. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model shall be included in the protection scope of the present utility model.

Claims (10)

1. An adjustable prone position fixation device, characterized in that it comprises: A support unit, the support unit includes a fixed bracket and a snap-fit component installed on the edge of the fixed bracket, and a connecting component is arranged at the lower end of the fixed bracket; A fixing unit, the fixing unit includes a fixing plate and a support pad installed on the top of the fixing plate, and a first positioning frame and a second positioning frame are respectively arranged on both sides of the supporting pad. 2 . The adjustable prone position fixation device according to claim 1 , wherein positioning rods are provided on both sides of the fixing plate, and the positioning rods are threaded and movably mounted on both sides of the fixing plate. 3 . 3 . The adjustable prone position fixation device according to claim 2 , wherein a placing frame is arranged on the inner side of the fixing bracket, and a mounting bracket is installed on the upper end of the fixing bracket. 4 . 4. An adjustable prone position fixation device according to claim 3, characterized in that, the engaging assembly includes an engaging plate movably installed inside the installation frame, and a lower end of one side of the engaging plate is provided with an engaging Groove, the engaging groove matches the size of the positioning rod. 5. A kind of adjustable prone position fixing device according to claim 4, characterized in that, the upper end of the fixed bracket is movably installed with a swivel frame, and the swivel frame is rotatably installed inside the fixed bracket, and the clamping plate is A rotating slot is opened through the upper end, and the rotating frame is movably installed inside the rotating slot. 6. An adjustable prone position fixation device according to claim 5, characterized in that, the connection assembly includes a connecting frame and a limit frame installed inside the connecting frame, and the inside of the connecting frame is installed with an adjustable Bolts, the adjusting bolts are movably installed inside the connecting frame, and one end of the adjusting bolts is threaded inside the fixed bracket. 7. A kind of adjustable prone position fixation device according to claim 6, it is characterized in that, the both sides of described fixation plate are provided with moving groove, the inside of described moving groove is movably installed with fixed belt, the fixed belt of described fixed belt One side is provided with a curved frame. 8. A kind of adjustable prone position fixing device according to claim 7, characterized in that, the two sides of the fixing belt are provided with a mounting frame and fastening bolts movably installed inside the mounting frame, and the fastening bolts The activities are installed inside the mobile tank. 9. The adjustable prone position fixing device according to claim 8, wherein the components of the first positioning frame and the second positioning frame are the same, and the first positioning frame and the second positioning frame include The storage rack and the fastening belt are movable on the upper end of the storage rack. 10. The adjustable prone position fixation device according to claim 9, wherein a holding rod is provided on one side of the storage frame of the first positioning frame, and the holding rod is threadedly mounted on the storage frame. surface on one end.
