Abstract

The utility model discloses a maintenance device for intelligent high-voltage power distribution control with a leakage protection mechanism, which belongs to the field of electric power technology and includes maintenance equipment and a protective box. The maintenance equipment includes a leakage circuit breaker and a leakage protection switch. Installed inside the protective box to prevent the maintenance equipment from being directly exposed to the outside world, and improve the protection effect on the maintenance equipment. At the same time, through the cooperation of insulation components, waterproof mechanisms and moisture-proof components, it can further strengthen the intelligent high-voltage power distribution with leakage protection mechanism. The leakage protection effect of the overhaul device for treatment solves the problem of poor leakage protection effect of the original intelligent high-voltage power distribution overhaul device with a leakage protection mechanism. The support frame can provide support for the waterproof board, so that the drainage tank can The rainwater on the surface of the waterproof board is quickly diverted, and the waterproof effect of the protective box on the maintenance equipment is enhanced.

Description

A maintenance device for intelligent high-voltage power distribution management with a leakage protection mechanism

technical field

The utility model relates to the technical field of electric power, in particular to a maintenance device for intelligent high-voltage power distribution control with a leakage protection mechanism.

Background technique

Electricity is an energy source powered by electric energy. It is a power production and consumption system composed of power generation, power transmission, power transformation, power distribution, and power consumption. Transformation and distribution supply electricity to various consumers, so it needs to be constantly overhauled during the distribution process.

The existing leakage protection maintenance device for intelligent high-voltage power distribution control reduces the leakage protection effect of the maintenance device for intelligent high-voltage power distribution control, which makes the maintenance device for intelligent high-voltage power distribution control easily affected by rain and humidity, so that Leakage occurs in the maintenance device, which reduces the protective effect of the maintenance device for intelligent high-voltage power distribution management.

Utility model content

The purpose of the utility model is to provide a maintenance device for intelligent high-voltage power distribution control with a leakage protection mechanism, which enhances the leakage protection effect of the maintenance device for intelligent high-voltage power distribution control, improves the waterproof and moisture-proof effect, and greatly reduces The leakage situation of the maintenance device for intelligent high-voltage power distribution control is analyzed to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a maintenance device for intelligent high-voltage distribution management with a leakage protection mechanism, including maintenance equipment and a protective box, the maintenance equipment includes a leakage circuit breaker and a leakage protection switch, the The leakage circuit breaker is arranged on the top of the leakage protection switch, the leakage circuit breaker and the leakage protection switch are located in the inner cavity of the protective box, the inner cavity of the protective box is provided with an insulating component, and the maintenance equipment is located on the top of the insulating component, The top of the protective box is provided with a waterproof mechanism, the inner cavity of the protective box is provided with a moisture-proof assembly, and the front of the protective box is hinged with a door.

Preferably, the insulating assembly includes an insulating plate, the insulating plate is located in the inner cavity of the protective box, the top of the insulating plate is bolted to the bottom of the leakage protection switch, and the top of the insulating plate is plugged with plastic One side of the plastic rod is attached to the outer wall of the maintenance equipment, and the other side of the plastic rod is attached to the inner wall of the protective box.

Preferably, the waterproof mechanism includes a support frame, the support frame is radial, the top of the support frame is bolted with a waterproof board, and the surface of the waterproof board is sequentially provided with drainage grooves from front to back.

Preferably, ventilation holes are provided at the relative positions on both sides of the top of the protective box, dust-proof nets are embedded in the inner cavity of the ventilation holes, and cooling grooves are arranged on the two side walls of the protective box in an array. The top of the inner cavity of the protective box is bolted with an exhaust fan used in conjunction with the heat dissipation groove and the ventilation hole.

Preferably, the moisture-proof assembly includes a moisture-proof film, the moisture-proof film is bonded to the inside of the protective box, the outer walls of the protective box and the door are all coated with moisture-proof paint, and the inner cavity of the protective box is fixed around A drying box is connected, and the inner cavity of the drying box is filled with desiccant.

Preferably, a sealing strip is bonded to the inner wall of the box door, the surface of the sealing strip is attached to the surface of the protective box, and a glass plate is embedded on the surface of the box door.

Preferably, support blocks are bolted around the bottom of the protective box, and reminder slogans are glued on the surface of the box door.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model provides a maintenance device for intelligent high-voltage power distribution management with a leakage protection mechanism. By installing the maintenance equipment inside the protective box, it avoids the direct exposure of the maintenance equipment to the outside world, and improves the protection effect on the maintenance equipment. At the same time, through the cooperation of insulating components, waterproof mechanisms and moisture-proof components, the leakage protection effect of the maintenance device for intelligent high-voltage distribution control with leakage protection mechanism can be further strengthened, and the original intelligent high-voltage distribution control with leakage protection mechanism can be solved. The leakage protection effect of the maintenance device is poor.

2. The utility model provides a maintenance device for intelligent high-voltage power distribution management with a leakage protection mechanism. Through the function of the insulating plate and the plastic rod, it can provide support and limit function for the maintenance equipment, and at the same time improve the insulation effect of the maintenance equipment. The supporting frame can provide support for the waterproof board, so that the rainwater on the surface of the waterproof board can be quickly diverted through the drainage groove, and the waterproof effect of the protective box on the maintenance equipment is enhanced.

Description of drawings

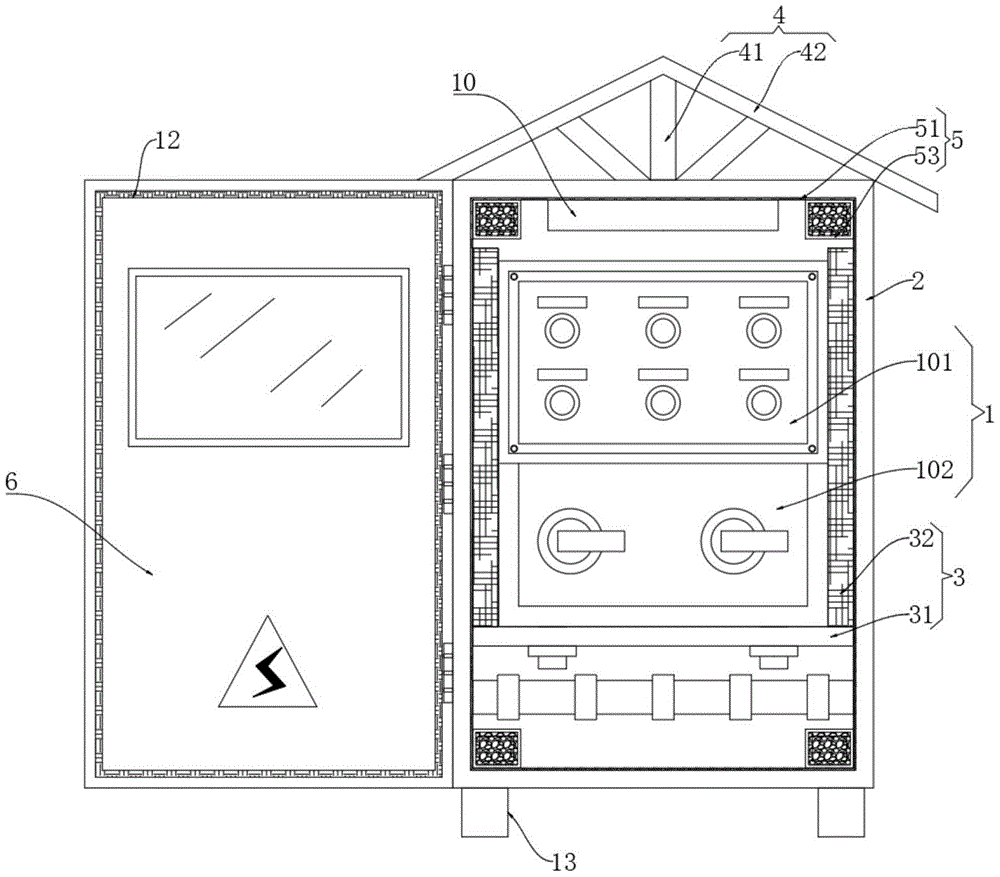

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is a front perspective view of the protective box structure of the present utility model;

Fig. 3 is a bottom perspective view of the protective box structure of the present utility model;

Fig. 4 is a partial cross-sectional view of the structure of the moisture-proof film, the moisture-proof paint and the protective box of the present invention.

Labels in the figure: 1. Overhaul equipment; 101. Leakage circuit breaker; 102. Leakage protection switch; 2. Protection box; 3. Insulation component; 31. Insulation board; 32. Plastic rod; 4. Waterproof mechanism; 41. Support frame ;42, waterproof board; 43, drainage groove; 5, moisture-proof component; 51, moisture-proof film; 52, moisture-proof coating; 53, drying box; 6, box door; 7, ventilation hole; 8, dust-proof net; Groove; 10, exhaust fan; 11, sealing strip; 12, glass plate; 13, support block.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides a maintenance device for intelligent high-voltage distribution control with a leakage protection mechanism as shown in Figures 1 to 4, including maintenance equipment 1 and a protective box 2, and the maintenance equipment 1 includes a leakage circuit breaker 101 and a leakage protection switch 102, the leakage circuit breaker 101 is set on the top of the leakage protection switch 102, the leakage circuit breaker 101 and the leakage protection switch 102 are located in the inner cavity of the protective box 2, the inner cavity of the protective box 2 is provided with an insulating component 3, and the maintenance equipment 1 is located in the insulating component 3, the top of the protective box 2 is provided with a waterproof mechanism 4, the inner cavity of the protective box 2 is provided with a moisture-proof component 5, and the front of the protective box 2 is hinged with a box door 6. The interior prevents the maintenance equipment 1 from being directly exposed to the outside world, and improves the protection effect on the maintenance equipment 1. At the same time, through the cooperation of the insulation component 3, the waterproof mechanism 4 and the moisture-proof component 5, the intelligent high-voltage distribution with leakage protection mechanism can be further strengthened. The leakage protection effect of the maintenance device for power management solves the problem of poor leakage protection effect of the original intelligent high-voltage power distribution maintenance device with a leakage protection mechanism.

Insulation assembly 3 comprises insulation board 31, and insulation board 31 is positioned at the inner chamber of protective box 2, and the top of insulation board 31 is bolted with the bottom of earth leakage protective switch 102, and the periphery of insulation board 31 top is all plugged with plastic rod 32, and plastic One side of the rod 32 is bonded to the outer wall of the maintenance equipment 1, and the other side of the plastic rod 32 is bonded to the inner wall of the protective box 2. Through the effect of the insulating plate 31 and the plastic rod 32, the maintenance device 1 can be provided with a limited support. position effect, and at the same time improve the insulation effect of the maintenance equipment 1, the waterproof mechanism 4 includes a support frame 41, the support frame 41 is radial, the top of the support frame 41 is bolted with a waterproof plate 42, and the surface of the waterproof plate 42 is sequentially provided with The drainage groove 43 can provide support to the waterproof board 42 by setting the support frame 41, thereby the rainwater on the surface of the waterproof board 42 can be quickly diverted through the drainage groove 43, and the waterproof effect of the protective box 2 on the maintenance equipment 1 is enhanced.

Ventilation holes 7 are provided at the symmetrical positions on both sides of the top of the protective box 2, and the inner cavity of the ventilation holes 7 is embedded with a dust-proof net 8, and the two side walls of the protective box 2 are arranged in an array with cooling grooves 9, and the protective box 2 The top of the inner cavity is bolted with an exhaust fan 10 used in conjunction with the cooling groove 9 and the ventilation hole 7, which can dissipate heat inside the protective box 2, speed up the heat dissipation inside the protective box 2, and enhance the dustproof inside the protective box 2 Effect.

Moisture-proof assembly 5 comprises moisture-proof film 51, and moisture-proof film 51 is bonded in the inside of protective box 2, and the outer wall of protective box 2 and box door 6 is all coated with moisture-proof coating 52, and the periphery of protective box 2 inner cavity is all fixedly connected with drying Box 53, the cavity of the drying box 53 is filled with desiccant, which can dry the inside of the protective box 2, preventing the excessive moisture inside the protective box 2 from affecting the leakage protection of the maintenance equipment 1.

The inner wall of the box door 6 is bonded with a sealing strip 11, the surface of the sealing strip 11 is bonded to the surface of the protective box 2, and the surface of the box door 6 is embedded with a glass plate 12, which strengthens the sealing of the protective box 2 and is convenient for use The person checks the operation of the maintenance equipment 1 inside the protective box 2 through the glass plate 12.

All four sides of protective case 2 bottoms are bolted with support block 13, and the surface of chamber door 6 is bonded with prompt slogan, has improved vigilance to the user, and does not touch at will.

During specific use, the maintenance equipment 1 with leakage protection is placed inside the protective box 2, then the box door 6 is closed, the sealing of the protective box 2 is strengthened by the effect of the sealing strip 11, and the waterproof plate 42 avoids the Rainwater falls into the inside of the protective box 2 through the ventilation hole 7, and then through the effect of the moisture-proof film 51, it can reduce the moisture from the outside to enter the inside of the protective box 2. Even if there is a moisture problem inside the protective box 2, it can pass through the exhaust fan 10 and the ventilation hole 7 The role of air circulation, combined with the use of desiccant, can quickly solve the moisture problem of the protective box 2, thereby improving the moisture-proof effect of the protective box 2, so that the maintenance equipment 1 improves the leakage protection effect.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides an intelligent high voltage distribution administers with overhauing device with earth leakage protection mechanism, is including overhauing equipment (1) and protective housing (2), its characterized in that: overhaul equipment (1) and include earth leakage circuit breaker (101) and earth leakage protection switch (102), earth leakage circuit breaker (101) set up in the top of earth leakage protection switch (102), earth leakage circuit breaker (101) and earth leakage protection switch (102) are located the inner chamber of protective housing (2), the inner chamber of protective housing (2) is provided with insulating assembly (3), overhaul equipment (1) is located the top of insulating assembly (3), the top of protective housing (2) is provided with waterproofing mechanism (4), the inner chamber of protective housing (2) is provided with dampproofing subassembly (5), the front of protective housing (2) articulates through the hinge has chamber door (6).

2. The intelligent high-voltage distribution governance overhauling device with the leakage protection mechanism according to claim 1, wherein the overhauling device comprises: insulating subassembly (3) include insulation board (31), insulation board (31) are located the inner chamber of protective housing (2), the top of insulation board (31) and the bottom bolt of earth leakage protection switch (102), all peg graft all around at insulation board (31) top has plastics pole (32), the lateral wall laminating of one side and maintenance equipment (1) of plastics pole (32), the opposite side of plastics pole (32) and the inner wall laminating of protective housing (2).

3. The intelligent high-voltage distribution governance overhauling device with the leakage protection mechanism according to claim 1, wherein the overhauling device comprises: waterproof mechanism (4) are including support frame (41), support frame (41) are radial, the top bolt of support frame (41) has waterproof board (42), all seted up water drainage tank (43) in proper order after to in the past on the surface of waterproof board (42).

4. The intelligent high-voltage distribution governance overhauling device with the leakage protection mechanism according to claim 1, wherein the overhauling device comprises: ventilation hole (7) have all been seted up to the symmetrical position of protective housing (2) top both sides, the inner chamber in ventilation hole (7) inlays and is equipped with dust screen (8), the both sides wall of protective housing (2) is array distribution and has seted up radiating groove (9), exhaust fan (10) that the top bolt joint of protective housing (2) inner chamber used with radiating groove (9) and ventilation hole (7) cooperation.

5. The intelligent high-voltage distribution governance overhauling device with the leakage protection mechanism as claimed in claim 1, wherein: moisture-proof component (5) are including dampproofing membrane (51), dampproofing membrane (51) bond in the inside of guard box (2), the lateral wall of guard box (2) and chamber door (6) all scribbles and is equipped with dampproofing coating (52), equal fixedly connected with drying box (53) all around of guard box (2) inner chamber, the inner chamber packing of drying box (53) has the drier.

6. The intelligent high-voltage distribution governance overhauling device with the leakage protection mechanism as claimed in claim 1, wherein: the inner wall of chamber door (6) bonds and has sealing strip (11), the surface laminating of the surface of sealing strip (11) and guard box (2), the surface of chamber door (6) is inlayed and is equipped with glass board (12).

7. The intelligent high-voltage distribution governance overhauling device with the leakage protection mechanism as claimed in claim 1, wherein: supporting blocks (13) are bolted to the periphery of the bottom of the protective box (2), and prompt slogans are bonded to the surface of the box door (6).
