Abstract

The utility model discloses a detachable mother-in-law sofa, which relates to a schematic structural diagram of the sofa. Including a female sofa and a child sofa, the top and rear side of the female sofa are fixedly connected with a backboard, the top side of the female sofa is fixedly connected with a fixed armrest, the bottom four corners of the female sofa are fixedly connected with first support legs, and the female sofa is far away from the fixed armrest. One side is provided with a sub-sofa, and the top of the sub-sofa is provided with an adjusting armrest on the side away from the fixed armrest. The detachable sub-mother sofa is convenient to store the sub-sofa in the accommodation groove formed by the mother sofa, and can make the adjustment armrest of the sub-sofa form a shield on one side of the mother sofa, so as to cooperate with the fixed armrest of the mother sofa. Moreover, the height of the adjustable armrest and the fixed armrest are suitable for supporting the user's arm, and the movable backboard of the sub-sofa can be adjusted for storage.

Description

A detachable mother-in-law sofa

technical field

The utility model relates to a schematic structural diagram of a sofa, in particular to a detachable mother-in-law sofa.

Background technique

Sofa is a multi-seat chair with upholstery, a back chair with spring or thick foam plastic, etc. It is a kind of soft furniture. The origin of the sofa can be traced back to ancient Egypt around 2000 BC. With the development of society and the improvement of people's material living standards, the types of sofas produced by people are becoming more and more diverse.

A mother-son sofa with the publication number CN207400571U, on the one hand, the child sofa is stored in the mother sofa, which saves space and facilitates transportation; It is inconvenient, but the side armrests of the child sofa and the mother sofa are too high, and the child sofa is inconvenient to lean against, making it uncomfortable for users to use.

Utility model content

The utility model provides a detachable mother-in-law sofa to solve the problems in the background technology.

In order to achieve the above object, the utility model provides the following technical solutions: a detachable mother sofa, comprising a mother sofa and a child sofa, the rear side of the top of the mother sofa is fixedly connected with a backboard, the top of the mother sofa is a The side is fixedly connected with fixed armrests, the four corners of the bottom of the female sofa are fixedly connected with first support legs, the side of the female sofa away from the fixed armrests is provided with a sub-sofa, and the top of the sub-sofa is far away from the side of the fixed armrests Adjustable armrests are provided, the top of the sub-sofa is rotatably connected to a movable backing plate, and the four corners of the bottom of the sub-sofa are fixedly connected to the second support legs.

Further, the top of the sub-sofa is fixedly connected with a support plate at the rear side of the backboard.

Further, the side of the female sofa away from the fixed armrest is provided with a receiving slot, and the sub-sofa can be accommodated in the receiving slot after the movable backboard of the sub-sofa is rotated to be parallel to the seat plate of the sub-sofa.

Further, the length of the sub sofa is smaller than that of the mother sofa.

Further, the length of the sub sofa is smaller than that of the mother sofa.

Further, the top of the female sofa is provided with cushions, and the front side of the backboard is provided with cushions.

Compared with the prior art, the utility model provides a detachable sub-mother sofa, which has the following beneficial effects: the detachable sub-mother sofa is convenient for storing the sub-sofa in the accommodation groove formed by the mother sofa , and can make the adjustable armrest of the sub-sofa form a shield on one side of the mother sofa to cooperate with the fixed armrest of the mother sofa, and the height of the adjustable armrest and the fixed armrest is suitable for supporting the user's arm, and the movable backboard of the sub-sofa Adjustable storage.

Description of drawings

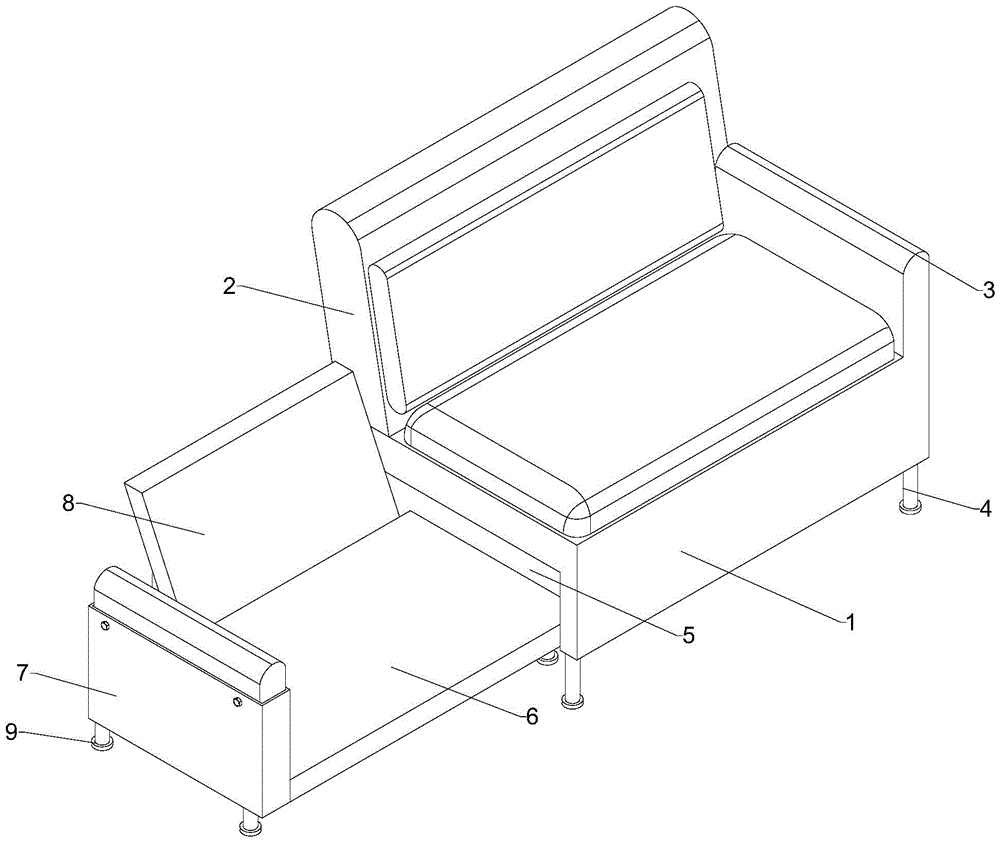

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a structural schematic diagram of the utility model under the storage of the movable leaning plate;

Fig. 3 is a structural schematic diagram of the sub-sofa under storage of the utility model.

In the figure: 1. Female sofa; 2. Back panel; 3. Fixed armrest; 4. First support leg; 5. Accommodating groove; 6. Child sofa; 7. Adjusting armrest; Supporting legs; 10, fixed frame; 11, movable board; 12, supporting board; 13, back cushion; 14, seat cushion.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-3, the utility model discloses a detachable mother sofa, comprising a mother sofa 1 and a child sofa 6, the top rear side of the mother sofa 1 is fixedly connected with a backboard 2, the mother sofa One side of the top of the sofa 1 is fixedly connected with a fixed armrest 3, and the four corners of the bottom of the female sofa 1 are fixedly connected with a first support leg 4, and the side of the female sofa 1 away from the fixed armrest 3 is provided with a sub-sofa 6. The side of the top of the sub-sofa 6 away from the fixed armrest 3 is provided with an adjustable armrest 7, the top of the sub-sofa 6 is rotatably connected with a movable backing plate 8, and the four corners of the bottom of the sub-sofa 6 are fixedly connected to the second support leg 9 .

Specifically, the top of the sub-sofa 6 is fixedly connected with a support plate 12 at the rear side of the backboard 2 . When the movable backboard 8 is rotated to the rear side direction of the sub sofa 6, the support plate 12 can support the movable backboard 8, and the maximum rotation angle of the movable backboard 8 is limited, so that the movable backboard 8 can make people lean on their backs.

Specifically, the side of the female sofa 1 away from the fixed armrest 3 is provided with a receiving groove 5, and the sub-sofa 6 can be accommodated in the sub-sofa 6 after the movable backboard 8 is rotated to be parallel to the sub-sofa 6 seat board. In the storage tank 5.

The height of the top of the support plate 12 is lower than the height of the top inner wall of the receiving tank 5. When the movable back plate 8 is rotated to be parallel to the top of the sub-sofa 6, the sofa body of the sub-sofa 6 can be accommodated in the receiving tank 5.

Specifically, the length of the sub sofa 6 is smaller than the length of the mother sofa 1 .

After the sofa body of the sub-sofa 6 can be accommodated in the accommodating groove 5, the adjusting armrest 7 on the top of the sub-sofa 6 can fit one side of the parent sofa body 1.

Specifically, the adjustable armrest 7 includes a fixed frame 10 and a movable plate 11, the fixed frame 10 is fixedly connected to the side of the sub-sofa 6 away from the fixed armrest 3, the fixed frame 10 has an opening at the top, and the movable plate 11 Slidingly arranged in the fixed frame 10 , the top of the fixed frame 10 away from the fixed handrail 3 is threaded with an adjusting bolt that can limit the movement of the movable plate 11 .

The surface of the fixed frame 10 is threaded to at least two adjusting bolts, and the adjusting bolts are tightened, and the adjusting bolts can be pressed against the limit movable plate 11, so that the movable plate 11 cannot limit the fixed frame 10 to lift, so that the height of the fixed frame 10 is limited .

Specifically, a seat cushion 14 is provided on the top of the female sofa 1 , and a back cushion 13 is provided on the front side of the backboard 2 .

The setting of seat cushion 14 and back cushion 13 makes female sofa 1 more comfortable to sit on.

To sum up, the detachable mother-son sofa, the detachable mother-son sofa, is convenient for storing the child sofa 6 in the accommodation groove 5 formed by the mother sofa 1, and can make the armrest of the child sofa 6 7. A shield is formed on one side of the female sofa 1 to cooperate with the fixed armrest 3 of the female sofa, and the height of the adjustable armrest 7 and the fixed armrest 3 is suitable for supporting the user's arm, and the movable backing plate 8 of the sub-sofa 6 can be adjusted Storage.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a removable primary and secondary sofa, includes primary sofa (1), its characterized in that: the utility model discloses a sofa, including female sofa (1), the top rear side fixedly connected with backplate (2) of female sofa (1), top one side fixedly connected with fixed handrail (3) of female sofa (1), the first supporting leg (4) of the equal fixedly connected with in bottom four corners of female sofa (1), one side that fixed handrail (3) were kept away from in female sofa (1) is provided with son sofa (6), one side that fixed handrail (3) were kept away from at the top of son sofa (6) is provided with adjusts handrail (7), the top of son sofa (6) is rotated and is connected with activity backup plate (8), the equal fixed connection second supporting leg (9) in bottom four corners position of son sofa (6).

2. The detachable child-mother sofa according to claim 1, wherein: the top of the sub sofa (6) is positioned at the rear side of the back plate (2) and is fixedly connected with a support plate (12).

3. The detachable child-mother sofa according to claim 2, wherein: one side of the mother sofa (1) far away from the fixed armrests (3) is provided with an accommodating groove (5), and the son sofa (6) can be accommodated in the accommodating groove (5) after the movable backup plate (8) rotates to be parallel to the seat plate of the son sofa (6).

4. A detachable sofa according to claim 3, wherein: the length of the child sofa (6) is smaller than that of the mother sofa (1).

5. A detachable sofa according to claim 3, wherein: adjust handrail (7) including fixed frame (10) and fly leaf (11), one side of fixed handrail (3) is kept away from at sub-sofa (6) top to fixed frame (10) fixed connection, fixed frame (10) open-top, fly leaf (11) slide and set up in fixed frame (10), one side top threaded connection who keeps away from fixed handrail (3) of fixed frame (10) has the adjusting bolt that can restrict fly leaf (11) activity.

6. The detachable child-mother sofa according to claim 1, wherein: the top of the female sofa (1) is provided with a cushion (14), and the front side of the back plate (2) is provided with a back cushion (13).
