Abstract

The utility model discloses a material conveying device for cryolite production which prevents side leakage, which comprises a fixed platform and a support seat. First chutes are fixedly installed on both sides of the bottom end of the fixed platform. The corner is fixedly connected with a support seat, the two sides of the top of the fixed table are fixedly installed with a fixed seat, and a fixed plate is fixedly connected between the fixed seats, and a drive motor is fixedly installed at one end of the fixed plate, and the drive motor The output end is movably connected with a drive belt. The anti-side leakage cryolite production material conveying device is equipped with the second fixed block and other parts. When the material is being conveyed, the two-way screw can be screwed. At this time, the two externally socketed baffle plates will move towards the middle. , so as to block the two ends of the material, prevent the material from leaking from the side, make the material in the process of conveying more smoothly, and solve the problem that the material is prone to side leakage during the conveying process.

Description

A material conveying device for cryolite production with anti-side leakage

technical field

The utility model relates to the technical field of cryolite transmission, in particular to a material transmission device for preventing side leakage of cryolite production.

Background technique

Cryolite is a mineral that is mainly used as a co-solvent for aluminum electrolysis. Cryolite needs to be conveyed during the production and processing process. In the past, the material conveying device for the production of cryolite that prevents side leakage is prone to side leakage during the transmission process. , resulting in insufficient applicability; inconvenient collection and treatment of waste materials; and inconvenient cleaning of the countertop in time, so it is necessary to improve a material transfer device for cryolite production that prevents side leakage.

Utility model content

The purpose of this utility model is to provide a material delivery device for cryolite production that prevents side leakage, so as to solve the problem that the material is prone to side leakage during the transmission process mentioned in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a material transfer device for cryolite production that prevents side leakage, including a fixed platform and a support seat, and a first chute is fixedly installed on both sides of the bottom end of the fixed platform, The four corners of the bottom end of the fixed table are fixedly connected with support seats, the two sides of the top of the fixed table are fixedly installed with fixed seats, the fixed seats are fixedly connected with a fixed plate, and one end of the fixed plate is fixedly installed There is a driving motor, the output end of the driving motor is movably connected with a transmission belt, the output end of the driving motor passes through the inside of one end of the fixed plate through the transmission shaft and is fixedly connected with a roller shaft, and a conveyor belt is arranged outside the roller shaft, A second chute is provided inside the fixing seat, a third chute is provided at the bottom end of the second chute, and a sleeve is provided inside the second chute.

Preferably, a baffle plate is arranged between one side of the sleeve, a second fixing block is fixedly connected to the other side of the sleeve, and sleeve rods are fixedly connected to both sides of the baffle plate.

Preferably, a connection block is provided inside the first chute, a connection seat is fixedly connected to the bottom end of the connection block, a collection box is fixedly connected between the connection seats, and one end of the collection box is fixedly connected to a As for the handle, the connecting block is embedded in the first slide groove and can slide.

Preferably, a threaded seat is fixedly installed on one side of the fixed seat, a two-way screw is arranged transversely inside the threaded seat, and the second fixing block is sleeved on the outside of the two-way screw.

Preferably, the sleeve rod is embedded in the sleeve to be rotatable, and there are two material baffles, and the material baffles are symmetrically distributed at both ends of one side of the fixing seat.

Preferably, a connecting rod is arranged transversely through the inside of the third chute, the bottom end of the connecting rod is fixedly connected with a connecting plate, the bottom end of the connecting plate is fixedly connected with a brush, and one of the connecting rods The side runs through the inside of the third chute and is fixedly connected with a third fixing block.

Compared with the prior art, the beneficial effect of the utility model is: the side leakage preventing cryolite production material conveying device not only prevents the side leakage of the material during the conveying process, but also facilitates the unified collection and treatment of waste materials, and realizes For easy cleaning of the countertop;

(1) By setting the second fixed block, two-way screw, second chute, sleeve, sleeve rod, material baffle, and threaded seat, when the material is being conveyed, the two-way screw can be screwed, and the external sleeve The two baffles will move towards the middle, so as to block the two ends of the material, prevent the material from leaking from the side, and make the material transfer more smoothly;

(2) By setting the collection box, handle, connection seat, first chute, and connection block, because the connection block is embedded in the first chute, the collection box can be pulled to the outside by the handle, and the cleaning time at the top , the waste will fall into the collection box, so that the waste can be collected and processed in a unified way. After use, just move the collection box to the original place;

(3) By providing the connecting rod, the third chute, the third fixing block, the connecting plate and the brush, since the connecting rod is embedded in the third chute, the connecting rod can be placed in the third chute by using the third fixing block. The inside of the chute moves, and during the movement, the brush at the bottom of the connecting plate can clean the waste rocks on the conveyor belt table, so that the conveyor belt can be cleaned in time.

Description of drawings

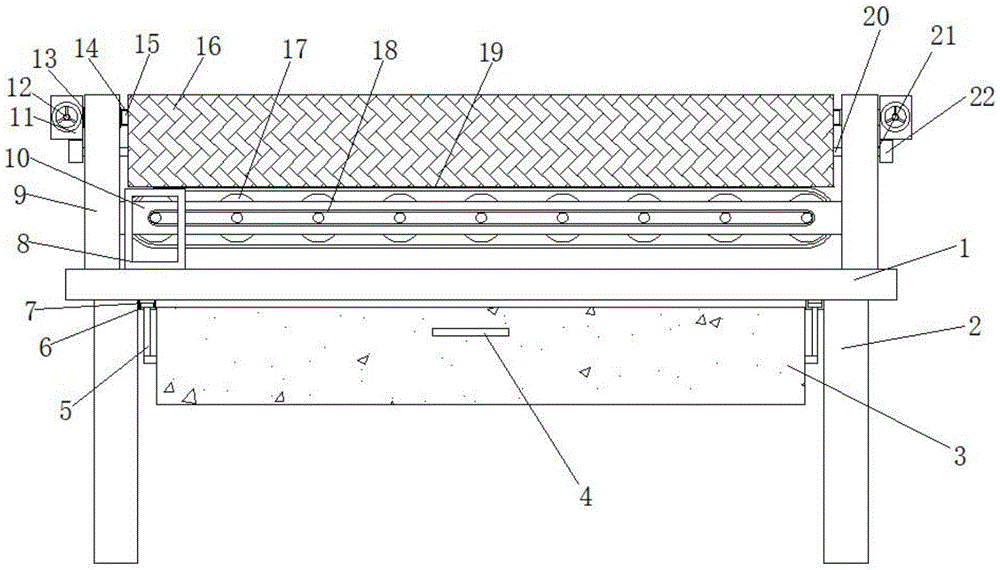

Fig. 1 is the front view sectional structure schematic diagram of the utility model;

Fig. 2 is a side view structural schematic diagram of the connection mode between the adjusting rod and the second fixed block of the present invention;

Fig. 3 is a schematic view of the front view of the connecting block and the first chute of the present invention;

Fig. 4 is a front structural schematic diagram of the connection mode between the brush and the connecting plate of the present invention.

In the figure: 1. Fixed table; 2. Support seat; 3. Collection box; 4. Handle; 5. Connecting seat; 6. First chute; 7. Connecting block; 8. Driving motor; 9. Fixed seat; 1, fixed plate; 11, second fixed block; 12, two-way screw; 13, second chute; 14, sleeve; , the conveyor belt; 20, the connecting rod; 21, the third chute; 22, the third fixed block; 23, the connecting plate; 24, the brush; 25, the threaded seat.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Embodiment 1: Please refer to Figures 1-4, a material transfer device for cryolite production that prevents side leakage, including a fixed platform 1 and a support seat 2, and a first chute 6 is fixedly installed on both sides of the bottom end of the fixed platform 1, The four corners of the bottom end of the fixed table 1 are fixedly connected with support bases 2, the two sides of the top of the fixed table 1 are fixedly installed with fixed bases 9, and the fixed bases 9 are fixedly connected with a fixed plate 10, and one end of the fixed plate 10 is fixedly installed with a Drive motor 8, the output end of drive motor 8 is movably connected with transmission belt 18, the output end of drive motor 8 runs through the interior of one end of fixed plate 10 through transmission shaft and is fixedly connected with roller shaft 17, and the outside of roller shaft 17 is provided with conveyor belt 19 , the inside of the fixed seat 9 is provided with a second chute 13, the bottom end of the second chute 13 is provided with a third chute 21, and the inside of the second chute 13 is provided with a sleeve 14;

A baffle plate 16 is arranged between one side of the sleeve 14, a second fixed block 11 is fixedly connected to the other side of the sleeve 14, and sleeve rods 15 are fixedly connected to both sides of the baffle plate 16;

One side of the fixed seat 9 is fixedly installed with a threaded seat 25, and the interior of the threaded seat 25 is provided with a two-way screw 12 transversely, and the second fixed block 11 is sleeved on the outside of the two-way screw 12;

Specifically, as shown in Figure 1 and Figure 2, when the material is being conveyed, the two-way screw 12 can be screwed, and at this time, the two baffle plates 16 on the outside will move towards the middle, thereby moving the two ends of the material The barrier prevents the material from leaking from the side, making the material transfer more smoothly.

Embodiment 2: The inside of the first chute 6 is provided with a connection block 7, the bottom end of the connection block 7 is fixedly connected with a connection seat 5, a collection box 3 is fixedly connected between the connection seats 5, and one end of the collection box 3 is fixedly connected with a The handle 4 and the connecting block 7 are embedded in the first chute 6 and can slide;

Specifically, as shown in Figure 1 and Figure 3, because the connection block 7 is embedded in the first chute 6, the collection box 3 can be pulled to the outside by using the handle 4, and the waste will fall into the top when cleaning. In the collection box 3, the waste debris can be conveniently collected and processed in a unified manner. After use, the collection box 3 can be moved to the original place.

Embodiment 3: The sleeve rod 15 is embedded in the sleeve 14 to be rotatable, and there are two baffle plates 16, and the baffle plates 16 are symmetrically distributed at both ends of one side of the fixed seat 9;

The inside of the third chute 21 is horizontally penetrated with a connecting rod 20, the bottom end of the connecting rod 20 is fixedly connected with a connecting plate 23, and the bottom end of the connecting plate 23 is fixedly connected with a brush 24, and one side of the connecting rod 20 runs through the third chute. The inside of the chute 21 is fixedly connected with a third fixed block 22;

Specifically, as shown in FIG. 1 , FIG. 2 and FIG. 4 , since the connecting rod 20 is embedded in the third chute 21 , the third fixing block 22 can be used to place the connecting rod 20 inside the third chute 21 Move, in the process of moving, the brush 24 at the bottom of the connecting plate 23 can clean the waste rocks on the conveyor belt 19 table, so that the conveyor belt 19 can be convenient to clear up in time.

Working principle: when the utility model is in use, firstly, turn on the driving motor 8, and drive the roller shaft 17 to rotate through the transmission shaft and the transmission belt 18. Two-way screw 12, at this time, the two baffle plates 16 on the outside will move towards the middle, so as to block the two ends of the material and prevent the material from leaking out from the side, so that the material can be conveyed more smoothly. The connecting rod 20 is embedded in the third chute 21, and the third fixing block 22 can be used to move the connecting rod 20 inside the third chute 21. During the movement, the brush 24 at the bottom of the connecting plate 23 The waste rocks on the conveyor belt 19 table surface can be cleaned, and then the material retaining plate 16 is turned over, and the waste rocks can fall into the inside of the collection box 3, so that the conveyor belt 19 can be cleaned in time. Finally, because the connecting block 7 is embedded in the first slide Inside the groove 6, the collection box 3 can be drawn to the outside by using the handle 4. When cleaning the top, the waste will fall into the collection box 3, so that the waste can be conveniently collected and processed in a unified way. Just move the collecting box 3 to the original place.

It is obvious to those skilled in the art that the present invention is not limited to the details of the above exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential features of the present invention. Therefore, no matter from all points of view, the embodiments should be regarded as exemplary and non-restrictive, and the scope of the present invention is defined by the appended claims rather than the above description, so it is intended to fall within the scope of the claims All changes within the meaning and range of equivalents of the required elements are included in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (6)

1. A material conveying device for cryolite production that prevents side leakage, including a fixed platform (1) and a support seat (2), characterized in that: the two sides of the bottom of the fixed platform (1) are fixedly installed with first slides Groove (6), the four corners of the bottom end of the fixed table (1) are fixedly connected with support seats (2), the two sides of the top of the fixed table (1) are fixedly installed with fixed seats (9), the fixed A fixed plate (10) is fixedly connected between the seats (9), and a drive motor (8) is fixedly installed on one end of the fixed plate (10), and a drive belt (18) is movably connected to the output end of the drive motor (8). ), the output end of the driving motor (8) passes through the inside of one end of the fixed plate (10) through the transmission shaft and is fixedly connected with a roller shaft (17), and the outside of the roller shaft (17) is provided with a conveyor belt (19), The inside of the fixed seat (9) is provided with a second chute (13), the bottom end of the second chute (13) is provided with a third chute (21), and the second chute (13) The inside is provided with a sleeve (14). 2. A side-leakage-proof cryolite production material conveying device according to claim 1, characterized in that: a baffle plate (16) is arranged between one side of the sleeve (14), and the sleeve (14) The other side of the barrel (14) is fixedly connected with a second fixed block (11), and the two sides of the baffle plate (16) are fixedly connected with sleeve rods (15). 3. A side leakage-proof cryolite production material conveying device according to claim 1, characterized in that: a connecting block (7) is arranged inside the first chute (6), and the connecting block The bottom end of (7) is fixedly connected with a connection seat (5), and a collection box (3) is fixedly connected between the connection seats (5), and one end of the collection box (3) is fixedly connected with a handle (4), The connecting block (7) is embedded in the first sliding groove (6) and can slide. 4. A material transfer device for cryolite production that prevents side leakage according to claim 2, characterized in that: one side of the fixed seat (9) is fixed with a threaded seat (25), and the threaded seat A two-way screw (12) is arranged transversely inside the (25), and the second fixing block (11) is sleeved on the outside of the two-way screw (12). 5. A side leakage-proof cryolite production material conveying device according to claim 2, characterized in that: the sleeve rod (15) is rotatable embedded in the sleeve (14), and the stopper There are two plates (16), and the baffle plates (16) are symmetrically distributed at both ends of one side of the fixing seat (9). 6. The side leakage-proof cryolite production material conveying device according to claim 1, characterized in that: a connecting rod (20) is arranged transversely through the inside of the third chute (21), and the The bottom end of the connecting rod (20) is fixedly connected with a connecting plate (23), the bottom end of the connecting plate (23) is fixedly connected with a brush (24), and one side of the connecting rod (20) runs through the third slide A third fixing block (22) is fixedly connected to the inside of the groove (21).
