Abstract

A live core mold includes a male mold and a female mold. The male mold is composed of an outer frame and a live core, the inner part of the outer frame is provided with a live core, the live core is provided with a raised mold pattern, and the female mold is provided with a pattern groove. The utility model relates to an embossing machine using a movable core mold, which includes a base, a fixed plate, a lower mold frame, an upper mold frame and two hydraulic cylinders. The top of the base is provided with a fixed plate, the bottom of which is provided with supporting legs, the base is provided with a lower mold frame, and the lower mold frame is provided with a male mold. An upper pressure bearing plate is arranged under the fixed plate, an upper mold frame is arranged on the bottom surface of the upper pressure bearing plate, and a female mold is arranged through the mold frame. A living core mold and an embossing machine using the abrasive tool described in the utility model have reasonable design and ingenious structure, realize the replacement of one mold with multiple cores to complete the production of one machine with multiple products, and the replacement of mold cores is simple and easy , The processing mold core is more economical and efficient than previous molds, which can effectively improve work efficiency and save production costs.

Description

Embossing die and embossing machine for thin-walled metal sheet live core

technical field

The utility model relates to embossing equipment, in particular to a live core mold and an embossing machine using the abrasive tool.

Background technique

At this stage, the molds used by common embossing machines on the market are female and male molds, one machine, one mold, one product. The embossing machine has the following technical defects in adopting the above-mentioned mold: the one, when changing the mold, the existing mold needs to be disassembled and replaced as a whole, which is troublesome and difficult to disassemble, and the efficiency is low. The second is to change the mold as a whole, the production period is long, the cost is high, the installation is difficult, and the economic benefit is low. The 3rd, in the process of embossing, the phenomenon that adopts existing mold to appear easily the phenomenon of sheet metal wrinkle. Fourth, the effective working surface of the existing mold is large, which affects the clarity of embossing and consumes more power for matching equipment, resulting in high production costs. Therefore, those skilled in the art provide a live core mold and an embossing machine using the abrasive tool, which have solved the above technical problems.

Utility model content

The purpose of this utility model is to overcome the deficiencies in the prior art, and provide a live core mold and an embossing machine using the abrasive tool, which has a reasonable design and an ingenious structure, breaking the traditional production mode of one mold and one product , realize the replacement of one mold with multiple cores to complete the production of multiple products in one machine. It is simple and easy to replace the mold core. Compared with the previous mold, the processing time of the mold core is shorter, the material is less, economical and efficient, which can effectively improve the work efficiency and save the production cost. .

A live core mold described in the utility model includes a male mold and a female mold. The male mold is composed of an outer frame and a movable core, and a movable core is provided inside the outer frame, and the two are closely fitted, and a protruding mold pattern is provided on the movable core, and the mold pattern The highest point of the surface is not higher than the blank-holder level of the outer frame. The female mold is provided with pattern grooves corresponding to the male and female patterns of the active core mold, and the overall size of the female mold corresponds to the male mold.

An embossing machine using a live core mold described in the utility model includes a base, a fixed plate, a lower mold frame, an upper mold frame and two hydraulic cylinders. A fixing plate is arranged above the base, and legs are arranged at the bottom thereof, and an embossing space is formed between the base and the fixing plate. On the base, that is, inside the embossing space, a lower mold frame is arranged, and a male mold is arranged on the lower mold frame.

The male mold is composed of an outer frame and a movable core, and a movable core is provided inside the outer frame, and the two are closely fitted, and a protruding mold pattern is provided on the movable core, and the mold pattern The highest point of the surface is not higher than the blank-holder level of the outer frame.

A hydraulic cylinder A is arranged below the base, and the piston rod of the hydraulic cylinder A passes through the base and the lower mold frame to connect with the active core to push the active core to move up and down.

The lower part of the fixed plate, that is, the upper part of the embossing space is provided with an upper pressure plate, the bottom surface of the upper pressure plate is provided with an upper mold frame, and the mold frame is provided with a mold that matches the male mold. The female mold is provided with pattern grooves corresponding to the positive and negative patterns of the active core mold on the female mold, and the overall size of the female mold corresponds to the male mold.

A hydraulic cylinder B is arranged on the fixed plate, and the piston rod of the hydraulic cylinder B passes through the fixed plate and is fixedly connected with the upper pressure bearing plate to push the upper pressure bearing plate to move up and down.

The beneficial effects of the utility model are as follows: firstly, to replace the mould, the worker only needs to control the lower oil cylinder to eject the living core of the mould, which is easy to disassemble, convenient and fast. Second, the structure of the mold as a living core fully reduces the production and processing period and material cost of the mold, and increases economic benefits. The third is that during the embossing process, the live core mold can prevent the metal plate from wrinkling and increase the aesthetics of the embossing. Fourth, the effective working surface of the live core mold is small, which can improve the definition of embossing and reduce the power of supporting equipment, further reducing production costs.

Description of drawings

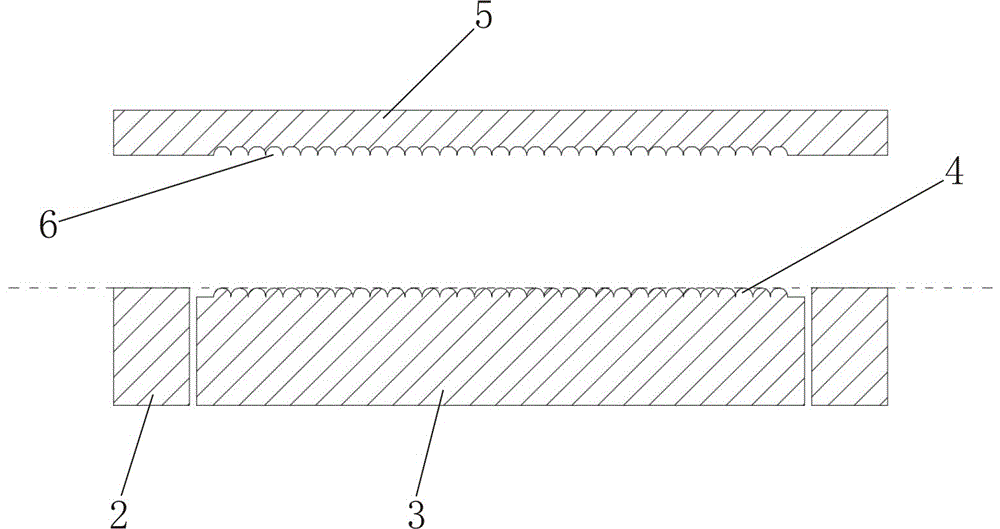

Fig. 1 is a structural schematic diagram of a living core mold described in the utility model.

Fig. 2 is a structural schematic diagram of an embossing machine using a live core mold according to the utility model.

1—male mold 2—outer frame 3—live core 4—mold pattern 5—female mold 6—pattern groove 7—base 8—fixed plate 9—leg 10—lower mold frame 11—hydraulic cylinder A 12—upper pressure Plate 13—hydraulic cylinder B14—rail support column 15—guiding rod 16—upper mold frame.

Detailed ways

Referring to Fig. 1 , in conjunction with specific embodiments, the description is as follows: A live core mold according to the utility model includes a male mold 1 and a female mold 5 . The male mold 1 is composed of an outer frame 2 and a live core 3. The inner part of the outer frame 2 is provided with a live core 3, and the two are closely fitted. The live core 3 is provided with a protruding mold Pattern 4, the highest point on the surface of the mold pattern 4 is not higher than the blank holder level of the outer frame 2. The female mold 5 is provided with pattern grooves 6 corresponding to the female and male of the mold pattern 4 , and the overall size of the female mold 5 corresponds to the male mold 1 .

With reference to Fig. 2, in conjunction with specific embodiment, explain as follows: A kind of embossing machine of application live core mold described in the utility model includes base 7, fixed plate 8, lower mold frame 10, upper mold frame 16 and two hydraulic cylinder. A fixing plate 8 is arranged above the base 7 , and a leg 9 is arranged at the bottom thereof, and an embossing space is formed between the base 7 and the fixing plate 8 . On the base 7 , that is, inside the embossing space, a lower mold frame 10 is arranged, and a male mold 1 is arranged on the lower mold frame 10 .

The male mold 1 is composed of an outer frame 2 and a live core 3. The inner part of the outer frame 2 is provided with a live core 3, and the two are closely fitted. The live core 3 is provided with a protruding mold Pattern 4, the highest point on the surface of the mold pattern 4 is not higher than the blank holder level of the outer frame 2.

The bottom of the base 7 is provided with a hydraulic cylinder A11, and the piston rod of the hydraulic cylinder A11 passes through the base 7 and the lower mold frame 10 and is connected with the core 3 to push the core 3 to move up and down.

Below the fixed plate 8, that is, an upper pressure bearing plate 12 is arranged on the upper part of the embossing space, and an upper mold frame 16 is arranged on the bottom surface of the upper pressure bearing plate 12, and a mold frame 16 is arranged on the bottom surface of the upper pressure bearing plate 12, and a The female mold 5 matched with the male mold 1 is provided with pattern grooves 6 corresponding to the male and female patterns of the mold pattern 4 , and the overall size of the female mold 5 corresponds to the male mold 1 .

The fixing plate 8 is provided with a hydraulic cylinder B13, and the piston rod of the hydraulic cylinder B13 passes through the fixing plate 8 and is connected with the upper bearing plate 12 to push the upper bearing plate 12 to move up and down.

The working principle of an embossing machine using a live core mold described in the utility model: first place the metal plate in the embossing space, that is, put it on the male mold 1 . Then start the hydraulic cylinder B13, and the hydraulic cylinder B13 promotes the female mold 5 to move downward by the upper pressure plate 12 and the upper mold frame 16 during the stretching process. The female mold 5 moves down always until the metal plate on the male mold 1 is compacted. Since the male mold 1 adopts a split-type combined structure, the female mold 5 compacts the metal plate through the outer frame 2 of the male mold 1, that is to say, the mold pattern 4 of the live core 3 is only in contact with the metal plate at this time. Core 3 did not initiate substantial embossing. After the metal plate is compacted, the hydraulic cylinder A11 is automatically turned on. During the stretching process, the hydraulic cylinder A11 will push the live core 3 of the male mold 1 to move upward, and the live core 3 will move up and start the embossing operation until it stops after the embossing is completed. The mold used by the embossing machine is a live core mold. In the above operation process, firstly, the metal plate is pressed and fixed through the cooperation between the female mold 5 and the outer frame 2 of the male mold 1, so as to prevent the metal plate from being embossed later. Wrinkles appear during the process. Then, during specific embossing operations, it is only necessary to push the live core 3 of the male die 1 through the hydraulic cylinder A11. During the entire embossing process, the metal plate will not wrinkle, and the active core structure of the male mold 1 can fully reduce the effective working area of the mold, improve the definition of embossing and reduce the power of supporting equipment. After the embossing of the previous batch of metal plates is completed, if the pattern of the next batch of metal plates needs to be replaced, the workers only need to replace the live core 3 and the female die 5 of the male mold 1, which is convenient and quick, and the labor intensity is low. Improve work efficiency.

Further, between the base 7 and the fixed plate 8, that is, in the embossing space, several guide rail support columns 14 are arranged along its periphery, the top of the guide rail support column 14 is connected with the fixed plate 8, and the bottom end of the guide rail support column 14 is connected with the fixed plate 8. The base 7 is connected. The side of the upper pressure bearing plate 12 is movably installed on the guide rail support column 14, which can ensure the direction when it moves up and down.

Further, the two sides of the upper mold frame 16 are respectively provided with guide rods 15 connected with the lower mold frame 10, and the upper mold frame 16 is arranged on the guide rods 15, which can further ensure the direction when it moves up and down.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (4)

1. A live core mold, including a male mold (1) and a female mold (5), characterized in that: the male mold (1) is composed of an outer frame (2) and a live core (3), and the outer The inner movable part of the frame (2) is provided with a live core (3), and the two are in close contact with each other. The live core (3) is provided with a protruding mold pattern (4), and the mold pattern (4) The highest point on the surface of the outer frame (2) is not higher than the blank holder level; the female mold (5) is provided with pattern grooves (6) corresponding to the male and female patterns of the mold pattern (4), and the female mold (5) The overall size corresponds to the male mold (1). 2. An embossing machine using a live core mold, including a base (7), a fixed plate (8), a lower mold frame (10), an upper mold frame (16) and two hydraulic cylinders, characterized in that: the A fixed plate (8) is provided above the base (7), and a leg (9) is provided at the bottom thereof, and an embossing space is formed between the base (7) and the fixed plate (8); the base (7) above, that is, a lower mold frame (10) is arranged inside the embossing space, and a male mold (1) is arranged on the lower mold frame (10); The male mold (1) is composed of an outer frame (2) and a live core (3), and the inner part of the outer frame (2) is provided with a live core (3), and the two are closely bonded, and the A protruding mold pattern (4) is provided on the live core (3), and the highest point of the surface of the mold pattern (4) is not higher than the blank-holding level of the outer frame (2); A hydraulic cylinder A (11) is arranged below the base (7), and the piston rod of the hydraulic cylinder A (11) passes through the base (7) and the lower mold frame (10) to connect with the live core (3), To push the live core (3) to move up and down; Below the fixed plate (8), that is, an upper pressure bearing plate (12) is movable on the upper part of the embossing space, and an upper mold frame (16) is arranged on the bottom surface of the upper pressure bearing plate (12). And through the mold frame, a female mold (5) matching with the male mold (1) is provided, and the female mold (5) is provided with pattern grooves (6) corresponding to the male and female of the mold pattern (4). The overall size of the mold (5) corresponds to the male mold (1); The fixed plate (8) is provided with a hydraulic cylinder B (13), and the piston rod of the hydraulic cylinder B (13) passes through the fixed plate (8) to connect with the upper pressure bearing plate (12) to push the upper pressure bearing Plate (12) moves up and down. 3. An embossing machine using a live core mold according to claim 2, characterized in that: between the base (7) and the fixed plate (8), that is, in the embossing space, it is set along its periphery There are several guide rail support columns (14), the top of the guide rail support column (14) is connected with the fixed plate (8), and the bottom end is connected with the base (7); the side of the upper pressure bearing plate (12) is movable It is installed on the guide rail support column (14) to ensure the direction when it moves up and down. 4. An embossing machine using a live core mold according to claim 2 or 3, characterized in that: the two sides of the upper mold frame (16) are respectively provided with Guide rod (15), the upper mold frame (16) is arranged on the guide rod (15), can guarantee the direction when it moves up and down.
