Abstract

The utility model provides a vibrating massage knee pad with switchable cold and hot modes. The vibrating massage knee pad with switchable hot and cold modes includes a knee pad; two connecting straps, the two connecting straps are fixedly connected to both sides of the knee pad; an arc cover, the arc cover is fixed on the One side of the connecting belt; a mounting pad, the mounting pad is fixedly connected to one side of the connecting belt; an arc-shaped pad, the arc-shaped pad is arranged on the knee pad; a heating pad, the heating pad is arranged on the mounting pad. The vibration massage knee pad provided by the utility model with switchable cooling and heating modes has the advantages of being convenient for switching between cooling and heating, and for convenient massage.

Description

A vibrating massage knee pad with switchable hot and cold modes

technical field

The utility model relates to the technical field, in particular to a vibrating massage knee pad with switchable cold and hot modes.

Background technique

Knee pads refer to an item used to protect people's knees. They have the functions of sports protection, cold protection, and joint maintenance. They are divided into sports knee pads and health care knee pads. They are suitable for athletes, middle-aged and elderly people, and patients with knee diseases. More and more people in daily life start to pay attention to the protection of knee joint at present, so more and more people have begun to use knee pads.

However, the existing electric massage knee pads have a single function and poor massage effect, and most of the massage knee pads only have a heating function, and they are prone to sweating when worn in the summer season. cause knee discomfort.

Therefore, it is necessary to provide a new cold and hot mode switchable vibration massage knee pad to solve the above-mentioned technical problems.

Utility model content

The technical problem solved by the utility model is to provide a vibrating massage knee pad with switchable cooling and heating modes which is convenient for hot and cold switching and massage.

In order to solve the above-mentioned technical problems, the vibration massage knee pad provided by the utility model which can switch between hot and cold modes includes: a knee pad; Cover, the arc-shaped cover is fixedly connected to one side of the connecting belt; installation pad, the installation pad is fixedly connected to one side of the connecting belt; arc-shaped pad, the arc-shaped pad is arranged on the knee pad on the pad; a heating pad, the heating pad is arranged on the installation pad; two fixing straps, both of the fixing straps are fixedly connected on the installation pad, and both of the fixing straps are in contact with the heating pad Two hooks, the two hooks are respectively fixed at one end of the two fixing straps, and the two hooks are made of plastic material; two clamping blocks, the two clamping blocks are respectively hung on the two on the hook; a ventilation mechanism, the ventilation mechanism is arranged on the arc-shaped cover; a massage mechanism, the massage mechanism is arranged on the knee pad and the arc-shaped pad.

Preferably, the ventilation mechanism includes a square box, a fan, a delivery pipe and a connecting pipe, the square box is fixedly installed on the arc-shaped cover, the fan is fixedly installed in the square box, and the delivery pipe is fixed Connected to the air outlet of the fan, the delivery pipe is fixedly connected to one side of the square box, the connecting pipe is fixedly connected to one end of the delivery pipe, and the connecting pipe is connected to the arc cover Pass.

Preferably, the massage mechanism includes an installation box, a vibration motor, an elastic plate, a plurality of massage bars and a plurality of springs, the installation box is fixedly installed on the knee pad, the vibration motor is arranged in the installation box, The elastic plate is arranged in the installation box, the bottom of the elastic plate is fixedly connected with the vibration motor, and a plurality of the massage bars are all slidably installed on the knee pad, the arc pad and the installation box The plurality of springs are slidably sleeved on the plurality of massage bars respectively, and the bottom ends of the plurality of springs are all fixedly connected with the tops of the elastic plates.

Preferably, a plurality of cooling holes are opened on the arc-shaped cover, and the plurality of cooling holes are located on both sides of the square box.

Preferably, an opening is opened on one side of the square box, and a filter plate is fixedly installed in the square box, and the filter plate is located on one side of the fan.

Preferably, two elastic bands are respectively arranged on the knee pad, the arc cover and the installation pad, and Velcro is arranged on a plurality of the elastic bands.

Compared with the related technology, the vibrating massage knee pad provided by the utility model with switchable hot and cold modes has the following beneficial effects:

The utility model provides a vibrating massage knee pad with switchable cooling and heating modes. The installation of the arc-shaped cover and the installation pad is facilitated by two connecting belts. The stability of the heating pad, two hooks and two blocks facilitate the reinforcement of the heating pad, and the heat generated between the arc cover and the legs can be quickly discharged through the ventilation mechanism, providing comfort for the knee pads, and the massage mechanism is convenient Press the knee part to loosen the knee part, thus replacing the manual massage. The massage is more convenient. At the same time, it can also switch the hot and cold functions back and forth. It is easy to discharge the temperature through multiple cooling holes, and it is easy to filter the air through the filter plate. Through the magic It is convenient to wrap and fix multiple elastic bands.

Description of drawings

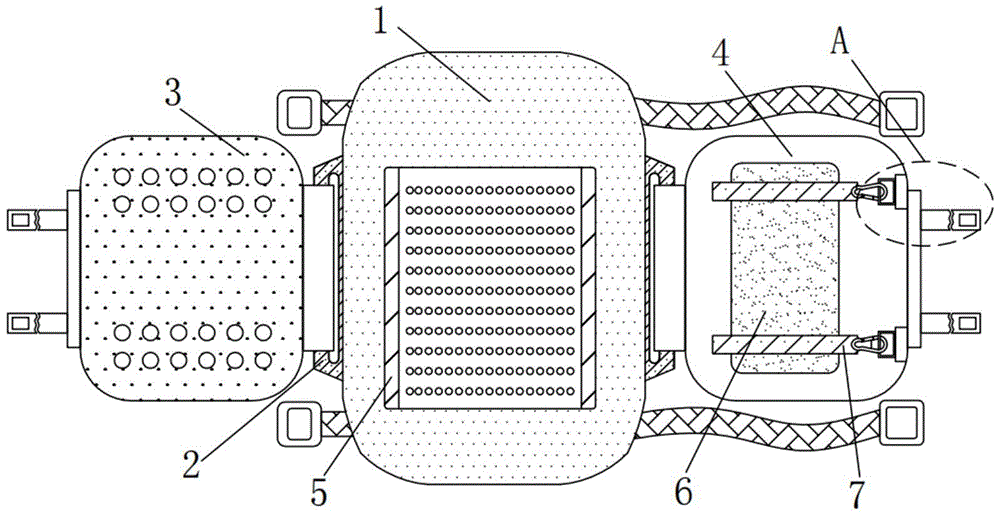

Fig. 1 is a structural schematic diagram of a preferred embodiment of the vibrating massage knee pad with switchable cooling and heating modes provided by the utility model;

Fig. 2 is a rear view structural schematic diagram of the arc-shaped cover in Fig. 1;

Fig. 3 is the enlarged structural representation of knee pad and arc pad in Fig. 1;

Fig. 4 is the enlarged structural representation of part A shown in Fig. 1;

FIG. 5 is an enlarged structural schematic diagram of part B shown in FIG. 1 .

Symbols in the figure: 1, knee pad; 2, connecting belt; 3, arc cover; 4, installation pad; 5, arc pad; 6, heating pad; 7, fixing belt; 8, hook; 9, clamping block; 10. Square box; 11. Fan; 12. Delivery pipe; 13. Connecting pipe; 14. Installation box; 15. Vibration motor; 16. Elastic plate; 17. Massage bar; 18. Spring.

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is further described.

Please refer to Fig. 1- and Fig. 5 in combination, wherein Fig. 1 is a structural schematic diagram of a preferred embodiment of the vibrating massage knee pad with switchable cooling and heating modes provided by the utility model; Fig. 2 is the arc-shaped cover in Fig. 1 Schematic diagram of rear view structure; Fig. 3 is a schematic diagram of enlarged structure of knee pad and arc pad in Fig. 1; Fig. 4 is a schematic diagram of enlarged structure of part A shown in Fig. 1; Fig. 5 is a schematic diagram of enlarged structure of part B shown in Fig. 1 schematic diagram. The vibrating massage knee pad with switchable hot and cold modes includes: knee pad 1; two connecting straps 2, the two connecting straps 2 are respectively fixedly connected to both sides of the knee pad 1; arc cover 3, the arc The cover 3 is fixedly connected to one side of the connecting belt 2; the installation pad 4 is fixedly connected to one side of the connecting belt 2; the arc pad 5 is arranged on the on the knee pad 1; a heating pad 6, the heating pad 6 is arranged on the installation pad 4; two fixing straps 7, the two fixing straps 7 are fixedly connected on the installation pad 4, and the two fixing straps 7 are fixedly connected to the installation pad 4. The fixing belts 7 are all in contact with the heating pad 6; two hooks 8 are respectively fixed on one end of the two fixing belts 7, and the two hooks 8 are made of plastic material; a block 9, two blocks 9 are respectively hung on the two hooks 8; a ventilation mechanism, the ventilation mechanism is arranged on the arc cover 3; a massage mechanism, the massage mechanism is arranged on the arc cover 3; On the knee pad 1 and the arc pad 5, two connecting straps 2 are used to facilitate the installation of the arc cover 3 and the installation pad 4, and the heating pad 6 on the arc cover 3 and the installation pad 4 is convenient for hot and cold switching. The two fixing straps 7 facilitate the stability of the heating pad 6 , and the two hooks 8 and two blocks 9 facilitate the reinforcement of the heating pad 6 .

The ventilation mechanism includes a square box 10, a fan 11, a delivery pipe 12 and a connecting pipe 13, the square box 10 is fixedly installed on the arc cover 3, the fan 11 is fixedly installed in the square box 10, The conveying pipe 12 is fixedly connected to the air outlet of the fan 11, the conveying pipe 12 is fixedly connected to one side of the square box 10, and the connecting pipe 13 is fixedly connected to one end of the conveying pipe 12, The connecting pipe 13 communicates with the arc-shaped cover 3, through the ventilation mechanism, the heat generated between the arc-shaped cover 3 and the legs can be quickly discharged, so as to provide comfort for the inside of the knee pad.

The massage mechanism includes an installation box 14, a vibration motor 15, an elastic plate 16, a plurality of massage bars 17 and a plurality of springs 18, the installation box 14 is fixedly installed on the knee pad 1, and the vibration motor 15 is arranged on In the installation box 14, the elastic plate 16 is arranged in the installation box 14, the bottom of the elastic plate 16 is fixedly connected with the vibration motor 15, and a plurality of the massage bars 17 are all slidably installed on the On the knee pad 1, the arc-shaped pad 5 and the installation box 14, a plurality of the springs 18 are respectively slidably sleeved on the plurality of massage bars 17, and the bottom ends of the plurality of springs 18 are all aligned with the elastic force. The top of the plate 16 is fixedly connected, and the massage mechanism is convenient for pressing the knee part and loosening the knee part, thereby replacing manual massage, which is more convenient for massage, and can also switch the hot and cold functions back and forth simultaneously.

The arc-shaped cover 3 is provided with a plurality of heat dissipation holes, and the plurality of heat dissipation holes are located on both sides of the square box 10, through which the temperature can be easily discharged.

One side of the square box 10 is provided with an opening, and a filter plate is fixedly installed in the square box 10, and the filter plate is located at one side of the fan 11, and the filter plate is used to facilitate air filtration.

The knee pad 1, the arc cover 3 and the mounting pad 4 are respectively provided with two elastic bands, and a plurality of elastic bands are provided with Velcro, which facilitates the wrapping and fixing of the plurality of elastic bands through the Velcro.

The working principle of the vibrating massage knee pad with switchable cold and hot modes provided by the utility model is as follows:

During use, wrap the knee pad 1 around the knee, make the curved pad 5 fit the knee, wrap the elastic band on the knee pad 1 around the leg, and then wrap the installation pad 4 around the rear part of the knee. Hold the heating pad 6 in contact with the skin. The heating pad 6 is subjected to changes in the temperature and pressure of the human body to generate heat and obtain a heating effect. Then start the vibration motor 15, which drives the elastic plate 16 to vibrate, and the elastic plate 16 drives multiple groups of springs 18 and multiple groups of massage bars 17 telescopically press the legs back and forth on the arc pad 5;

When wearing the knee pad 1 in summer, the legs feel uncomfortable because the package is easy to sweat, so you only need to switch the arc cover 3, and stick the installation pad 4 around the knee pad 1 on the knee pad 1, and then put the arc cover 3 is stuck around the legs, and when the temperature is generated during the wearing process, start the fan 11, and the fan 11 sucks the air into the square box 10, transports it to the connecting pipe 13 through the delivery pipe 12 and transfers it to the arc cover 3, the two legs The heat is emitted, and it is released from multiple cooling holes along with the inhaled air, and changing back and forth does not affect the massage of the knee.

Compared with the related technology, the vibrating massage knee pad provided by the utility model with switchable hot and cold modes has the following beneficial effects:

The utility model provides a vibrating massage knee pad with switchable cooling and heating modes, which facilitates the installation of the arc cover 3 and the installation pad 4 through two connecting belts 2, and the heating pad 6 on the arc cover 3 and the installation pad 4 is convenient for heating and cooling Switching, the two fixing belts 7 are convenient for the stability of the heating pad 6, the two hooks 8 and the two blocks 9 are convenient for the reinforcement of the heating pad 6, and the heat and temperature generated between the arc cover 3 and the legs are facilitated by the ventilation mechanism. Discharge, provide comfort for the inside of the knee pads, through the massage mechanism, it is convenient to press the knee part and loosen the knee part, thus replacing the manual massage, the massage is more convenient, and at the same time, it can switch back and forth between the hot and cold functions, and it is convenient through multiple cooling holes The temperature is discharged, the filter plate is convenient for air filtration, and the Velcro is convenient for wrapping and fixing multiple elastic bands.

It should be noted that the equipment structure and drawings of the utility model mainly describe the principle of the utility model. In terms of the technology of the design principle, the settings of the power mechanism, power supply system and control system of the device are not fully described clearly. On the premise that those skilled in the art understand the principles of the above-mentioned utility model, they can clearly know the details of its power mechanism, power supply system and control system.

The above descriptions are only examples of the utility model, and are not intended to limit the patent scope of the utility model. Any equivalent structure or equivalent process transformation made by using the utility model specification and accompanying drawings may be directly or indirectly used in other applications. Related technical fields are all included in the patent protection scope of the present utility model in the same way.

Claims (6)

1. A vibration massage knee pad with switchable cold and hot modes is characterized by comprising:

knee protection pads;

the two connecting belts are respectively and fixedly connected to two sides of the knee pad;

the arc cover is fixedly connected to one side of the connecting belt;

the mounting pad is fixedly connected to one side of the connecting band;

the arc-shaped pad is arranged on the knee pad;

a heating mat disposed on the mounting mat;

the two fixing belts are fixedly connected to the mounting pad and are in contact with the heating pad;

the two hooks are respectively fixed at one end of the two fixing belts and are made of plastic materials;

the two clamping blocks are respectively hung on the two hooks;

the ventilation mechanism is arranged on the arc cover;

and the massage mechanism is arranged on the knee protection pad and the arc pad.

2. The vibration massage knee pad capable of switching between a cold mode and a hot mode according to claim 1, wherein the ventilation mechanism comprises a square box, a fan, a delivery pipe and a connecting pipe, the square box is fixedly installed on the arc-shaped cover, the fan is fixedly installed in the square box, the delivery pipe is fixedly connected to an air outlet of the fan, the delivery pipe is fixedly connected to one side of the square box, the connecting pipe is fixedly connected to one end of the delivery pipe, and the connecting pipe is communicated with the arc-shaped cover.

3. The cold and hot mode switchable vibration massage knee pad according to claim 1, wherein the massage mechanism comprises a mounting box, a vibration motor, an elastic plate, a plurality of massage rods and a plurality of springs, the mounting box is fixedly mounted on the knee pad, the vibration motor is arranged in the mounting box, the elastic plate is arranged in the mounting box, the bottom of the elastic plate is fixedly connected with the vibration motor, the massage rods are slidably mounted on the knee pad, the arc pad and the mounting box, the springs are respectively slidably sleeved on the massage rods, and the bottom ends of the springs are fixedly connected with the top of the elastic plate.

4. The vibrating massage kneepad with switchable cold and hot modes according to claim 2, wherein said arc-shaped cover has a plurality of heat dissipation holes, and said heat dissipation holes are located on both sides of said square box.

5. The vibration massage kneepad with the switchable cold and hot modes according to claim 2, wherein an opening is arranged on one side of the square box, a filter plate is fixedly arranged in the square box, and the filter plate is positioned on one side of the fan.

6. The cold and hot mode switchable vibration massage knee pad according to claim 1, wherein two elastic belts are respectively arranged on the knee pad, the arc-shaped cover and the mounting pad, and a plurality of the elastic belts are provided with magic tapes.
