CN218483604U - Pest control device - Google Patents
Pest control device Download PDFInfo
- Publication number
- CN218483604U CN218483604U CN202223017172.9U CN202223017172U CN218483604U CN 218483604 U CN218483604 U CN 218483604U CN 202223017172 U CN202223017172 U CN 202223017172U CN 218483604 U CN218483604 U CN 218483604U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- pest
- control device
- insecticidal
- pest control
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Catching Or Destruction (AREA)
Abstract
The utility model discloses a pest control device belongs to pest control device technical field. The utility model comprises an insect killing box, the insect killing box comprises a bottom box and a top cover hinged on the top of the bottom box, and an insect killing mechanism is arranged inside the insect killing box; insecticidal mechanism includes fixed connection at the inside gathering board of under casing, and the gathering board sets up for sunken form, and the top fixedly connected with moth-killing lamp of top cap inner wall, the gas outlet of a plurality of equipartition is seted up on the surface of gathering board. The utility model discloses a set up insecticidal mechanism, the phototaxis of usable pest lures the pest to the inside of insecticidal case, later accessible atomizing piece with the insecticide atomizing and transmit to the gathering board top of pest gathering, compare in the current insecticidal mode of spraying the insecticide, thereby the insecticidal mode of luring the formula can all attract near the insect class to the inside of insecticidal case and exterminate the pest, accomplish the high efficiency and comprehensive killing to the pest.
Description
Technical Field
The utility model belongs to the technical field of the pest control device, specifically be a pest control device.
Background
In order to avoid injuring the apple trees by pests, fruit growers generally spray insecticide to the apple trees at regular time, but branches and leaves of the apple trees are large in size, and can block the insecticide to a certain extent when the insecticide is sprayed, so that the pests at partial positions of fruit trees cannot be killed, the insecticidal efficiency is low, the apple trees cannot be efficiently and comprehensively killed, the apple trees cannot be conveniently used by people, and the practicability is reduced.
Consequently, need design transformation to the pest control device to effectual branch and the leaf volume that prevents it from appearing the apple tree are all bigger, can carry out certain blockking to the insecticide when spraying the insecticide, thereby make the pest at fruit tree part position can't be killed, and insecticidal efficiency is not good, can not carry out the phenomenon of high-efficient and comprehensive insecticidal to the apple tree.
SUMMERY OF THE UTILITY MODEL
For solving the problem that proposes among the above-mentioned background art, the utility model aims to provide a pest control device possesses the advantage of high-efficient and comprehensive insecticidal, has solved can not carry out high-efficient and comprehensive insecticidal problem to the apple tree of the current insecticidal mode of spraying insecticide.
The utility model provides a following technical scheme: a pest control device comprises a pest killing box, wherein the pest killing box comprises a bottom box and a top cover hinged to the top of the bottom box, and a pest killing mechanism is arranged inside the pest killing box;
insecticidal mechanism includes the gathering board of fixed connection in the under casing inside, the gathering board sets up for sunken form, the top fixedly connected with moth-killing lamp of top cap inner wall, the gas outlet of a plurality of equipartition is seted up on the surface of gathering board, the intercommunication all around of under casing has the siphunculus of a plurality of equipartition, the inside packing of under casing has the insecticide, the bottom fixedly connected with water guide cotton of under casing inner wall, the water guide cotton quilt insecticide submergence, the cotton top laminating of water guide has the atomizing piece, the fixedly connected with go-between all around of atomizing piece, the connecting rod of the fixed surface of go-between connected with a plurality of equipartition, connecting rod and under casing fixed connection.
The top fixedly connected with ceiling of top cap, the top fixedly connected with solar energy power generation piece of ceiling, the inside bottom fixedly connected with battery of bottom case, the battery is connected with solar energy power generation piece and moth-killing lamp electricity nature.
The inner wall of siphunculus articulates there is the transparent plate, the transparent plate is closed with the siphunculus, the inner wall fixedly connected with of siphunculus is located the piece that blocks in the transparent plate outside, it laminates with the transparent plate to block.
The top of the gathering plate is fixedly connected with a net sheet.
The surface fixed connection of connecting rod has the gusset plate of a plurality of equipartition, gusset plate and under casing fixed connection, the concrete shape of gusset plate is triangle-shaped setting.
The bottom fixedly connected with peg graft pole of under casing, the bottom of peg graft pole is sharp-pointed setting.
The utility model has the advantages as follows:
1. the utility model discloses a set up insecticidal mechanism, the phototaxis of usable pest lures the pest to the inside of insecticidal case, and later accessible atomizing piece atomizes the insecticide and transmits to the gathering roof portion of pest gathering, compares in the current insecticidal mode that sprays the insecticide, thereby the insecticidal mode of luring the formula can all attract near the insect to the inside of insecticidal case and exterminate the pest, accomplishes the high efficiency and comprehensive killing to the pest.
2. The utility model discloses a set up ceiling, solar energy power generation piece and battery, make this device have the advantage of automatic electricity generation, reducible this device improves energy-conserving effect to occuping of public electric power.
Drawings

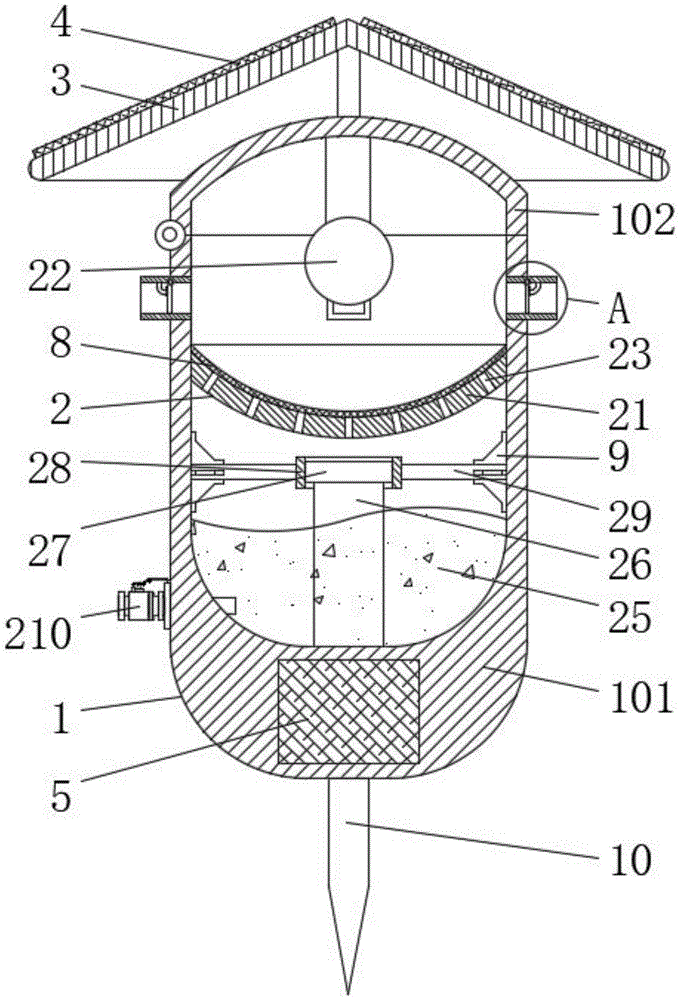

Fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is an enlarged view of a in fig. 1 according to the present invention.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
As shown in fig. 1 to 2, the pest control device of the present embodiment includes a pest killing box 1, the pest killing box 1 includes a bottom box 101 and a top cover 102 hinged on the top of the bottom box 101, and a pest killing mechanism 2 is disposed inside the pest killing box 1;
Referring to fig. 1, a ceiling 3 is fixedly connected to the top of a top cover 102, a solar power generation sheet 4 is fixedly connected to the top of the ceiling 3, a storage battery 5 is fixedly connected to the bottom inside a bottom case 101, and the storage battery 5 is electrically connected to the solar power generation sheet 4 and the trap lamp 22.
In the embodiment, the ceiling 3, the solar power generation sheet 4 and the storage battery 5 are arranged, so that the device has the advantage of automatic power generation, the occupation of the device on public power can be reduced, and the energy-saving effect is improved.
Referring to fig. 2, the inner wall of the through pipe 24 is hinged with a transparent plate 6, the transparent plate 6 is closed with the through pipe 24, the inner wall of the through pipe 24 is fixedly connected with a blocking piece 7 positioned outside the transparent plate 6, and the blocking piece 7 is attached to the transparent plate 6.
This embodiment makes this device have the condition that prevents the pest and escape through setting up transparent plate 6 and blockking piece 7 and takes place, can block the pest inside insecticidal case 1, avoids the pest to run out through siphunculus 24.
Referring to fig. 1, a mesh sheet 8 is fixedly connected to the top of the collecting plate 21.
This embodiment is through setting up net piece 8, makes this device have the advantage of bracketing the pest, avoids the pest to block up gas outlet 23, guarantees that gas outlet 23 can normally discharge atomizing insecticide 25.
Referring to fig. 1, a plurality of uniformly distributed reinforcing plates 9 are fixedly connected to the surface of the connecting rod 29, the reinforcing plates 9 are fixedly connected with the bottom box 101, and the specific shape of the reinforcing plates 9 is triangular.
This embodiment makes this device have the advantage of reinforced connection through setting up gusset plate 9, and usable triangle-shaped has the characteristic of stronger stability to support connecting rod 29 to guarantee connecting rod 29's stability, avoid connecting rod 29 to take place the phenomenon of rocking in the use.
Referring to fig. 1, a plug rod 10 is fixedly connected to the bottom of the bottom case 101, and the bottom of the plug rod 10 is sharp.
This embodiment makes this device have the advantage of convenient installation through setting up peg 10, can conveniently insert this device subaerial at the fruit forest, also can carry on spacingly to this device simultaneously, avoids this device to take place the phenomenon of displacement when using.
The insect attracting lamp 22 in the top cover 102 emits light through the electric power of the storage battery 5, the light is emitted through the through pipe 24, and then the insect is attracted, the phototaxis of the insect can be used for enabling the insect to enter the bottom box 101 through the through pipe 24, and further enabling the insect to gather at the top of the gathering plate 21, meanwhile, the water guide cotton 26 in the bottom box 101 can convey the insecticide 25 to the atomizing sheet 27 in the connecting ring 28, the insecticide 25 can be atomized through the atomizing sheet 27, then the atomized insecticide 25 can flow upwards to the top of the gathering plate 21 through the air outlet 23, so that the insect at the top of the gathering plate 21 can be killed, the insect in the fruit forest can automatically enter the insecticidal box 1 through the phototaxis of the insect attracting lamp, the light is far away from the transmission capacity of the light, and is visible in the air, particularly at night, and therefore, each light can attract the insect around the insect.
Claims (6)
1. A pest control device includes insecticidal case (1), its characterized in that: the insect killing box (1) comprises a bottom box (101) and a top cover (102) hinged to the top of the bottom box (101), and an insect killing mechanism (2) is arranged inside the insect killing box (1);
insecticidal mechanism (2) are including fixed connection at inside gathering board (21) of under casing (101), gathering board (21) are sunken form setting, top fixedly connected with moth-killing lamp (22) of top cap (102) inner wall, gas outlet (23) of a plurality of equipartition are seted up on the surface of gathering board (21), the intercommunication all around of under casing (101) has siphunculus (24) of a plurality of equipartition, the inside packing of under casing (101) has insecticide (25), the bottom fixedly connected with water guide cotton (26) of under casing (101) inner wall, water guide cotton (26) are by insecticide (25) submergence, the top laminating of water guide cotton (26) has atomizing piece (27), fixedly connected with go-between (28) all around of atomizing piece (27), connecting rod (29) of the fixed surface connection of go-between (28) a plurality of equipartition, connecting rod (29) and under casing (101) fixed connection.
2. A pest control device as claimed in claim 1, wherein: the top fixedly connected with ceiling (3) of top cap (102), the top fixedly connected with solar energy power generation piece (4) of ceiling (3), bottom fixedly connected with battery (5) of under casing (101) inside, battery (5) and solar energy power generation piece (4) and moth-killing lamp (22) electric connection.
3. A pest control device as claimed in claim 2, wherein: the inner wall of siphunculus (24) articulates there is transparent plate (6), transparent plate (6) are closed with siphunculus (24), the inner wall fixedly connected with of siphunculus (24) is located blockking piece (7) in transparent plate (6) outside, it laminates with transparent plate (6) to block piece (7).
4. A pest control device as claimed in claim 2 or claim 3, wherein: the top of the gathering plate (21) is fixedly connected with a net piece (8).
5. A pest control device as claimed in claim 4, wherein: the surface fixed connection of connecting rod (29) has gusset plate (9) of a plurality of equipartition, gusset plate (9) and under casing (101) fixed connection, the concrete shape of gusset plate (9) is the triangle-shaped setting.
6. A pest control device as claimed in claim 5, wherein: the bottom of the bottom box (101) is fixedly connected with an inserting rod (10), and the bottom of the inserting rod (10) is arranged in a sharp mode.
