Abstract

The application discloses a highly integrated solar street lamp based on an integrated structure, including a lamp base, the lamp base includes a housing, an installation bin and a cover are arranged on the housing, the cover is hinged to the housing, and a ventilation grill is provided on the cover , the inner side of the cover plate is provided with a heat conduction plate, the top of the heat conduction plate is provided with a battery, the bottom of the heat conduction plate is provided with a plurality of heat dissipation fins, both sides of the inside of the cover plate are provided with arc plates, and the arc plate is provided with arc Shaped track, both sides inside the installation compartment are provided with sliders. In the street lamp of this application, the solar panel and the battery are integrated at the lamp head. The integrated design improves the installation efficiency. The bottom of the heat conduction plate has cooling fins, which cooperate with the ventilation grille at the cover plate to make the heat dissipation effect of the battery good. The cover plate Hinged at the housing, it is limited by an arc-shaped plate with an arc-shaped track. When the cover plate is opened, the cover plate can be in a position parallel to the horizontal plane, so that it is convenient for maintenance personnel to maintain and replace the battery.

Description

A highly integrated solar street lamp based on an integrated structure

technical field

The utility model relates to the technical field of street lamps, in particular to a highly integrated solar street lamp based on an integrated structure.

Background technique

With the continuous strengthening of people's awareness of energy conservation, solar street lights are gradually used to replace traditional street lights powered by electricity because they use solar panels to absorb sunlight to generate electricity and use batteries to store energy, and will not pollute the environment when generating electricity. Street lamps do not need to lay underground cables, and are easy-to-install and environmentally friendly lighting equipment.

The batteries of existing solar street lamps can generally be installed underground, at the bottom of light poles, on the back of solar panels and at light poles. When installing batteries underground, professional construction manufacturers need to conduct on-site surveys. It is inconvenient. When the battery is installed at the bottom of the light pole, it is easy to be stolen. When the battery is installed on the back of the solar panel, the gravity of the solar panel will be increased. When the battery is installed at the light pole, a battery storage box needs to be installed, which increases the installation cost.

Utility model content

The utility model aims to overcome the defects of the prior art and provide a highly integrated solar street lamp based on an integrated structure.

In order to achieve the above object, the utility model provides the following technical solutions: a highly integrated solar street lamp based on an integrated structure, including a lamp holder, the lamp holder includes a shell, the top of the shell is provided with a solar panel, and the shell The body is provided with an installation bin with an opening at the bottom and a cover plate covering the opening, the cover plate is hinged with the housing, and the cover plate can be fixed on the bottom of the housing through a first bolt with a knob , the cover plate is provided with a ventilation grille, the inner side of the cover plate is provided with a plurality of support columns, the tops of the plurality of support columns are connected with the same heat conduction plate, and the top of the heat conduction plate is provided with a battery installation A battery is installed in the battery installation box, a plurality of heat dissipation fins are arranged on the bottom of the heat conducting plate, arc-shaped plates are arranged on both sides of the inside of the cover plate, and arc-shaped plates are arranged on the arc-shaped plate. shaped track, both sides of the inside of the installation warehouse are provided with sliders matching the arc track, the slider can slide at the arc track, and the end of the slider is provided with a section of Round limit block.

Preferably, the cover plate has a plurality of through holes matching the first bolts;

Preferably, the opening of the installation bin has a stepped portion, the cover plate is accommodated at the stepped portion, and the stepped portion has a plurality of threaded holes matching the first bolts;

Therefore, it is convenient to fix the cover plate at the housing.

Preferably, two protrusions are provided on both sides of the battery installation box, and the protrusions are connected to the heat conducting plate through second bolts;

Thereby, it is convenient to install the storage battery installation box.

Preferably, there are four support columns, and the four support columns are symmetrically distributed;

So as to play a stable support effect.

Preferably, the bottom of the housing has a lighting unit, the lighting unit includes a plurality of LED lamp beads, and the plurality of LED lamp beads are distributed in a rectangular array;

Thereby having a better lighting effect.

Preferably, the storage battery is in contact with the heat conducting plate, and a plurality of the heat dissipation fins are arranged in a straight line at equal intervals;

So that the battery has a better heat dissipation effect.

Beneficial effects: In the street lamp of this application, the solar panel and the storage battery are integrated at the lamp head, and the integrated design improves the installation efficiency. The bottom of the heat conduction plate has cooling fins, which cooperate with the ventilation grill at the cover plate, so that the cooling effect of the storage battery is good. , the cover plate is hinged at the housing, and its position is limited by an arc-shaped plate with an arc-shaped track. When the cover plate is opened, the cover plate can be in a position parallel to the horizontal plane, so that it is convenient for maintenance personnel to maintain and replace the battery.

Description of drawings

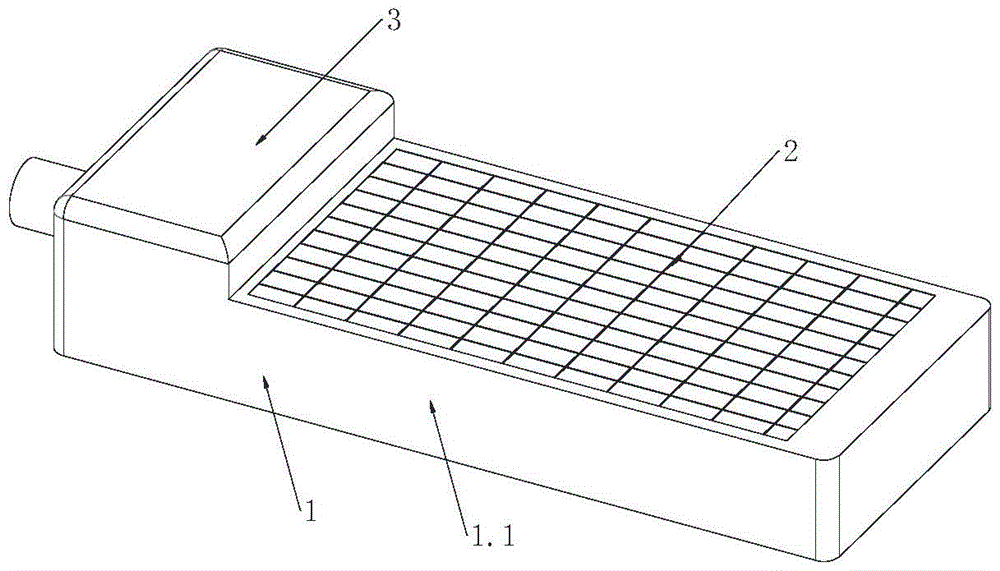

Fig. 1 is a schematic diagram of the first perspective of the utility model;

Fig. 2 is a schematic diagram of a second viewing angle of the utility model;

Fig. 3 is a schematic view of the first perspective when the cover is opened;

Fig. 4 is a schematic diagram of a second perspective when the cover is opened.

Explanation of reference signs: 1. Lamp holder; 1.1. Shell; 2. Solar panel; 3. Installation compartment; 3.1. Slider; 3.2. Limiting block; 3.3. Step; 3.4. Threaded hole; 4. Cover plate ;4.1, the first bolt; 4.2, the ventilation grille; 4.3, the support column; 4.4, the heat conduction plate; 4.4.1, the cooling fin; 5. Battery installation box; 5.1. Bump; 5.2. Second bolt; 6. Lighting unit; 6.1. LED lamp bead.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

The utility model provides a highly integrated solar street lamp based on an integrated structure as shown in Figures 1-4, including a lamp holder 1, the lamp holder 1 includes a housing 1.1, and a solar panel is arranged on the top of the housing 1.1 2. The housing 1.1 is provided with an installation bin 3 with an opening at the bottom and a cover plate 4 covering the opening. The cover plate 4 is hinged to the housing 1.1, and the first bolt 4.1 with a knob can be used to connect the The cover plate 4 is fixed on the bottom of the housing 1.1, the cover plate 4 is provided with a ventilation grill 4.2, the inside of the cover plate 4 is provided with a plurality of support columns 4.3, and the plurality of support columns 4.3 The top is connected with the same heat conduction plate 4.4, the top of the heat conduction plate 4.4 is provided with a battery installation box 5, the battery installation box 5 is installed with a battery, and the bottom of the heat conduction plate 4.4 is provided with a plurality of cooling fins 4.4. 1. Both sides of the cover plate 4 are provided with arc-shaped plates 4.5, and the arc-shaped plates 4.5 are provided with arc-shaped tracks 4.5.1, and both sides of the interior of the installation warehouse 3 are provided with The arc track 4.5.1 matches the slider 3.1, the slider 3.1 can slide on the arc track 4.5.1, and the end of the slider 3.1 is provided with a limit block 3.2 with a circular cross section.

The cover plate 4 has a plurality of through holes 4.6 matching the first bolts 4.1; the opening of the installation bin 3 has a step portion 3.3, and the cover plate 4 is accommodated at the step portion 3.3, so There are a plurality of threaded holes 3.4 matching the first bolts 4.1 at the step portion 3.3; two protrusions 5.1 are provided on both sides of the battery installation box 5, and the protrusions 5.1 connect with the second bolts 5.2. The heat conduction plate 4.4 is connected; the support column 4.3 has four, and the four support columns 4.3 are symmetrically distributed; the bottom of the housing 1.1 has a lighting unit 6, and the lighting unit 6 includes a plurality of LED lamp beads 6.1 The plurality of LED lamp beads 6.1 are distributed in a rectangular array; the battery is in contact with the heat conducting plate 4.4, and the plurality of heat dissipation fins 4.4.1 are distributed in a straight line with equal intervals.

Working principle: In the street lamp of this application, the solar panel is installed on the top of the lamp head, and the battery is installed in the installation compartment at the lamp head. The two are integrated at the lamp head. The integrated design improves the installation efficiency. There are heat dissipation fins at the bottom of the plate, which cooperate with the ventilation grille at the cover plate, so that the heat dissipation effect of the battery is good. The effect is good. Generally, the lamp head will be installed obliquely upward. By controlling the length of the arc track, the cover plate will be in a position parallel to the horizontal plane when the cover plate is opened, so that it is convenient for maintenance personnel to repair and replace the battery. The cover plate and the shell Also bolted with knobs for easy opening and closing of the cover.

In the street lamp of this application, the solar panel and the battery are integrated at the lamp head. The integrated design improves the installation efficiency. The bottom of the heat conduction plate has cooling fins, which cooperate with the ventilation grille at the cover plate, so that the heat dissipation effect of the battery is good. The cover plate Hinged at the housing, it is limited by an arc-shaped plate with an arc-shaped track. When the cover plate is opened, the cover plate can be in a position parallel to the horizontal plane, so that it is convenient for maintenance personnel to maintain and replace the battery.

Although the utility model has been illustrated and described with respect to the preferred embodiment, those skilled in the art should understand that as long as the utility model does not exceed the scope defined by the claims of the utility model, various changes and modifications can be made to the utility model.

Claims (7)

1. A highly integrated solar street lamp based on an integrated structure, comprising a lamp holder (1), characterized in that the lamp holder (1) includes a housing (1.1), and the top of the housing (1.1) is provided with a solar cell plate (2), the housing (1.1) is provided with an installation bin (3) with an opening at the bottom and a cover plate (4) covering the opening, the cover plate (4) and the housing (1.1) Hinged, the cover plate (4) can be fixed on the bottom of the housing (1.1) by the first bolt (4.1) with a knob, the cover plate (4) is provided with a ventilation grill (4.2), The inner side of the cover plate (4) is provided with a plurality of support columns (4.3), and the tops of the plurality of support columns (4.3) are connected with the same heat conduction plate (4.4), and the top of the heat conduction plate (4.4) is provided with There is a storage battery installation box (5), the storage battery is installed in the storage battery installation box (5), the bottom of the heat conduction plate (4.4) is provided with a plurality of cooling fins (4.4.1), and the cover plate (4) Both sides of the interior are provided with arc-shaped plates (4.5), the arc-shaped plates (4.5) are provided with arc-shaped tracks (4.5.1), and both sides of the interior of the installation warehouse (3) are provided with The slider (3.1) matching the arc track (4.5.1), the slider (3.1) can slide on the arc track (4.5.1), the end of the slider (3.1) is set A limit block (3.2) with a circular cross section is provided. 2. The highly integrated solar street lamp based on an integrated structure according to claim 1, characterized in that the cover plate (4) has a plurality of through holes (4.6) matching the first bolts (4.1) . 3. The highly integrated solar street lamp based on an integrated structure according to claim 1, characterized in that, the opening of the installation warehouse (3) has a step portion (3.3), and the cover plate (4) is accommodated in the At the stepped portion (3.3), the stepped portion (3.3) has a plurality of threaded holes (3.4) matching the first bolts (4.1). 4. The highly integrated solar street lamp based on an integrated structure according to claim 1, characterized in that, both sides of the storage battery installation box (5) are provided with two bumps (5.1), and the bumps ( 5.1) Connect with the heat conducting plate (4.4) through the second bolt (5.2). 5. The highly integrated solar street lamp based on an integrated structure according to claim 1, characterized in that there are four support columns (4.3), and the four support columns (4.3) are symmetrically distributed. 6. The highly integrated solar street lamp based on an integrated structure according to claim 1, characterized in that, the bottom of the housing (1.1) has a lighting unit (6), and the lighting unit (6) includes a plurality of LEDs A lamp bead (6.1), a plurality of said LED lamp beads (6.1) are distributed in a rectangular array. 7. The highly integrated solar street lamp based on an integrated structure according to claim 1, characterized in that, the storage battery is in contact with the heat conducting plate (4.4), and a plurality of the heat dissipation fins (4.4.1) are in the form of Uniformly spaced distribution.
