Abstract

The utility model relates to the technical field of sewage pipeline treatment, in particular to a sewage pipeline treatment system for roads, including road surfaces and curbs, a sewage pipeline body is installed inside the curb, and a water inlet is arranged at the left end of the sewage pipeline body. The curb is located on the upper side of the road surface and is provided with a drainage outlet, the bottom end surface of the drainage outlet is flush with the road surface, the interior of the sewage pipe body is fixedly connected with a partition, the partition is provided with a water outlet, and the top of the water outlet is arranged There is a sliding groove, the inside of the sliding groove is slidingly provided with a baffle, the top of the baffle is provided with a threaded hole, the internal thread of the threaded hole is connected with a screw, the top of the partition is connected with a rotating rod, and the bottom of the rotating rod is connected with the screw rod. The top is fixedly connected; it prevents the garbage from falling to the inner bottom side of the sewage pipe during the process of cleaning the garbage inside the filter barrel, avoids the blockage of the sewage pipe, and improves the practicability of its use.

Description

A system for road sewage pipeline treatment

technical field

The utility model relates to the technical field of sewage pipeline treatment, in particular to a treatment system for road sewage pipelines.

Background technique

Sewage pipes are installed on urban or rural roads, which are convenient for life, industry and rainwater discharge. During the discharge of sewage, there will be many weeds, leaves, plastic bags or other impurities. In order to prevent impurities from clogging sewage pipes, it is necessary to Install the sewer pipe treatment system structure inside the sewer pipe.

After searching, the utility model patent with the Chinese patent number CN202120583681.4 discloses a simple filtration road sewage treatment system for municipal engineering, including a sewage inspection well, a filter box and a filter frame. When it is in use, when the impurities inside the filter box are relatively For a long time, the filter box will be blocked, and people need to take out the filter box and clean up the internal garbage impurities. However, when the garbage and impurities inside the filter box are cleaned during the sewage discharge process, the garbage and impurities in the sewage will be directly discharged into the inside of the sewage pipeline, which will easily lead to the blockage of the sewage pipeline over time, and the practicability of use is low.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides a treatment system for road sewage pipelines.

(2) Technical solutions

In order to achieve the above purpose, the utility model provides the following technical solutions: a road sewage pipeline treatment system, including the road surface and the curb, the interior of the curb is installed with a sewage pipeline body, and the left end of the sewage pipeline body is provided with a water inlet , the curb is located on the upper side of the road surface and is provided with a drainage outlet, the bottom end surface of the drainage outlet is flush with the road surface, the interior of the sewage pipe body is fixedly connected with a partition, the partition is provided with a water outlet, and the top of the water outlet A sliding groove is provided, and a baffle is provided for sliding inside the sliding groove, and a threaded hole is arranged on the top of the baffle, and the internal thread of the threaded hole is connected with a screw, and the top of the partition is rotatably connected with a rotating rod, and the bottom end of the rotating rod is connected with the screw. The top of the partition is fixedly connected, the left side of the partition and the inner left end of the sewage pipe body are fixedly connected with a support seat, and a filter plate is placed on the top of the two support seats. The filter plate is inclined to the lower right side, and the top right side of the filter plate It is flush with the bottom surface of the water outlet, and the right end of the partition and the inner right side of the sewage pipe body are fixedly connected with a fixing strip, and a fixing ring is placed on the top of the two fixing strips, and the fixing ring is located below the water outlet. The bottom end is fixedly connected with a filter barrel.

Preferably, a manhole cover ring is fixedly connected to the top of the sewage pipe body, and a well cover plate is hinged inside the manhole cover ring, and a plurality of water holes are uniformly arranged on the well cover plate.

Further, a handle is fixedly connected to the top right side of the fixing ring.

Still further, the support seat includes a fixed seat, a chute is provided inside the fixed seat, a slide plate is slid inside the chute, a plurality of springs are connected to the bottom end of the slide plate, and a support plate is fixedly connected to the top end of the slide plate to support The top end of the plate extends to the upper side of the fixing seat, and the supporting plate and the fixing seat are sealed and slidably matched.

In a further solution, a handle is fixedly connected to the top end of the rotating rod.

On the basis of the foregoing solution, a pull block is fixedly connected to the left side of the top of the filter plate, and a pull groove is provided at the right end of the pull block.

(3) Beneficial effects

Compared with the prior art, the utility model provides a treatment system for road sewage pipelines, which has the following beneficial effects:

It is used in the road sewage pipeline treatment system. The water on the road flows to the inside of the sewage pipeline body through the outlet and water inlet, and flows to the filter plate, and the garbage impurities in the sewage are filtered through the filter plate. The filtered garbage impurities Fall to the inside of the filter bucket through the water outlet, and collect the garbage through the filter bucket. When it is necessary to clean up the garbage inside the filter bucket, turn the screw counterclockwise, and the screw rotating baffle will move downward inside the sliding groove, so that The baffle is moved to the inside of the water outlet, and then the filter bucket is taken out from the inside of the sewage pipe body, and the garbage inside the filter bucket is cleaned. During the process of cleaning the garbage, the baffle is used to prevent the garbage from passing through the water outlet , prevent garbage from falling from the right side of the partition to the inner bottom side of the sewage pipe body, avoid the blockage of the sewage pipe, and improve the practicability of its use.

Description of drawings

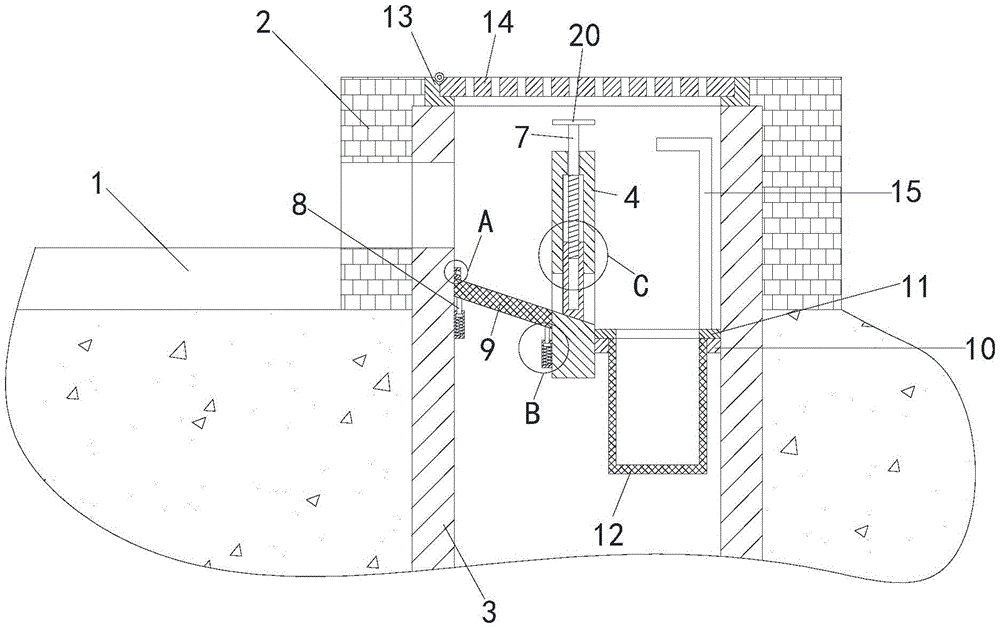

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a schematic diagram of a partial enlarged structure at A in Fig. 1 of the utility model;

Fig. 3 is the local enlarged structural schematic diagram of place B in Fig. 1 of the utility model;

Fig. 4 is a schematic diagram of a partially enlarged structure at point C in Fig. 1 of the present invention.

In the figure: 1, road surface; 2, curb; 3, sewage pipe body; 4, partition; 5, baffle; 6, screw; 7, rotating rod; 8, support seat; Bar; 11, fixed ring; 12, filter bucket; 13, well cover ring; 14, well cover plate; 15, handle; 16, fixed seat; 17, slide plate; 18, spring; 19, support plate; 21. Pull block.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example 1

Please refer to Figure 1-4, a system for road sewage pipeline treatment, including road surface 1 and curb 2, a sewage pipeline body 3 is installed inside the curb 2, the left end of the sewage pipeline body 3 is provided with a water inlet, and the curb 2 is located on the upper side of the road surface 1 and is provided with a drainage port, the bottom end surface of the drainage port is flush with the road surface 1, and the sewage flows into the sewage pipe body 3 through the water discharge port and the water inlet; the interior of the sewage pipe body 3 is fixedly connected with a partition 4, The partition 4 is provided with a water outlet, the top of the water outlet is provided with a sliding groove, and the inside of the sliding groove is slidingly provided with a baffle 5 for blocking the flow of sewage, and a filter plate 9 is placed on the left side of the partition 4, and the filter plate 9 is directed to The lower right side is inclined to set, the top right side of the filter plate 9 is flush with the bottom end face of the water outlet, and the filter barrel 12 is placed on the right end of the dividing plate 4 .

specific:

The top of baffle plate 5 is provided with threaded hole, and the internal thread of threaded hole is connected with screw rod 6, and the top of dividing plate 4 is connected with rotating rod 7 in rotation, and the bottom end of rotating rod 7 is fixedly connected with the top of screw rod 6, and the top of rotating rod 7 The top is fixedly connected with a rotating handle 20, which is convenient to rotate the rotating rod 7. The left side of the partition plate 4 and the inner left end of the sewage pipe body 3 are fixedly connected with a support seat 8, and a filter plate 9 is placed on the top of the two support seats 8. , the top left side of the filter plate 9 is fixedly connected with a pull block 21, and the right end of the pull block 21 is provided with a pull groove, and the iron hook is inserted into the inside of the pull groove, so that the filter plate 9 is pulled out from the inside of the sewage pipe body 3, It is convenient to replace the filter plate 9. The filter plate 9 is inclined to the lower right side. The right side of the top of the filter plate 9 is flush with the bottom end surface of the water outlet. The right end of the partition plate 4 and the inner right side of the sewage pipe body 3 are fixed. A fixed strip 10 is connected, and a fixed ring 11 is placed on the top of the two fixed strips 10. The fixed ring 11 is located below the water outlet, and the bottom end of the fixed ring 11 is fixedly connected with a filter barrel 12. There is a handle 15, through which the filter bucket 12 can be easily pulled out from the inside of the sewage pipe body 3, and at the same time it is convenient to place the filter bucket 12 inside the sewage pipeline body 3, and the water on the road surface 1 can pass through the outlet and the water inlet Flow to the inside of the sewage pipe body 3, and flow to the filter plate 9, filter the garbage impurities in the sewage by the filter plate 9, the filtered garbage impurities fall to the inside of the filter bucket 12 through the water outlet, and pass through the filter bucket 12 Garbage is collected, when it is necessary to clean up the garbage inside the filter barrel 12, turn the screw 6 counterclockwise, the screw 6 rotates the baffle 5 to move down inside the sliding groove, so that the baffle 5 moves to the inside of the water outlet, Then the filter bucket 12 is taken out from the inside of the sewage pipe body 3, and the garbage inside the filter bucket 12 is cleaned up. The right side of the plate 4 falls to the inner bottom side of the sewage pipe body 3, which avoids the blockage of the sewage pipe and improves the practicability of its use.

It should also be noted that the top of the sewage pipe body 3 is fixedly connected with a well cover ring 13, and the inside of the well cover ring 13 is hinged with a well cover plate 14. Opening the well cover plate 14 is convenient for taking and placing the filter plate 9 and the filter barrel 12, and is convenient for filtering. The rubbish inside the barrel 12 is cleaned up, and a plurality of water holes are evenly arranged on the well cover plate 14, so that the water on the curb 2 flows to the inside of the sewage pipe body 3, and the support seat 8 includes a fixed seat 16, and the interior of the fixed seat 16 is arranged There is a chute, the inside of the chute is slidingly provided with a slide plate 17, the bottom end of the slide plate 17 is connected with a plurality of springs 18, the top of the slide plate 17 is fixedly connected with a support plate 19, and the top end of the support plate 19 extends to the upper side of the fixed seat 16 , the support plate 19 and the fixed seat 16 are sealed and slidably matched. When the water flows to the filter plate 9, the filter plate 9 is shaken up and down by the cooperation of the spring 18, which is convenient for the garbage on the filter plate 9 to slide to the right, so as to avoid the garbage on the filter plate. 9 stacked on top.

To sum up, this is used in the road sewage pipeline treatment system. When in use, the water on the road surface 1 flows to the interior of the sewage pipeline body 3 through the outlet and water inlet, and flows to the filter plate 9, and passes through the filter plate 9. Filter the garbage and impurities in the sewage, and the filtered garbage and impurities fall into the filter barrel 12 through the water outlet, and collect the garbage through the filter barrel 12. When the garbage inside the filter barrel 12 needs to be cleaned, open the well cover 14. Then turn the screw 6 counterclockwise, the screw 6 rotates the baffle 5 to move down inside the sliding groove, so that the baffle 5 moves to the inside of the water outlet, and then the filter bucket 12 is taken out from the inside of the sewage pipe body 3, and Clean up the rubbish inside the filter bucket 12. After cleaning, place the filter bucket 12 inside the sewage pipe body 3, support the fixing ring 11 through two fixing bars 10, and then turn the rotating rod 7 and the screw rod 6 clockwise. The screw rod 6 rotates to move the baffle plate 5 upwards and to the upper side of the water outlet, and the garbage on the filter plate 9 flows to the inside of the filter barrel 12 through the water outlet.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A system for the treatment of road sewage pipes, comprising a road surface (1) and road teeth (2), characterized in that: a sewage pipeline body (3) is arranged inside the road teeth (2), a water inlet is arranged at the left end of the sewage pipeline body (3), curb (2) are located the upside of road surface (1) is provided with the outlet, the bottom face of outlet flushes with road surface (1), inside fixedly connected with baffle (4) of sewer pipe body (3), be provided with the limbers on baffle (4), the limbers top is provided with the sliding tray, the inside slip of sliding tray is provided with baffle (5), the top of baffle (5) is provided with the screw hole, the inside threaded connection of screw hole has screw rod (6), the top of baffle (4) is rotated and is connected with bull stick (7), the bottom of bull stick (7) and the top fixed connection of screw rod (6), the left side of baffle (4) and the equal fixedly connected with supporting seat (8) of inside left end of sewer pipe body (3), filter (9) have been placed on the top of two supporting seats (8), filter (9) downside slope setting to the right, the right side top of filter (9) flushes with the bottom face of limbers, the right-hand member of baffle (4) and the equal fixedly connected with fixed strip (10) on the inside right side of sewer pipe body (3), the top (11) of two fixed ring (10) have been placed, the fixed ring (11) below fixed ring (12) of solid fixed ring.

2. The system of claim 1, further comprising: the top fixedly connected with well lid circle (13) of sewer line body (3), the inside of well lid circle (13) articulates there is well lid board (14), evenly is provided with a plurality of limbers on well lid board (14).

3. A system for treatment of road sewer piping according to claim 2, characterized in that: the right side of the top end of the fixing ring (11) is fixedly connected with a carrying handle (15).

4. A system for treatment of road sewer piping according to claim 3, characterized in that: the supporting seat (8) comprises a fixing seat (16), a sliding groove is formed in the fixing seat (16), a sliding plate (17) is arranged in the sliding groove in a sliding mode, a plurality of springs (18) are connected to the bottom end of the sliding plate (17), a supporting plate (19) is fixedly connected to the top end of the sliding plate (17), the top end of the supporting plate (19) extends to the upper side of the fixing seat (16), and the supporting plate (19) is in sealing sliding fit with the fixing seat (16).

5. The system of claim 4, further comprising: the top end of the rotating rod (7) is fixedly connected with a rotating handle (20).

6. The system of claim 5, further comprising: the top left side fixedly connected with of filter (9) draws piece (21), draws the right-hand member of piece (21) to be provided with the kerve.
