Abstract

The utility model discloses a traditional Chinese medicine epidemic prevention mask, which comprises a mask main body, a rear side wall of the mask main body, ring-shaped drug bags fixedly installed at the eyes, a fixed drawstring installed on the main body of the mask, and an upper end of the rear side wall of the fixed draw belt. There is a forehead medicine bag, and an auxiliary fixing belt is installed on the rear end of the outer wall of the fixing belt. The utility model uses the mask main body, the fixing belt and the auxiliary fixing belt. Compared with the current masks, the coverage area is increased. The sealing effect of the side is increased, which avoids the problem of infection caused by the lax sealing of the side. At the same time, it is easier to wear, and the fixing is more stable, which is convenient for people to use. The utility model can maintain the eye through the combined use of the ring-shaped medicine bag and the forehead medicine bag, and the forehead medicine bag can use calamus pads to reduce the probability of people being infected with its diseases. At the same time, ice gel pads can also be used to improve Comfort for people to use.

Description

A kind of traditional Chinese medicine anti-epidemic mask

technical field

The utility model relates to the technical field of epidemic prevention masks, in particular to a traditional Chinese medicine epidemic prevention mask.

Background technique

During the high incidence of the epidemic, in order to prevent the spread of the disease, people often wear masks. For medical staff who have been working on the front line for a long time, simple protective masks have a small protective area, and it is easy to have unstable edge seals and germs. Entering the mask from the edge of the mask will make the medical staff infected. At the same time, the current masks have single functions and low comfort when they are in use. For this reason, we have proposed a traditional Chinese medicine epidemic prevention mask.

Utility model content

The purpose of this utility model is to provide a kind of traditional Chinese medicine anti-epidemic face mask, to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions: a traditional Chinese medicine anti-epidemic mask, including a mask main body, the rear side wall of the mask main body is fixedly installed with annular drug packs at the eyes, and fixed on the mask main body. A drawstring, the upper end of the rear side wall of the fixed drawstring is equipped with a forehead medicine bag, and the rear end of the outer wall of the fixed drawstring is equipped with an auxiliary fixing belt.

Preferably, the mask main body includes a mask cloth, the middle part of the mask cloth is integrally formed with a mouth and nose relief protrusion, the left and right sides of the upper end of the mask cloth are provided with eye relief grooves, and the eye relief The outer edge of the rear side wall of the bit groove is fixedly installed with the annular drug pack, and the lower end of the mask cloth is integrally formed with a chin socket protrusion.

Preferably, the fixed drawstring includes an ear socket belt, the upper side of the lower end of the ear socket belt is fixedly installed with the lower end of the mask part, and an elastic belt is fixedly installed on the upper end of the ear socket belt, and the elastic belt The lower end of the front side of the mask is fixedly installed with the upper end of the mask cloth.

Preferably, a silicone strap is fixedly installed on the lower side of the ear socket strap, an iron wire is fixedly installed inside the silicone strap, and a silicone ear protection strap is fixedly installed on the bonding surface of the ear socket strap and the ear.

Preferably, the forehead medicine pack includes a medicine pack main body, an adhesive tape is adhered to the front side of the medicine pack main body, and the front side wall of the adhesive tape is adhered to the upper end of the elastic band.

Preferably, the auxiliary fixing belt includes two belt bodies, and the two belt bodies are respectively fixedly installed with the two ends of the outer side wall of the ear sleeve belt, and the outer ends of the two belt bodies are sewn with mutually bonded Velcro.

Compared with the prior art, the beneficial effect of the utility model is: a traditional Chinese medicine anti-epidemic mask, the utility model is used in cooperation with the mask main body, the fixed drawstring and the auxiliary fixing belt, so that the mouth and nose give way to the protrusions of people's mouth and The noses are relatively together, and the eye relief slots are made to be relative to people's eyes at the same time, and the mask cloth is fitted on the patient's face, and at the same time, the ear sleeves are sleeved on people's ears, through The elastic force of the elastic belt makes the upper end of the mask cloth fit on people's forehead, and then glues the two ends of the two belts with Velcro to assist in fixing the mask. After wearing it, the mask can be passed The large-area coverage of the main body, compared with today's masks, increases the coverage area and increases the sealing effect of the side, avoiding the problem of infection caused by the lax sealing of the side. At the same time, it is easier to wear and easier to fix. Stable and easy for people to use.

The utility model is used in conjunction with the ring-shaped medicine bag and the forehead medicine bag. The ring-shaped medicine bag can use the cassia seed pad, and the effect of clearing the liver, improving eyesight and clearing away heat and detoxification of the cassia seed can be used to maintain the eyes when people wear it. The forehead medicine bag can use calamus pads, which can reduce the chances of people being infected by using the turbidity, decontamination and detoxification effects of calamus. At the same time, ice gel pads can be used to cool down the forehead and improve people's comfort. Spend.

Description of drawings

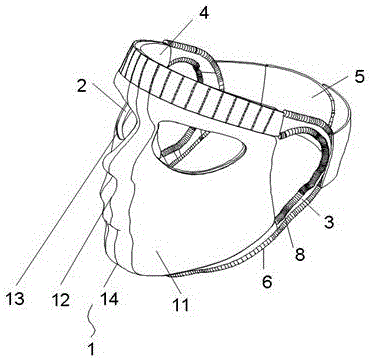

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a schematic disassembly diagram of part of the structure of the utility model.

In the figure: mask main body 1, mask cloth 11, mouth and nose relief protrusion 12, eye relief groove 13, chin sleeve protrusion 14, ring medicine bag 2, fixed drawstring 3, ear socket belt 31, elastic band 32 , forehead medicine bag 4, medicine bag main body 41, adhesive tape 42, auxiliary fixing belt 5, belt body 51, Velcro 52, silicone belt 6, iron wire 7, silicone ear protection belt 8.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-2, the utility model provides a technical solution: a traditional Chinese medicine anti-epidemic mask, including a mask main body 1. A fixed drawstring 3 is installed, and the upper end of the fixed drawstring 3 rear side wall is equipped with a forehead medicine bag 4, and the outer side wall rear end of the fixed drawstring 3 is equipped with an auxiliary fixed belt 5.

Specifically, the mask main body 1 includes a mask cloth 11, the middle part of the mask cloth 11 is integrally formed with a mouth and nose relief protrusion 12, and the left and right sides of the upper end of the mask cloth 11 are provided with eye relief grooves 13, and the eyes The outer edge of the sidewall of the back side wall of the step-off groove 13 is fixedly installed with the annular drug pack 2, and the lower end of the mask cloth 11 is integrally formed with a chin sleeve protrusion 14.

Specifically, the fixed drawstring 3 includes an ear socket belt 31, the upper side of the lower end of the ear socket belt 31 is fixedly installed with the lower end of the mask cloth 11, and an elastic band 32 is fixedly installed on the upper end of the ear socket belt 31, and the elastic belt 32 The lower end of the front side and the upper end of the mask cloth 11 are fixedly installed.

Specifically, a silicone band 6 is fixedly installed on the lower side of the ear socket band 31 , and an iron wire 7 is fixedly installed inside the silicone band 6 , and a silicone ear protection band 8 is fixedly installed on the bonding surface of the ear socket band 31 and the ear.

The silicone belt 6 is used in conjunction with the iron wire 7, the silicone belt 6 can increase the comfort of the edge contact, and the iron wire 7 can be bent according to the shape of people's jaw, so that the chin socket protrusion 14 and people's chin can be stably socketed on the Together.

Specifically, the forehead medicine pack 4 includes a medicine pack main body 41 , the front side of the medicine pack main body 41 is bonded with an adhesive tape 42 , and the front side wall of the adhesive tape 42 is bonded to the upper end of the elastic band 32 .

Specifically, the auxiliary fixing belt 5 includes two belt bodies 51, and the two belt bodies 51 are fixedly installed with the two ends of the outer side walls of the ear sleeve belt 31 respectively, and the outer ends of the two belt bodies 51 are sewn with mutually bonded Velcro52.

Working principle: the utility model is used in conjunction with the mask main body 1, the fixed pull belt 3 and the auxiliary fixing belt 5, so that the mouth and nose relief protrusion 12 is relatively with people's mouth and nose, and at the same time, the eye relief groove 13 is made Face people's eyes together, and make the mask cloth 11 fit on the patient's face, at the same time, put the ear socket belt 31 on people's ears, and make the mask cloth 11 The upper end of the upper end of the mask fits on people's forehead, and then through the Velcro 52, the two ends of the two belts 51 are bonded to assist in fixing the mask. After wearing, the mask body 1 covers a large area, Compared with today's masks, the coverage area is increased, and the sealing effect of the side is increased, which avoids the problem of infection caused by the lax sealing of the side. At the same time, it is easier to wear, and the fixation is more stable, which is convenient for people to use.

The utility model is used through the cooperation of the ring-shaped medicine pack 2 and the forehead medicine pack 4. The ring-shaped medicine pack 2 can use cassia seed pads, and the effect of clearing the liver, improving eyesight and clearing away heat and detoxification of the cassia seeds can be used to treat the eyes when people wear it. For maintenance, the forehead medicine pack 4 can use calamus pads, which can use the turbidity, decontamination and detoxification effects of calamus to reduce the chance of people being infected with their diseases. At the same time, ice gel pads can be used to cool down the forehead part and improve Comfort for people to use.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A traditional chinese medicine epidemic prevention face guard, includes mask body (1), its characterized in that: the utility model discloses a mask, including face guard main part (1), back lateral wall, forehead cartridge bag (4), supplementary fixed band (5) are installed to the lateral wall rear end of fixed stretching strap (3), the back lateral wall of face guard main part (1) is located equal fixed mounting in both eyes department has annular cartridge bag (2), install fixed stretching strap (3) on face guard main part (1), forehead cartridge bag (4) are installed to the upper end of fixed stretching strap (3) back lateral wall, supplementary fixed band (5) are installed to the lateral wall rear end of fixed stretching strap (3).

2. The traditional Chinese medicine epidemic prevention mask according to claim 1, wherein: the mask main body (1) comprises mask cloth (11), a mouth and nose abdicating protrusion (12) is integrally formed in the middle of the mask cloth (11), eye abdicating grooves (13) are formed in the left side and the right side of the upper end of the mask cloth (11), the outer edge of the rear side wall of each eye abdicating groove (13) is fixedly installed on the annular medicine bag (2), and a chin muff-coupling protrusion (14) is integrally formed at the lower end of the mask cloth (11).

3. The traditional Chinese medicine epidemic prevention mask according to claim 2, characterized in that: fixed stretching strap (3) are including ear muff-coupling area (31), the lower extreme upside of ear muff-coupling area (31) and the lower extreme fixed mounting of face guard cloth (11), the upper end fixed mounting of ear muff-coupling area (31) has elastic webbing (32), the front side lower extreme of elastic webbing (32) and the upper end fixed mounting of face guard cloth (11).

4. The traditional Chinese medicine epidemic prevention mask according to claim 3, wherein: the utility model discloses a novel ear muff coupling belt, including ear muff coupling belt (31), the downside fixed mounting of ear muff coupling belt (31) has silica gel area (6), fixed mounting has iron wire (7) in silica gel area (6), ear muff coupling belt (31) and ear binding face fixed mounting have silica gel ear boundary belt (8).

5. The traditional Chinese medicine epidemic prevention mask according to claim 3, wherein: the forehead medicine package (4) comprises a medicine package main body (41), an adhesive tape (42) is bonded on the front side of the medicine package main body (41), and the front side wall of the adhesive tape (42) is bonded with the upper end of the elastic band (32).

6. The traditional Chinese medicine epidemic prevention mask according to claim 3, wherein: the auxiliary fixing band (5) comprises two band bodies (51), wherein the two band bodies (51) are fixedly installed at two ends of the outer side wall of the ear sleeving band (31) respectively, and magic tapes (52) which are bonded with each other are sewn at the outer end of the band bodies (51).
