Abstract

The utility model discloses a sorting storage box for test tubes that is easy to pick and place, and relates to the technical field of medical auxiliary equipment. The utility model includes a storage box main body, which includes a urine storage box, and urine test tubes are arranged inside the urine storage box Storage mechanism. Ventilation mechanisms are installed above the left and right side walls of the urine storage box. Ventilation fans are fixedly installed inside each vent. When storing the test tubes used for physical examination, put the test tubes stored in urine into the urine In the test tube opening in the liquid test tube rack, the test tube shockproof cotton at the bottom can reduce the vibration or collision and cause the test tubes to collide. Open the ventilation mechanism, and the ventilation fan shaft passes through the rear motor to drive the ventilation fan to rotate, and then the urine is stored. The inside of the box is ventilated to prevent odors due to excessive temperature and maintain air circulation, which is beneficial to the physical and mental health of medical staff.

Description

A sorting storage box for test tubes that is easy to pick and place

technical field

The utility model relates to the technical field of medical auxiliary equipment, in particular to a sorting and storing box for test tubes which is convenient for taking and placing.

Background technique

Physical examination is a physical examination using medical means and methods. It includes basic examinations in various clinical departments, including medical equipment examinations such as ultrasound, electrocardiography, and radiation, as well as laboratory examinations of blood and urine surrounding the human body. Test tubes are used for the processing and inspection of blood and urine. Test tubes are widely used in laboratory departments of hospitals, so test tube storage boxes are needed. Medical examination test tube storage boxes are used to collect patient body fluids and other test tubes during physical examination in hospitals. Placement box, technicians engaged in the medical examination industry found the following improvements in the design research:

One, the pungent smell of urine is heavier, especially when the temperature is higher, it is easy to cause discomfort, which is not conducive to the physical and mental health of medical staff; It needs to be taken out one by one to check, which will bring certain inconvenience to people.

Utility model content

The purpose of this utility model is: in order to solve the irritating smell of urine is heavier, especially when the temperature is higher, it will easily cause discomfort, which is not conducive to the physical and mental health of medical staff. When labeling, it is necessary to take out one by one to check, which will bring some inconvenience to people. The utility model provides a test tube classification storage box that is convenient for taking and placing.

The utility model specifically adopts the following technical solutions in order to achieve the above object:

A test tube classification storage box that is easy to pick and place, comprising a storage box main body, the storage box main body includes a urine storage box, and a urine test tube storage mechanism is arranged inside the urine storage box, and the urine test tube storage mechanism includes A storage base plate, a urine test tube storage frame is fixedly installed above the storage base plate, a test tube shockproof cotton is fixedly installed inside the urine test tube storage frame, and a plurality of urine test tube racks are arranged above the test tube shockproof cotton. The inside of the urine test tube rack is provided with a plurality of test tube openings, and a ventilation mechanism is arranged above the left and right side walls of the urine storage box, and the ventilation mechanism includes two ventilation openings, each of which is fixedly installed There is a ventilation fan, the center of each ventilation fan is provided with a ventilation fan shaft, the end of each ventilation fan shaft is fixedly connected to a motor, the bottom of each motor is fixedly connected to a motor bottom plate, and each The bottom plates of the motors are all fixedly connected to the outer walls of the left and right sides of the urine storage box.

Further, the urine storage box is provided with a test tube pick-and-place mechanism, and the test tube pick-and-place mechanism includes a pick-and-place mouth, and a rotating shaft base is fixedly installed under the pick-and-place mouth, and a rotating shaft is arranged inside the rotating shaft base, and the rotating shaft base The pick-and-place board is fixedly installed inside, and the pick-and-place board is connected with the rotating shaft base through the rotation of the shaft. , two pick-and-release opening fixing buckles are provided at corresponding positions on the outer upper end of the urine storage box.

Furthermore, two guide rails are provided at the bottom of the storage bottom plate, the urine test tube storage mechanism is slidably connected to the urine storage box through the guide rails, and a storage plate handle is provided on the outside of the storage bottom plate.

Further, the bottom of the urine storage box is provided with a blood storage mechanism, the blood storage mechanism includes a blood storage box, the bottom of the blood storage box is provided with shockproof cotton for the storage box, and blood is fixedly installed above the shockproof cotton for the storage box. A storage frame, a plurality of blood test tube racks are fixedly installed inside the blood storage frame, blood test tube openings are provided inside the plurality of blood test tube racks, and blood storage box fixing buckles are arranged on the left and right sides of the blood storage box.

Further, the upper and rear sides of the urine storage box are hinged with a storage box cover through a hinge, and a storage box handle is fixedly connected to the top of the storage box cover, and two storage box buckles are fixedly installed on the front side of the storage box cover, Two storage buckle bases are provided at corresponding positions on the front side of the urine storage box.

Further, a disinfection mechanism is provided inside the storage box cover, and the disinfection mechanism includes two disinfection lamp bases, a plurality of ultraviolet disinfection lamp tubes are arranged inside the two disinfection lamp bases, and the outside of the disinfection lamp base on the right side is A disinfection light switch is fixedly installed, and the disinfection light switch is located on the outer side wall of the storage box cover.

Further, a label opening is fixedly installed on the outer side of the pick-and-place plate, and the label opening is made of PVC material.

The beneficial effects of the utility model are as follows:

1. When the utility model needs to take out the storage frame for urine test tubes, remove the fixing base of the access opening on the outside of the access plate from the fixing buckle of the access opening, and turn the access plate through the rotating shaft to facilitate sliding out of the interior The urine test tube storage frame is more convenient and fast. The setting of the blood storage mechanism is convenient for storing blood for physical examination separately. At the same time, the setting of the shockproof cotton in the storage box can effectively reduce the vibration and shaking of the blood test tube rack caused by the vibration, and effectively avoid the test tube. collision between.

2. When the utility model needs to move and carry the main body of the storage box, buckle the two storage boxes on the corresponding storage buckle base, which is convenient for fixing the cover of the storage box. At the same time, the handle of the storage box is convenient for the medical personnel to carry the storage box. The storage bottom plate is pulled out through the storage plate handle, which is convenient and quick to take out the corresponding test tubes, improves work efficiency, and is more practical. Turn on the sterilizer switch, and the ultraviolet disinfection lamp will start to sterilize the urine storage box with ultraviolet rays to prevent bacteria from growing. more hygienic.

3. When the utility model stores the test tubes used in the physical examination, put the test tubes stored in the urine into the test tube openings in the urine test tube rack one by one, and the test tube shockproof cotton at the bottom can reduce the vibration or collision and cause the test tubes to fall apart. If there is a collision between them, the ventilation mechanism will be opened, and the rotation shaft of the ventilation fan will drive the rotation of the ventilation fan through the motor at the rear, and then the inside of the urine storage box will be ventilated to prevent the odor from being emitted due to excessive temperature, and to maintain air circulation, which is beneficial to the medical staff. Physical and mental health.

Description of drawings

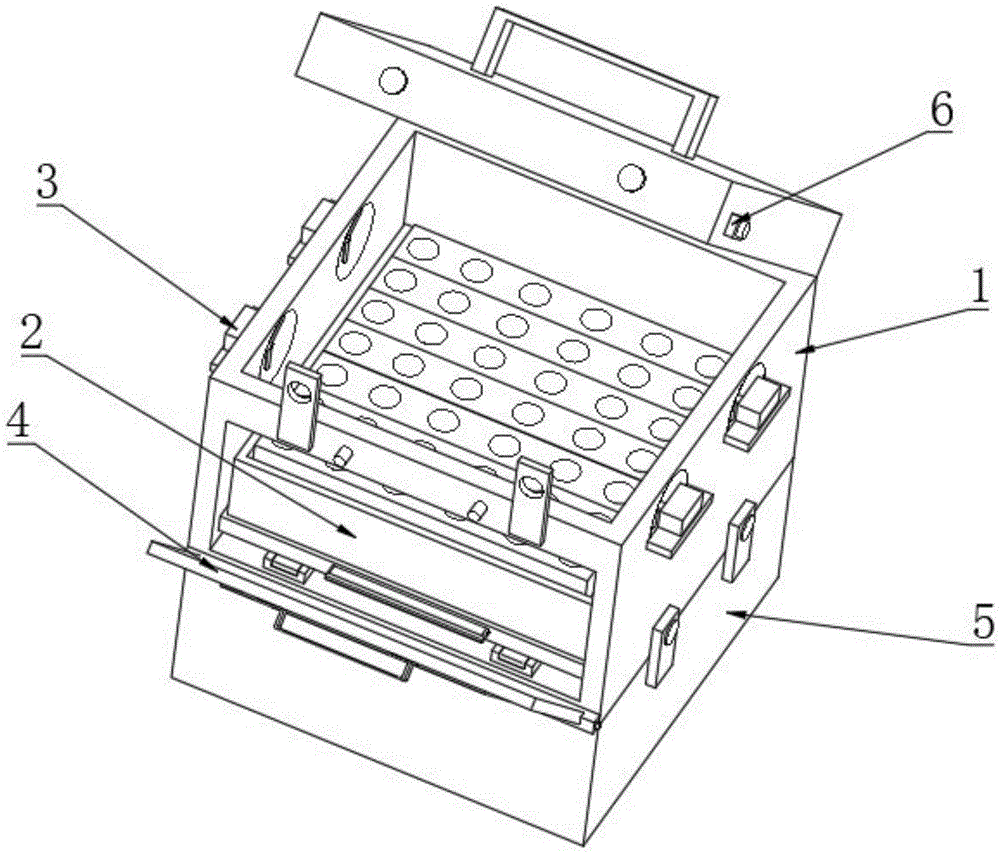

Fig. 1 is the three-dimensional structure schematic diagram of the present utility model;

Fig. 2 is a schematic diagram of a three-dimensional structure of a side angle of the utility model;

Fig. 3 is a front sectional view of the utility model;

Fig. 4 is a side sectional view of the utility model.

Reference signs: 1. Storage box main body; 101, urine storage box; 102, storage box cover; 103, storage box handle; 104, storage box buckle; 105, storage buckle base; 106, label opening; 2, urine Test tube storage mechanism; 201, storage bottom plate; 202, urine test tube storage frame; 203, test tube shockproof cotton; 204, urine test tube rack; 205, test tube opening; 206, guide rail; 207, storage plate handle; 301, ventilation fan; 302, shaft of ventilation fan; 303, motor; 304, motor bottom plate; 4, test tube pick and place mechanism; 401, rotating shaft base; 402, pick and place plate; 403, pick and place handle; 404, pick and place mouth is fixed Base; 405, fixed buckle for take-out opening; 5, blood storage mechanism; 501, blood storage box; 502, shockproof cotton for storage box; 503, blood storage frame; 504, blood test tube rack; 505, blood test tube mouth; 506, blood 6. Disinfection mechanism; 601. Disinfection lamp base; 602. Ultraviolet disinfection lamp tube; 603. Disinfection lamp switch.

Detailed ways

In order to make the purpose, technical solutions and advantages of the embodiments of the utility model clearer, the technical solutions in the embodiments of the utility model will be clearly and completely described below in conjunction with the drawings in the embodiments of the utility model.

Please refer to Fig. 1-Fig. 4, the utility model provides a kind of test tube sorting storage box that is easy to pick and place, comprises the storage box main body 1, and the storage box main body 1 includes the urine storage box 101, and the inside of the urine storage box 101 is provided with urine The test tube storage mechanism 2, the urine test tube storage mechanism 2 includes a storage base plate 201, a urine test tube storage frame 202 is fixedly installed above the storage base plate 201, and a test tube shockproof cotton 203 is fixedly installed inside the urine test tube storage frame 202, above the test tube shockproof cotton 203 A plurality of urine test tube racks 204 are provided, and each urine test tube rack 204 is provided with a plurality of test tube openings 205 inside, and a ventilation mechanism 3 is arranged on the left and right side walls of the urine storage box 101, and the ventilation mechanism 3 includes two Each ventilation opening is fixedly equipped with a ventilation fan 301 inside, each ventilation fan 301 center is provided with a ventilation fan rotating shaft 302, and each ventilation fan rotating shaft 302 ends are fixedly connected with a motor 303, each motor 303 The motor bottom plates 304 are fixedly connected to the bottom, and each motor bottom plate 304 is fixedly connected to the outer walls of the left and right sides of the urine storage box 101 .

In this embodiment, preferably, the urine storage box 101 is provided with a test tube pick-and-place mechanism 4, and the test tube pick-and-place mechanism 4 includes a pick-and-place mouth, and a rotating shaft base 401 is fixedly installed below the pick-and-place mouth, and a rotating shaft is arranged inside the rotating shaft base 401. The pick-and-place plate 402 is fixedly installed inside the rotating shaft base 401, and the pick-and-place plate 402 is connected with the rotating shaft base 401 through the rotation of the rotating shaft. On the fixed base 404, two pick-and-place fixing buckles 405 are provided at the upper end of the outer side of the urine storage box 101. Take off the fixed buckle 405 of the pick-and-place mouth, and turn the pick-and-place plate 402 over by the rotating shaft, so as to slide out the inner urine test tube storage frame 202, which is more convenient and quick.

In this embodiment, preferably, two guide rails 206 are arranged on the bottom of the storage base plate 201, and the urine test tube storage mechanism 2 is slidably connected with the urine storage box 101 through the guide rails 206, and a storage plate handle 207 is provided outside the storage base plate 201. When taking out the test tube in the urine test tube storage mechanism 2, the storage bottom plate 201 is pulled out through the storage plate handle 207, which is convenient to take out the corresponding test tube more conveniently and quickly, improves work efficiency, and is more practical.

In this embodiment, preferably, the bottom of the urine storage box 101 is provided with a blood storage mechanism 5, and the blood storage mechanism 5 includes a blood storage box 501. A blood storage frame 503 is fixedly installed, and a plurality of blood test tube racks 504 are fixedly installed inside the blood storage frame 503. A blood test tube port 505 is opened inside each of the plurality of blood test tube racks 504, and blood storage boxes 501 are provided on the left and right sides of the blood storage box 501. The box fixing buckle 506 and the setting of the blood storage mechanism 5 are convenient for storing the blood for physical examination separately. At the same time, the setting of the shockproof cotton 502 of the storage box can effectively reduce the vibration and shaking caused by the vibration to the blood test tube rack 504, and effectively prevent the blood from happening between the test tubes. collision.

In this embodiment, preferably, the upper rear side of the urine storage box 101 is hinged with a storage box cover 102 through a hinge, the storage box cover 102 is fixedly connected with a storage box handle 103, and the front side of the storage box cover 102 is fixedly installed with two Storage box buckle 104, two storage buckle bases 105 are provided at corresponding positions on the front side of the urine storage box 101, and when the main body 1 of the storage box needs to be moved and carried, the two storage box buckles 104 are buckled on the corresponding storage buckle bases 105 , it is convenient to fix the storage box cover 102, and the setting of the storage box handle 103 is convenient for the medical examiner to carry the storage box, and the storage bottom plate 201 is pulled out through the storage plate handle 207, which is convenient to take out the corresponding test tube more conveniently and quickly, improves work efficiency, and is more convenient. practical.

In this embodiment, preferably, a disinfection mechanism 6 is arranged inside the storage box cover 102, and the disinfection mechanism 6 includes two disinfection lamp bases 601, and a plurality of ultraviolet disinfection lamp tubes 602 are arranged inside the two disinfection lamp bases 601, and the right side disinfection A disinfection lamp switch 603 is fixedly installed on the outside of the lamp base 601. The disinfection lamp switch 603 is located on the outer wall of the storage box cover 102. When the disinfection lamp switch 603 is turned on, the ultraviolet disinfection lamp tube 602 starts to carry out ultraviolet disinfection on the urine storage box 101 to prevent bacteria from growing. more hygienic.

In this embodiment, preferably, a label opening 106 is fixedly installed on the outer side of the pick-and-place plate 402, and the label opening 106 is made of PVC material. The setting of the label opening 106 can be filled in order according to the names of the test tubes stored inside, so that the medical examiner can quickly find all the test tubes. Need test tubes, improve work efficiency.

The working principle and application process of the utility model: when the device is in use, when the test tubes used for physical examination are stored, the test tubes stored for urine will be sequentially put into the test tube opening 205 opened in the urine test tube rack 204, and pass through the bottom The test tube shockproof cotton 203 can reduce the vibration or collision and cause the test tubes to collide. The ventilation mechanism 3 is opened, and the ventilation fan shaft 302 passes through the rear motor 303 to drive the ventilation fan 301 to rotate, and then the inside of the urine storage box 101 is ventilated and replaced. Air, prevent odor due to excessive temperature, keep air circulation, and benefit the physical and mental health of medical staff.

The above description of the disclosed embodiments enables those skilled in the art to realize or use the utility model. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the general principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the invention. Therefore, the present invention will not be limited to these embodiments shown herein, but will conform to the widest scope consistent with the principles and novel features disclosed herein.

Claims (7)

1. a kind of test tube classification storage box that is convenient to pick and place, it is characterized in that: comprise storage box main body (1), described storage box main body (1) comprises urine storage box (101), described urine storage box (101 ) is provided with a urine test tube storage mechanism (2), the urine test tube storage mechanism (2) includes a storage base plate (201), and a urine test tube storage frame (202) is fixedly installed above the storage base plate (201), The inside of the urine test tube storage frame (202) is fixedly equipped with a test tube shockproof cotton (203), and a plurality of urine test tube racks (204) are arranged above the test tube shockproof cotton (203), each of the urine test tube racks (204) is provided with a plurality of test tube openings (205) inside, and a ventilation mechanism (3) is arranged above the left and right side walls of the urine storage box (101), and the ventilation mechanism (3) includes two ventilation A ventilation fan (301) is fixedly installed inside each ventilation opening, a ventilation fan shaft (302) is arranged at the center of each ventilation fan (301), and the end of each ventilation fan shaft (302) is A motor (303) is fixedly connected, and a motor base plate (304) is fixedly connected to the bottom of each of the motors (303), and each of the motor base plates (304) is fixedly connected to the left and right sides of the urine storage box (101). side wall. 2. a kind of test tube classification storage box that is convenient to pick and place according to claim 1, is characterized in that, described urine storage box (101) is provided with test tube pick-and-place mechanism (4), and described test tube pick-and-place mechanism ( 4) including a pick-and-place opening, a shaft base (401) is fixedly installed under the pick-and-place opening and a shaft is arranged inside the shaft base (401), and a pick-and-place plate (402) is fixedly installed inside the shaft base (401 ), The pick-and-place plate (402) is connected to the rotating shaft base (401) through a rotating shaft, the pick-and-place handle (403) is fixedly installed on the outer side of the pick-and-place plate (402), and the outer upper end of the pick-and-place plate (402) is provided with The bases (404) are fixed with two pick-and-place openings, and two pick-and-place mouth fixing buckles (405) are arranged at corresponding positions on the outer upper end of the urine storage box (101). 3. A test tube classification storage box that is convenient for taking and placing according to claim 1, wherein two guide rails (206) are arranged at the bottom of the storage base plate (201), and the urine test tube storage mechanism (2 ) is slidingly connected with the urine storage box (101) through the guide rail (206), and a storage plate handle (207) is provided on the outside of the storage bottom plate (201). 4. A kind of test tube classification storage box convenient for taking and placing according to claim 1, characterized in that, a blood storage mechanism (5) is arranged at the bottom of the urine storage box (101), and the blood storage mechanism (5) ) includes a blood storage box (501), the bottom of the blood storage box (501) is provided with a storage box shockproof cotton (502), and a blood storage frame (503) is fixedly installed above the storage box shockproof cotton (502), the A plurality of blood test tube racks (504) are fixedly installed inside the blood storage frame (503), and a plurality of blood test tube racks (504) are provided with blood test tube ports (505). Both sides are provided with a blood storage box fixing buckle (506). 5. A test tube classification storage box that is convenient for taking and placing according to claim 1, characterized in that, the upper and rear side of the urine storage box (101) is hinged with a storage box cover (102) through a hinge, and the urine storage box (101) is hinged with a storage box cover (102), A storage box handle (103) is fixedly connected to the top of the storage box cover (102), and two storage box buttons (104) are fixedly installed on the front side of the storage box cover (102), and the front side of the urine storage box (101) Two storage buckle bases (105) are arranged at the corresponding positions. 6. A test tube classification storage box that is convenient for taking and placing according to claim 5, wherein a disinfection mechanism (6) is arranged inside the storage box cover (102), and the disinfection mechanism (6) includes two A disinfection lamp base (601), two disinfection lamp bases (601) are provided with a plurality of ultraviolet disinfection lamp tubes (602) inside, and a disinfection lamp switch (603) is fixedly installed on the outside of the disinfection lamp base (601) on the right side ), the disinfection light switch (603) is located on the outer wall of the storage case cover (102). 7. A kind of easy-to-take test tube classification storage box according to claim 2, characterized in that, a label opening (106) is fixedly installed on the outside of the pick-and-place plate (402), and the label opening (106) is pvc material.
