Abstract

The utility model discloses a TV frame structure and the TV set. The TV frame structure includes an external box and a support plate. Wherein, the external box is used to rotatably connect with the back of the display, the support plate is rotatably connected to the external box, and the support plate and the display are respectively connected to two ends of the external box; The external box is used to accommodate the audio power supply PCB board and the audio speaker. The support plate can be rotated to the side of the external box away from the display, and rotated to the bottom of the display. The support plate is used for all When the TV frame structure is placed on the wall or standing, it plays a role of suspension or support. The television frame structure and the television set provided by the utility model can realize the adjustable angle of the television set, which is beneficial to the flexible use of the television set.

Description

TV frame structure and TV set

technical field

The utility model relates to the field of display technology, in particular to a TV frame structure and the TV set.

Background technique

With its high definition, digitalization, thinness and lightness, and stylish style, flat-panel TVs have developed rapidly in recent years and are favored by consumers. There are generally two ways to place flat-panel TVs at present, one is a stand-up arrangement using a base, and the other is a wall-mounted arrangement.

The screen of the existing flat-panel TV is integrated with the internal structure of the TV, which easily leads to high internal temperature of the TV, insufficient heat dissipation, high cost of the integrated rear shell, and limited internal space to limit the performance of the sound speaker. At the same time, some flat-panel TVs will also be equipped with a box, which has the audio function required for the flat-panel TV to work. However, when the flat-panel TV is placed on the wall, although the floor space is saved, it still needs to occupy a certain position due to the existence of the audio box; The space at the bottom of the machine is not enough to place the box, which destroys the integrity of the overall structure of the flat-panel TV.

Therefore, prior art needs to be improved.

Utility model content

The technical problem to be solved by the utility model is that when the flat-panel TV is placed on the wall, although the ground space is saved, it still needs to occupy a certain position due to the existence of the audio box; The volume of the audio box is large, and the space at the bottom of the TV is not enough to place the box, which will damage the integrity of the overall structure of the flat-panel TV. Therefore, the utility model provides a TV frame structure and the TV set to solve the above problems.

The technical solution adopted by the utility model to solve technical problems is as follows:

In a first aspect, the utility model provides a TV frame structure, which includes:

The external box is used to rotate with the back of the monitor;

The support plate is rotatably connected with the external box;

Wherein, the support plate and the display are respectively connected to two ends of the external box;

The support plate can be rotated to the side of the external box away from the display, and to the bottom of the display.

In one implementation, the external box is connected to the display through a first rotating shaft and extends to the bottom of the display, the external box is used to accommodate the audio power supply PCB board and the audio speaker; the support plate It is connected with the external box through the second rotating shaft.

In one implementation, the display includes:

The front shell of the display screen is used to house the display module;

The rear shell, the rear shell and the front shell of the display screen enclose a receiving cavity, and the receiving cavity is used to accommodate a power supply and a PCB board.

In an implementation manner, the TV frame structure further includes a module backboard, the module backboard is arranged in the rear case, and the module backboard is used for accommodating a backlight module.

In an implementation manner, the support plate is provided with wall-mounted holes, the wall-mounted holes are evenly distributed on the support plate, and the wall-mounted holes are rubber pad holes.

In an implementation manner, the rear case is fixedly connected to the front case of the display screen by screws.

In an implementation manner, first card slots are provided at both ends of the bottom of the rear case, and a first card connection portion adapted to the first card slot is provided on the external box, and the first card connection After the part is engaged with the first card slot, the first rotating shaft is engaged and fixed.

In one implementation, the bottom of the external box is provided with a second clamping part, and the support plate is provided with a second clamping slot, and the second clamping part and the second clamping slot pass through the first clamping part. The two rotating shafts are engaged and fixed.

In an implementation manner, the first locking slot and the second locking slot are two partitions with opposite holes, the first locking part is engaged in the partition, and the first rotating shaft is sequentially passing through the partition plate of the first card slot and the first clamping part for connection and fixing, and the second rotating shaft passing through the partition plate of the second card slot and the second clamping part for connection in sequence fixed.

In the second aspect, the present utility model also provides a TV set, which includes any one of the TV frame structures mentioned above.

Beneficial effects: the TV frame structure and the TV set provided by the utility model, wherein the TV frame structure includes an external box and a support plate, and the support plate can be rotated to the side of the external box away from the display, and rotated To the bottom of the display, to realize the suspension or supporting effect of the support plate when the TV frame structure is placed on the wall or standing; at the same time, the external box is used to accommodate the audio power supply PCB board and The audio speaker realizes the hanging or wall-hanging function of the TV frame structure by setting an external box and a support plate, reduces the space occupied by the audio box, maintains the integrity of the overall structure of the TV, and realizes that the angle of the TV can be adjusted. Adjustment is conducive to the flexible use of the TV.

Description of drawings

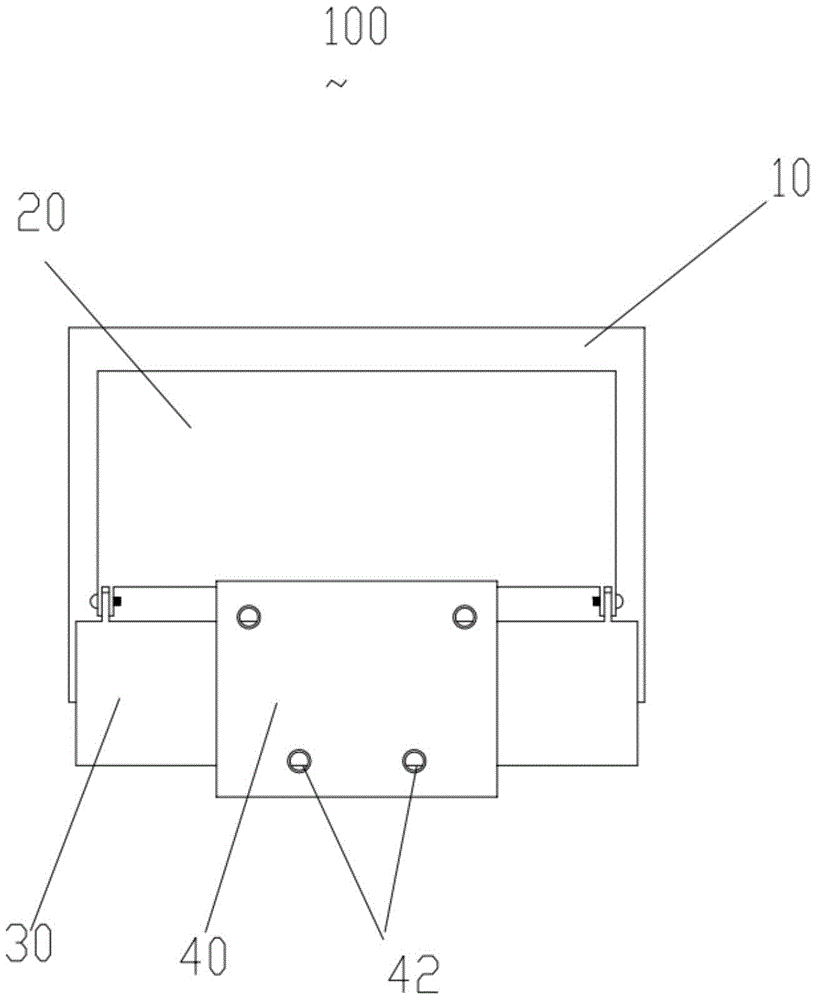

Fig. 1 is the overall structure schematic diagram of the frame structure of the TV provided by the utility model;

Fig. 2 is the first use schematic diagram of the wall-mounted placement of the TV frame structure provided by the utility model;

Fig. 3 is the second use schematic diagram of the wall-mounted placement of the TV frame structure provided by the utility model;

Fig. 4 is the first use schematic diagram of the standing placement of the TV frame structure provided by the utility model;

Fig. 5 is the second use schematic diagram of the standing placement of the TV frame structure provided by the utility model;

Fig. 6 is a structural schematic diagram of the front shell and the rear shell of the display screen shown in Fig. 1;

Fig. 7 is a schematic structural diagram of the external box shown in Fig. 1;

FIG. 8 is a schematic structural view of the support plate shown in FIG. 1 .

Detailed ways

In order to make the purpose, technical solution and advantages of the utility model more clear and definite, the utility model will be further described in detail below with reference to the accompanying drawings and examples. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

Those skilled in the art will understand that unless otherwise stated, the singular forms "a", "an", "said" and "the" used herein may also include plural forms. It should be further understood that the word "comprising" used in the description of the present utility model refers to the presence of the stated features, integers, steps, operations, elements and/or components, but does not exclude the presence or addition of one or more other features , integers, steps, operations, elements, components, and/or groups thereof. It will be understood that when an element is referred to as being "connected" or "coupled" to another element, it can be directly connected or coupled to the other element or intervening elements may also be present. Additionally, "connected" or "coupled" as used herein may include wireless connection or wireless coupling. The expression "and/or" used herein includes all or any elements and all combinations of one or more associated listed items.

In the description of the embodiments of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", " The orientation or positional relationship indicated by "outside" and so on is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the embodiment of the present utility model and simplifying the description, rather than indicating or implying that the referred device or element must have a specific Orientation, construction and operation in a particular orientation, therefore, should not be construed as limiting the embodiments of the present invention. In addition, the terms "first", "second", and "third" are used for descriptive purposes only, and should not be construed as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, for example, it can be a fixed connection or a flexible connection. Detachable connection, or integral connection; it can be mechanical connection, electrical connection or mutual communication; it can be directly connected or indirectly connected through an intermediary, and it can be the internal communication of two components or the mutual communication of two components role relationship. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present invention according to specific situations. It should be noted that, in the case of no conflict, the embodiments of the present invention and the features in the embodiments can be combined with each other.

Please refer to Fig. 1-Fig. 8 in combination, Fig. 1 is a schematic diagram of the overall structure of the TV frame structure provided by the utility model, and Fig. 2 is a schematic diagram of the first use of the wall-mounted placement of the TV frame structure provided by the utility model, Fig. 3 is the second use schematic diagram of the wall-mounted placement of the TV frame structure provided by the utility model, Fig. 4 is the first usage schematic diagram of the stand-up placement of the TV frame structure provided by the utility model, and Fig. 5 is The second use schematic diagram of the stand-up placement of the TV frame structure provided by the utility model, Fig. 6 is a structural schematic diagram of the front shell and rear shell of the display screen shown in Fig. 1, and Fig. 7 is the external box shown in Fig. 1 Fig. 8 is a schematic structural diagram of the support plate shown in Fig. 1 .

The utility model provides a TV frame structure 100, which includes a display, an external box and a supporting board. Wherein, the external box 30 is used to rotatably connect with the back of the display; the support plate 40 is rotatably connected to the external box 30; the support plate 40 and the display are respectively connected to the external box 30 two ends; the support plate 40 can be rotated to the side of the external box 30 away from the display, and rotated to the bottom of the display.

Specifically, the display includes a display front case 10 and a rear case 20, and the display screen front case 10 is used to house a display module; The accommodating cavity is used for accommodating the power supply and the PCB board. The external box 30 is connected to the display through a first rotating shaft and extends to the bottom of the display. The external box 30 is used to accommodate the audio power PCB board and the audio speaker; the support plate 40 is connected to the external The housing box 30 is connected by a second rotating shaft, and the support plate 40 is used for hanging or supporting the TV frame structure 100 when placed on a wall or standing.

In this embodiment, the display screen front case 10 is a fully covered frame structure for accommodating a display module of a television set, the rear case 20 is arranged on the display screen front case 10, and the rear case The area of 20 is smaller than that of the display screen front case 10, and the rear case 20 is used to further protect the important modules of the TV set, such as power supply and PCB board. The TV frame structure 100 may further include a module backboard (not shown in the figure), the module backboard is arranged in the rear case 20, and the module backboard is used for accommodating a backlight module. In this embodiment, the rear case 20 is fixedly connected to the display screen front case 10 by screws.

In this implementation, please refer to FIG. 6 and FIG. 7 in detail, first card slots 21 are provided at both ends of the bottom of the rear case 20, and the first card slots 21 adapted to the first card slots 21 are provided on the external box 30. A clamping part 31 , the first clamping part 31 engages with the first clamping slot 21 and is fixed by the first rotating shaft 50 after being engaged. Specifically, the first card slot 21 includes two first partitions 211 and second partitions 212 provided for the holes, and a third partition 213 and a fourth partition 214 provided for the holes, wherein the The first partition 211 and the second partition 212 form a first clamping gap 215, the third partition 213 and the fourth partition 214 form a second clamping gap 216, the partition of the first clamping groove 21 Through holes 217 are provided on the board. The first clamping part 31 includes a first protrusion 311 and a second protrusion 312 provided at both ends of the external box 30, and the first protrusion 311 and the second protrusion 312 are respectively provided with through holes. 313 and through hole 314. When the external box 30 is installed and connected with the rear case 20, the first protrusion 311 is engaged in the first engagement gap 215, and the second protrusion is engaged in the first engagement gap 215. Two clamping gaps 216, the first transmission shaft 50 passes through the first partition 211, the first protrusion 311, the second partition 212, the third partition 213, the second protrusion 312 and the fourth partition in turn. The partition 214 enables the external box 30 to rotate around the first rotating shaft 50 relative to the rear shell 20, and can change the position of the external box 30 relative to the front shell 10 and the rear shell 20 of the display screen. Location. It is worth noting that the length of the external box 30 can be set to be equal to or less than the length of the display screen front case 10, so that the TV frame structure 100 can achieve the consistency of the overall structure.

Further, please refer to FIG. 7 and FIG. 8 in detail. The bottom of the external box 30 is provided with a second clamping portion 32 , and the support plate 40 is provided with a second clamping slot 41 . The second clamping portion 32 and The second locking slot 41 is engaged and fixed by the second rotating shaft 60 . Specifically, the second clamping part 32 includes a third protrusion 321 and a fourth protrusion 324 arranged at the other end of the external box 30 opposite to the first clamping part 31, the third protrusion A through hole 323 and a through hole 324 are respectively provided on the protrusion 321 and the fourth protrusion 324 . The second card slot 41 includes two fifth baffles 411 and sixth baffles 412 arranged for the holes, and a seventh baffle 413 and an eighth baffle 414 arranged for the holes, wherein the fifth baffles A third clamping space 415 is formed in the plate 411 and the sixth partition 412 , and a fourth clamping gap 416 is formed in the seventh partition 413 and the eighth partition 414 . When the external box 30 is installed and connected with the support plate 40, the third protrusion 321 is inserted into the third engagement space 415, and the fourth protrusion 324 is inserted into the fourth The second rotating shaft 60 passes through the fifth partition 411 , the third protrusion 321 , the sixth partition 412 , the seventh partition 413 , the fourth protrusion 324 and the eighth partition in sequence. The partition 414 enables the external box 30 and the support plate 40 to rotate relative to each other. Specifically, the support plate 40 rotates around the external box 30 by 0-270 degrees.

Further, the support plate 40 is provided with wall hanging holes 42 , and the wall hanging holes 42 are evenly distributed on the support plate 40 . Specifically, the wall hanging holes 42 are rubber pad holes.

This embodiment also provides a TV, which includes the TV frame structure 100 provided by the present invention.

The installation and working principle of the TV set are as follows: first, the rear shell 20 is installed on the front shell 10 of the display screen by screws, and the rear shell 20 accommodates the TV core PCB board, power supply and module PCB board; The audio power supply PCB board and the audio speaker are installed in the external box 30, the external box 30 is installed on the rear shell 20 through the first rotating shaft 50, the external box 30 and the external box 30 The rear case 20 can be screwed to lock both ends of the first shaft 50. When the angle between the external box 30 and the rear case 20 needs to be adjusted, the screws can be loosened, and the screws can be tightened after adjustment; finally, the The support plate 40 is installed on the external box 30 through the second rotating shaft 60, and the two ends of the second rotating shaft 60 are locked by screwing. The TV set can be placed in four ways as shown in FIGS.

In general, the TV frame structure 100 and the TV set provided by the utility model, wherein the TV frame structure 100 includes an external box 20 and a support plate 40, and the external box 30 is used to accommodate the audio power PCB board and the audio speaker , the support plate 40 can be rotated to the side of the external box away from the display, and rotated to the bottom of the display, so that the support plate 40 can be placed or stood on the wall of the TV frame structure 100 Suspension or support function played when placed in the same way; by setting the external box 30 and the support plate 40 to realize the hanging or wall-mounting function of the TV frame structure 100, reduce the space occupied by the audio box, and keep the overall shape of the TV set Integrity of the structure, at the same time, the angle of the support plate 40 and the external box 30 can be changed through the first rotating shaft 50 and the second rotating shaft 60, so that the angle of the TV can be adjusted, which is beneficial to the flexible use of the TV.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solutions of the present utility model, and are not intended to limit it; although the utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements for some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit of the technical solutions of the various embodiments of the present invention. and range.

Claims (10)

1. A TV frame structure, characterized in that it comprises: The external box is used to rotate with the back of the monitor; The support plate is rotatably connected with the external box; Wherein, the support plate and the display are respectively connected to two ends of the external box; The support plate can be rotated to the side of the external box away from the display, and to the bottom of the display. 2. The TV frame structure according to claim 1, wherein the external box is connected to the display through a first rotating shaft and extends below the display, and the external box is used to accommodate audio The power supply PCB board and the audio horn; the support board is connected with the external box through the second rotating shaft. 3. The TV frame structure according to claim 2, wherein the display comprises: The front shell of the display screen is used to house the display module; The rear shell, the rear shell and the front shell of the display screen enclose a receiving cavity, and the receiving cavity is used to accommodate a power supply and a PCB board. 4. The TV frame structure according to claim 3, characterized in that, the TV frame structure further comprises a module backboard, the module backboard is arranged in the rear shell, and the module backboard The board is used to house the backlight module. 5. The TV frame structure according to claim 1, wherein the support plate is provided with wall-hanging holes, the wall-hanging holes are evenly distributed on the support plate, and the wall-hanging holes are rubber pads hole. 6 . The TV frame structure according to claim 3 , wherein the rear case is fixedly connected to the front case of the display screen by screws. 7 . 7. The TV frame structure according to claim 3, characterized in that first card slots are provided at both ends of the bottom of the rear case, and a second card slot compatible with the first card slots is provided on the external box. A clamping part, the first clamping part engages with the first clamping groove and then is clamped and fixed by the first rotating shaft. 8. The TV frame structure according to claim 7, wherein a second clamping portion is provided at the bottom of the external box, a second clamping slot is provided on the support plate, and the second clamping portion and the second locking slot are engaged and fixed through the second rotating shaft. 9. The TV frame structure according to claim 8, characterized in that, the first clamping slot and the second clamping slot are two partitions provided with opposite holes, and the first clamping part engages In the partition, the first rotating shaft passes through the partition of the first card slot and the first clamping part for connection and fixation in sequence, and the second rotating shaft passes through the partition of the second card slot in sequence. The board is connected and fixed with the second clamping portion. 10. A TV, characterized in that it comprises the TV frame structure according to any one of claims 1-9.
