Abstract

The utility model belongs to the technical field of highway engineering, in particular to a drainage channel for highway engineering, which includes a fence plate and a drainage tank body. The surface of the drainage tank body is provided with a filter assembly, and the filter assembly includes a filter plate, a collection box, a fixed block and clamping block, the inside of the drain tank body is provided with the filter plate, the two ends of the filter plate are symmetrically fixedly connected with the clamping block, and the inner wall of the drain tank body is symmetrically provided with a placement groove, so The inner wall of the placement groove is provided with a collection box, and the side of the collection box is fixedly connected with the fixed block; the filter plate can filter debris such as stones and leaves that cannot be filtered by the fence plate, and collect the debris through the collection box. Pulling the handle makes it easy to take out the filter plate to clean the filter plate. At the same time, the collection box can be taken out from the storage slot to clean up the sundries inside the collection box. Turning the rectangular block can push the first slider out of the slot to facilitate the removal of the column. Grille removal.

Description

A highway engineering drainage channel

technical field

The utility model belongs to the technical field of highway engineering, in particular to a drainage channel for highway engineering.

Background technique

Highway engineering refers to the survey, measurement, design, construction, maintenance, management, etc. of highway structures; during the construction of highway engineering, it is necessary to set up drainage channels on both sides of the highway, and to export the water on the highway through the drainage channels to prevent A lot of water accumulates on the road, which leads to traffic accidents. At the same time, it is convenient to maintain the road. The existing drainage channels are usually equipped with fence plates to filter the debris on the surface. However, in the summer rainstorm, the rainwater is easy to wash the leaves Small sundries such as stones and stones enter the drainage ditch, making the internal channel of the drainage ditch smaller, affecting the drainage efficiency, and easily causing water accumulation on the road.

In order to solve the above problems, a kind of highway engineering drainage channel is proposed in this application.

Utility model content

In order to solve the problems raised in the above-mentioned background technology. The utility model provides a drainage channel for highway engineering, which has the characteristics of being able to filter garbage such as leaves through a filter plate, and collecting garbage through a collection box, so as to prevent the garbage from blocking the drainage channel.

In order to achieve the above purpose, the utility model provides the following technical solutions: a highway engineering drainage channel, including a fence plate and a drainage tank body, the surface of the drainage tank body is provided with a filter assembly;

The filter assembly includes a filter plate, a collection box, a fixing block and a clamping block, the filter plate is arranged inside the drain tank body, the two ends of the filter plate are fixedly connected with the clamping blocks symmetrically, and the row The inner wall of the tank body is symmetrically provided with a placement groove, the inner wall of the placement groove is provided with a collection box, the side of the collection box is fixedly connected with the fixed block, and the upper surface of the fixed block is provided with a fixed groove, and The clamping block is slidably connected inside the fixing groove.

As a preferred road engineering drainage channel of the present invention, the filter assembly also includes a handle and a fixed rod, the upper surface of the filter plate is fixedly connected with the handle, and both ends of the fixed rod are connected to the filter The bottom surface of the plate is fixed by welding.

As a preferred drainage channel for highway engineering of the present utility model, the surface of the barrier board is provided with a mounting mechanism, and the mounting mechanism includes a rectangular block, a first slider, a spring, an elliptical block, a second slider and a connecting block , the upper surface of the fence board is provided with symmetrically arranged rotating grooves, and the two ends of the fence board are symmetrically provided with installation grooves, and the installation grooves are connected with the rotation grooves, and the installation grooves The inner wall surface is symmetrically fixedly connected to the spring, the end surface of the spring is fixedly connected to the second slider, and the side of the second slider away from the spring is symmetrically fixedly connected to the first slider, and the The first slider is slidably connected to the inner wall of the installation groove, the inner wall of the installation groove is rotatably connected to the elliptical block, the upper surface of the elliptical block is fixedly connected to the connecting block, and the connection The block is rotatably connected to the inner wall surface of the rotating groove, the upper surface of the connecting block is fixedly connected with the rectangular block, the upper surface of the drain tank body is symmetrically provided with a card slot, and the first slider is slidably connected on the inner wall of the slot.

As a preferred highway engineering drainage channel of the present invention, the installation mechanism further includes a trapezoidal groove, and the trapezoidal groove is set on the upper surface of the fence plate.

Compared with the prior art, the beneficial effect of the utility model is: by setting the filter assembly, the filter plate can filter debris such as pebbles and leaves that cannot be filtered by the fence plate, collect the debris through the collection box, and pull the handle to facilitate filtering Take out the filter plate to clean the filter plate. At the same time, the collection box can be taken out from the storage slot to clean up the sundries inside the collection box. At the same time, the installation mechanism is set, and the first slider can be pushed out from the slot by rotating the rectangular block. Remove the fence panels.

Description of drawings

The accompanying drawings are used to provide a further understanding of the utility model, and constitute a part of the description, and are used to explain the utility model together with the embodiments of the utility model, and do not constitute a limitation to the utility model. In the attached picture:

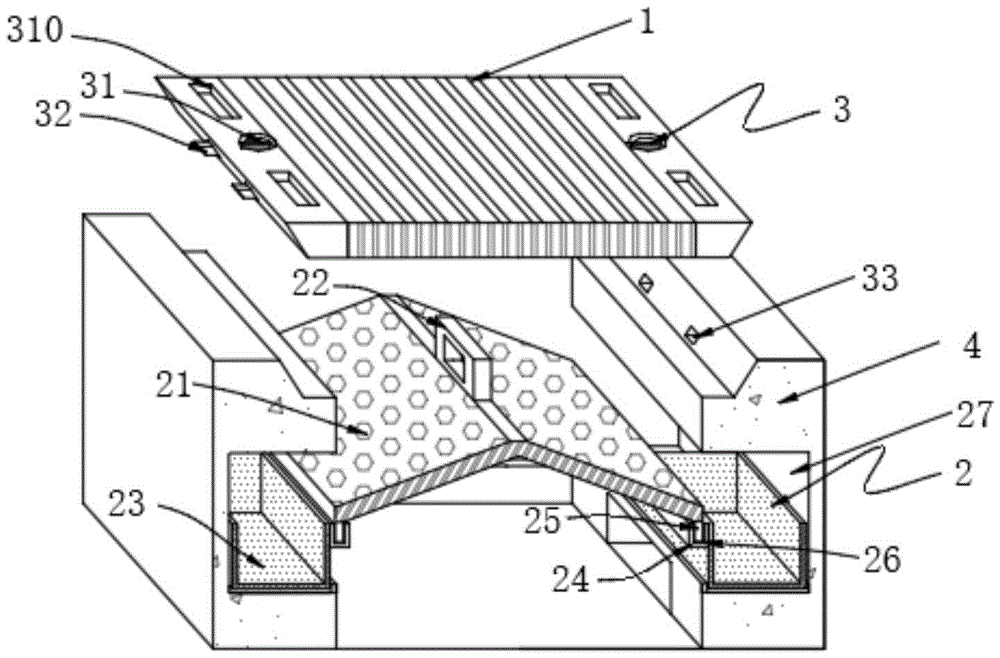

Fig. 1 is the overall structural representation of the utility model;

Figure 2 is a front sectional view of the utility model;

Fig. 3 is the top sectional view of the first slider and the elliptical block in the utility model;

Fig. 4 is an enlarged view of A in the filter assembly of the utility model.

In the picture:

1. Fence board;

2. Filter assembly; 21. Filter plate; 22. Handle; 23. Collection box; 24. Fixing block; 25. Block; 26. Fixing slot; 27. Placement slot; 28. Fixing rod;

3. Installation mechanism; 31. Rectangular block; 32. First slider; 33. Card slot; 34. Spring; 35. Installation groove; 36. Ellipse block; 37. Second slider; 38. Rotation groove; 39. Connection block; 310, trapezoidal groove;

4. The main body of the drainage tank.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

As shown in Figure 1:

A drainage channel for highway engineering, including a fence plate 1 and a drainage channel body 4 .

In this embodiment: the existing drains are usually equipped with fence panels 1 to filter surface debris, but in the summer rainstorm, the rainwater is easy to wash leaves, stones and other small debris into the drain, so that the inside of the drain can pass through. The groove becomes smaller, which affects the drainage efficiency and easily leads to water accumulation on the road, so the filter assembly 2 is added on this basis.

Going further:

As shown in Figure 1, Figure 2, Figure 3 and Figure 4:

In combination with the above: the filter assembly 2 includes a filter plate 21, a collection box 23, a fixed block 24, a clamp block 25, a handle 22 and a fixed rod 28, and a filter plate 21 is arranged inside the gutter body 4, and the two ends of the filter plate 21 Symmetrically fixedly connected with a block 25, the inner wall of the drainage tank body 4 is symmetrically provided with a placement groove 27, the inner wall of the placement groove 27 is provided with a collection box 23, and the side of the collection box 23 is fixedly connected with a fixed block 24, and the fixed block 24 The upper surface is provided with a fixed groove 26, and the block 25 is slidably connected to the inside of the fixed groove 26. The filter assembly 2 includes a filter plate 21, a collection box 23, a fixed block 24, and a block 25. The inside of the drainage tank body 4 is provided with a filter plate 21, the two ends of the filter plate 21 are symmetrically fixedly connected with clamping blocks 25, the inner wall surface of the drainage tank body 4 is symmetrically provided with a placement groove 27, and the inner wall surface of the placement groove 27 is provided with a collection box 23, and the side of the collection box 23 is fixedly connected There is a fixed block 24, the upper surface of the fixed block 24 is provided with a fixed groove 26, and the clamping block 25 is slidably connected in the inside of the fixed groove 26, the upper surface of the filter plate 21 is fixedly connected with a handle 22, and the two ends of the fixed rod 28 are connected with the The bottom surface of the filter plate 21 is welded and fixed.

In this embodiment: the rainwater flushes small sundries such as leaves and stones into the gutter through the fence plate 1, the filter plate 21 filters the sundries, and rushes into the inside of the collection box 23 under the action of the water flow, and the rainwater passes through the collection box The hole on the surface of 23 flows into the drainage groove. After the device is used for a period of time, the fence plate 1 is disassembled, and the handle 22 is pulled to make the block 25 slide out from the inside of the fixing groove 26, and the filter plate 21 is disassembled, which is convenient for the filter plate 21 To clean up, avoid the blockage of the filter plate 21 and affect the operation of the device. Lift the fixed block 24 and pull the collection box 23 to take the collection box 23 out of the placement groove 27, and clean up the debris inside the collection box 23.

It should be noted that the mesh density on the surface of the filter plate 21 is greater than that of the fence plate 1, so that the filter plate 21 can filter smaller debris, and the cross-sectional shape of the filter plate 21 is an inverted V shape, which is convenient for the debris on the surface of the filter plate 21. The material rushes into the inside of the collection box 23 under the action of the water flow, and the fixed rod 28 supports the filter plate 21 to make the filter plate 21 more stable.

It should be understood that: the surface of the collection box 23 is provided with a mesh, so that the water in the collection box 23 flows into the drainage tank through the mesh, and the bottom surface of the storage tank 27 is provided with a through groove, so that the water in the collection box 23 can flow through the drain. Slot drain.

Going a step further;

In this highway project drainage channel, the surface of the barrier board 1 is provided with a mounting mechanism 3, and the mounting mechanism 3 includes a rectangular block 31, a first slide block 32, a spring 34, an elliptical block 36, a second slide block 37 and a connecting block 39. The upper surface of grid plate 1 is provided with the rotation groove 38 that is symmetrically arranged, and the two ends of grid plate 1 are symmetrically provided with installation groove 35, and installation groove 35 communicates with rotation groove 38, and the inner wall surface of installation groove 35 is fixedly connected symmetrically. There is a spring 34, the end face of the spring 34 is fixedly connected with the second slider 37, and the side of the second slider 37 away from the spring 34 is symmetrically fixedly connected with the first slider 32, and the first slider 32 is slidably connected to the mounting groove 35. Inner wall surface, the inner wall surface of mounting groove 35 is connected with ellipse block 36 in rotation, and the upper surface of ellipse block 36 is fixedly connected with connecting block 39, and connecting block 39 is connected in the inner wall surface of rotating groove 38 in rotation, and the upper surface of connecting block 39 is fixed. Connected to the rectangular block 31 , the upper surface of the gutter body 4 is symmetrically provided with a slot 33 , and the first slider 32 is slidably connected to the inner wall of the slot 33 , and the trapezoidal slot 310 is opened on the upper surface of the fence plate 1 .

In this embodiment: the rotating rectangular block 31 drives the elliptical block 36 to rotate under the action of the connecting block 39, so that the long axis end of the elliptical block 36 contacts the second slider 37, and pushes the first slider 32 to slide from the inside of the slot 33. out, the fence plate 1 can be disassembled, and the rectangular block 31 is rotated so that the second sliding block 37 is in contact with the short axis end of the elliptical block 36, and the first sliding block 32 is pushed to the inside of the slot 33 under the action of the spring 34, Thereby, the installation of the barrier board 1 is completed, and the operation is simple and convenient.

It should be noted that: when the device is in use, a plurality of fence plates 1 and filter plates 21 are spliced inside the drain tank body 4, and four trapezoidal grooves 310 are opened on the upper surface of the fence plate 1, and the trapezoidal grooves 310 are pulled to facilitate When the fence plate 1 is disassembled, the cross-sectional shape of the first slider 32 is trapezoidal, which is convenient for the first slider 32 to slide into the slot 33 .

It should be understood that: the connecting block 39 is fixedly connected by two cylinders of different sizes, and the connecting block 39 is rotatably connected to the inner wall surface of the rotating groove 38, so that sand and gravel are not easy to enter the inside of the installing groove 35, and the rotating groove 38 and the connection The cross-sectional shape of block 39 is T-shaped.

Working principle: During periods of heavy rainfall such as heavy rain in summer, the rainwater will flush small debris such as leaves and stones into the drainage tank through the fence plate 1, and the filter plate 21 will filter the debris and wash them under the action of water flow. into the collection box 23, the rainwater flows into the drainage tank through the holes on the surface of the collection box 23; the rotating rectangular block 31 drives the elliptical block 36 to rotate under the action of the connecting block 39, so that the long axis end of the elliptical block 36 is aligned with the second slider 37 Contact, push the first slider 32 to slide out from the inside of the slot 33, then the fence plate 1 can be disassembled, and the rectangular block 31 is rotated to make the second slider 37 contact with the short axis end of the elliptical block 36, and the first slider 32 is pushed to the inside of the slot 33 under the action of the spring 34, thereby completing the installation of the fence plate 1, and the operation is simple and convenient; after the device has been used for a period of time, the fence plate 1 is disassembled, and the handle 22 is pulled to make the block 25 from The inside of the fixing groove 26 slides out, and the filter plate 21 is disassembled to facilitate the cleaning of the filter plate 21, so as to prevent the blockage of the filter plate 21 from affecting the operation of the device. Take it out, and clean up the sundries inside the collecting box 23 .

Finally, it should be noted that: the above are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Although the utility model has been described in detail with reference to the foregoing embodiments, for those skilled in the art, the It is still possible to modify the technical solutions described in the foregoing embodiments, or to perform equivalent replacements for some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principles of the present utility model shall be included in the protection scope of the present utility model.

Claims (4)

1. A highway engineering drain, comprising a fence plate (1) and a drainage tank body (4), is characterized in that: the surface of the drainage tank body (4) is provided with a filter assembly (2); The filter assembly (2) includes a filter plate (21), a collection box (23), a fixing block (24) and a block (25), and the filter plate (21) is provided inside the gutter body (4). ), the two ends of the filter plate (21) are symmetrically fixedly connected with the clamping block (25), and the inner wall surface of the drainage tank body (4) is symmetrically provided with a placement groove (27), and the placement groove (27 ) is provided with a collection box (23) on the inner wall surface, the side of the collection box (23) is fixedly connected with the fixed block (24), and the upper surface of the fixed block (24) is provided with a fixed groove (26), And the clamping block (25) is slidably connected inside the fixing groove (26). 2. The highway engineering drainage ditch according to claim 1, characterized in that: the filter assembly (2) also includes a handle (22) and a fixed rod (28), and the upper surface of the filter plate (21) is fixedly connected There is the handle (22), and both ends of the fixing rod (28) are welded and fixed to the bottom surface of the filter plate (21). 3. The highway engineering drainage channel according to claim 1, characterized in that: the surface of the barrier board (1) is provided with a mounting mechanism (3), and the mounting mechanism (3) includes a rectangular block (31), First slide block (32), spring (34), ellipse block (36), second slide block (37) and connecting block (39), the upper surface of described barrier board (1) offers to be provided with symmetrically arranged Rotating groove (38), the two ends of described barrier plate (1) are provided with installation groove (35) symmetrically, and described installation groove (35) is connected with described rotation groove (38), and described installation groove ( The inner wall surface of 35) is symmetrically fixedly connected with the spring (34), and the end surface of the spring (34) is fixedly connected with the second slider (37), and the second slider (37) is away from the spring One side of (34) is symmetrically fixedly connected with the first slider (32), and the first slider (32) is slidably connected to the inner wall surface of the installation groove (35), and the installation groove (35) The inner wall surface of the ellipse block (36) is rotatably connected with the ellipse block (36), the upper surface of the ellipse block (36) is fixedly connected with the connection block (39), and the connection block (39) is rotatably connected in the rotation groove (38), the upper surface of the connection block (39) is fixedly connected with the rectangular block (31), and the upper surface of the drainage tank body (4) is symmetrically provided with a card slot (33), and the The first sliding block (32) is slidably connected to the inner wall surface of the locking groove (33). 4. The highway engineering drainage channel according to claim 3, characterized in that: the installation mechanism (3) also includes a trapezoidal groove (310), and the trapezoidal groove (310) is opened on the fence plate (1) of the upper surface.
