Abstract

The utility model relates to the technical field of asphalt processing equipment, and discloses an asphalt mixing device, which comprises a main body of the mixing device. The upper surface of the main body of the mixing device is provided with a first clamping groove, and a cleaning groove is clamped inside the first clamping groove. A nozzle, one end of the cleaning nozzle is fixedly connected with a detergent pipeline, one end of the detergent pipeline is fixedly connected with a detergent booster pump, and the other end of the detergent booster pump is fixedly connected with a detergent water tank, the The upper surface of the main body of the stirring device is provided with a second card slot, and a hot blower is clamped inside the second card slot. The utility model has the following advantages and effects: the cleaning agent water tank starts to clean the spray head through the cleaning agent booster pump Spray cleaning agent into the main body of the mixing device, and at the same time, the motor drives the asphalt cleaning brush on the rotating shaft to clean the inside of the main body of the mixing device, which further avoids the harm to the staff caused by the gas that heats the asphalt when manually cleaning the residual asphalt .

Description

an asphalt mixing device

technical field

The utility model relates to the technical field of asphalt processing equipment, in particular to an asphalt mixing device.

Background technique

Asphalt is a high-viscosity organic liquid with a black surface. It is mainly used in coatings, plastics, rubber and other industries as well as paving roads. The asphalt mixing device is used to mix and stir asphalt raw materials for better Accessory devices that make products needed by human beings.

When traditional asphalt mixing equipment needs to clean the residual solidified asphalt in the agitator, it is generally necessary to heat the asphalt again to melt the asphalt into a liquid, then add asphalt cleaner, and further clean it manually, which is not only difficult to clean, but also releases the asphalt after heating. Toxic gas, in addition, the traditional asphalt mixing device is inconvenient to clean, and the long-term solidified asphalt will also wear the asphalt mixing device.

Utility model content

The purpose of this utility model is to provide an asphalt mixing device, which can solve the above-mentioned problems in the background technology.

The above-mentioned technical purpose of the utility model is achieved through the following technical solutions: an asphalt stirring device, comprising a stirring device main body, the upper surface of the stirring device main body is provided with a first clamping groove, and the inside of the first clamping groove A cleaning nozzle is clamped, one end of the cleaning nozzle is fixedly connected with a detergent pipeline, one end of the detergent pipeline is fixedly connected with a detergent booster pump, and the other end of the detergent booster pump is fixedly connected with a detergent The water tank, the upper surface of the main body of the stirring device is provided with a second card slot, the inside of the second card slot is carded with a hot blower, one side of the main body of the stirring device is provided with a third card slot, the third The inside of the card slot is fixedly connected with a bearing, and the inside of the bearing is fixedly connected with a rotating shaft. One end of the rotating shaft is fixedly connected with a first gear, and the first gear meshes with a second gear. A motor is fixedly connected to one end, a threaded hole is opened on the surface of the rotating shaft, and an asphalt cleaning brush is threaded inside the threaded hole.

By adopting the above technical scheme, when cleaning the main body of the asphalt mixing device after the mixing work is completed, the staff first inserts the hot blower into the card slot, connects the asphalt cleaning brush with the threaded hole on the rotating shaft, and then inserts the cleaning nozzle into the card slot , and then the hot blower continues to heat the inside of the main body of the mixing device. Under the action of the insulation layer, it is heated until the asphalt solid becomes liquid and flows out. Cleaning agent, at the same time the motor starts to rotate, driving the asphalt cleaning brush on the rotating shaft to clean the inside of the mixing body, which further avoids the harm to the staff caused by the gas heating the asphalt when the staff manually cleans the residual asphalt.

The utility model is further set as follows: the upper surface of the main body of the stirring device is provided with a feeding port, the upper surface of the feeding port is fixedly connected with a surrounding block of the feeding port, and the bottom end of the main body of the stirring device is provided with an outlet A material outlet, the lower surface of the material outlet is plugged with a material outlet baffle, and the lower surface of the material outlet baffle is movably connected with a hydraulic rod.

By adopting the above-mentioned technical scheme, the enclosure of the material inlet can effectively prevent the aggregate from being spilled outwards when the aggregate is put in, and the discharge baffle is driven downward by the hydraulic arm when discharging the material, which is not easy More asphalt remains.

The utility model is further set as follows: the upper surface of the main body of the stirring device is provided with a fourth clamping groove, the interior of the fourth clamping groove is clamped with an asphalt nozzle, and the top of the asphalt nozzle is fixedly connected with an asphalt pipeline, so One end of the asphalt pipeline is fixedly connected with an asphalt booster pump, and the other end of the asphalt booster pump is fixedly connected with an asphalt storage tank.

By adopting the above technical scheme, the asphalt spraying area is increased when the asphalt booster pump is stirring, so that a larger area can be sprayed on the aggregate.

The utility model is further configured as follows: the outer surface of the main body of the stirring device is fixedly connected with a fixing frame.

By adopting the above technical solution, the fixing frame plays the role of supporting and fixing the main body of the stirring device.

The utility model is further set as: the inner wall of the main body of the stirring device is provided with a thermal insulation layer.

By adopting the above-mentioned technical scheme, it plays a role of heat preservation when mixing asphalt or cleaning asphalt, and slows down the cooling time of the asphalt.

The utility model is further set as: the surface of the rotating shaft is fixedly connected with stirring blades, the number of the stirring blades is sixteen, and the sixteen stirring blades are fixedly connected to the rotating shaft in the form of an annular array. The outer surface.

By adopting the above-mentioned technical scheme, multiple groups of stirring blades work at the same time, and the stirring is more uniform.

The beneficial effects of the utility model are: through the main body of the stirring device, the discharge port, the rotating shaft, the hot blower, the insulation layer, the detergent water tank, the detergent booster pump, the cleaning nozzle and the cleaning brush, after the stirring work is completed, the stirring device When cleaning the main body, the staff first inserts the hot blower into the card slot, connects the asphalt cleaning brush with the threaded hole on the rotating shaft, and then inserts the cleaning nozzle into the card slot, and then the hot blower continues to heat the inside of the main body of the mixing device. Under the action of the layer, the asphalt is heated until it changes from solid asphalt to liquid and flows out. After the detergent water tank is boosted by the detergent booster pump, the cleaning nozzle starts to spray detergent into the main body of the mixing device. At the same time, the motor starts to rotate, driving the motor on the rotating shaft. The asphalt cleaning brush begins to clean the inside of the main body of the mixing device, which further avoids the harm to the staff caused by the gas heating the asphalt when the staff manually cleans the residual asphalt.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention, the accompanying drawings that need to be used in the description of the embodiments will be briefly introduced below. Obviously, the accompanying drawings in the following description are only some implementations of the present invention. For example, those of ordinary skill in the art can also obtain other drawings based on these drawings on the premise of not paying creative efforts.

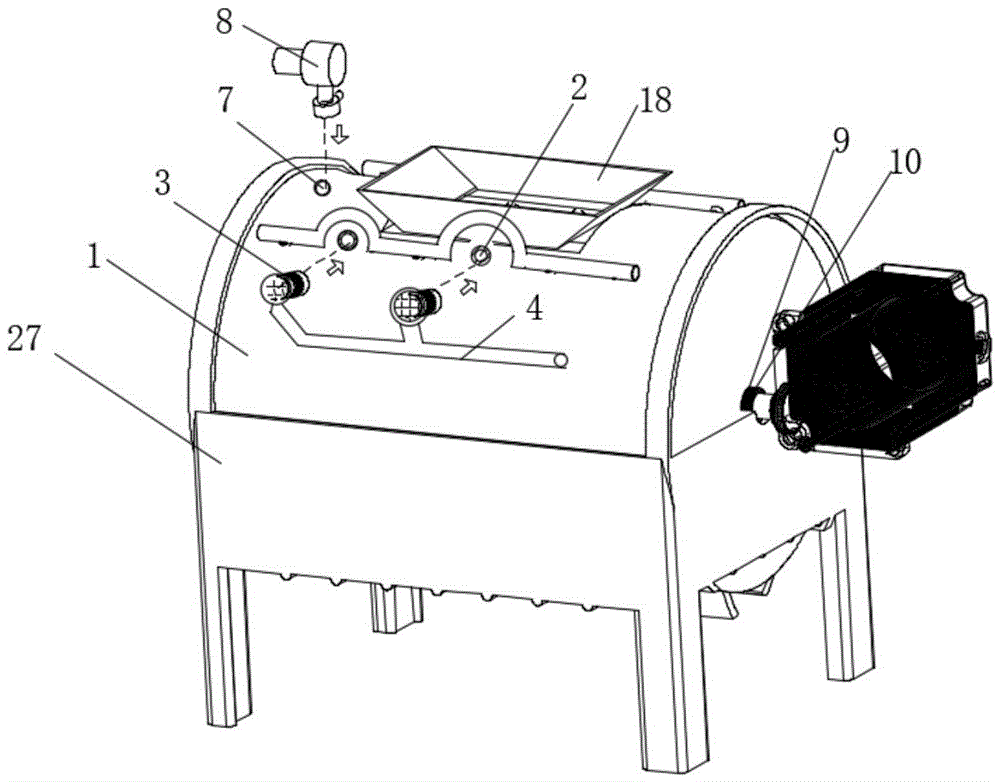

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the structural representation of the utility model stirring blade;

Fig. 3 is the structural representation of the utility model motor;

Fig. 4 is a structural schematic diagram of the outlet of the utility model.

Fig. 5 is a structural schematic diagram of the asphalt storage tank of the present invention.

In the figure, 1. The main body of the stirring device; 2. The first card slot; 3. The cleaning nozzle; 4. The detergent pipeline; 5. The detergent booster pump; 6. The detergent water tank; 7. The second card slot; 8. Hot blower; 9, third card slot; 10, bearing; 11, rotating shaft; 12, first gear; 13, second gear; 14, motor; 15, threaded hole; 16, asphalt cleaning brush; 17, feeding material 18. Enclosure of material inlet; 19. Material outlet; 20. Baffle of material outlet; 21. Hydraulic rod; 22. Fourth slot; 23. Asphalt nozzle; 24. Asphalt pipe; 25. Pressure pump; 26, asphalt storage tank; 27, fixed frame; 28, insulation layer; 29, stirring blade.

Detailed ways

The technical solutions of the present utility model will be clearly and completely described below in conjunction with specific embodiments. Apparently, the described embodiments are only some of the embodiments of the present invention, but not all of them. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Referring to Figures 1-5, an asphalt mixing device includes a mixing device main body 1, the upper surface of the mixing device main body 1 is provided with a feed inlet 17, and the upper surface of the feed inlet 17 is fixedly connected with a feed inlet enclosure 18, and the mixing The bottom of the device main body 1 is provided with a discharge port 19, the lower surface of the discharge port 19 is plugged with a discharge port baffle 20, the lower surface of the discharge port baffle 20 is movably connected with a hydraulic rod 21, and the surface of the rotating shaft 11 There are stirring blades 29 fixedly connected, the number of stirring blades 29 is sixteen, and the sixteen stirring blades 29 are fixedly connected to the outer surface of the rotating shaft 11 in the form of an annular array, and the staff puts the aggregate from the feed port 17 , the motor 14 drives the stirring blade 29 on the rotating shaft 11 to stir, and at the same time, the asphalt booster pump 25 starts to work, and the asphalt is pumped out from the asphalt storage tank 26 and sprayed into the main body of the stirring device 1. After the stirring work is completed, the main body of the stirring device 1 The bottom end is opened by the hydraulic rod 21 to open the discharge port baffle 20, so as to discharge the material. The upper surface of the main body 1 of the stirring device is provided with a first card slot 2, and a cleaning nozzle 3 is clamped inside the first card slot 2. Cleaning One end of the nozzle 3 is fixedly connected with a detergent pipeline 4, one end of the detergent pipeline 4 is fixedly connected with a detergent booster pump 5, the other end of the detergent booster pump 5 is fixedly connected with a detergent water tank 6, and the stirring device main body 1 The upper surface is provided with a second card slot 7, and the inside of the second card slot 7 is clamped with a hot air blower 8. One side of the main body 1 of the stirring device is provided with a third card slot 9, and the inside of the third card slot 9 is fixedly connected with a bearing. 10. The inside of the bearing 10 is fixedly connected with a rotating shaft 11, one end of the rotating shaft 11 is fixedly connected with a first gear 12, the first gear 12 meshes with a second gear 13, one end of the second gear 13 is fixedly connected with a motor 14, and rotates The surface of the shaft 11 is provided with a threaded hole 15, and the internal thread of the threaded hole 15 is connected with an asphalt cleaning brush 16. When cleaning the main body 1 of the stirring device after the stirring work is completed, the staff first inserts the hot blower 8 into the second card slot 7 , connect the asphalt cleaning brush 16 with the threaded hole 15 on the rotating shaft 11, then insert the cleaning nozzle 3 into the first card slot 2, and then the hot blower 8 continues to heat the inside of the mixing device main body 1, under the action of the insulation layer 28 After heating until the asphalt solid becomes liquid and flows out, the detergent water tank 6 is boosted by the detergent booster pump 5 and the cleaning nozzle 3 starts to spray the detergent to the inside of the mixing device main body 1. At the same time, the motor 14 starts to rotate, driving the rotating shaft 11 The asphalt cleaning brush 16 on the top starts to clean the inside of the mixing device main body 1, which further avoids the harm to the staff caused by the gas heating the asphalt when the staff manually cleans the residual asphalt. The upper surface of the mixing device main body 1 is provided with a fourth card slot 22. The inside of the fourth card slot 22 is clamped with an asphalt nozzle 23, the top of the asphalt nozzle 23 is fixedly connected with an asphalt pipeline 24, one end of the asphalt pipeline 24 is fixedly connected with an asphalt booster pump 25, and the other end of the asphalt booster pump 25 An asphalt storage tank 26 is fixedly connected, a fixing frame 27 is fixedly connected to the outer surface of the stirring device main body 1 , and an insulating layer 28 is provided on the inner wall of the stirring device main body 1 .

In the utility model, the worker puts in the aggregate from the feed port 17, and the motor 14 drives the stirring blade 29 on the rotating shaft 11 to stir, and at the same time, the asphalt booster pump 25 starts to work, and the asphalt storage tank 26 draws out the asphalt for increasing. After the stirring work is completed, the bottom end of the stirring device main body 1 is opened by the hydraulic rod 21 to open the discharge port baffle 20, so as to discharge the material 20. After the stirring work is completed, when the stirring device main body 1 is cleaned, The staff first embeds the hot blower 8 into the second card slot 7, connects the asphalt cleaning brush 16 with the threaded hole 15 on the rotating shaft 11, then inserts the cleaning nozzle 3 into the first card slot 2, and then the hot blower 8 continues to stir The inside of the device main body 1 is heated, and under the action of the insulation layer 28, the asphalt solid becomes liquid and the detergent water tank 6 is boosted by the detergent booster pump 5. The cleaning nozzle 3 starts to spray and clean the inside of the stirring device main body 1. At the same time, the motor 14 starts to rotate, driving the asphalt cleaning brush 16 on the rotating shaft 11 to start cleaning the inside of the mixing device main body 1, which further avoids the harm to the staff caused by the gas heating the asphalt when the staff manually cleans the residual asphalt .

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. An asphalt stirring device, comprising a stirring device main body (1), is characterized in that: the upper surface of the stirring device main body (1) is provided with a first draw-in groove (2), and the first draw-in groove (2) The inside of the cleaning nozzle (3) is clamped with a cleaning nozzle (3), and one end of the cleaning nozzle (3) is fixedly connected with a detergent pipeline (4), and one end of the detergent pipeline (4) is fixedly connected with a detergent booster pump (5 ), the other end of the detergent booster pump (5) is fixedly connected with a detergent water tank (6), and the upper surface of the stirring device main body (1) is provided with a second slot (7), the second A hot blower (8) is clamped inside the draw-in slot (7), and a third draw-in slot (9) is provided on one side of the stirring device main body (1), and the inside of the third draw-in slot (9) is fixedly connected to There is a bearing (10), and the inside of the bearing (10) is fixedly connected with a rotating shaft (11), and one end of the rotating shaft (11) is fixedly connected with a first gear (12), and the first gear (12) Engage with a second gear (13), one end of the second gear (13) is fixedly connected with a motor (14), the surface of the rotating shaft (11) is provided with a threaded hole (15), and the threaded hole (15 ) is internally threaded with an asphalt cleaning brush (16). 2. A kind of asphalt stirring device according to claim 1, characterized in that: the upper surface of the stirring device main body (1) is provided with a feed inlet (17), and the upper surface of the feed inlet (17) A material inlet enclosure (18) is fixedly connected, and the bottom end of the stirring device main body (1) is provided with a material outlet (19), and the lower surface of the material outlet (19) is inserted with a material outlet baffle (20), the lower surface of the outlet baffle (20) is movably connected with a hydraulic rod (21). 3. A kind of asphalt stirring device according to claim 1, characterized in that: the upper surface of the stirring device main body (1) is provided with a fourth clamping groove (22), and the fourth clamping groove (22) An asphalt nozzle (23) is clamped inside, and the top of the asphalt nozzle (23) is fixedly connected with an asphalt pipeline (24), and one end of the asphalt pipeline (24) is fixedly connected with an asphalt booster pump (25). The other end of the asphalt booster pump (25) is fixedly connected with an asphalt storage tank (26). 4. An asphalt mixing device according to claim 1, characterized in that: the outer surface of the mixing device main body (1) is fixedly connected with a fixing frame (27). 5. An asphalt mixing device according to claim 1, characterized in that: the inner wall of the mixing device main body (1) is provided with an insulating layer (28). 6. A kind of asphalt mixing device according to claim 1, characterized in that: the surface of the rotating shaft (11) is fixedly connected with stirring blades (29), and the number of the stirring blades (29) is sixteen , and the sixteen stirring blades (29) are fixedly connected to the outer surface of the rotating shaft (11) in the form of an annular array.
