Abstract

The utility model discloses a thermal detection device for working in a power plant. A placement frame is provided, the surface of the cabinet is connected with a control panel, the side of the cabinet is provided with a ventilation plate, and the back of the cabinet is provided with a plug. The power plant works with thermal testing equipment. When the chute slides out The ventilation plate can be disassembled when the position of the plate is rotated. When the plug of the wire is fully inserted into the socket, the spring drives the lever to reset through its own elastic force. After the lever is reset, the plug can be fixed in a limited position, and the motor can be turned on Opening can drive the rotating rod to rotate, and the rotation of the rotating rod can drive the placement frame to rotate. When the placement frame rotates, the parts placed on the surface of the placement frame can be rotated, so that the surface of the parts can be evenly heated.

Description

Thermal testing equipment for power plant work

technical field

The utility model relates to the technical field of power plant work, in particular to thermal detection equipment for power plant work.

Background technique

A power plant, also known as a power station, is a factory that converts various primary energy stored in nature into electrical energy, and thermal testing equipment is used to test the performance of components and materials of power equipment under high temperature and constant temperature changes Indicators, the existing thermal testing equipment for power plant work still has certain defects in use, such as;

Existing thermal testing equipment used in power plants needs to be ventilated when in use. Ventilation panels are often used to dissipate heat from the equipment so as not to affect the life of the equipment. However, a lot of dust will remain on the ventilation surface of the ventilation panels for a long time and affect the ventilation effect. It is not very convenient to disassemble and clean the ventilation plate with advanced testing equipment.

Utility model content

The utility model provides the following technical solutions: the purpose of the utility model is to provide a kind of thermal detection equipment for power plant work, to solve the problem that the existing thermal detection equipment for power plant work on the market proposed by the above background technology is in use There are still some defects when the ventilation plate is ventilated for a long time, a lot of dust will remain on the surface of the ventilation plate, which will affect the ventilation effect. It is not very convenient to disassemble and clean the ventilation plate.

In order to achieve the above purpose, the utility model provides the following technical solutions: a thermal detection equipment for working in a power plant, including: a cabinet and a pulley;

The bottom of the cabinet is connected with a pulley, the surface of the cabinet is fitted with a detection box, the inside of the detection box is provided with a shelf, the surface of the cabinet is connected with a control panel, and the side of the cabinet is provided with Ventilation plate, the back of the cabinet is provided with a plug;

Sliding slots are set on the side of the cabinet body, the inner wall of the sliding slots is provided with threaded slots, the inside of the sliding slots is slidably connected with a ventilation plate, and the inside of the ventilation plate close to the threaded slots is provided with a sliding slot, the sliding slots A rotating groove is formed inside the groove, a threaded rod is connected through the threaded groove and the sliding groove, and a rotating plate is connected to one end of the threaded rod.

Preferably, the threaded rod, the rotating plate and the chute are slidingly connected, and the threaded rod and the threaded groove form a threaded structure, and the threaded rod can slide through the threaded groove when it rotates.

Preferably, there is a sliding connection between the ventilation plate and the sliding groove, the rotating plate and the rotating groove form a rotating structure, and the rotating rotating plate can be rotated through the rotating groove.

Preferably, the cabinet body is also provided with extrusion grooves, rotating shafts, clamping rods and springs;

Extrusion slots are provided on the back of the cabinet body. A rotating shaft is installed inside the extrusion slots. A clamping rod is connected to the surface of the rotating shaft. A spring is connected between the clamping rods and the extrusion slot to pull the wires When the plug is connected to the jack.

Preferably, a rotation structure is formed between the clamping rod and the extrusion groove through a rotating shaft, and the clamping rod and the rotating shaft are integrally structured, and the clamping rod can rotate along the surface of the rotating shaft after being squeezed.

Preferably, a telescoping structure is formed between the clamping rod and the extrusion groove through a spring, and the clamping rod is in a 1-shape, and when the clamping rod rotates, the spring can be pulled to deform.

Preferably, the cabinet is also provided with a connection box, a motor and a rotating rod;

The connection box is connected to the top of the cabinet, the inside of the connection box is connected with a motor, and a rotating rod is connected between the motor and the detection box. Opening can drive the rotating rod to rotate.

Preferably, the placement frame is integrated with the rotating rod, and the rotating rod and the motor form a rotating structure, and the rotation of the rotating rod can drive the placement frame to rotate.

Compared with the prior art, the beneficial effect of the utility model is: the thermal detection equipment used in the power plant can disassemble the ventilation plate when the chute slides out of the position of the rotating plate, and when the plug of the electric wire is fully inserted into the jack Inside, the spring drives the lever to reset through its own elastic force. After the lever is reset, the plug can be limited and fixed, and the motor can be turned on. When the motor is turned on, it can drive the rotating rod to rotate, and the rotation of the rotating rod can drive the placement frame to rotate. While rotating, the components placed on the surface of the rack can be rotated, so that the surface of the components is evenly heated.

1. When the surface of the ventilation plate needs to be cleaned, the rotating rotating plate can rotate through the rotating groove. When the rotating plate rotates, it can drive the threaded rod to rotate. When the threaded rod rotates, it can slide through the threaded groove. Drive the rotating plate to move. When the rotating plate moves, it can be loosened from the rotating groove. When the rotating plate rotates 90°, it can be docked with the chute. When the rotating plate is docked with the chute, the ventilation plate can be pulled. The ventilation plate When pulled, it can drive the chute, threaded rod, and rotating plate to slide. When the chute slides out of the position of the rotating plate, the ventilation plate can be disassembled, which is convenient for disassembling and cleaning the ventilation plate;

2. When it is necessary to use thermal testing equipment, when the plug of the wire is pulled to connect with the socket, the inclined surface of the clamping rod can be squeezed, and the clamping rod can rotate along the surface of the rotating shaft after being squeezed, and the spring can be pulled when the clamping rod rotates Deformation occurs, when the plug of the wire is fully inserted into the jack, the spring drives the lever to reset through its own elastic force, and the lever can be fixed after the lever is reset to prevent the wire from falling off during the operation of the equipment;

3. Because the equipment detects thermal components and materials under the condition of high temperature and constant temperature changes, and checks its various performance indicators. When the inside of the detection box is heated, the motor can be turned on, and the motor can drive the rotating rod to rotate. , the rotation of the rotating rod can drive the placement frame to rotate, and the parts placed on the surface of the placement frame can be rotated while the placement frame is rotating, so that the surface of the parts is convenient to be evenly heated.

Description of drawings

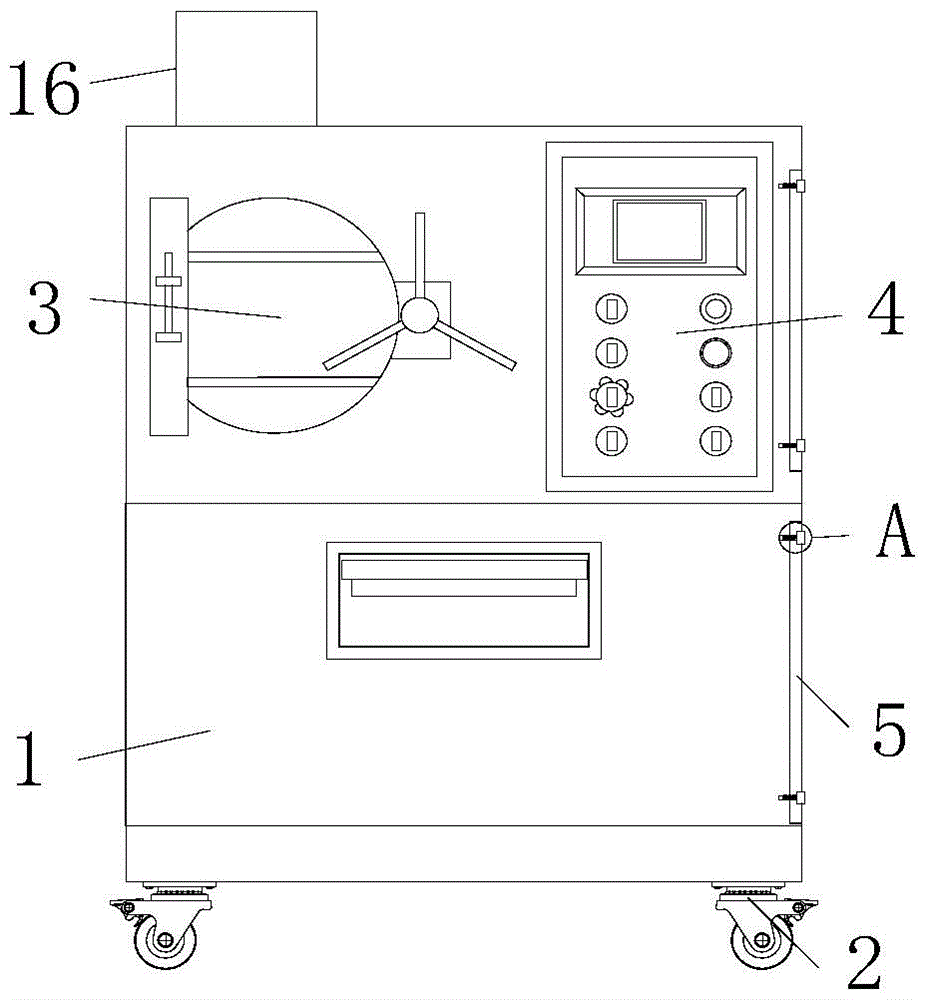

Fig. 1 is the schematic diagram of the utility model front section structure;

Fig. 2 is the schematic diagram of the front section structure of the utility model;

Fig. 3 is the utility model side view sectional structure schematic diagram;

Fig. 4 is the utility model top view structural schematic diagram;

Fig. 5 is the schematic diagram of enlarged structure of part A of the utility model;

Fig. 6 is a schematic diagram of enlarged structure of part B of the utility model.

In the figure: 1. Cabinet body; 2. Pulley; 3. Detection box; 4. Control panel; 5. Ventilation plate; 6. Slide groove; 7. Thread groove; 8. Slide groove; Rod; 11, rotating plate; 12, extrusion groove; 13, rotating shaft; 14, clamping rod; 15, spring; 16, connection box; 17, motor; 18, rotating rod;

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-6, the utility model provides a technical solution: a thermal detection equipment for working in a power plant, including: a cabinet 1 and a pulley 2;

The bottom of the cabinet 1 is connected with a pulley 2, the surface of the cabinet 1 is embedded with a detection box 3, and the inside of the detection box 3 is provided with a shelf 19, the surface of the cabinet 1 is connected with a control panel 4, and the side of the cabinet 1 is provided with a ventilation system. Plate 5, a plug 20 is provided on the back of the cabinet body 1, and a sliding groove 6 is provided on the side of the cabinet body 1. The inner wall of the sliding groove 6 is provided with a threaded groove 7, and the inside of the sliding groove 6 is slidably connected with a ventilation plate 5, which is close to the threaded groove 7. Ventilation plate 5 is provided with chute 8 inside, chute 8 is provided with rotating groove 9 inside, threaded groove 7 and chute 8 are connected with threaded rod 10 inside, and one end of threaded rod 10 is connected with rotating plate 11.

The threaded rod 10, the rotating plate 11 and the chute 8 are slidingly connected, and the threaded rod 10 and the threaded groove 7 form a threaded structure.

There is a sliding connection between the ventilation plate 5 and the sliding groove 6, and the rotating plate 11 and the rotating groove 9 form a rotating structure.

Referring to Fig. 1, 3, 5, it can be seen that when the surface of the ventilation plate 5 needs to be cleaned, the rotating rotating plate 11 can be rotated through the rotating groove 9, and the rotating plate 11 can drive the threaded rod 10 to rotate, and the threaded rod 10 can rotate. The threaded sliding is carried out through the threaded groove 7. When the threaded rod 10 is threaded and slid, it can drive the rotating plate 11 to move. Docking, when the rotating plate 11 is docked with the chute 8, the ventilation plate 5 can be pulled. When the ventilation plate 5 is pulled, it can drive the chute 8 to slide with the threaded rod 10 and the rotating plate 11. When the chute 8 slides out and rotates Ventilation plate 5 can be disassembled when the position of plate 11, conveniently disassembles and cleans ventilation plate 5.

Cabinet body 1 is also provided with extruding groove 12, rotating shaft 13, clamp bar 14 and spring 15, extruding groove 12, offers the back side of cabinet body 1, and extruding groove 12 interior is equipped with rotating shaft 13, and the surface of rotating shaft 13 is connected There is a clamping rod 14, and a spring 15 is connected between the clamping rod 14 and the extrusion groove 12.

A rotating structure is formed between the locking rod 14 and the extrusion groove 12 through the rotating shaft 13, and the locking rod 14 and the rotating shaft 13 are integrally formed.

A telescoping structure is formed between the clamping rod 14 and the extrusion groove 12 through a spring 15, and the clamping rod 14 is in a 1-shape.

Referring to Figures 3, 4, and 6, it can be seen that when the thermal detection equipment needs to be used, when the plug 20 of the pulling wire is connected to the jack, the inclined surface of the clamping rod 14 can be squeezed, and the clamping rod 14 can be squeezed along the rotation axis. The surface of 13 rotates, and when the clamping rod 14 rotates, the spring 15 can be pulled to be deformed. When the plug 20 of the electric wire is fully inserted into the jack, the spring 15 drives the clamping rod 14 to reset by its own elastic force, and the clamping rod 14 can reset the plug 20 after being reset. The limit is fixed to prevent the wire from falling off during the operation of the equipment.

The cabinet 1 is also provided with a connection box 16, a motor 17 and a rotating rod 18. The connection box 16 is connected to the top of the cabinet 1. The inside of the connection box 16 is connected with a motor 17, and the motor 17 and the detection box 3 are connected through a Turn bar 18, and the surface of turn bar 18 is connected with placement frame 19.

The placement frame 19 is integrated with the rotating rod 18, and the rotating rod 18 and the motor 17 form a rotating structure.

Referring to Fig. 1, it can be seen that because the equipment detects thermal components and materials under the condition of high temperature and constant temperature change, and checks its various performance indicators, when the inside of the detection box 3 is heated, the motor 17 can be turned on, and the motor 17 is turned on Can drive rotating rod 18 to rotate, and rotating rod 18 rotates and can drive placement frame 19 to rotate, and placement frame 19 can rotate the parts placed on the surface of placement frame 19 when the placement frame 19 rotates, convenient parts surface is evenly heated.

Working principle: When using the thermal testing equipment for working in a power plant, first, when the thermal testing equipment needs to be used, when the plug 20 of the wire is pulled to connect with the jack, the inclined surface of the clamping rod 14 can be squeezed, and the clamping rod 14 can be pressed. The rod 14 is squeezed and can rotate along the surface of the rotating shaft 13. When the clamping rod 14 rotates, the spring 15 can be pulled to deform. When the plug 20 of the electric wire is fully inserted into the jack, the spring 15 drives the clamping rod 14 to reset by its own elastic force, and the clamping rod 14 After resetting, the plug 20 can be fixed in a limited position, because this equipment detects thermal components and materials under the condition of high temperature and constant temperature changes, and checks its various performance indicators. When the inside of the detection box 3 is heated, it can be Open motor 17, motor 17 is opened and can drive rotating rod 18 to rotate, and rotating rod 18 rotates and can drive placing rack 19 to rotate, and placing rack 19 can rotate the parts placed on the surface of placing rack 19 while rotating, convenient parts surface Evenly heated, when the surface of the ventilation plate 5 needs to be cleaned, the rotating rotating plate 11 can be rotated through the rotating groove 9, and the rotating plate 11 can drive the threaded rod 10 to rotate, and the threaded rod 10 can be rotated through the threaded groove 7. The thread slides, and the threaded rod 10 can drive the rotating plate 11 to move when the thread slides. When the rotating plate 11 moves, it can be loosened with the rotating groove 9. When the rotating plate 11 rotates 90°, it can be docked with the chute 8. When the rotating plate When 11 is docked with the chute 8, the ventilation plate 5 can be pulled. When the ventilation plate 5 is pulled, it can drive the chute 8 to slide with the threaded rod 10 and the rotating plate 11. When the chute 8 slides out of the position of the rotating plate 11 The ventilating plate 5 can be disassembled to facilitate disassembly and cleaning of the ventilating plate 5. The content not described in detail in this description belongs to the prior art known to those skilled in the art.

Although the utility model has been described in detail with reference to the aforementioned embodiments, those skilled in the art can modify the technical solutions described in the aforementioned embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principles of the utility model, any modification, equivalent replacement, improvement, etc., should be included in the protection scope of the utility model.

Claims (8)

1. A thermal testing apparatus for operation of a power plant, comprising: the cabinet body (1) and the pulley (2) are characterized in that;

the bottom of the cabinet body (1) is connected with pulleys (2), a detection box (3) is embedded in the surface of the cabinet body (1), a placing frame (19) is arranged inside the detection box (3), a control panel (4) is connected to the surface of the cabinet body (1), a ventilating plate (5) is arranged on the side face of the cabinet body (1), and a plug (20) is arranged on the back face of the cabinet body (1);

the cabinet body is characterized by comprising a sliding groove (6) which is formed in the side face of the cabinet body (1), a thread groove (7) is formed in the inner wall of the sliding groove (6), a ventilating plate (5) is connected to the inside of the sliding groove (6) in a sliding mode, a sliding groove (8) is formed in the ventilating plate (5) and is close to the thread groove (7), a rotating groove (9) is formed in the sliding groove (8) in a penetrating mode, a threaded rod (10) is connected to the inside of the thread groove (7) and the sliding groove (8) in a penetrating mode, and a rotating plate (11) is connected to one end of the threaded rod (10).

2. The thermal detection equipment for power plant operation of claim 1, wherein: the threaded rod (10), the rotating plate (11) and the sliding groove (8) are in sliding connection, and the threaded rod (10) and the threaded groove (7) form a threaded structure.

3. The thermal detection equipment for power plant operation of claim 1, wherein: the ventilation plate (5) is in sliding connection with the sliding groove (6), and the rotating plate (11) and the rotating groove (9) form a rotating structure.

4. The thermal detection equipment for power plant operation of claim 1, wherein: the cabinet body (1) is also provided with an extrusion groove (12), a rotating shaft (13), a clamping rod (14) and a spring (15);

extrusion groove (12) set up the back of the cabinet body (1), extrusion groove (12) internally mounted has pivot (13), the surface connection of pivot (13) has kelly (14), be connected with spring (15) between kelly (14) and extrusion groove (12).

5. The thermal detection equipment for power plant operation of claim 4, wherein: a rotating structure is formed between the clamping rod (14) and the extrusion groove (12) through a rotating shaft (13), and the clamping rod (14) and the rotating shaft (13) are of an integral structure.

6. The thermal detection equipment for power plant operation of claim 4, wherein: a telescopic structure is formed between the clamping rod (14) and the extrusion groove (12) through a spring (15), and the clamping rod (14) is 1-shaped.

7. The thermal detection equipment for power plant operation of claim 1, wherein: the cabinet body (1) is also provided with a connecting box (16), a motor (17) and a rotating rod (18);

connecting box (16) is connected the top of the cabinet body (1), connecting box (16) internal connection has motor (17), through connection has dwang (18) between motor (17) and detection case (3), dwang (18) surface connection has rack (19).

8. The thermal detection equipment for power plant operation of claim 7, wherein: the rack (19) and the rotating rod (18) are of an integral structure, and the rotating rod (18) and the motor (17) form a rotating structure.
